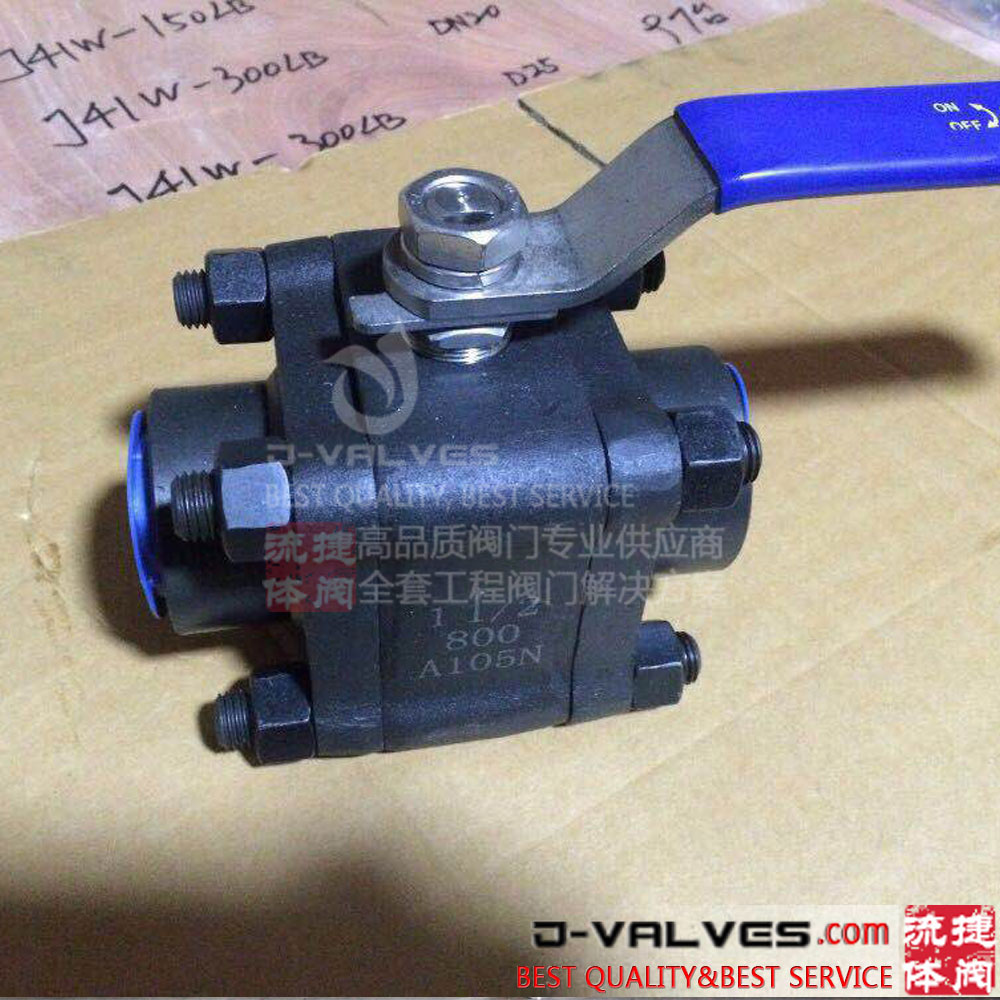

Forged Steel A105 3PC Threaded Ball Valve Class800



1.Forged Steel A105 3PC Threaded Ball Valve Class800 Main Parts and Materials:



1. Size: 1/2~2 inch

2. Max. Pressure: 21 MPa

3. Threaded Ends: NPT. BSPT. DIN259, DIN2999, ISO228 CLASS

3PC Forged Steel Ball Valve


2.Forged Steel A105 3PC Threaded Ball Valve Class800 Feature:

1. Size: 1/2~2 in

2. Full Bore

3. Forging body

4. Max. Pressure: 21 MPa/3000 PSI (PN210)

5. Blow-out proof stem

6. Temperature Range: -20℃~232℃

7. Threaded Ends: NPT. BSPT. DIN259, DIN2999, ISO228 CLASS A

8. Suitable Medium: Water, Oil, Air and some corrosive liquids

9. Material Standard: S45C/ASTM A216 Gr-WCB /DIN 1.00619

                                   SS316/ASTM A351 Gr-CF8M/DIN1.4408

                                   SS304/ASTM A351Gr-CF8/DIN1.4308

J-VALVE Note: All the data should be confirmed with the approved drawings of manufacturer.
