Fluids in oil pipelines usually contain various corrosive components, such as sulfides, acid gases, salts, and microorganisms. These components can cause chemical corrosion, electrochemical corrosion, and microbiological corrosion of metal components. In addition, the high-temperature and high-pressure environment in oil pipelines can also accelerate the corrosion process. Therefore, the corrosion-resistant design of Y-type and T-type filters must comprehensively consider material selection, surface treatment, structural optimization, and maintenance strategies.

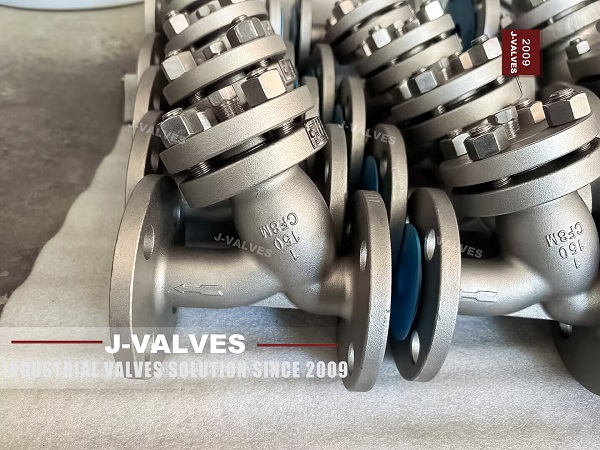

Main Body Material: The main body of the Y-type filter usually adopts stainless steel (such as 316L) or alloy steel. These materials have good corrosion resistance and mechanical strength. In highly corrosive environments, duplex stainless steel or super stainless steel can also be selected.
Filter Screen Material: The filter screen is a key component of the Y-type filter. Usually, stainless steel sintered mesh or multi-layer composite filter screen is used. These materials are not only highly corrosion-resistant but also can effectively filter impurities.
Coating Protection: Coating an anti-corrosion coating on the surface of the filter, such as Teflon (PTFE) or epoxy resin, can effectively isolate corrosive media. These coatings have good chemical stability and wear resistance.
Plating Technology: Using electroplating or electroless plating technology, a layer of corrosion-resistant metal, such as nickel-phosphorus alloy, is plated on the surface of the filter. This kind of plating can significantly improve the anti-corrosion performance of the filter.
Streamlined Design: Optimize the streamlined structure inside the filter to reduce the eddy current and retention of the fluid in the filter, thereby reducing the corrosion risk.
Detachable Design: Design the filter screen as a detachable module, which is convenient for quick replacement and cleaning, reducing maintenance time and downtime costs.
Main Body Material: The main body of the T-type filter is usually made of stainless steel (such as 304 or 316L) or carbon steel. In highly corrosive environments, it is recommended to give priority to stainless steel materials.
Filter Mesh Material: The filter mesh of the T-type filter is usually made of stainless steel wire mesh, and its density can be selected according to needs, ranging from 10 meshes to 120 meshes. The stainless steel wire mesh has good corrosion resistance and filtering performance.
Coating Protection: Apply an anti-corrosion coating, such as Teflon or epoxy resin, on the surface of the filter. These coatings can effectively isolate corrosive media and extend the service life of the filter.
Plating Technology: Use electroplating or electroless plating technology to deposit a layer of corrosion-resistant metal on the surface of the filter. This kind of plating can significantly improve the corrosion resistance of the filter.
Streamlined Design: Optimize the streamlined structure inside the filter to reduce the eddy current and retention of the fluid in the filter. This design can reduce the corrosion risk and improve the filtering efficiency.
Drainage Design: The T-type filter is usually designed with a convenient drainage port to facilitate the regular discharge of impurities. This design can reduce the accumulation of impurities in the filter and lower the corrosion risk.
