The Basic Structure And Working Principle Of The Globe Valve
I.Basic Structure

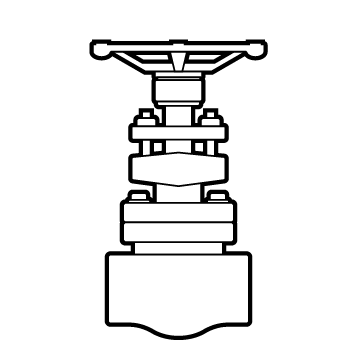

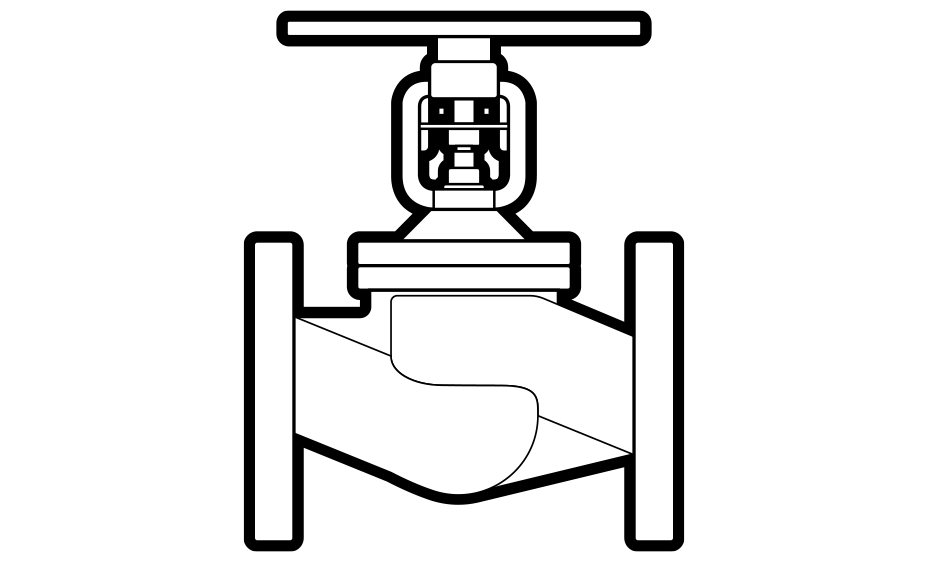

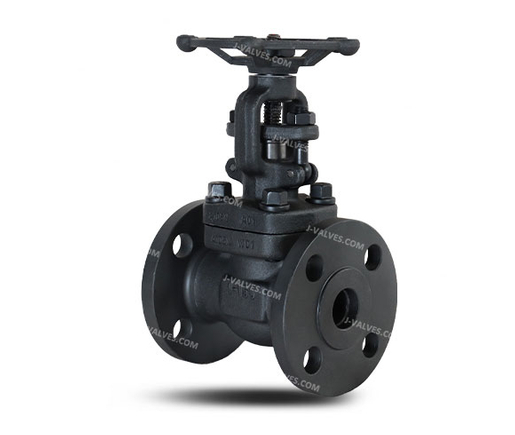

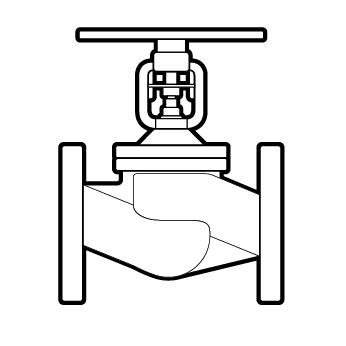

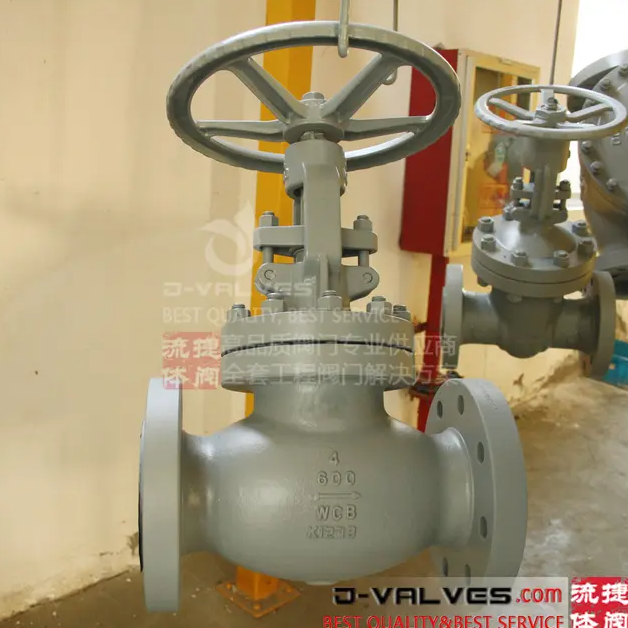

The basic structure of the globe valve includes valve body, valve cover, valve stem, valve disc, seat, packing box and handwheel and other main components. The valve body is the main frame of the globe valve, which is used to carry fluid pressure and hold other components. The bonnet is used to seal the top of the valve body to prevent fluid leakage. The valve stem is the key component connecting the handwheel and the valve disc. By rotating the handwheel, the valve stem drives the valve disc to move up and down to realize the opening and closing of the valve. The valve flap is the opening and closing part of the globe valve, usually in the shape of a plug, and its sealing surface is closely fitted with the sealing surface of the seat to form a sealing pair to prevent fluid from passing through. The packing box is located between the valve stem and the valve cover and is filled with packing to seal the gap between the valve stem and the valve cover and prevent fluid leakage. The handwheel is a part of the manual operation of the globe valve, and the lifting of the valve stem is controlled by rotating the handwheel, so as to realize the opening and closing operation of the valve.
II.Working Principle
The working principle of the globe valve is based on the linear motion of the disc. When the hand wheel is rotated clockwise, the stem drives the valve disc downward, the sealing surface of the valve disc is closely fitted to the sealing surface of the seat, the fluid channel is cut off, and the valve is closed. On the contrary, when the hand wheel is rotated counterclockwise, the stem drives the valve disc to move upward, the valve disc is separated from the seat, the fluid channel is opened, and the valve is opened. In addition, the globe valve can also adjust the flow of fluid by controlling the height of the lift of the valve disc, but its adjustment accuracy is relatively low, and it is more suitable for cutting off or simple flow control. The globe valve has the advantages of simple structure, good sealing performance, long service life, etc., but its fluid resistance is large, the opening and closing torque is high, and the medium can only flow one-way. Therefore, when selecting the globe valve, it is necessary to make a reasonable selection according to the actual working conditions and media characteristics to ensure that it plays the best performance in the pipeline system.

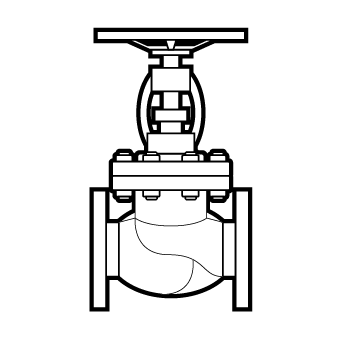

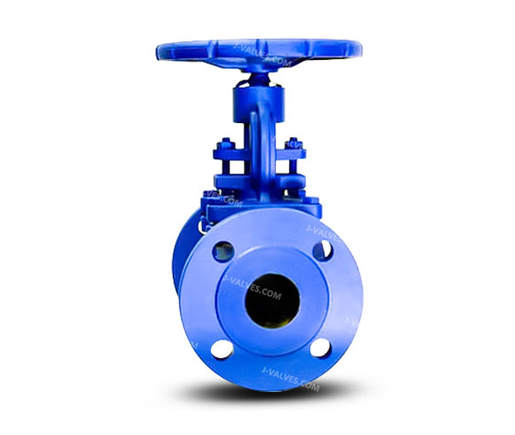

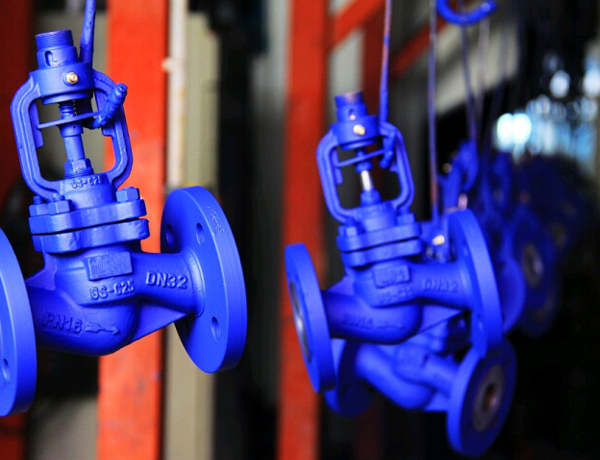

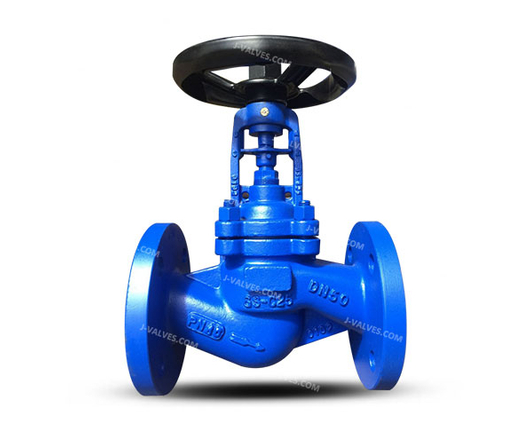

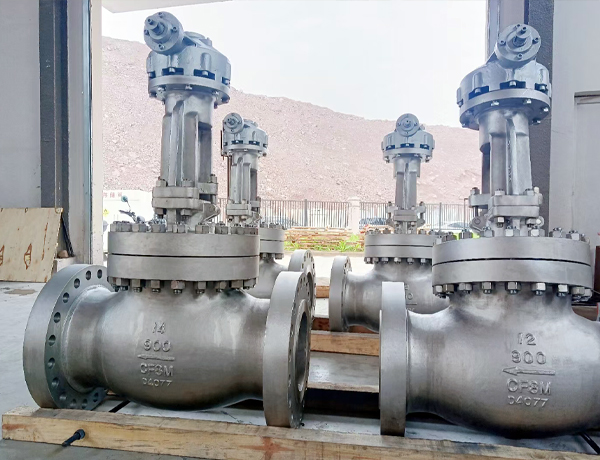

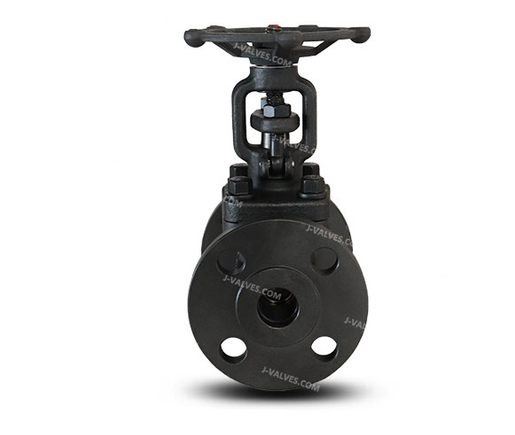

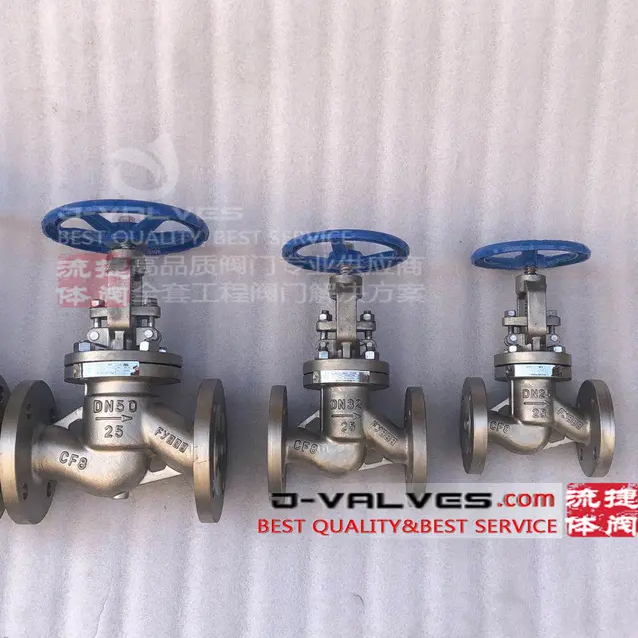

J-VALVES understands that different industries have different requirements for globe valves, and therefore offers a wide range of models and specifications, including bellows seals, Y-shaped and angular valves, to meet the needs of different application scenarios. In addition, we also provide customized services to adjust the material, size and sealing form of the valve according to the special requirements of the customer to ensure that the product is perfectly suited to your process.

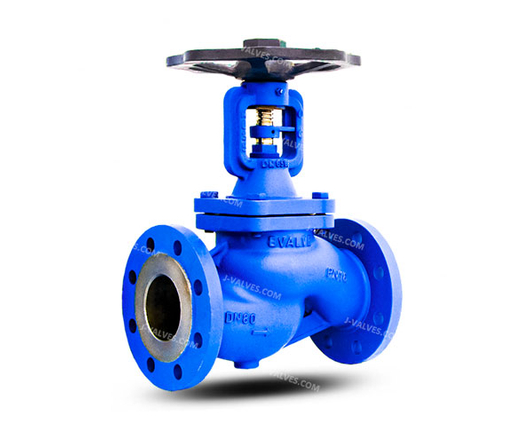

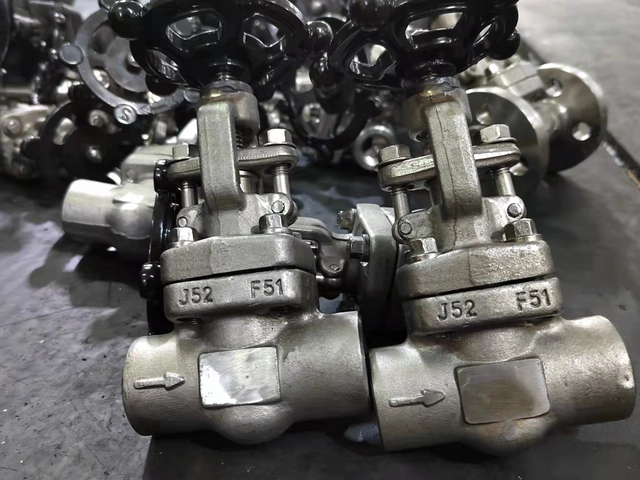

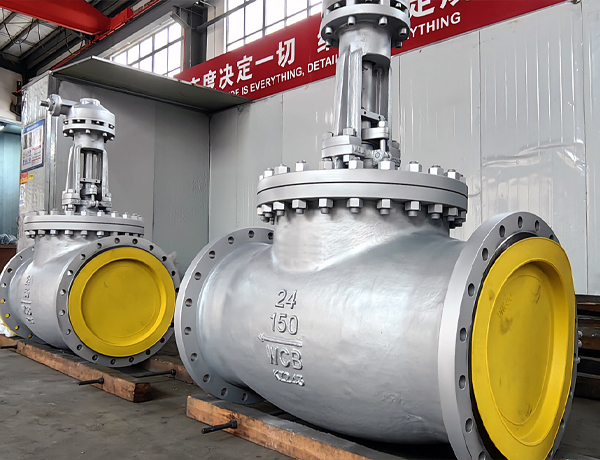

J-VALVES are manufactured of high quality materials, with bodies made of high strength cast steel or stainless steel and discs and seats made of wear-resistant and
corrosion-resistant alloys. These materials not only ensure the strength and durability of the valve, but also effectively resist corrosion and wear under harsh working conditions. Through rigorous quality and durability testing.
The globe valve is designed with precision machined disc and seat, and the sealing surface is tightly fitted to achieve zero leakage in high pressure and corrosive environments. This excellent sealing effect not only improves the safety of the system, but also effectively reduces the waste of resources and environmental pollution caused by leakage.

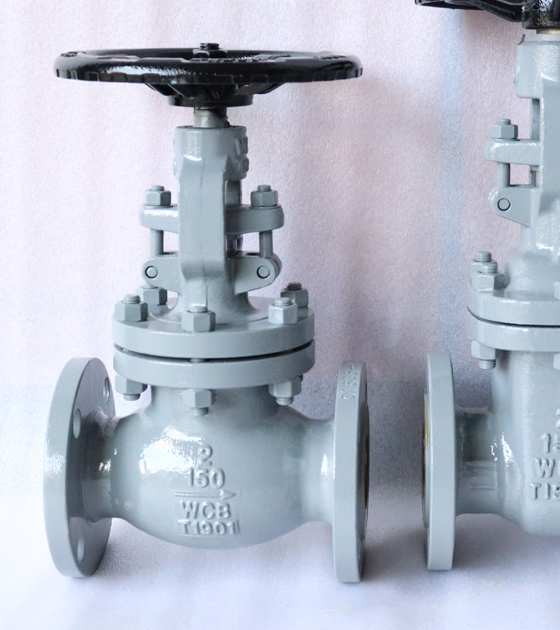

The main structure of the globe valve is usually made of high strength cast steel or stainless steel, with excellent corrosion and wear resistance. Even under frequent opening and closing conditions, it can maintain stable performance, significantly extending the service life of the valve and reducing maintenance costs.
The globe valve is suitable for a variety of media and working conditions, including water, steam, oil, acid and alkali solutions. Whether it is high temperature and high pressure environment, or corrosive media, it can meet the needs by choosing the right material and sealing form, making it an "all-round player" in industrial fluid control.

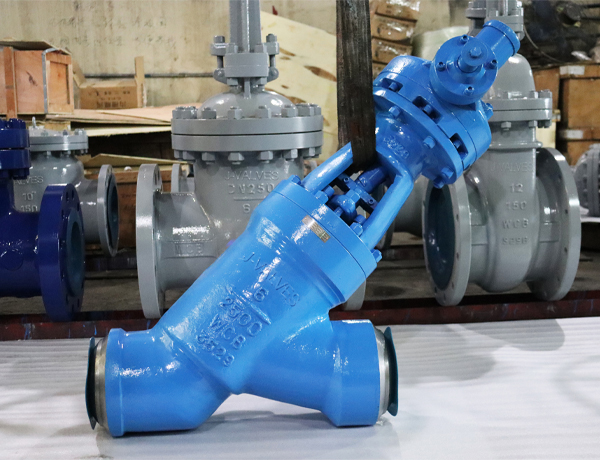

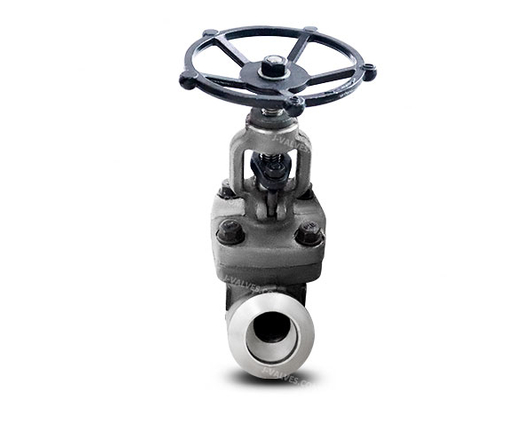

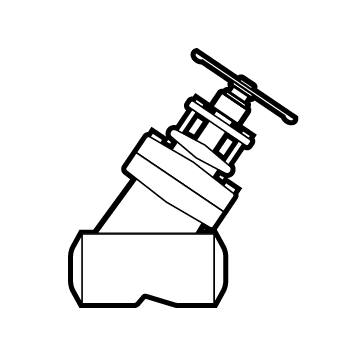

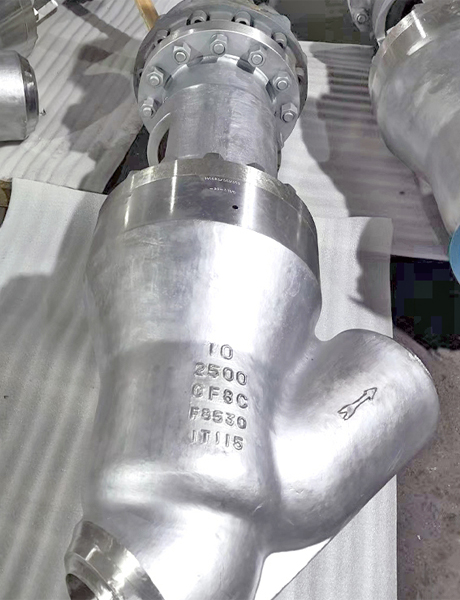

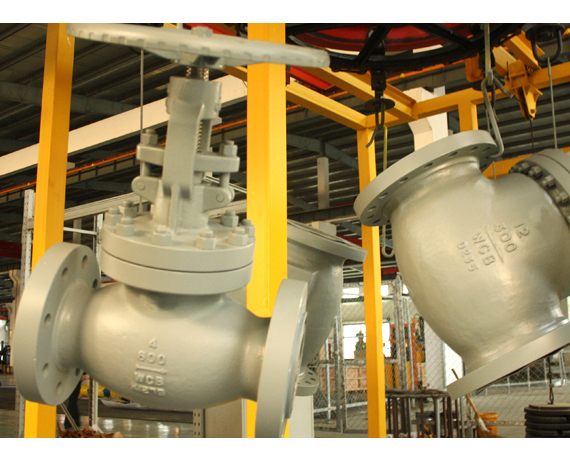

Y-type globe valve, because its valve body is "Y" shape named, this unique shape design contains powerful functional advantages. Compared with the traditional straight-through stop valve, the flow path of the Y-type stop valve is more smooth and the fluid resistance is significantly reduced. When the medium flows through the valve, it can be passed in a more efficient manner, greatly reducing pressure loss

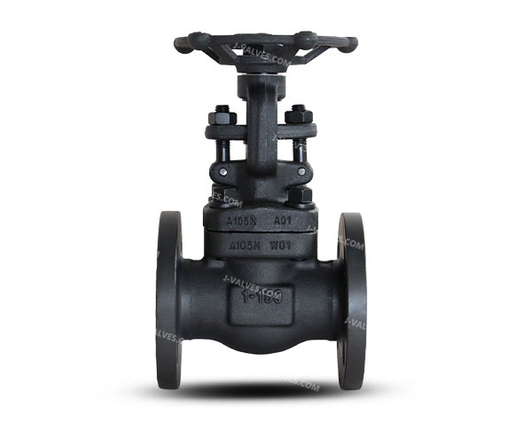

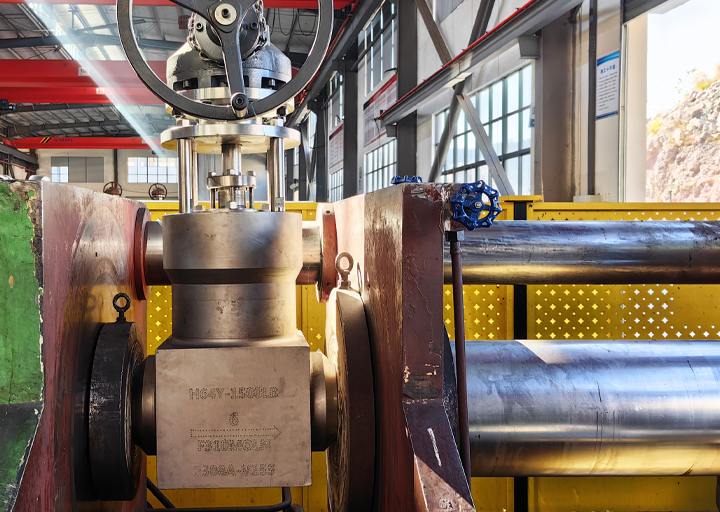

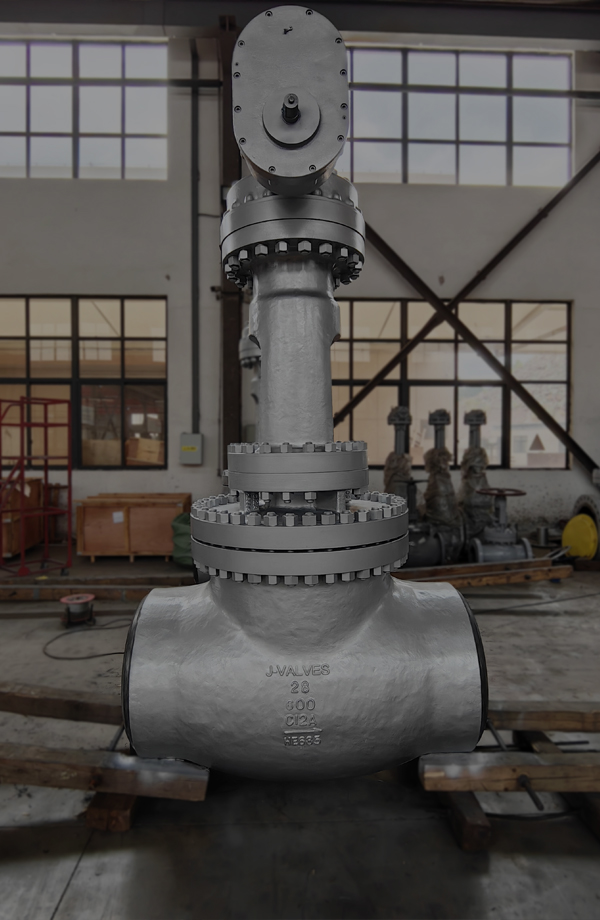

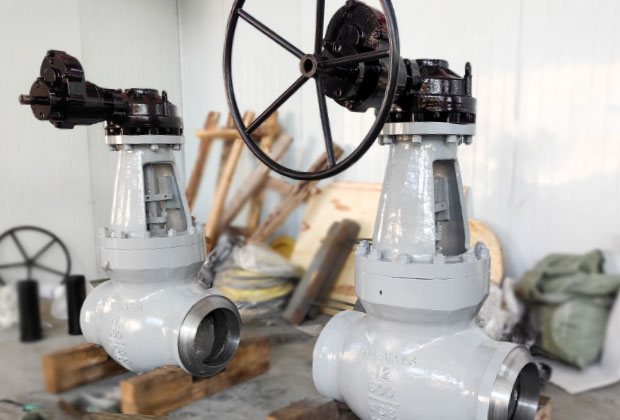

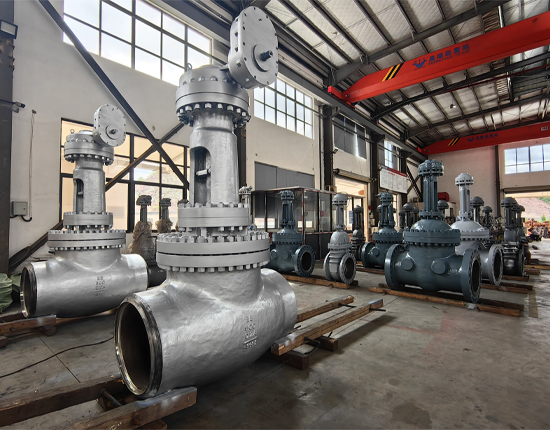

The Quality Industrial Valve Product Made in China J-VALVES Rising Stem Carbon Steel A105n BW Pressure Seal Globe Valve is a
high-performance industrial valve. Constructed from A105N forged steel, it offers excellent strength and durability to withstand high-pressure environments up to 1500LB. The self-sealing design ensures reliable and leak-free operation, minimizing the risk of fluid loss and enhancing overall system safety.
The globe valve regulates the flow mainly by changing the flow area between the valve disc and the seat. When operating, rotate the handle or drive, and the stem drives the disc up and down. When the valve disc moves up, the flow area increases and the flow volume increases. When the valve disc moves down, the flow area becomes smaller and the flow rate decreases. In addition, the change of flow area is proportional to the stroke of the valve disc, and more accurate flow control can be achieved.

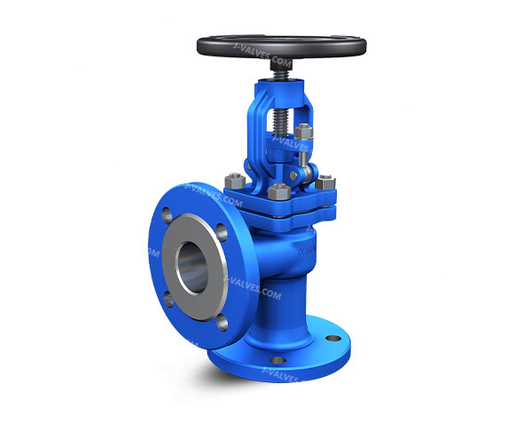

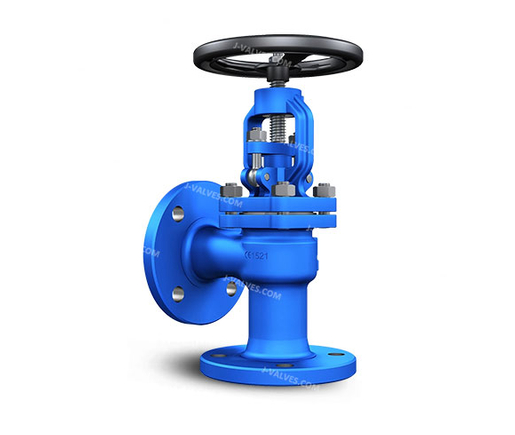

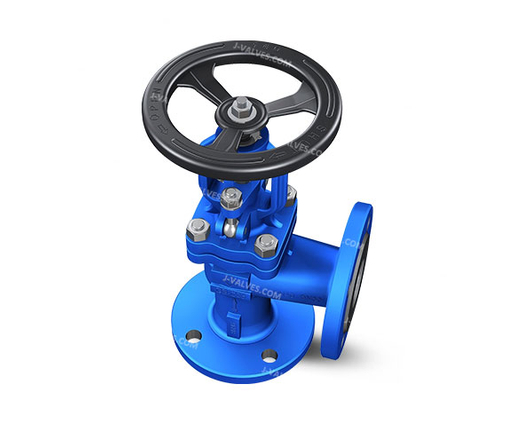

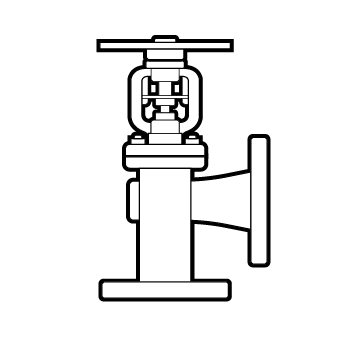

Angle globe valve from the petrochemical field of crude oil refining, pipeline transportation, to the metallurgical industry of high temperature furnace, heat exchange system; From the water supply and heating pipe network in urban construction to the sewage treatment and waste gas discharge facilities in the environmental protection industry, the Angle globe valve has played a big role in various key links with its excellent performance and has become an indispensable core component in many industries.Our angle globe valves not only have excellent quality, but also fully consider the design of ease of installation and flexibility. Provide a variety of connection methods, such as flange connection, thread connection, welding connection, etc., suitable for all kinds of pipe systems, to meet the diverse needs of different users. Its durable material and exquisite manufacturing process

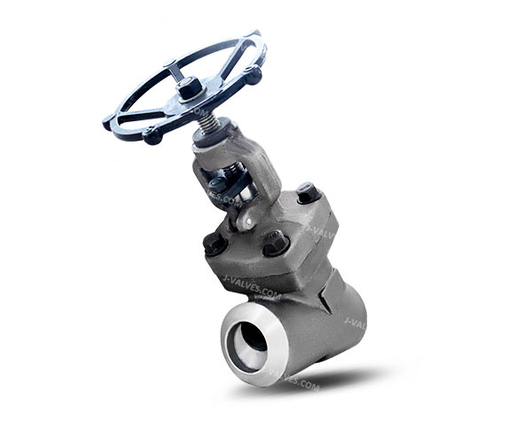

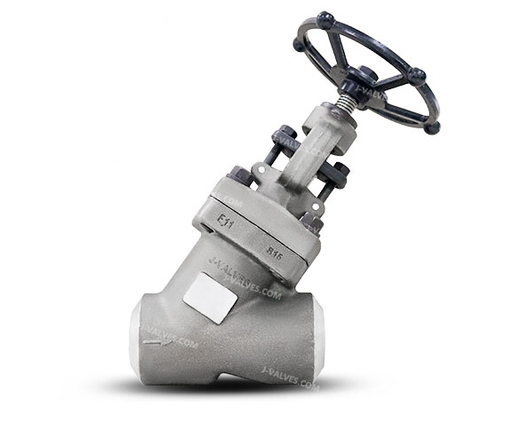

With its unique design and excellent performance, Y-type globe valves are gradually becoming the first choice of many enterprises and engineers. Compared with the traditional globe valve, the Y-type globe valve uses an innovative flow channel design, the valve body channel and the valve seat channel are designed to form a "Y" shape structure at a certain Angle to each other, which not only optimizes the flow path of the fluid, but also significantly reduces the fluid resistance and improves the overall efficiency of the system.
The core advantage of the Y-type globe valve is its unique structural design. This "Y" channel structure allows fluid to flow more smoothly through the valve, reducing the vortex and pressure loss common in traditional stop valves.

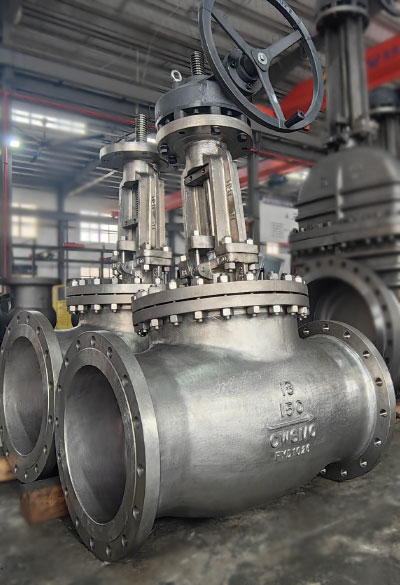

Manufactured from high-quality materials, J-VALVES undergo a rigorous quality inspection process to ensure that each product operates in high-pressure, high-temperature and highly corrosive environments. Its unique sealing design and precision processing technology ensure excellent sealing performance and long service life, effectively reducing maintenance costs.
J-VALVES globe valves uses advanced manufacturing technology and high-quality materials to ensure that each valve accurately controls the flow on and off.
The valve body of the J-VALVES globe valve is made of
high-strength alloy and has strong pressure and corrosion resistance. In harsh working conditions such as petrochemical industry, it can effectively cope with high temperature, high pressure and strong corrosive media, reduce faults and extend equipment life.
As the key to controlling the fluid, the disc and seat are specially ground to achieve a micron fit accuracy. This not only ensures a good seal and no leakage, but also distributes the force evenly during frequent switching, increasing durability and reliability, and accurately controlling the fluid.
The globe valve is equipped with a variety of driving structures, the manual handle is convenient to operate, and the electric and pneumatic actuators are automatically adapted. The drive structure and the main body are connected tightly, the transmission is efficient, and the command can be quickly responded to meet the operation requirements of different industrial scenarios.
