In industrial fluid systems, filters are key devices that ensure the purity of fluids and protect downstream equipment from impurity damage. The Y-type filter is widely used in multiple fields such as chemical engineering, petroleum, water treatment, and food processing due to its unique structural design and highly efficient filtration performance.
I. Structural Design of Y-Type Filter
(1) Appearance and Basic Composition

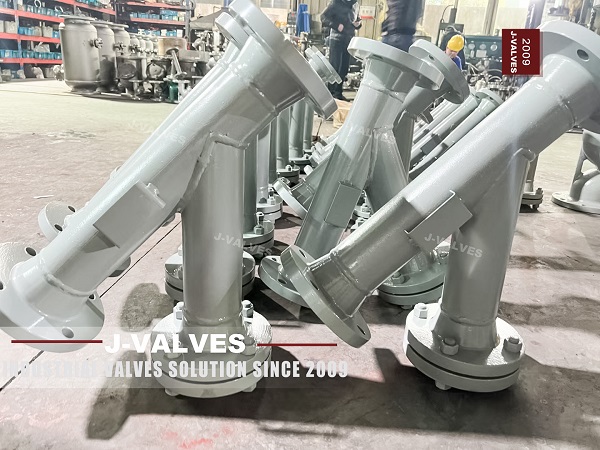

The Y-type filter is named for its shape resembling the letter "Y", and its structural design is simple yet efficient. The main components include:
• Connecting pipe: It is used to connect the pipeline system to ensure the smooth entry and exit of the fluid from the filter.
• Main pipe: The main body of the filter, with a filter screen installed inside. The fluid undergoes the filtration process within the main pipe.
• Filter screen: The core component of the filter, usually made of stainless steel wire mesh or other corrosion-resistant materials, is used to intercept solid impurities in the fluid.
• Flange: It is used to connect the filter with the piping system, ensuring sealing and preventing fluid leakage.
• Flange cover: It is used to seal the main pipe of the filter, facilitating the disassembly and cleaning of the filter screen.
1. Compact Design: The Y-type filter has a compact structure, small volume and light weight, making it suitable for installation in pipeline systems with limited space. This design not only saves space but also is convenient for installation and maintenance.
2. Optimize the flow channel: The flow channel design of the Y-type filter enables the fluid to pass smoothly through the filter screen, reducing pressure loss. This optimized flow channel design enhances the filtration efficiency while reducing energy consumption.
3. Easy to maintain: The filter screen is installed inside the main pipe, and it can be quickly cleaned or replaced by removing the flange cover. This design greatly simplifies the maintenance process and reduces downtime.
II. The High-Efficiency Filtration Principle of Y-type Filters
When the fluid enters the Y-type filter, it first passes through the connecting pipe into the main pipe. When the fluid flows in the main pipe, through the interception effect of the filter screen, solid impurities are retained on the inner side of the filter screen, while the clean fluid flows out of the filter through the pores of the filter screen and is discharged from the outlet. This process ensures the purity of the fluid and protects downstream equipment from being damaged by impurities.
The filtration accuracy of the Y-type filter mainly depends on the pore size of the filter screen. Filter screens are usually made of stainless steel wire mesh or other corrosion-resistant materials, and the pore size can be customized as needed. The common filter screen pore size range is from 325 mesh to 800 mesh, which can effectively intercept solid particles with a particle size of ≥50 microns. This high-precision filtration capability enables the Y-type filter to perform well in fine filtration scenarios.
The optimized flow channel design of the Y-type filter ensures that the pressure loss of the fluid is minimized when passing through the filter screen. Compared with the traditional straight-through filter, the flow channel design of the Y-type filter is smoother, reducing the resistance of the fluid during the filtration process. This design not only enhances the filtration efficiency but also reduces the energy consumption of the system, making it particularly suitable for low-flow and high-precision filtration requirements.
