J-VALVES-BV-60
J-VALVES
8481804090

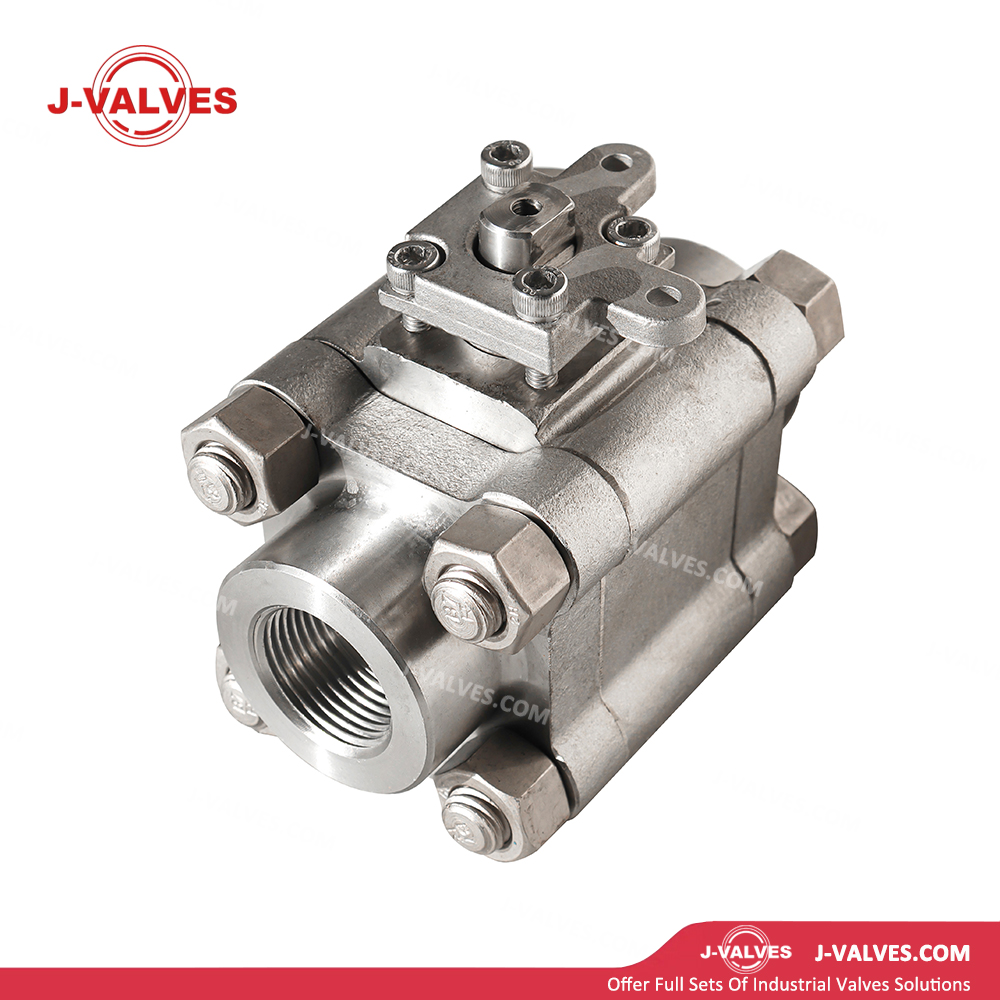

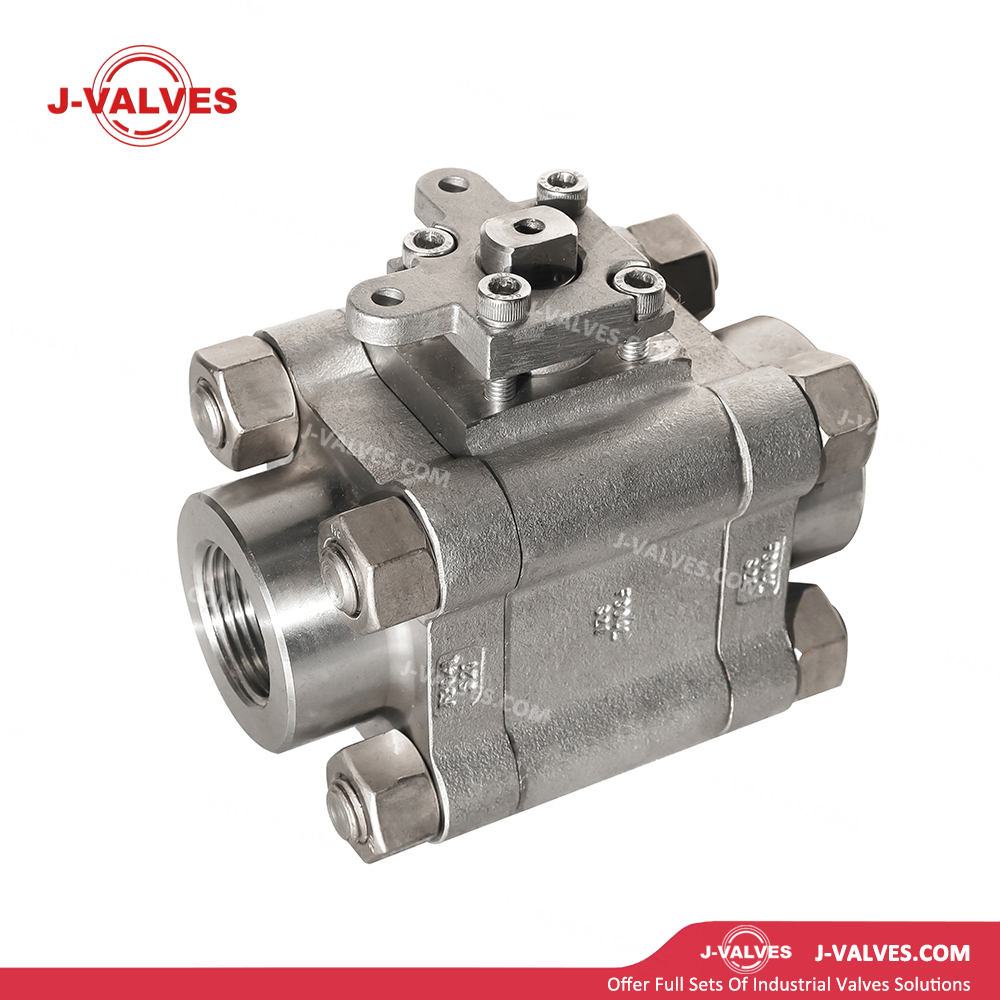

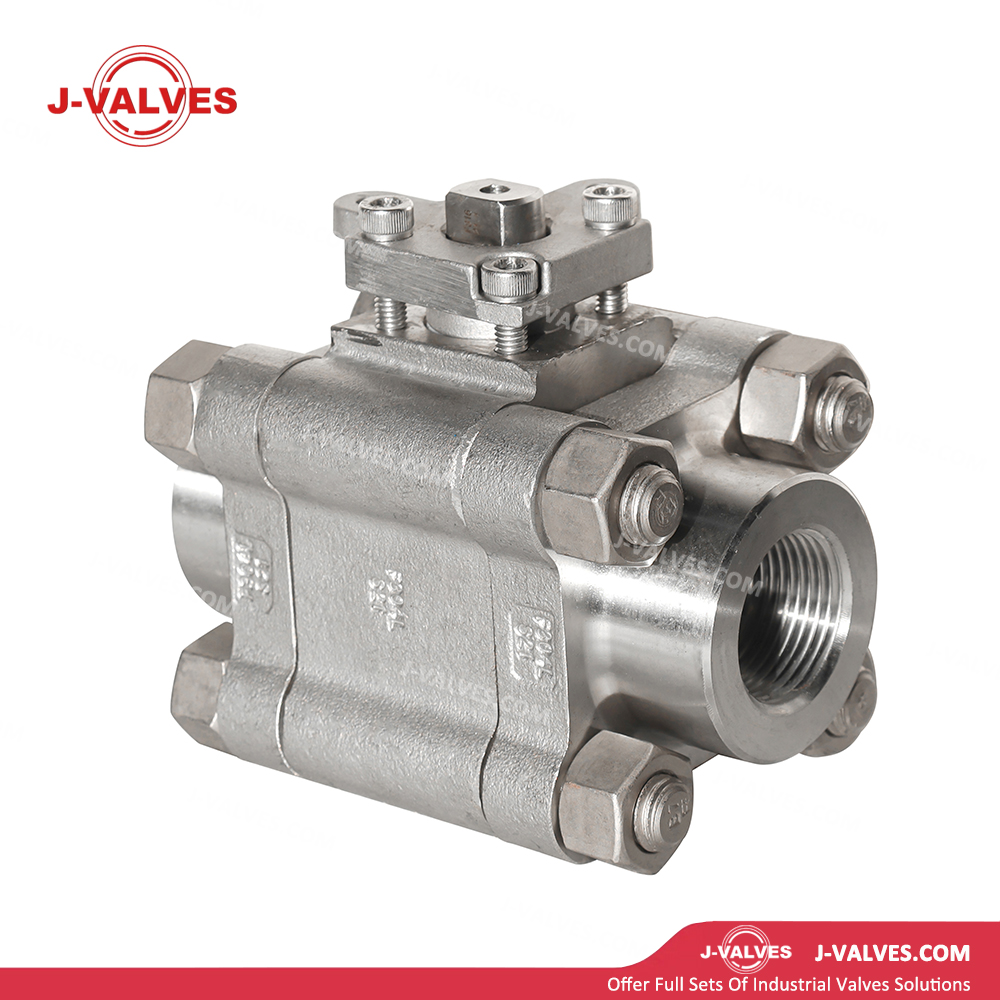

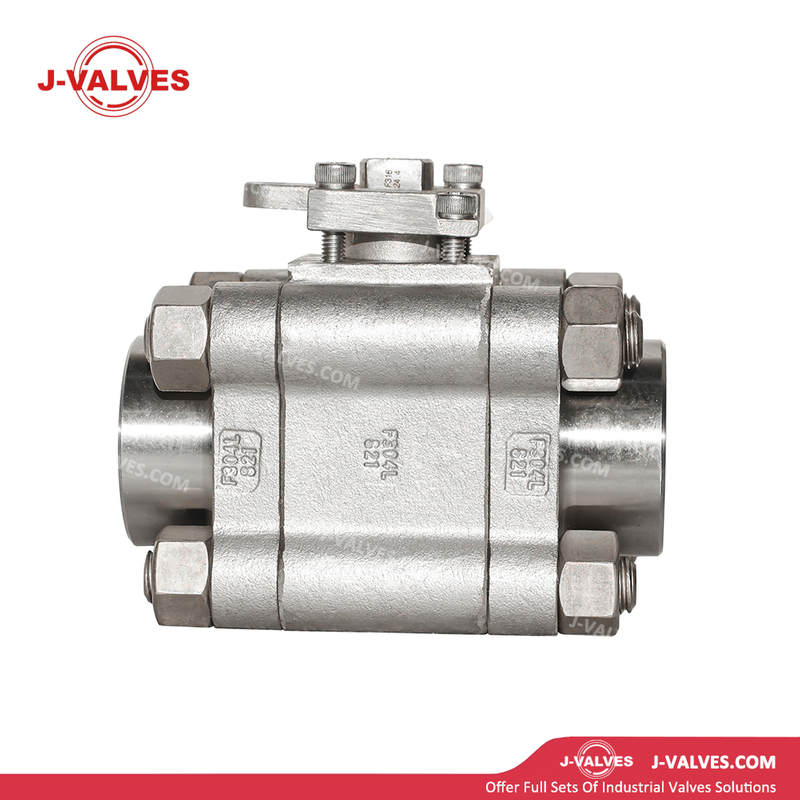

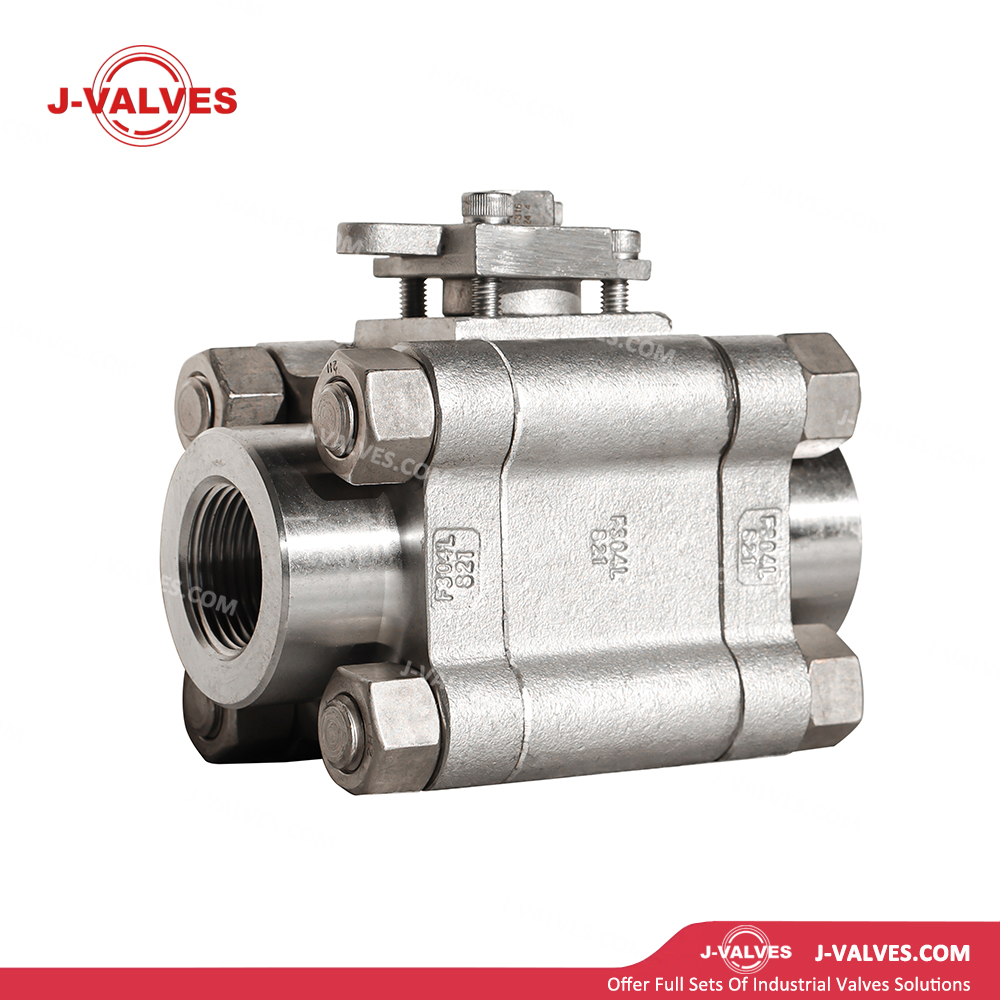

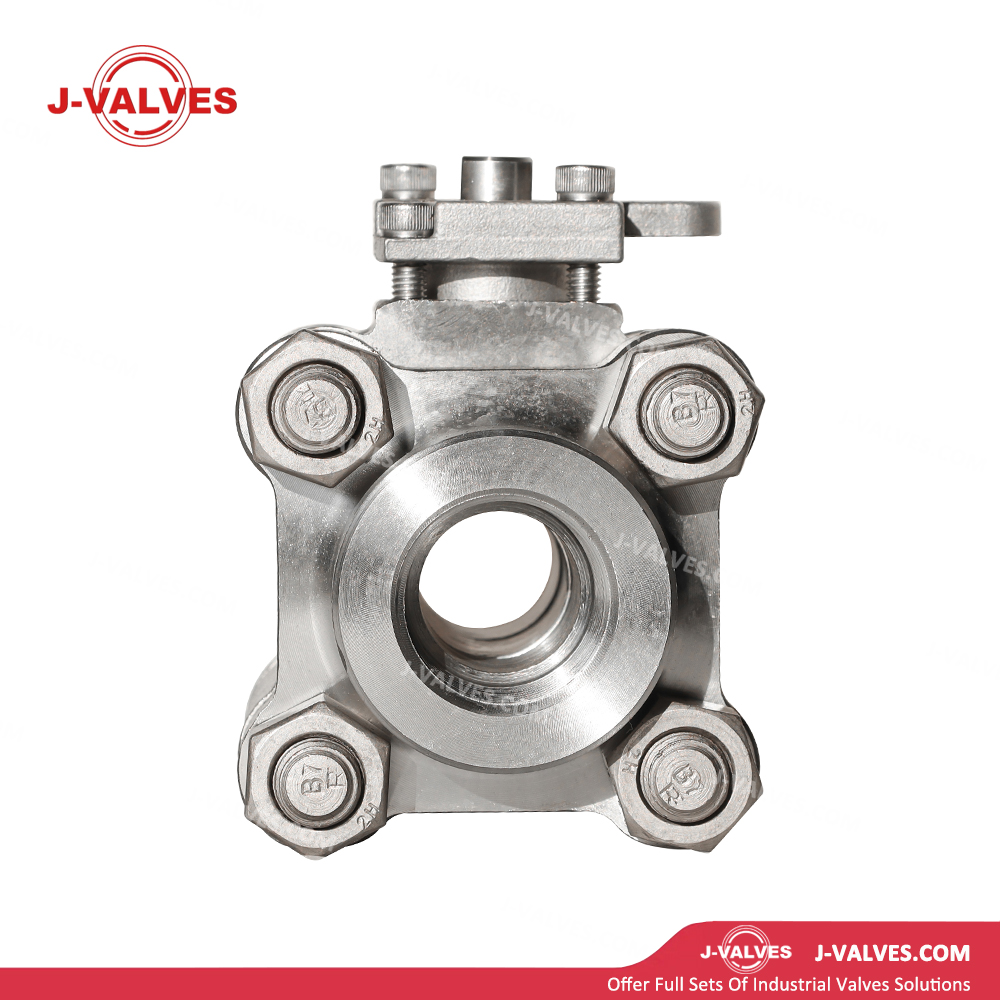

Designed for high-stakes industrial environments, this forged stainless steel ball valve combines durability with operational efficiency. The three-piece construction allows easy disassembly for cleaning or component replacement while keeping the valve inline with the pipeline, reducing downtime. The F304L stainless steel body resists chloride stress corrosion cracking and aggressive media, making it suitable for corrosive fluids. A floating ball design ensures tight sealing at both low and high pressures, supported by self-adjusting spring-loaded seats. The threaded end connections enable rapid installation, while the ergonomic lever handle provides smooth, low-torque operation. Certified to API 607 fire-safe standards, this valve meets the most rigorous safety and performance requirements.
Product Name | 3PC High Pressure Forged Stainless Steel F304L Threaded End Ball Valve |
Material | A105N/F304/F316 |
Pressure | 800LB/1500LB/2500LB |
Size | 1/2 inch~ 2 inch（DN15~DN50) |
End Connection | RF/RTJ/BW/SW |
Working Temp | -196ºC~400ºC option. |
Mode of operation | Lever |
Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
Features | Anti-blow out stem, Anti-statstic, Fire safe |
Modular Three-Piece Design
Enables quick in-line maintenance and component replacement without system depressurization, minimizing operational downtime. The split-body configuration allows easy access to internal parts for cleaning or repair, enhancing long-term cost efficiency.
Dual-Seal Technology
Features PTFE seats with spring preloading to maintain consistent contact with the ball, ensuring bidirectional zero leakage. This design compensates for thermal expansion and seat wear, delivering reliable shut-off even in dynamic pressure conditions.
Forged F304L Integrity
Precision-machined from ASTM A182 F304L stainless steel, the valve withstands cyclic stress, high pressures, and corrosive environments. The forged microstructure eliminates casting porosity, enhancing fatigue resistance and service life.
Fire-Safe & Antistatic Compliance
Compliant with API 607/ISO 10497 fire-safe standards, the valve incorporates graphite backup rings to maintain sealing integrity during emergencies. An antistatic mechanism prevents electrostatic buildup, reducing ignition risks in flammable media.
Blowout-Proof Stem Design
A retained stem with anti-extrusion features ensures safe operation under high differential pressures. This design eliminates stem ejection hazards, critical for personnel safety and system reliability.
Full-Port Flow Efficiency
The unrestricted bore minimizes pressure drop and turbulence, optimizing fluid flow. This feature is critical for maintaining process efficiency in high-velocity pipelines or viscous media applications.
Installation: The valve is designed for easy installation. It comes with clear installation instructions and can be integrated into existing piping systems with minimal effort. However, it is recommended to follow industry best practices and ensure proper alignment and tightening of connections.
Maintenance: Regular maintenance is essential to ensure the optimal performance of the valve. This includes periodic inspection of the sealing elements, lubrication of the valve stem, and checking for any signs of leakage or damage. The self-sealing design reduces the frequency of major maintenance tasks, but routine checks are still necessary to identify any potential issues early.
Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.
Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.
Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.
