| Quantity: | |
|---|---|
J-VALVES-BV
J-VALVES
8481804090
Product Introduction

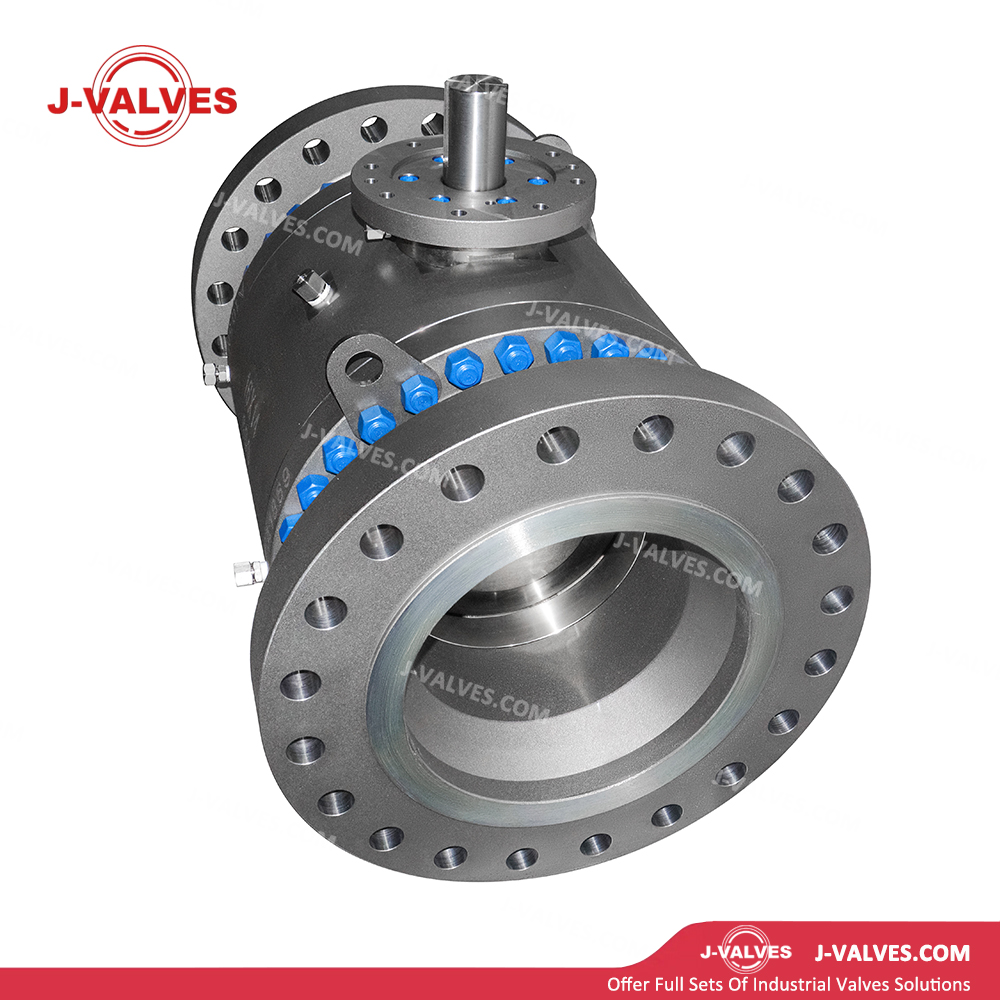

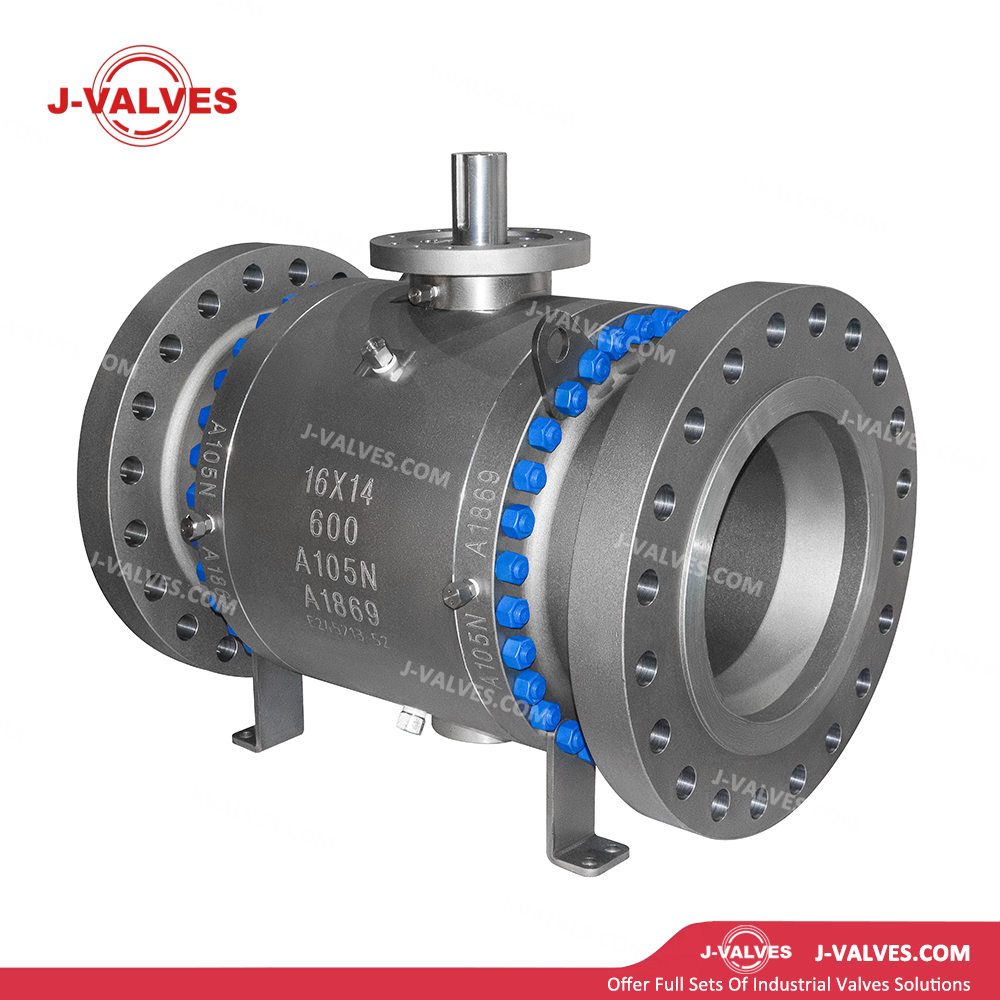

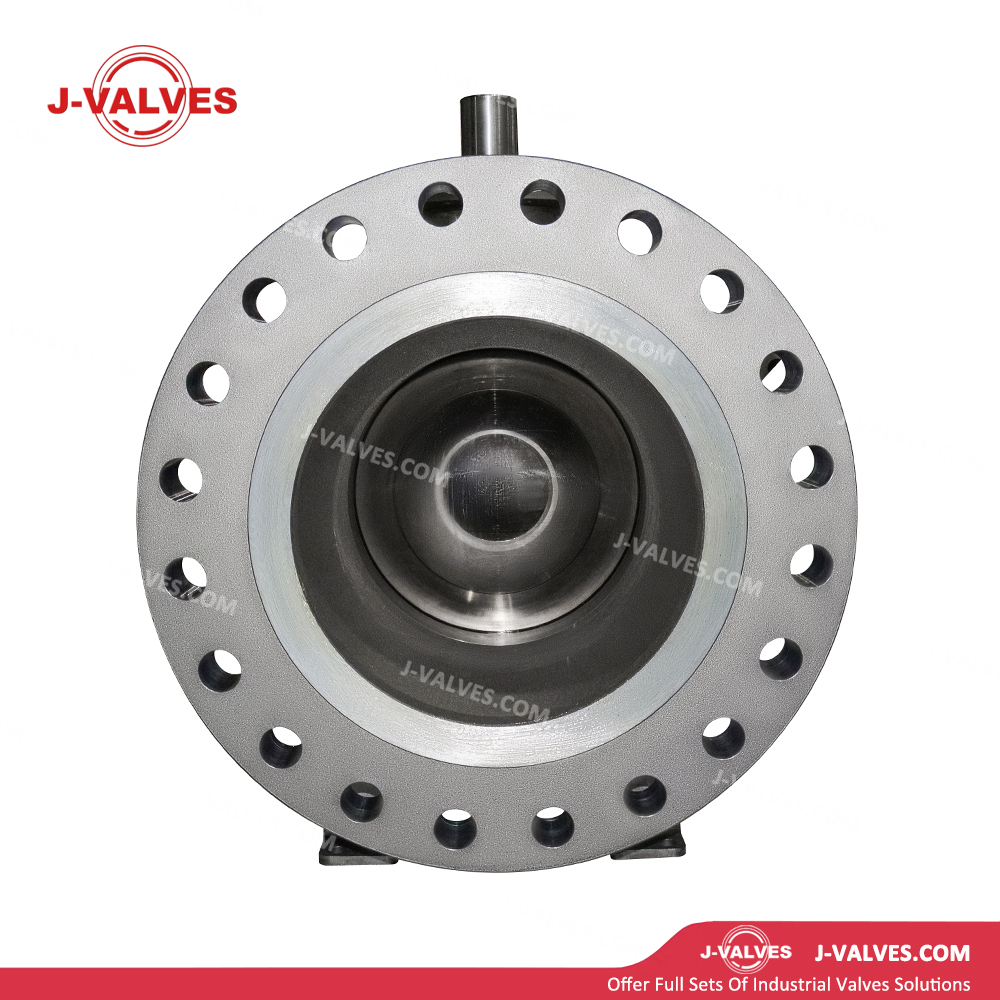

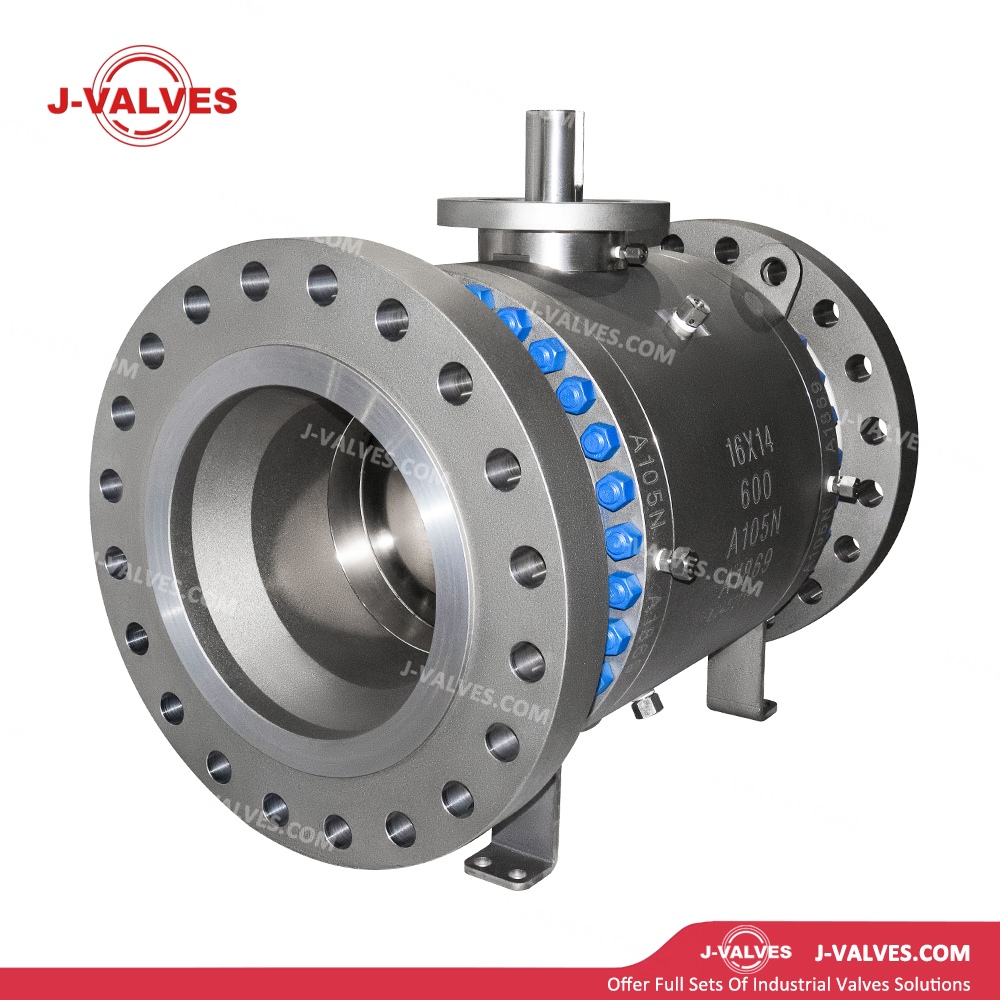

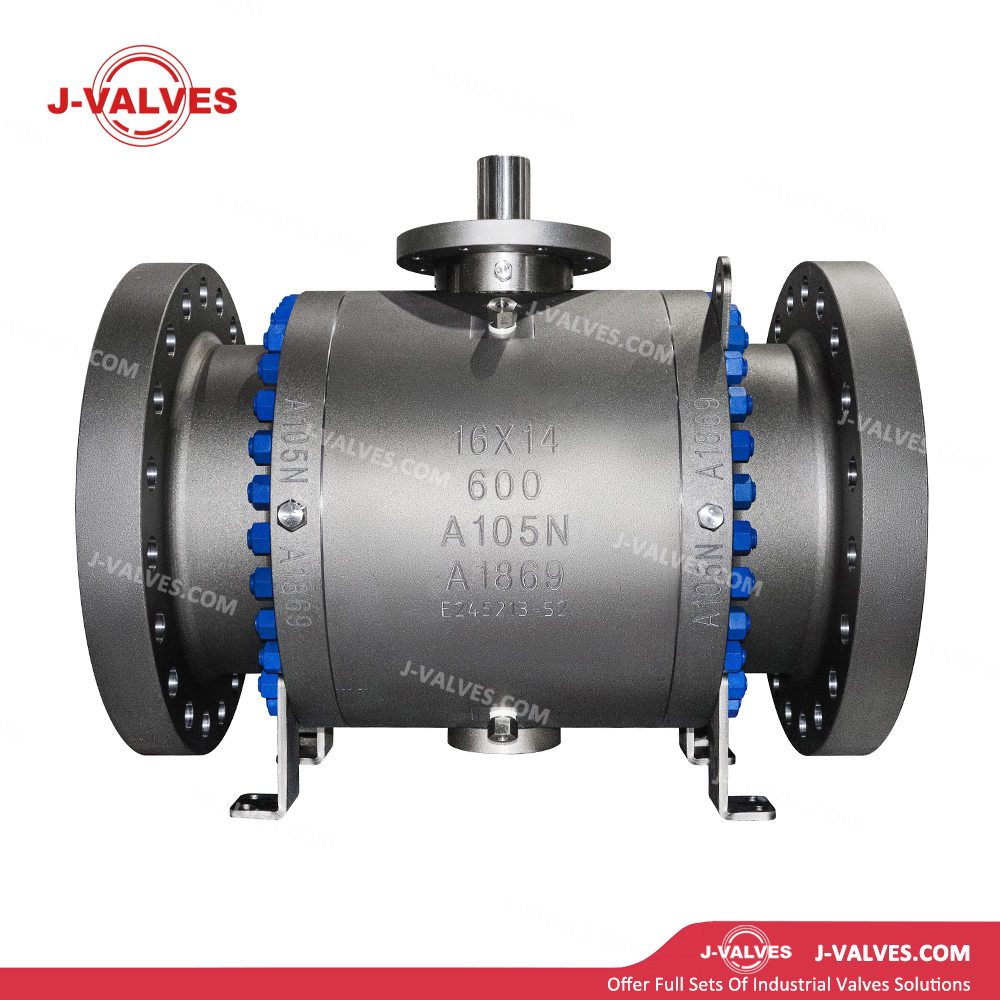

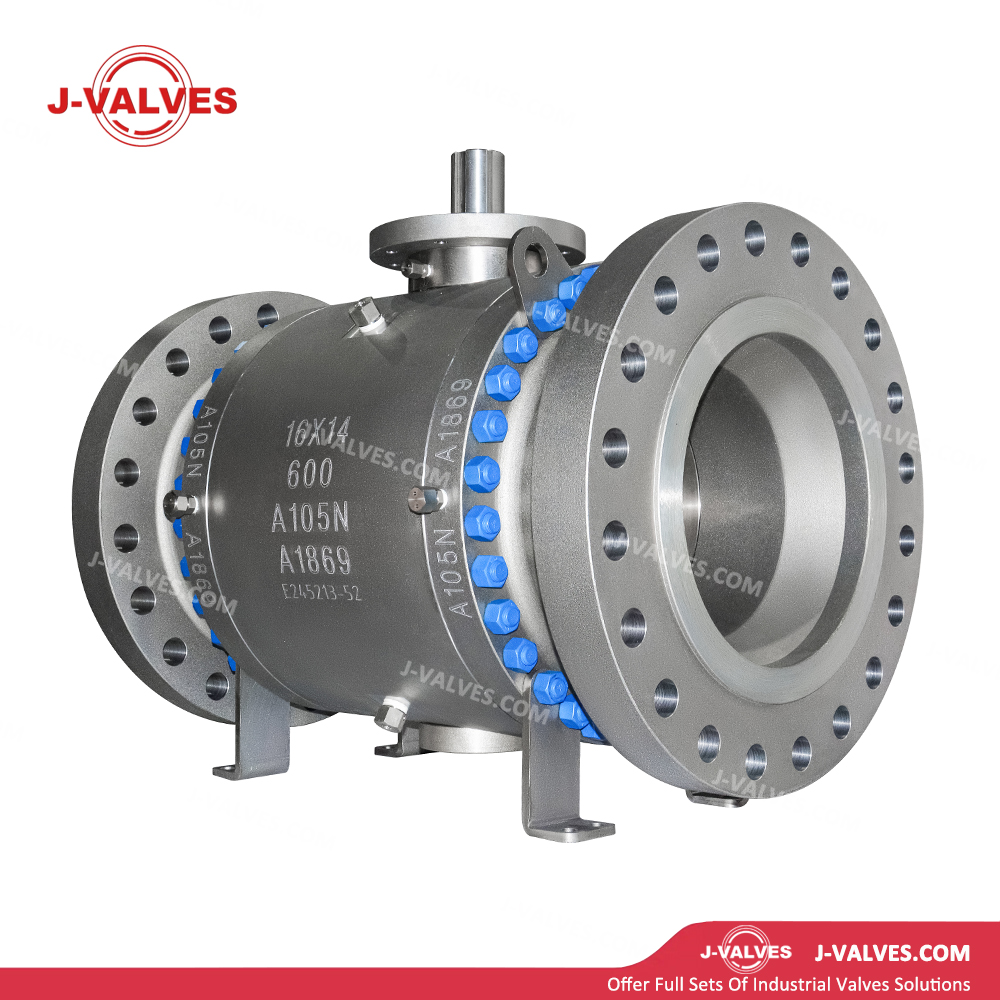

| Porduct Name | J-Valves China 600lb 16*14‘ ’ Stainless Steel F316/F304 Trunnion Mounted 3PC Flange Ball Valve |
| Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
| Size | 2"-24"(DN100-DN600) |
| Port | Full Port |
| Working Pressure | 150LB/300LB |
| Connection Ends | RF |
| Working Temp. | -20ºC~200ºC |
| Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
| Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
| Design standard | API6D/API608/API607 |
| Inspection&Testing | According to API598 |
| Brand | J-VALVES |
Advantages
High - Quality Material: Made of forged carbon steel A105n, this ball valve offers excellent strength and durability. The A105n material can withstand high pressures and temperatures, making it suitable for harsh industrial environments. It resists corrosion to a certain extent, ensuring a long - term service life and reducing the need for frequent replacements.
Trunnion - Mounted Design: The trunnion - mounted structure provides several benefits. It reduces the torque required to operate the valve, as the ball is supported at both ends. This results in smoother opening and closing operations, even under high - pressure conditions. Additionally, the trunnion - mounted design helps to distribute the load evenly, minimizing wear and tear on the valve components, which further enhances its reliability.
Three - Piece (3PC) Construction: The 3 - piece design allows for easy maintenance and inspection. Each section of the valve can be disassembled without disturbing the pipeline, facilitating quick replacement of damaged parts such as the ball, seats, or seals. This not only saves maintenance time but also reduces overall maintenance costs.
Flange End Connection: The flange end design provides a secure and leak - tight connection to the pipeline. Flange connections are widely used in industrial piping systems due to their simplicity of installation and high - strength connection. They can handle high - pressure differentials and are suitable for a variety of pipe sizes and materials.
Long Stem: The long stem feature is particularly useful in applications where the valve needs to be installed in a location that is difficult to access or in areas with high - temperature insulation. The long stem allows for easy operation of the valve from a safe distance, ensuring operator safety. It also helps to prevent heat transfer from the pipeline to the valve actuator, protecting the actuator from overheating.
Applications
Oil and Gas Industry: In oil and gas pipelines, this ball valve can be used for on - off control of the flow of crude oil, natural gas, or refined products. Its ability to withstand high pressures and temperatures makes it suitable for use in upstream, mid - stream, and downstream applications, such as wellhead control, pipeline transportation, and refinery processes.
Petrochemical Industry: Petrochemical plants deal with a wide range of corrosive and high - pressure fluids. The corrosion - resistant properties of the forged carbon steel A105n and the reliable trunnion - mounted design make this valve ideal for controlling the flow of chemicals, such as hydrocarbons, acids, and alkalis, in petrochemical production processes.
Power Generation: In power plants, whether they are coal - fired, gas - fired, or nuclear, this ball valve can be used in various systems. For example, it can control the flow of steam, cooling water, or fuel gases. The long stem is beneficial in power plants where valves may be installed in hard - to - reach areas due to complex piping arrangements and high - temperature equipment.
Industrial Manufacturing: In general industrial manufacturing processes that involve the transfer of fluids under pressure, such as in the food and beverage industry (for handling water, steam, and certain food - grade fluids), the pharmaceutical industry (for controlling the flow of chemicals and solvents), and the manufacturing of plastics and rubber (for handling polymer melts and process fluids), this ball valve can be used to regulate the flow and ensure the smooth operation of production lines.
