Y Type Stranier
J-VALVES

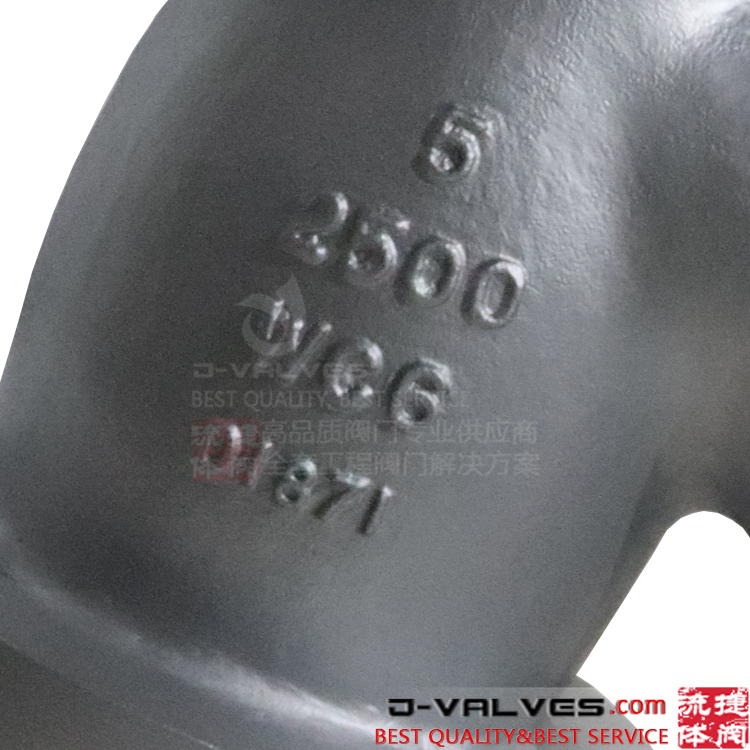

High pressure class2500 A217 WC6 30 mesh butt welded Y type strainer
● Valve alias:BW Y Tpye Strainer
Quick Detail:
● Size: 1/2''-24''(DN15~DN600)
● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)
● Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A217 WC6 ,A352 LCB/LCC,A105,F304,F316,F51/F53,F11,F2,C3,C95800
● Suitable Temperature: 425ºC( Different temperature choose different materials).
● Suitable Medium: Water, Steam, Oil and natural gas etc.
Description:
● Design Standards:ASME B16.34
● Structure Length:ASME B16.10
● Connection Size Standard:ANSI B16.5
● Test and Inspection Standards: API598
● Y type strainer filters are made of stainless steel materials such as 304 and 316, which have the characteristics of strong corrosion resistance and long service life.
● Y type strainer filter mesh number, such as 10 to 120 meshes are available (can be customized according to user requirements)
● CNC machine tool processing, high precision, good sealing .
● Strong anti-fouling performance, convenient sewage discharge; large circulation area, small pressure loss; simple structure, small volume and light weight.
Applications:
Industry class1500 A217 WC6 40 mesh butt welded Y strainer is widely used in steam, air, water, natural gas, oil and other media; it protects various equipment, pumps, valves, etc. of the pipeline system from congestion caused by impurities such as pipelines, rust, welding slag, etc. damage.
Competitive Advantage:
● On Samples Buyer bear the air fee, but this fee will be reduced from order directly
● On After Sales Free replacement if there is any quality problem
● On Delivery Never delay delivery time
● On Materials Ensure material pure
● Ensure material pure
NPS | L | H | A | B | T |
2″ | 368 | 150 | 60.3 | 49.3 | 5.5 |
2-1/2″ | 419 | 170 | 73.0 | 59.0 | 7.0 |
3″ | 470 | 190 | 91 | 74 | 7.6 |
4″ | 546 | 235 | 117 | 97 | 8.55 |
5″ | 673 | 240 | 144 | 128 | 9.55 |
6″ | 705 | 310 | 172 | 146 | 10.95 |
8″ | 832 | 370 | 223 | 198 | 10.3 |
10″ | 990 | 400 | 278 | 248 | 12.7 |
12″ | 1130 | 430 | 329 | 289 | 17.5 |
