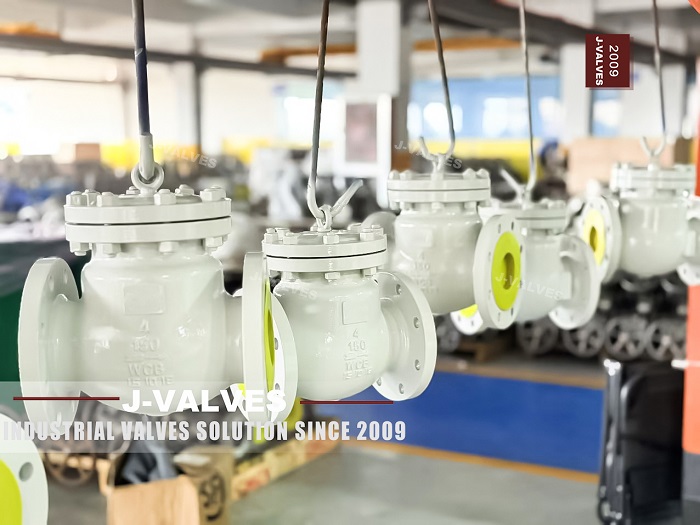

A 4" 150LB WCB swing check valve is commonly used to prevent reverse flow in general industrial piping. It is often considered for water systems, oil service, and some clearly defined steam applications where the service conditions match the valve material, pressure class, and installation requirements. The reason buyers keep coming back to this valve type is simple: it is familiar, practical, and often well suited to medium-size pipelines that need one-way flow control without excessive flow restriction. Still, it should never be treated as a universal answer. Real suitability depends on the actual medium, temperature, pressure, flow behavior, installation position, and project specifications.
The name itself already tells a large part of the selection story.
4" refers to the nominal valve size, which is common in medium-capacity industrial lines.
150LB / Class 150 refers to the pressure class category. It should not be read as a single standalone pressure value without considering temperature and design conditions.
WCB commonly refers to a cast carbon steel grade used in general industrial valve body applications.
Swing check valve describes a design in which the disc swings open under forward flow and moves back toward the seat when flow weakens or reverses, helping prevent backflow.
For engineers and buyers, the main purpose of this valve is not shutoff in the same sense as a gate or globe valve. Its real job is to keep flow moving in one direction and reduce the risk of reverse flow damaging pumps, compressors, exchangers, or upstream piping systems.
In many industrial water lines, cooling loops, and utility piping systems, a 4" 150LB WCB swing check valve is a familiar choice. It is often installed at pump discharge points, circulation loops, or equipment outlets where reverse flow must be limited after pump shutdown or pressure fluctuation.
This kind of service often matches the swing check design well because:
the flow direction is usually stable;
the line size is suitable for a swing disc arrangement;
operators want backflow protection without creating too much resistance in the line;
maintenance teams are already comfortable with this structure.
That said, not every water service is automatically suitable. If the medium carries solids, sand, fibers, or other debris, disc movement and seat performance may be affected over time. In that case, the buyer should look beyond the general label of “water service” and evaluate actual cleanliness, velocity, and maintenance expectations.
This valve type is also frequently considered in fuel oil, lubricating oil, mineral oil, and other general non-severe liquid services. One reason is that cast carbon steel often provides a practical balance between cost and mechanical strength in standard industrial applications. Another is that the swing check structure works well where liquid flow is mostly one-directional and relatively stable.
However, oil service usually requires closer attention to operating behavior than many buyers expect. Medium viscosity can affect disc opening response, and systems with rapid flow changes may create repeated disc movement, impact, or wear. So the better question is often not “Can this valve be installed?” but “Will it remain stable and reliable under real operating conditions?”
That distinction matters in actual procurement.
A common question in industrial purchasing is: Can a 4" 150LB WCB swing check valve be used for steam?
The honest answer is: possibly, but not by default.
Steam service is usually more demanding than ordinary liquid service. Even when the nominal size and pressure class appear acceptable, the final decision still depends on several project-specific factors:
the real operating temperature;
whether condensate shock is present;
whether startup and shutdown are frequent;
whether the system is subject to vibration, pulsation, or sudden reverse flow;
whether the project specification adds design, inspection, or material requirements.
In a stable steam line with well-defined conditions, a swing check valve may be one possible option. But where water hammer, condensate impact, or severe service fluctuation is expected, it is not wise to assume that a standard WCB swing check valve is automatically the best solution.
Many plants use this type of valve in utility systems, mechanical packages, auxiliary process loops, and other general service applications where the medium is clearly defined, corrosion is limited, and one-way flow protection is needed.
It is especially attractive in projects that value:
a familiar and easy-to-understand valve structure;
reasonable cost for standard industrial duty;
straightforward replacement and maintenance;
dependable service without unnecessary complexity.
In other words, the 4" 150LB WCB swing check valve is often chosen not because it is the most advanced design on the market, but because it can be the most practical one when the application fits.
Swing check valves have stayed common in industrial systems for good reasons.
First, once open, the flow path is usually relatively direct. That helps reduce unnecessary restriction in lines where maintaining forward flow efficiency matters.
Second, this design has been used for years in medium-size piping, so engineers, buyers, and maintenance teams generally understand how it behaves and where it works best.
Third, its operating logic is easy to explain. Forward flow opens the disc, reverse flow closes it. In many industrial environments, that simplicity is valuable.
Still, the same design also has natural limits. Because disc movement depends on flow behavior and installation conditions, the valve can become less suitable in systems with strong pulsation, difficult orientations, severe vibration, or unstable service conditions. Practical selection always means weighing advantages and limits together.
A useful application article should not only describe where a valve can work. It should also explain where caution is necessary.
WCB is a common cast carbon steel material, but it should not be described as universally suitable. If the medium is corrosive, the buyer must evaluate not only the body material but also the trim, seat area, sealing surfaces, and overall compatibility. A valve that appears acceptable in a catalog may still perform poorly in the real process fluid.
A pressure class and a familiar material grade do not automatically qualify a valve for every temperature condition. When low temperature, high temperature, or repeated thermal shock is involved, material suitability must be checked against actual project requirements rather than assumed from common industry habits.
Where pumps start and stop frequently, pressure changes are abrupt, or reverse flow forces are severe, the swing disc may chatter, slam, or wear faster than expected. In these systems, dynamic behavior matters as much as nominal pressure class.
A swing check valve needs an installation arrangement that allows the disc to move properly. If the piping layout, orientation, or available space interferes with that movement, the valve may not perform as intended.
In services where leakage control, cleanliness, documentation, or special end-user rules are critical, a standard off-the-shelf configuration may not be enough. The valve may need more detailed review of trim, sealing, inspection, coating, or material traceability.
The term “general service” is rarely specific enough. Clean water, hot water, oil, condensate, particle-containing liquid, and mildly corrosive media may all look similar on a quotation request, but they are not the same from a valve selection standpoint.
This is one of the most common mistakes in industrial valve buying. Buyers often ask whether Class 150 is enough, but the better question is whether the required pressure-temperature combination fits the actual valve design and material.
A valve at a pump discharge point may see very different operating behavior from one installed in a passive branch line. Location affects reverse flow risk, disc motion, and overall service severity.
If yes, the buyer should raise that issue early. A valve that looks suitable in static service may behave very differently in a system with strong dynamic loads.
Some orders only need a standard industrial product. Others require strict documentation, inspection, traceability, testing, coating, marking, or end-user compliance rules. Two valves may look similar in size and class but still be very different in procurement scope.
Even when the application is appropriate, correct installation still matters.
Install the valve according to the intended flow direction.
Evaluate system support and piping stability where vibration or shock may occur.
Plan inspection intervals if the medium may cause buildup, blockage, or internal wear.
Do not treat a check valve as a throttling valve for continuous flow control.
In critical equipment protection duties, consider the entire system protection strategy rather than relying on the check valve alone.
These points may sound basic, but they often separate a valve that performs well in service from one that creates avoidable maintenance problems.
To get a more useful supplier recommendation, buyers should provide more than size and pressure class. At minimum, they should confirm:
medium name and main characteristics;
design pressure, design temperature, and normal operating range;
installation location and flow direction;
connection type and piping standard requirements;
any required materials, inspection, coating, or documentation;
whether frequent cycling, pulsation, or water hammer is expected;
whether there are project, industry, or end-user specifications to follow.
The more complete this information is, the more meaningful the application advice becomes.
A 4" 150LB WCB swing check valve is a classic general-service solution for backflow prevention. It is often a practical option in water systems, oil lines, and some clearly defined steam or utility services, which is why it appears so often in industrial quotations and export inquiries.
But good valve selection never ends with a product label. The real decision should always come back to the medium, pressure-temperature conditions, system stability, installation arrangement, and project specification. When those factors are checked together, this valve may prove to be a strong and economical fit. When they are ignored, the valve may only look right on paper.
For buyers, the smartest first step is not to ask only for price. It is to define the service conditions clearly. Once that is done, the conversation moves from “Which valve name sounds familiar?” to “Which valve is actually suitable for the job?”
