Introduction

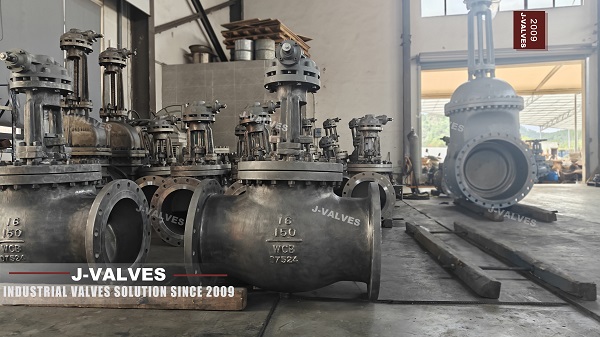

WCB Globe Valves are widely used for flow regulation and shut-off in oil and gas, petrochemical, power generation, water treatment, and industrial process piping. The valves shown in the image are large-diameter 16-inch, Class 150 WCB globe valves, featuring a robust cast-steel body, bolted bonnet, flanged ends, and an extended stem assembly.
Compared with gate valves, globe valves are particularly suitable when flow control, throttling, and stable shut-off are required.
1. WCB Globe Valve Construction
A typical WCB Globe Valve consists of a cast-steel WCB body, bonnet, stem, disc, seat, packing system, and flanged connections.
The internal disc moves vertically toward or away from the seat. This movement allows the valve to gradually change the flow area, making the globe valve suitable for regulating fluid flow.
The large body passage and robust bonnet construction shown in the image are designed to support reliable operation in industrial pipeline systems.
2. Working Principle
The Globe Valve Working Principle is based on linear movement of the disc.
When the handwheel or actuator rotates the stem, the stem moves the disc upward or downward. As the disc approaches the seat, the flow passage becomes smaller and the flow rate can be reduced. When the disc contacts the seat, the valve reaches its closed position.
The basic process is:
Stem Movement → Disc Position Changes → Flow Area Changes → Flow Regulation or Shut-Off
This makes globe valves particularly useful for applications requiring more precise flow control than a conventional isolation valve.
3. Advantages of WCB Material
WCB cast steel is widely used for industrial valve bodies because of its combination of strength, castability, and broad service applicability.
Key advantages include:
Good mechanical strength
Reliable pressure-containing capability
Suitable for many industrial fluids
Good machinability
Wide availability for industrial applications
Material selection should be based on the actual operating pressure, temperature, medium, corrosion conditions, and applicable standards.
4. Flanged Connection and Bonnet Design
The flanged ends shown in the image allow the valve to be securely connected to the pipeline using suitable gaskets and bolting.
The bolted bonnet provides access to internal components for inspection and maintenance. For large-diameter valves such as the 16-inch Class 150 WCB Globe Valve, proper body and bonnet design is important for maintaining structural integrity and alignment.
The packing system around the stem also plays an important role in controlling external leakage.
5. Engineering Advantages
A properly designed WCB Globe Valve can provide several engineering benefits:
Effective Flow Regulation: The linear disc movement allows relatively precise adjustment of flow.
Reliable Shut-Off: Properly machined disc and seat surfaces help achieve consistent sealing.
Robust Construction: Cast-steel body and bonnet provide a strong pressure boundary for industrial service.
Flexible Operation: Manual handwheel, electric actuator, pneumatic actuator, or other operating configurations can be selected according to project requirements.
6. J-VALVES Manufacturing Advantages
J-VALVES provides customized WCB Globe Valve solutions for industrial piping applications.
Precision Machining: Critical components such as the disc, seat, stem, and sealing surfaces are accurately machined to support proper alignment and operating performance.
Material Control: WCB and other suitable materials can be selected according to pressure, temperature, and medium requirements.
Large-Size Manufacturing: J-VALVES has experience with large-diameter industrial valves, including configurations such as the 16-inch Class 150 valve shown in the image.
Customized Design: Size, pressure class, flange dimensions, trim materials, bonnet configuration, packing, and actuator options can be customized.
Quality Inspection: Material verification, dimensional inspection, shell testing, seat testing, and functional inspection help ensure consistent valve quality.
7. Typical Applications
WCB globe valves are commonly applied in:
Conclusion
The WCB Globe Valve combines a strong cast-steel pressure boundary with a linear disc-and-seat design that is well suited to flow regulation and shut-off. The 16-inch Class 150 WCB globe valves shown in the image demonstrate the robust construction required for large industrial pipeline applications.
With WCB material expertise, precision machining, large-diameter manufacturing capability, customized configurations, and strict quality inspection, J-VALVES provides reliable globe valve solutions for oil and gas, petrochemical, power, water, and industrial process systems.
