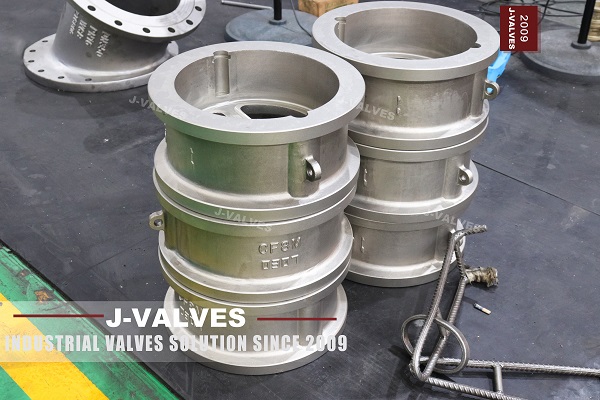

A dual plate wafer check valve is built from seven functional parts. The body is a thin wafer-type casting with machined faces that seat directly between pipeline flanges, and its outer wall carries cast material and size markings, the first evidence a site inspector has when verifying material authenticity. Inside the bore sit two half-discs that together form a complete circle, each covering one half of the flow passage and each mounted through a side lug onto the central hinge pin that spans the bore and locates in the body. A torsion spring around the hinge pin supplies preload torque toward the closed position. A stop pin limits maximum disc travel so the discs cannot over-travel and jam. Double guides at both ends of the hinge pin keep the two discs aligned with the seat through the full travel, which is the precondition for sealing. Finally, two seat faces are lapped as a matched pair on the disc rims and the corresponding body surfaces. When media enters in the direction of the arrow cast on the body, pressure overcomes the spring torque and swings each disc roughly 90° until the stop pin arrests it at full open, where the discs sit nearly parallel to flow and the passage area approaches the pipe bore. When the pump stops or flow falls away, the spring preload starts returning the discs before flow actually reverses, and the reverse differential pressure then completes the final seating.
The essential difference from a swing check valve is disc travel. A swing check uses one full-circle disc on a top hinge, travelling close to a 90° arc; in the dual plate design each disc has only half the radius, so the arc travelled by the disc edge is roughly half, while the overall face-to-face length is compressed to one quarter. Short travel gives fast closing, and fast closing gives low water hammer — that causal chain is the starting point for understanding every performance advantage this valve type has.
The design basis is API 594, the standard written specifically for thin wafer and lug type check valves. It sets face-to-face dimensions to the ASME B16.10 short pattern series, and the common pressure classes are Class 150, 300, 600, 900 and 1500 across sizes from 2 to 60 inches. The most useful clause is the retainerless design requirement: no through-wall process holes are permitted in the body. A conventional wafer check valve fixes its central hinge pin by drilling through the body wall, inserting the pin, then plugging each hole with a blind plug — and every one of those plugs is a potential leak path to atmosphere, sitting on both sides of the valve in a position that is hard to see on a walk-round inspection. The retainerless design eliminates all of them and supports the hinge pin from internal body structure instead, so the external leak path is removed at source. It is not visible from outside the valve, so the requirement should be confirmed with documentation at the selection stage.
API 594 also constrains the moving parts. The hinge pin and stop pin fall under trim requirements: they should be machined from ground bar stock and be designed for removal and replacement rather than cast integral with the body. Seat faces must be lapped to a matched fit, and double guides must keep hinge pin and seat concentric, because the two discs move independently and any offset in the hinge pin shifts the two seating planes apart. Pressure testing follows API 598: shell test at 1.5 times rating, giving 3.0, 7.5, 15.4, 23.0, 37.5 and 63.0 MPa across the classes; seat test at 1.1 times rating, giving 2.2, 5.5, 11.2, 16.9, 27.5 and 46.2 MPa; and a 0.6 MPa air test. J-VALVES turns each of these into a checkable process step: bodies are offered in bolted and pressure seal bonnet construction, discs are CNC-machined to hold symmetry between the halves and concentricity of the pin bores, hinge and stop pins are ground bar stock, and every valve is shell- and seat-tested to API 598 on the line, backed by flow analysis to verify actual Cv against design.
Selection works through seven parameters. Nominal size is fixed by calculating the Cv needed from design flow and allowable pressure drop, then reading across to the maker's Cv table; J-VALVES covers DN50 to DN1200 in this product. Pressure class runs from 150LB to 2500LB, equivalent to PN16 to PN160. End connection is the parameter most often misjudged: the wafer type is the most compact but cannot be removed from one side, the lug type bolts to the pipe flanges and can double as a pipe-end blind, and the double-flanged type suits where pipe flanges cannot take clamping stress or where the valve must bolt directly to existing flanges. Body material must be chosen by crossing media corrosivity, working temperature and flange class, and the options include A351 CF8M, CF8, CF3 and CF3M stainless, A216 WCB carbon steel, A217 WC6 and WC9 chrome-moly, A352 LCB and LCC low-temperature steel, A105 forged steel, F304 and F316 forgings, F51 and F53 duplex, F11, F2 and C3 alloy steel, and C95800 aluminium bronze. Spring rate must be set against working pressure rather than size alone. Seat type follows the duty, metal for high temperature and solids and soft for bubble-tight service at ambient. And solids content above roughly 5% means the valve type should change to swing check.
On spring rate the three common configurations have defined boundaries: a standard coil suits line pressures of roughly 0.298 to 0.89 MPa; a low-rate coil suits low-pressure gas below about 0.1 MPa, where the opening force is small and too stiff a spring will stop the valve opening at all; and a high-rate coil suits about 0.88 MPa and above. Getting the rate wrong shows up either as a valve that will not open at low pressure or as a closing time beyond 0.5 seconds at high pressure. Soft seat materials add their own temperature limits, Buna-N about -60 to 250°F, Viton about -10 to 400°F, EPDM about 0 to 300°F and Neoprene about 0 to 212°F, and beyond those ranges the valve should move to a metal seat whose upper limit follows the rating for the body material in ASME B16.34. J-VALVES standardises on Inconel X-750 for this duty, with a single spring from 2 to 6 inch and dual springs at 8 inch and above.
Two quantitative references help sanity-check a selection. The first is Cv and pressure drop: a dual plate valve has a slightly lower Cv than a full-disc swing check of the same size, because each disc carries only half the circular area and the central hinge pin occupies the middle of the bore. At Class 150 the measured Cv rises from 62 at 2 inch through 550 at 6 inch and 2400 at 12 inch to 23000 at 24 inch, while at a typical clean-water velocity of about 3.05 m/s (10 ft/s) the pressure drop falls from about 4.55 psi at 2 inch to about 0.424 psi at 24 inch, which puts local resistance loss in the negligible range at larger sizes. The second is body material temperature range: A216 WCB and WCC cover about -20 to +800°F in non-corrosive water, oil and gas service, A217 WC6 and WC9 reach about +1100°F for higher-temperature hydrocarbon duty, A352 LCB and LCC go down to about -50°F as low-temperature steels, and A351 CF8 and CF8M span the widest range at roughly -450 to +1200°F.
J-VALVES (Zhejiang J-Valves Fluid Equipment Co., Ltd.) has manufactured and exported industrial valves since 2009 from its factory in the Airport New District, Binhai Industrial Park, Longwan District, Wenzhou, Zhejiang. The plant covers more than 15,000 square metres and employs over 100 people, including 8 technical engineers producing 3D and 2D drawings in SolidWorks and AutoCAD and mould designs in UG, and 8 inspectors each with over 10 years of valve inspection experience, alongside production management that includes a CNC technician with 20 years in industrial valves; casting, machining, assembly and pressure testing all happen inside the company's own plant. In this product the size range covers DN50 to DN1200, pressure classes 150LB to 2500LB (PN16 to PN160, and 10K to 60K in JIS terms), and service temperature from -196°C to 650°C (-320°F to 1200°F) depending on the material selected. Valves already delivered include 40-inch 150LB WCB, 16-inch 1500LB CF8M with RTJ ends, 8-inch 150LB ductile iron, and a C95800 aluminium bronze series from DN50 to DN900, so large sizes and high classes are backed by delivery records rather than catalogue claims.
Quality control is applied as four gates. Incoming material is checked for dimensions, PMI spectrographic analysis, visual examination and hardness, PMI being the key means of confirming that a delivered part matches its material certificate. Machining is inspected part by part against drawing, holding disc symmetry and pin bore concentricity inside tolerance. Assembly applies precision fitting, torque control and leak testing, where torque control acts directly on torsion spring preload and flange bolt tightening, the first fixing closing time within 0.3 seconds. Dispatch runs pressure testing, flow analysis and leak detection. Certifications held are API 6D, API 600, API 602, API 607, CE, ISO 9001, ISO 14001, ISO 45001, SIL 3 and ISO 15848, alongside SGS supplier audit, and commercially the company offers a 18-month warranty, a 24-hour response on quality issues and lead times around 15 working days in the low season. The advantage J-VALVES holds here is not a peak figure on one parameter but the conversion of each standard requirement into a checkable process step: retainerless construction into body casting and machining, closing time into spring selection and assembly torque control, sealing into matched lapping of disc and seat, and material authenticity into incoming PMI. None of the four is a spot check, and the results travel with the goods.
Installation starts with face-to-face length and clamping allowance. Face-to-face dimensions follow ASME B16.10 short pattern, at Class 150 measuring 60 mm at 2 inch, 98 mm at 6 inch, 181 mm at 12 inch and 222 mm at 24 inch. Because a wafer valve is clamped by its own thickness between two flanges, the flange gap must be set with an allowance beyond the valve width: about 6 mm at 2 inch, 9 to 14 mm from 3 to 8 inch, 16 to 22 mm from 10 to 16 inch and 22 to 27 mm above 18 inch. Then verify flow and pin orientation, then gasket and bolting, since a gasket bore smaller than the body bore will protrude into disc travel and prevent full opening, then flush the line before first start-up. The body must not be used to carry pipe loads either: misalignment between the two pipe ends should be corrected with supports and hangers rather than by forcing the bolts up. Maintenance is condition-based rather than calendar-based, with a recommended extra check in the first 3 months after commissioning, looking for a closing time past the 0.5 second criterion, seat wear depth beyond 0.5 mm, a stiff or binding hinge pin, and abnormal metallic knocking from inside the valve. Seat faces are lappable, so light damage can be restored on site instead of replacing the whole valve, but distorted discs, worn pin bores or cracks in the body casting call for complete replacement. Throughout, isolating and depressurising the line must happen before any flange bolt is loosened, a safety precondition specific to wafer construction.
Applications cluster in four directions. In oil and gas and petrochemicals the valve sits at pump and compressor discharges, on parallel headers and at branch junctions in transmission lines, gathering stations and refining units, where the thin body saves plot space and the fast closing damps water hammer on pump trip. In power and heat systems, on feedwater, condensate and circulating cooling water, sizes are commonly DN400 and above, where face-to-face length and weight affect rack space and support cost and pressure drop needs checking; high-temperature condensate lines should use an extended bonnet and Inconel X-750 springs. In water treatment, desalination and municipal water supply, fresh water and general effluent service usually takes CF8 or CF8M, while seawater and high-chloride duty is better served by C95800 aluminium bronze, since stainless steel risks pitting and crevice corrosion in low-velocity chloride-bearing dead legs; the J-VALVES C95800 aluminium bronze dual plate wafer check valve covers DN50 to DN900 in Class 150, rated -29°C to +200°C (-20°F to 392°F). In HVAC, chemical and paper process industries the valve wins on compactness and cost, but where the process stream carries fibre, slurry or crystallising solids the roughly 5% solids boundary should be assessed first, and beyond it the choice should move to swing check or a flushable design.
The core differences are disc count and face-to-face length. A dual plate design uses two half-discs swinging on a central hinge pin, with a face-to-face length about one quarter that of a swing check of the same size, about 20% of the weight, and a closing time inside 0.3 seconds. A swing check uses one full-circle disc on a top hinge, with longer travel and slower closing, but a more open flow path and slightly higher Cv. Above 5% solids content choose swing; on water-hammer-sensitive or space-constrained lines choose dual plate wafer.
At pump and compressor discharges, at pipe junctions, on parallel headers, and wherever space is tight or water hammer needs damping. The thin body is ideal for clamping between two flanges, but a wafer body cannot be removed from one side, so where single-sided access is needed specify lug or double-flanged construction.
Because the closing travel and closing time are both short. Each disc travels only half the arc of a full-circle disc, and the Inconel X-750 torsion spring applies closing torque as soon as flow starts to fall, holding closing time inside 0.3 seconds. The earlier reverse flow is stopped, the less time the reversing column has to accelerate and the lower the pressure rise, which is why non-slam behaviour is markedly better than a swing check.
Closing time in normal service should stay within 0.3 seconds; the field criterion for replacing the spring is a closing time beyond 0.5 seconds. Longer closing usually has one of three causes: torsion spring stress relaxation after sustained high-temperature service, deposit build-up at the hinge pin increasing rotational resistance, or a spring rate that does not match the line's actual working pressure.
Face-to-face dimensions follow ASME B16.10 short pattern: at Class 150, 60 mm at 2 inch, 98 mm at 6 inch, 181 mm at 12 inch and 222 mm at 24 inch. The flange gap needs an allowance beyond valve width, about 6 mm at 2 inch, 9 to 14 mm from 3 to 8 inch, 16 to 22 mm from 10 to 16 inch and 22 to 27 mm above 18 inch, and stud lengths should be checked against that.
Either works, but hinge pin orientation must be correct. On a horizontal pipe the central hinge pin should sit vertical so both discs load symmetrically against gravity; on a vertical pipe flow must be upward. The flow arrow on the body must match actual flow direction, because reversed the discs are held shut and the symptom is low flow, easily misread as a blocked line.
Yes, within limits. Above about 5% solids content choose a swing check valve, because the central hinge pin and the disc clearances in a dual plate design clog with deposited particles and the valve stops closing fully. Below that boundary, fit an upstream strainer with a mesh smaller than the disc seat width and shorten the inspection interval.
API 598. Shell test is 1.5 times rating, giving 3.0, 7.5, 15.4, 23.0, 37.5 and 63.0 MPa across Class 150 to 1500; seat test is 1.1 times rating, giving 2.2, 5.5, 11.2, 16.9, 27.5 and 46.2 MPa; the air test is 0.6 MPa throughout. J-VALVES shell- and seat-tests every valve before dispatch and supplies the records with the goods.
By the line's actual working pressure, not by size. A standard coil suits about 0.298 to 0.89 MPa; a low-rate coil suits low-pressure gas below about 0.1 MPa, where opening force is small and too stiff a spring will stop the valve opening at all; a high-rate coil suits about 0.88 MPa and above. Getting the rate wrong shows up either as a valve that will not open at low pressure or as a closing time beyond 0.5 seconds at high pressure. J-VALVES standardises on Inconel X-750, single spring from 2 to 6 inch and dual springs at 8 inch and above.
On condition, not on a fixed service life. The three measurable criteria are a seat leak rate above 0.1%, a closing time above 0.5 seconds, and a seat wear depth above 0.5 mm, any one of which triggers replacement. Design fatigue life is not less than 100,000 open-close cycles; five to ten years is common where the media is clean and the temperature stable. Seat faces are lappable, so light damage can be repaired on site rather than replacing the whole valve.
Send us line size, pressure class, media, temperature and end connection and the J-VALVES engineering team will come back within 24 hours with a selection recommendation, material list and quotation. With in-house casting and machining, DN50 to DN1200 and 150LB to 2500LB are all within scope, supplied with material certificates and API 598 test records.
