Trunnion-Mounted Ball Valves in Pipeline Applications: Structure, Torque And Sealing Selection

A trunnion-mounted ball valve is a quarter-turn isolation valve in which the ball is anchored to the body by an upper stem and a lower trunnion running in bearings, rather than resting on the seats. Because line pressure is absorbed by the trunnion bearings instead of being transmitted to the downstream seat, breakaway and operating torque stay low and predictable as bore size and pressure class increase. This is why trunnion-mounted designs dominate pipeline ball valve applications from roughly DN 150 / NPS 6 upward.

The sections below cover the load path, the reason pipeline operators specify this design, how seat and sealing arrangements differ, and the parameters that actually drive a selection decision.

I. What Is a Trunnion-Mounted Ball Valve?

A trunnion-mounted ball valve is a quarter-turn valve whose ball is mechanically fixed in position by two bearing-supported journals — the upper one integral with the stem, the lower one a stub trunnion. The seats are separate, spring-loaded assemblies that are pushed against the ball. In this arrangement the ball does not move when the valve closes; the seats do the moving.

1. Structure and load path

When a ball valve is closed, line pressure acts on the projected area of the ball and produces a thrust force:

F = p × A

where p is the differential pressure and A is the projected ball area.

In a floating ball valve, the ball is captured only by the two seat rings. That thrust force is transmitted directly into the downstream seat ring, and from there into the body. The seat must therefore both seal and resist the full pressure thrust — a load that grows with the square of the bore diameter.

In a trunnion-mounted ball valve, the same force is transmitted through the lower trunnion journal into the body via a bearing. The seat is relieved of that structural duty. Its only job is to maintain controlled contact with the ball surface, which is achieved by two independent means:

1. Spring preload — coil or disc springs behind each seat ring establish sealing contact at zero or low differential pressure.

2. Piston area — for piston-type seats, line pressure is admitted to an annular area behind the seat, pushing the seat against the ball in proportion to the pressure being sealed.

The seat assembly effectively behaves as a piston inside a cylinder bore machined into the body, with the boundary sealed by an O-ring, lip seal, or a combination of both. This is what allows seat loading — and therefore torque — to be designed rather than merely tolerated.

2. Trunnion vs floating ball valve: a direct comparison

The practical break point is usually expressed as a size rather than a pressure. Below roughly DN 150 / NPS 6, a floating design is normally the economical choice. Above it, the torque and seat-loading penalty of a floating design becomes difficult to manage, and the trunnion design takes over.

3. Body construction and bearing arrangement

Pipeline trunnion valves are normally supplied in two-piece or three-piece bolted bodies, with a welded-body option for buried or high-integrity service where a bolted joint is considered an additional leak path. Side-entry and top-entry configurations both exist; top-entry simplifies in-line maintenance of the ball and seats, which matters on large valves installed in remote locations.

The trunnion bearings themselves are typically PTFE-lined or metal-backed sleeve bearings. Bearing selection influences both torque and the allowable stem load, and should be reviewed against the specified operating temperature range rather than assumed.

II. Why Pipeline Operators Specify Trunnion Ball Valves

1. Torque reduction and actuator sizing

Total operating torque in a trunnion-mounted ball valve is the sum of several contributions, each with a different driver:

M_total = M_seat + M_bearing + M_packing + M_aux

The critical distinction from a floating design is M_seat. In a floating valve the seat contact force is essentially the full pressure thrust; in a trunnion valve it is a designed value, bounded by the piston area and the spring rate. That is why a DN 600 trunnion valve can often be operated with a gearbox and a modest electric actuator, while the equivalent floating design would demand an actuator several times larger.

Two torque values must be distinguished when sizing an actuator:

• Breakaway torque — the torque required to start moving the ball from the fully seated position. This is the governing value for actuator sizing.

• Running torque — the torque required to continue the quarter-turn once motion has started. Typically lower than breakaway torque.

Actuator sizing should be based on the worst credible case, which normally combines maximum differential pressure, minimum ambient and fluid temperature (packing and bearing friction increase as temperature falls), and a valve that has been left in one position for an extended period. Project specifications commonly apply a factor in the range of 1.25 to 1.5 to the calculated breakaway torque; the exact figure is set by the operator's specification and should be confirmed rather than assumed.

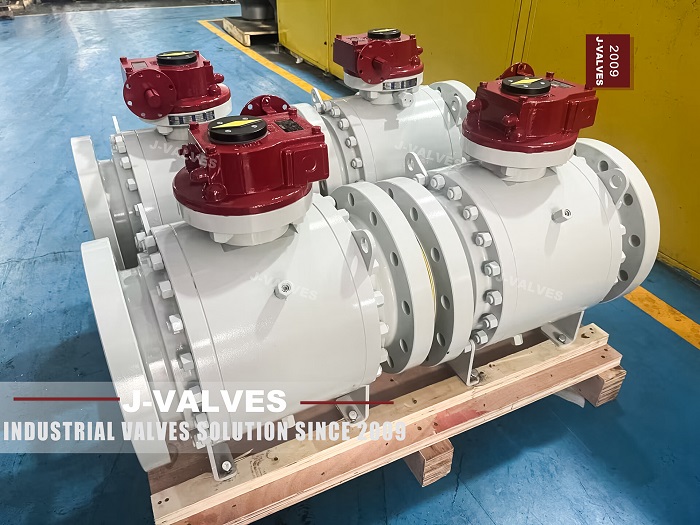

2. Full bore design and pigging

Pipeline integrity management relies on inline inspection (ILI). Intelligent pigs, cleaning pigs and gauging pigs all require an unobstructed, continuous bore through every valve on the line.

A full-bore trunnion ball valve provides a through-conduit bore nominally matching the pipe internal diameter, with the ball cavity fully swept clear of the flow path when open. There is no reduction, no ledge and no obstruction that could catch a pig or damage its sealing discs. Reduced-bore valves, by contrast, are not piggable and are therefore generally excluded from mainline transmission service — although they remain common in auxiliary and vent lines where pigging is not required.

Full-bore construction also delivers a lower pressure drop and reduces the risk of erosion at the valve, which matters in high-velocity gas service.

3. Large diameter and high pressure class

Trunnion-mounted designs are routinely supplied from Class 150 through Class 2500, with body wall thickness and pressure–temperature ratings governed by ASME B16.34 and the design requirements of API 6D. Large-diameter gas transmission lines commonly use DN 700 to DN 1200 trunnion valves at Class 600 or Class 900, while high-pressure gathering and injection lines may require smaller bores at Class 1500 or Class 2500.

At these combinations of bore and pressure class, the thrust force on the ball reaches hundreds of kilonewtons. Absorbing that force in a bearing rather than in a seat ring is the entire justification for the design.

4. Double block and bleed capability

API 6D requires pipeline valves to provide a double block and bleed (DBB) function. In practice this means the closed valve presents a sealing surface to pressure from each direction, with a bleed connection into the body cavity between them. Opening the bleed allows the cavity to be depressurised and monitored.

This capability is what lets an operator verify seat integrity without shutting down and draining the line. If the cavity pressure holds steady with the bleed open, the upstream seat is sealing. If it rises, the upstream seat is passing. It is a diagnostic function as much as an isolation function, and it is one of the main reasons trunnion valves are specified at station battery limits.

III. Seat and Sealing Design Explained

1. Single piston effect (SPE) vs double piston effect (DPE)

The seat arrangement determines how the valve behaves when pressure arrives from an unexpected direction, and whether the cavity can relieve itself.

A DPE seat is a bidirectional seat: line pressure from either side pushes it against the ball. That gives stronger, more symmetric sealing, but it also means trapped fluid in the cavity has nowhere to go. In liquid service, a rise in ambient temperature can thermally expand that trapped liquid and over-pressure the cavity. A DPE valve in liquid service therefore normally requires an external cavity relief valve, or a design feature that provides the same function.

2. Self-relieving seats and cavity pressure

The cavity of a ball valve is the space between the two seats, around the ball. In a trunnion design the cavity is a substantial volume, and it can trap product during every operating cycle.

Two conditions can raise cavity pressure above line pressure:

• Thermal expansion of trapped liquid as the line cools down or the valve is exposed to solar heating.

• Seat leakage past a damaged or contaminated seat.

SPE seats handle the first case passively: when cavity pressure exceeds the upstream pressure by a defined margin, the seat is pushed away from the ball and the cavity vents. DPE seats cannot do this, which is why the relief provision is not optional in liquid service.

3. DBB vs DIB: what the difference means in the field

These two terms are frequently used interchangeably, and they should not be. API 6D distinguishes between them:

• DBB (double block and bleed) — the valve has two seats, each sealing against pressure from one direction, with a cavity bleed. Both seats together block flow from either direction during normal operation. DBB does not by itself guarantee that no pressure can migrate past a seat into the cavity.

• DIB-1 (double isolation and bleed, type 1) — both seats are bidirectional (DPE). Each seat independently seals against pressure from either direction.

• DIB-2 (double isolation and bleed, type 2) — one bidirectional seat and one unidirectional seat.

The distinction matters in isolation philosophy. Where a genuinely positive double barrier is required — for example between a high-pressure pipeline and a low-pressure downstream system — DIB-1 is specified. Where DBB is sufficient for operational isolation and seat verification, the simpler arrangement is used.

4. Fire-safe and anti-static construction

Two requirements are frequently specified together and are worth separating:

Fire-safe design is verified by type test rather than by analysis. The relevant standards are API 607 (quarter-turn valves with soft seats), API 6FA (valve fire test), and ISO 10497. The test exposes the valve to a controlled fire condition and then verifies that leakage remains within an acceptable rate, both during and after the burn. The design features that make this possible are a graphite stem packing and body seal, and a metal secondary seat that contacts the ball when the soft seat insert is destroyed.

Anti-static construction is a design requirement of API 6D, not a fire test requirement. A device ensures electrical continuity between the stem, the ball and the body, so that static charge generated by fluid movement cannot accumulate and discharge as a spark in flammable service. It is a small feature with significant safety consequences, and its presence should be confirmed rather than assumed.

IV. Selection Parameters for Pipeline Service

The table below summarises the parameters that drive a pipeline ball valve selection, together with the standard that typically governs each one.

Two entries in this table deserve emphasis because they are the most common sources of late-stage change orders.

Seat effect is not a detail to be decided at the end of a project. Choosing DPE seats introduces a cavity relief requirement that affects piping, instrumentation and the isolation philosophy. It should be settled when the valve data sheet is first issued.

Temperature range interacts with seat material, bearing material and packing material simultaneously. A valve specified for high temperature may have entirely different bearings from the same model in ambient service. Confirm the combination, not just the individual limits.

V. Applicable Standards and Testing

Pipeline ball valves are specified, manufactured and tested against a defined set of standards. The most relevant are:

• API 6D / ISO 14313 — Specification for pipeline and piping valves. Governs design, materials, welding, quality control, testing, marking and documentation. Requires a double block and bleed function, an anti-static device, and an anti-blowout stem.

• ASME B16.34 — Valve pressure–temperature ratings and body wall thickness.

• ASME B16.10 — Face-to-face and end-to-end dimensions.

• ASME B16.5 / B16.47 — Flange dimensions and pressure ratings.

• API 598 / ISO 5208 — Pressure testing and acceptance criteria, including seat leakage rates.

• API 607 / API 6FA / ISO 10497 — Fire type-testing.

• NACE MR0175 / ISO 15156 — Materials for service in H₂S-containing environments.

• ISO 5211 — Actuator mounting dimensions.

• ASME B31.4 / B31.8 — Pipeline transportation systems for liquids and for gas, which govern how the valve is applied within the line.

Two testing points are frequently misunderstood. First, the shell and seat pressure tests are separate tests with separate acceptance criteria; a valve that passes one has not thereby passed the other. Second, API 6D testing is a works test on the individual valve, whereas API 607 or API 6FA is a type test performed once on a representative design and not repeated on every unit. A manufacturer claiming fire-safe compliance should be able to state which standard, which test report, and which design it applies to.

VI. Common Field Issues and Maintenance Notes

Field experience with pipeline trunnion valves tends to concentrate on a small number of recurring issues:

• Undersized actuators. The most frequent cause of operational failure. Root causes include torque calculated at ambient temperature rather than minimum temperature, and no allowance for a valve that has been static for a long period. Re-verify torque against the actual operating envelope before replacing an actuator.

• Cavity over-pressure. Occurs where DPE seats are installed in liquid service without adequate cavity relief. Symptoms include seat damage and, in severe cases, body distortion.

• Blocked sealant injection ports. Many pipeline valves provide emergency seat sealant injection. Ports that have never been maintained are of little value when they are needed. Include them in the maintenance schedule.

• Seat contamination. Solids, hydrate formation or pipeline debris can prevent the seat from seating cleanly. A DBB cavity pressure test is the fastest way to identify which side is affected.

• Bearing friction after long static periods. Bearing and packing friction rises with idle time and with falling temperature. Actuator torque margin should account for this rather than assuming as-new conditions.

• Buried installation access. Stem extensions, gear operators and coating systems need to be specified at the design stage. Retrofitting access to a buried valve is expensive.

• Stem leakage. Usually traced to packing degradation rather than to stem damage. Confirm that the packing material is compatible with the actual service temperature before re-packing.

A practical rule for operators: the DBB function is only useful if it is exercised. A cavity bleed that is never opened during normal operation will not reveal a degrading seat until a scheduled shutdown, which is precisely the outcome DBB is intended to avoid.

VII. Frequently Asked Questions

What is a trunnion-mounted ball valve?

A trunnion-mounted ball valve is a quarter-turn valve in which the ball is anchored by an upper stem and a lower trunnion running in bearings, rather than being supported by the seats. Line pressure is absorbed by the trunnion bearings, so the seats only need to seal, not to resist pressure thrust. This keeps operating torque low in large-bore, high-pressure service.

What is the difference between a trunnion and a floating ball valve?

In a floating ball valve the ball is held only by the two seat rings, and line pressure pushes the ball into the downstream seat. In a trunnion-mounted valve the ball is mechanically fixed and the seats are pressure-assisted. Floating designs are economical up to roughly DN 150 / NPS 6; trunnion-mounted designs are used above that, where the torque and seat loading of a floating design become difficult to manage.

Why is the operating torque lower on a trunnion ball valve?

Because the seat contact force is designed rather than imposed. In a floating valve the seat must resist the full pressure thrust, which grows with the square of the bore. In a trunnion valve that thrust is carried by the bearings, and seat load is limited to the spring preload plus the force on a defined piston area. The result is a much lower and more predictable breakaway torque.

Can a trunnion ball valve be used for pigging?

Yes, provided it is a full-bore (through-conduit) design. A full-bore trunnion valve presents an unobstructed bore matching the pipe internal diameter, allowing cleaning, gauging and inline inspection pigs to pass. Reduced-bore valves are not piggable and are normally excluded from mainline transmission service.

What standards apply to pipeline trunnion ball valves?

The primary specification is API 6D / ISO 14313, supported by ASME B16.34 for pressure–temperature ratings, ASME B16.10 for face-to-face dimensions, API 598 / ISO 5208 for pressure testing, API 607 or API 6FA for fire-safe type testing, and NACE MR0175 / ISO 15156 for sour service. The pipeline codes ASME B31.4 and B31.8 govern how the valve is applied within the line.

VIII. Conclusion

The trunnion-mounted ball valve exists because the forces in a large-bore, high-pressure pipeline cannot sensibly be absorbed by a seat ring. Moving that load into a pair of bearings transforms the problem: torque becomes predictable, actuators become smaller, seat wear becomes manageable, and full-bore pigging becomes practical.

Three decisions drive most of the outcome. The first is size and pressure class, which determine whether a trunnion design is warranted at all. The second is seat effect — SPE or DPE — which sets the cavity relief requirement and therefore the isolation philosophy. The third is torque margin, which determines whether the valve will still operate on the coldest day after a year in one position.

Getting those three right, against the correct standards, is most of the engineering. Everything else follows.

To confirm selection parameters for a specific pipeline, provide the line size, pressure class, design and operating temperature, medium, and isolation philosophy. A valve data sheet review will identify any parameters that need to be resolved before ordering.
