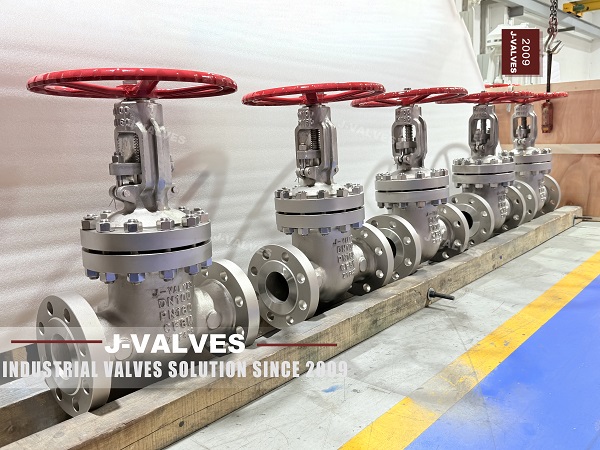

CF8M Gate Valves are widely used in chemical processing, oil and gas, petrochemical, marine, water treatment, and other industrial piping systems where corrosion resistance and reliable isolation are important. The valves shown in the image are DN100 PN160 CF8M gate valves, featuring a stainless steel cast body, bolted bonnet, flanged ends, and handwheel operation.
CF8M is an austenitic stainless steel casting grade with molybdenum, offering good corrosion resistance for many demanding fluid services.
A typical CF8M Gate Valve consists of a CF8M stainless steel body, bonnet, gate, stem, seats, packing system, and flanged connections.
The gate moves vertically inside the valve body. When fully open, the gate is lifted away from the main flow passage, allowing the medium to pass with relatively low obstruction. When fully closed, the gate contacts the seats to isolate the pipeline.
The valves in the image use a bolted bonnet and rising-stem handwheel configuration, providing a practical structure for industrial installation and maintenance.
CF8M is commonly selected for applications where corrosion resistance is an important design requirement.
Its key advantages include:
Good resistance to many corrosive media
Good mechanical strength
Suitable performance in wet and chemical environments
Good durability for industrial service
Wide applicability in stainless steel valve construction
The molybdenum content of CF8M provides improved resistance to localized corrosion compared with conventional 304-type stainless steel in many environments. Final material selection should always consider the specific medium, concentration, temperature, pressure, and corrosion conditions.
The PN160 marking shown on the valve indicates a high nominal pressure class under the applicable EN/ISO pressure-rating framework.
For high-pressure service, the body, bonnet, bolting, stem, gate, seats, and sealing system must be properly designed and manufactured as a complete pressure-containing system.
Important engineering considerations include:
Body wall thickness
Bonnet strength
Seat design
Stem diameter
Bolting
Pressure-temperature relationship
Shell and seat testing
The actual allowable working pressure must be determined from the applicable design standard and temperature rating.
The sealing system is critical to the performance of a CF8M Gate Valve. Precision-machined gate and seat surfaces help provide reliable shut-off when the valve is fully closed.
The rising stem shown in the image provides a clear indication of valve position and allows the gate to move vertically during operation. The packing arrangement around the stem is designed to control external leakage.
For demanding services, J-VALVES can configure suitable seat, trim, packing, and sealing materials according to operating conditions.
The flanged ends provide a secure connection between the valve and pipeline.
A flanged CF8M Gate Valve offers practical advantages such as:
Convenient installation
Easy removal for maintenance
Strong mechanical connection
Compatibility with industrial piping systems
Flexible selection of flange standards and pressure classes
For high-pressure applications such as PN160, flange dimensions, gasket selection, bolting, and tightening procedures should be properly matched.
The combination of CF8M stainless steel and gate valve construction provides several engineering benefits.
Corrosion Resistance: CF8M is suitable for many corrosive and wet industrial environments when correctly selected.
Reliable Isolation: The gate-and-seat configuration is designed primarily for on/off pipeline isolation.
High-Pressure Capability: Properly engineered PN160 configurations can be applied to demanding pressure service within their rated temperature and pressure limits.
Low Flow Resistance: When fully open, the gate is removed from the primary flow passage, providing a relatively unobstructed flow path.
J-VALVES provides customized CF8M Gate Valve solutions for high-pressure and corrosion-resistant applications.
Material Control: Stainless steel casting materials are controlled according to project requirements, with material verification available as required.
Precision Machining: Accurate machining of the body, gate, seats, stem, and flange surfaces helps maintain dimensional consistency and sealing performance.
High-Pressure Manufacturing: J-VALVES can manufacture configurations such as the DN100 PN160 CF8M gate valve shown in the image.
Customized Configuration: Size, pressure class, flange standard, trim materials, seat design, bonnet configuration, packing, and operating method can be customized.
Quality Inspection: Dimensional inspection, material verification, shell pressure testing, seat testing, and functional inspection help support consistent product quality.
CF8M gate valves can be used in:
Chemical processing
Petrochemical plants
Oil and gas systems
Marine piping
Water treatment
Pharmaceutical and process industries
Industrial utility systems
High-pressure process pipelines
The CF8M Gate Valve combines the corrosion-resistant properties of stainless steel with a robust gate valve structure for reliable pipeline isolation. The DN100 PN160 CF8M gate valves shown in the image demonstrate a high-pressure configuration suitable for demanding industrial applications.
With CF8M material expertise, precision machining, high-pressure manufacturing capability, customized configurations, and strict quality inspection, J-VALVES provides reliable stainless steel gate valve solutions for chemical, petrochemical, oil and gas, marine, water treatment, and industrial process systems.
