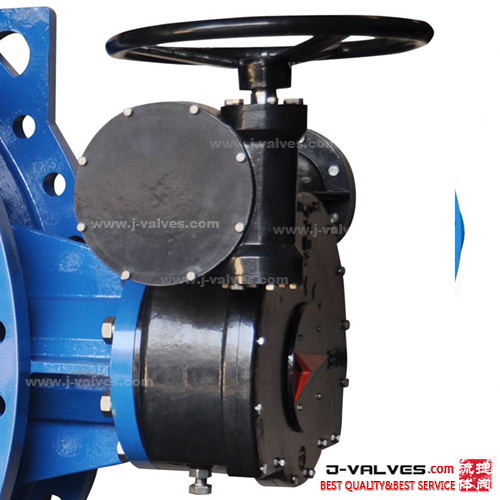

Gear operation Ductile Iron EPDM Seat Flange Type Butterfly Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
● Valve alias:Bronze C95800 metal sealing butterfly valve
Quick Detail:
● Size:2”-64” (DN50~DN1600)
● Pressure Rating: PN16~PN160/150LB-2500LB/10K~60K)
● Body Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A217 WC6/WC9,A105,GG2...
Size:
Availability:
Quantity:
  • Butterfly Valve

  • J-VALVES

Gear operation Ductile Iron EPDM Seat Flange Type Butterfly Valve


● Valve alias:Gear operation Ductile Iron EPDM Seat Flange Type Butterfly Valve

Quick Detail:

● Size:2”-64” (DN50~DN1600)

● Pressure Rating: PN16~PN160/150LB-2500LB/10K~60K)

● Body Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A217 WC6/WC9,A105,GG25,GGG50,Titanium,BronzeC95800,C5,C12,Cryogenic steel

● Seat Material:NBR,EPDM,NR,CR,SI,FPM,PTFE

● Connection method:Lug,Wafer,Flange,Weld

● Suitable Temperature: -46ºC~135ºC( Different temperature choose different materials).

● Suitable Medium: Water, Steam, Oil and natural gas etc.

Description:

● Butterfly Valve Design Standard: API609/ASME B16.34

● Fully Compliant to API609

● Flange Fully Compliant to ASME B16.5/ASME B16.47

● The seal can be replaced, the sealing performance is reliable, and zero leakage to the seal is achieved.

● The sealing material is resistant to aging, corrosion, and has a long service life.

● The valve stem seal is not easily deformed so as to avoid the usual valve stem leakage. The overall support is good, stable and reliable.

● The butterfly plate has an automatic centering function, which realizes the small interference fit between the butterfly valve and the valve seat.

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.

Applications:

API nickel aluminum bronze C95800 lug type butterfly valve is suitable for food, medicine, chemical industry, petroleum, electric power, metallurgy, urban construction, light textile, papermaking, etc. to adjust the flow rate and intercept the medium of the water supply and drainage and gas pipelines, and those applications where ease of repairability is desired.

Competitive Advantage:

● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure


NPS

L

D

Z-d

H

H1

2"

43

120.7

4-19

350

112

2-1/2"

46

139.7

4-19

370

115

3"

46

152.4

4-19

420

138

4"

52

190.5

8-19

460

164

5"

56

215.9

8-22

555

175

6"

56

241.3

8-22

780

215

8"

60

298.5

8-22

840

243

10"

68

362

12-26

995

285

12"

78

431.8

12-26

1050

320

14"

78

476.3

12-29

1220

350

16"

102

539.8

16-29

1280

350

18"

114

577.9

16-32

1365

380

20"

127

635

20-32

1460

435

24"

154

749.3

20-35

1520

480

28"

165

795.3

40-22

1710

530

30"

165

846.1

44-22

1810

595

32"

190

900.1

48-22

1900

650

36"

200

1009.6

44-26

2160

780

40"

216

1120.8

44-29

2330

860
