Class600 Carbon Steel A216 WCB Flange RF Type Y-Strainer

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
● Valve alias:Y Tpye Filter
Quick Detail:
● Size: 1/2''-24''(DN15~DN600)
● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)
● Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A217 WC6 ,A352 LCB/LCC,A105,F304,F316,F51/F53,F11,F2,C3...
Size:
Availability:
Quantity:
  • Y Type Stranier

  • J-VALVES

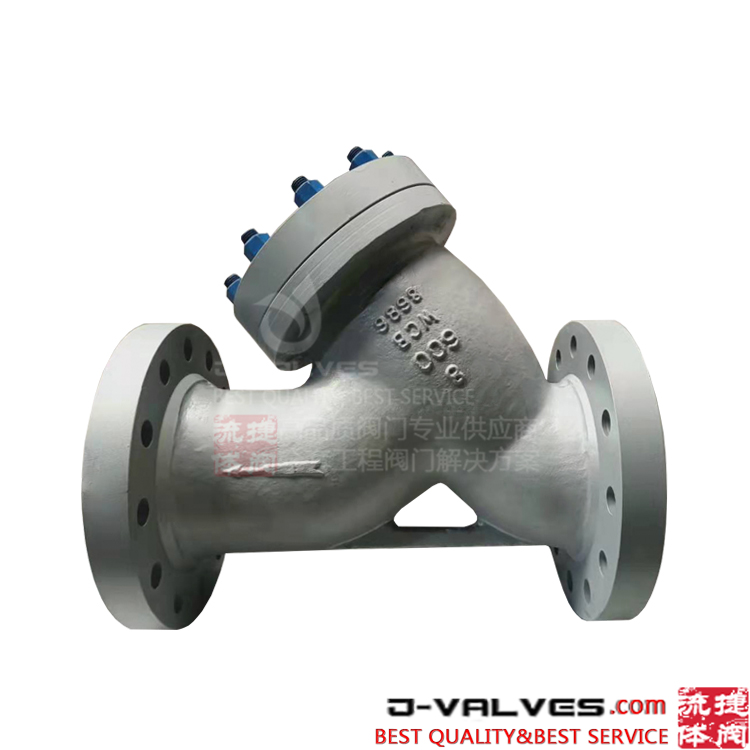

Class600 Carbon Steel A216 WCB Flange RF Type Y-Strainer


● Valve alias:Stainless Steel Y Tpye Strainer

Quick Detail:

● Size: 1/2''-24''(DN15~DN600)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

● Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A217 WC6 ,A352 LCB/LCC,A105,F304,F316,F51/F53,F11,F2,C3,C95800

● Suitable Temperature: 425ºC( Different temperature choose different materials).

● Suitable Medium: Water, Steam, Oil and natural gas etc.

Description:

● Design Standards:ASME B16.34

● Structure Length:ASME B16.10

● Connection Size Standard:ANSI B16.5

● Test and Inspection Standards: API598

● Y type strainer filters are made of stainless steel materials such as 304 and 316, which have the characteristics of strong corrosion resistance and long service life.

● Y type strainer filter mesh number, such as 10 to 120 meshes are available (can be customized according to user requirements)

● CNC machine tool processing, high precision, good sealing .

● Strong anti-fouling performance, convenient sewage discharge; large circulation area, small pressure loss; simple structure, small volume and light weight.

Applications:

Industry class1500 A217 WC6 40 mesh butt welded Y strainer is widely used in steam, air, water, natural gas, oil and other media; it protects various equipment, pumps, valves, etc. of the pipeline system from congestion caused by impurities such as pipelines, rust, welding slag, etc. damage.

Competitive Advantage:

● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure


NPS

L

H

d

D

D1

D2

b

n-Ød

1/2"

140

60

15

90

60.3

34.9

8.0

4-Ø16

3/4″

142

70

20

100

69.9

42.9

8.9

4-Ø16

1″

152

70

25

110

79.4

50.8

9.6

4-Ø16

11/4"

183

75

32

115

88.9

63.5

11.2

4-Ø16

11/2″

201

90

40

125

98.4

73

12.7

4-Ø16

2″

216

105

49

150

120.7

92.1

14.3

4-Ø19

21/2"

251

150

65

180

139.7

104.8

15.9

4-Ø19

3″

286

175

74

190

152.5

127

17.5

4-Ø19

4″

305

200

100

230

190.5

157.2

22.3

8-Ø19

5″

341

205

125

255

215.9

186

22.3

8-Ø22

6″

388

260

150

280

241.3

215.9

23.9

8-Ø22

8″

485

300

200

345

298.5

269.9

27

8-Ø22

10″

552

380

250

405

362

323.8

28.6

12-Ø26

12″

640

410

300

485

431.8

381

30.2

12-Ø26

14″

700

480

350

535

476.3

412.8

33.4

12-Ø29

16″

754

540

400

595

539.8

469.9

35

16-Ø29
