2“-56”
J-VALVES
Structural Features
Metal Sealing: Adopting a metal sealing design, it is suitable for high-temperature and high-pressure environments, providing excellent sealing performance and maintaining zero leakage even under extreme working conditions.
Trunnion Design: The trunnion design reduces operating torque, improves the reliability and durability of the valve, and ensures stable operation in high-pressure environments.

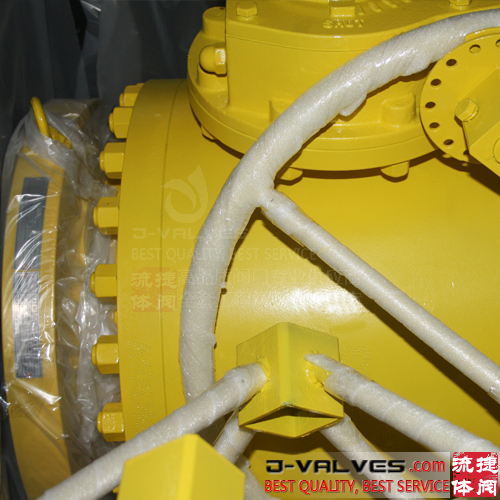

Gear Operation: Equipped with a gear-operated mechanism, it provides stable opening and closing performance, reduces operating torque, and is suitable for large-caliber and high-pressure working conditions.
Fire Safety Design: Compliant with the API 607 standard, the valve can still maintain sealing performance in case of fire, preventing medium leakage and ensuring system safety.
Anti-Static Device: Built-in anti-static device effectively prevents static accumulation, reduces the risk of fire and explosion, and is particularly suitable for the control of flammable and explosive media.
Compact Design: With small size and light weight, it is easy to install and integrate into existing systems, saving space.
Multiple Connection Methods: Offers multiple connection methods such as flanged connection and butt weld (BW) connection to meet different engineering requirements.
Multiple Operation Modes: Can be equipped with manual, pneumatic, electric, or hydraulic actuators to achieve remote automatic control.
Technical Parameters
Nominal Diameter: 2″ to 56″ (DN50 to DN1400)
Pressure Class: 150LB to 2500LB (PN10 to PN420)
Temperature Range: -29℃ to +425℃
Materials:
Valve Body: Carbon Steel (WCB), Stainless Steel (304, 316), Alloy Steel
Ball: Stainless Steel (304, 316)
Valve Stem: Stainless Steel (304, 316)
Sealing Material: Metal Sealing (Stainless Steel, Hard Alloy, etc.)
Connection Method: Flanged Connection (compliant with ASME B16.5 standard), Butt Weld (BW) Connection
Operation Mode: Gear Operation
Design Standard: API 6D, ASME B16.34
Testing Standard: API 598, ISO 5208
Fire Protection Design: API 607
Applicable Media: Water, Oil, Gas, Chemical Media, etc.
Application Scenarios
Oil and Natural Gas Industry: Used in oil and gas field exploration, gathering, transportation, and processing systems to ensure reliable isolation and control of media.
Chemical Industry: Suitable for the transportation and reaction systems of various chemical media, preventing medium leakage and ensuring production safety.
Pharmaceutical Industry: Applied in pipeline systems during pharmaceutical production to ensure medium isolation and cleanliness in the drug manufacturing process.
Food and Beverage Industry: Meets food-grade requirements and is used in pipeline systems for food and beverage production to ensure hygiene and safety.
HVAC: Used in cooling water systems, hot water systems, etc., to ensure efficient operation of the system.
General Industrial Applications: Suitable for the control and isolation of media such as water, oil, and gas.
Advantages and Value
High Reliability: The metal sealing and trunnion design ensure the valve operates stably in medium-high pressure and medium-high temperature environments, reducing maintenance frequency and downtime.
High Safety: The fire protection, anti-static design, and reliable sealing performance effectively reduce the risk of leakage, safeguarding the safety of personnel and equipment.
Operational Convenience: The gear-operated mechanism provides stable opening and closing performance, reduces operating torque, and is suitable for large-caliber and high-pressure working conditions.
Easy Installation and Maintenance: The flanged connection simplifies the installation process and facilitates maintenance and overhaul.
Wide Applicability: Multiple material options and a broad range of pressure and temperature allow it to adapt to various complex working conditions and medium characteristics.
Product Drawing:
Note: All the data should be confirmed with the approved drawings of manufacturer.
