J-VALVES-BV
J-VALVES
8481804090

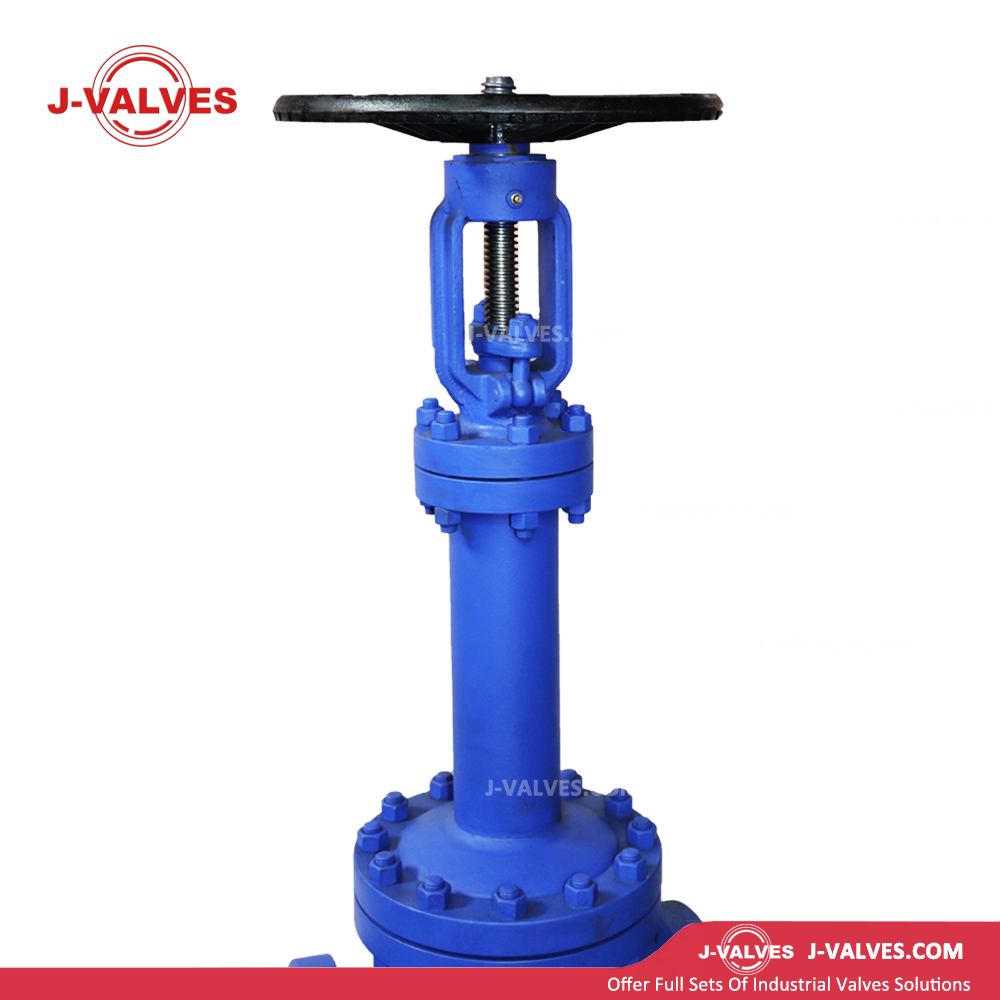

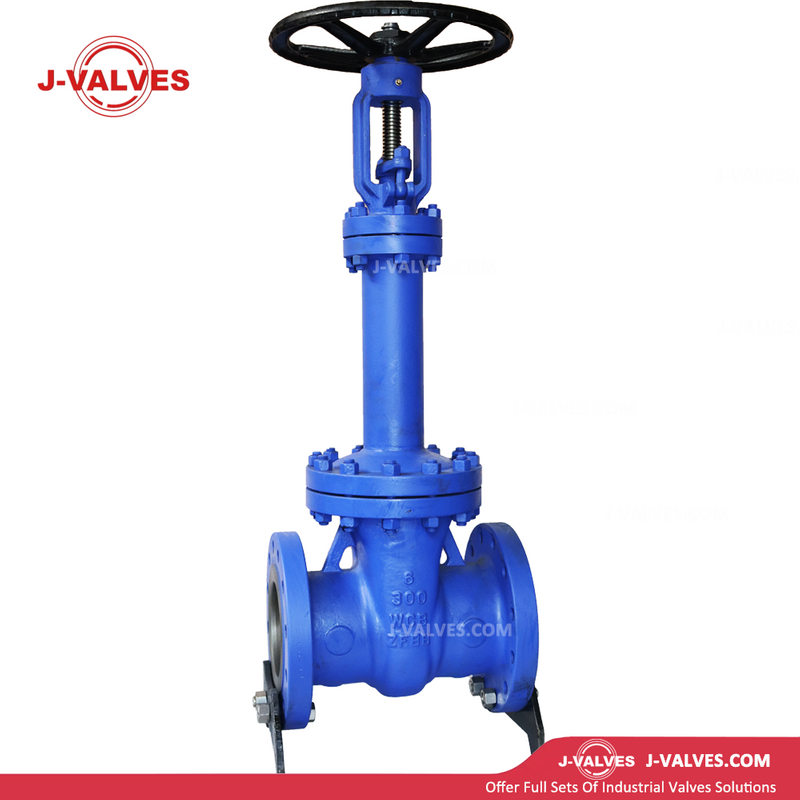

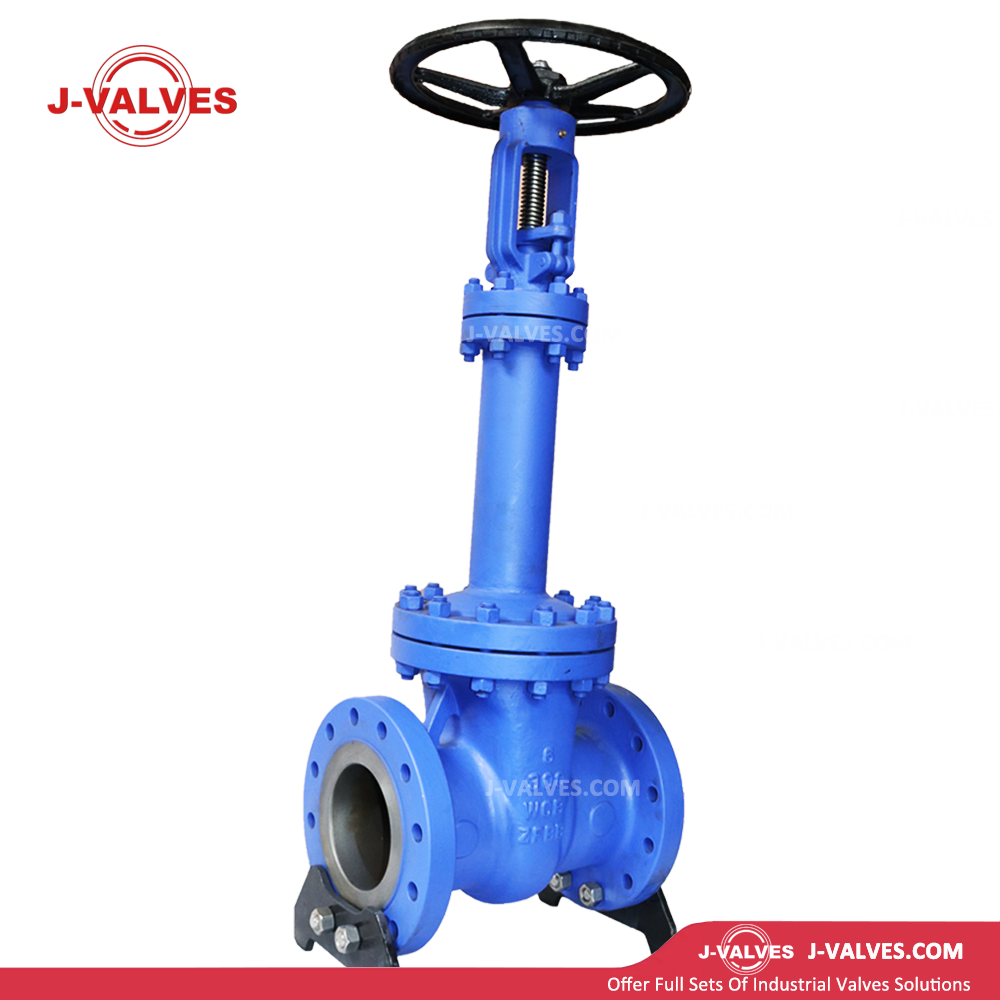

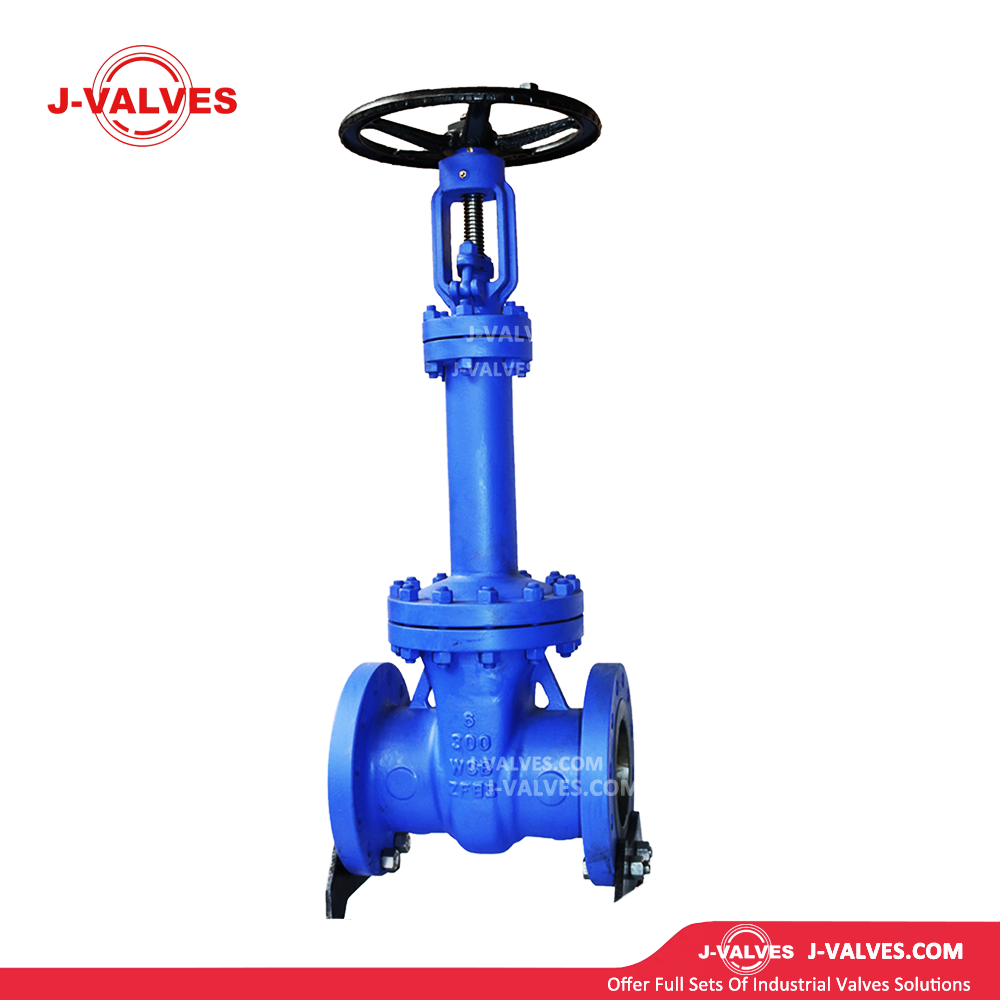

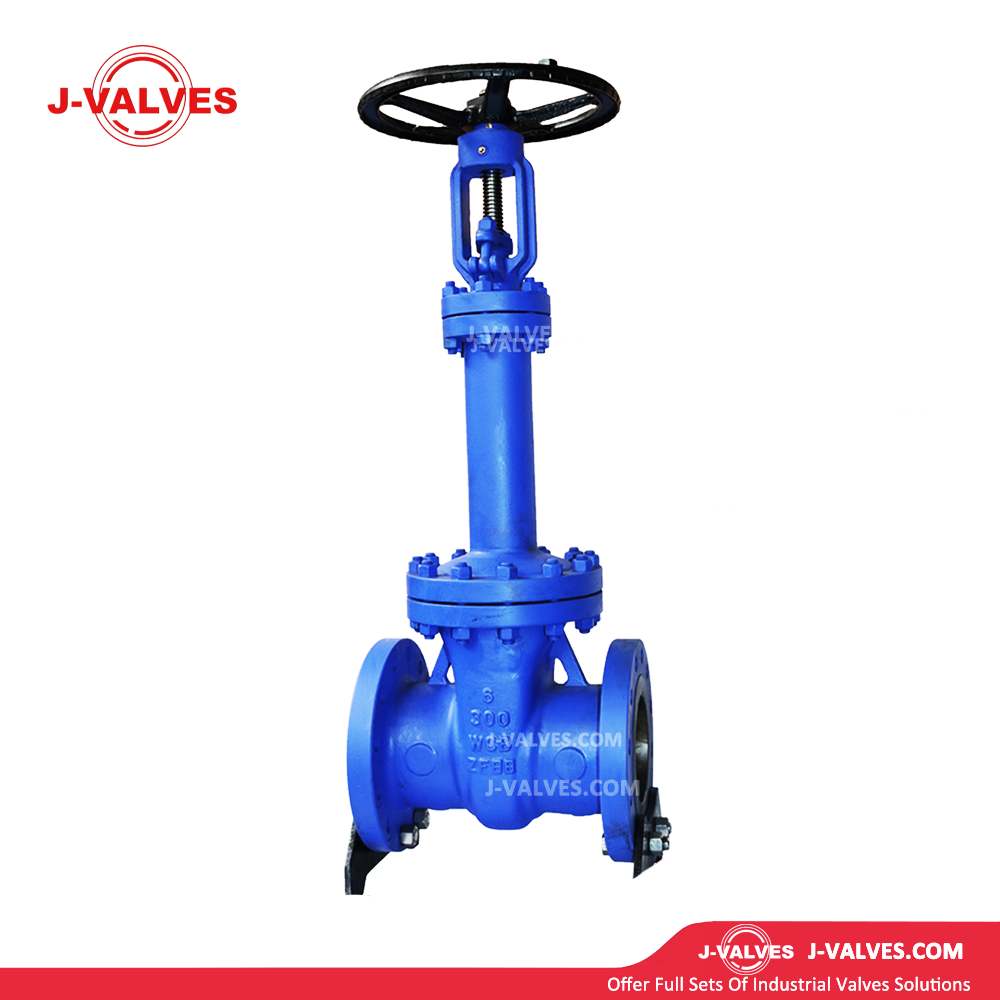

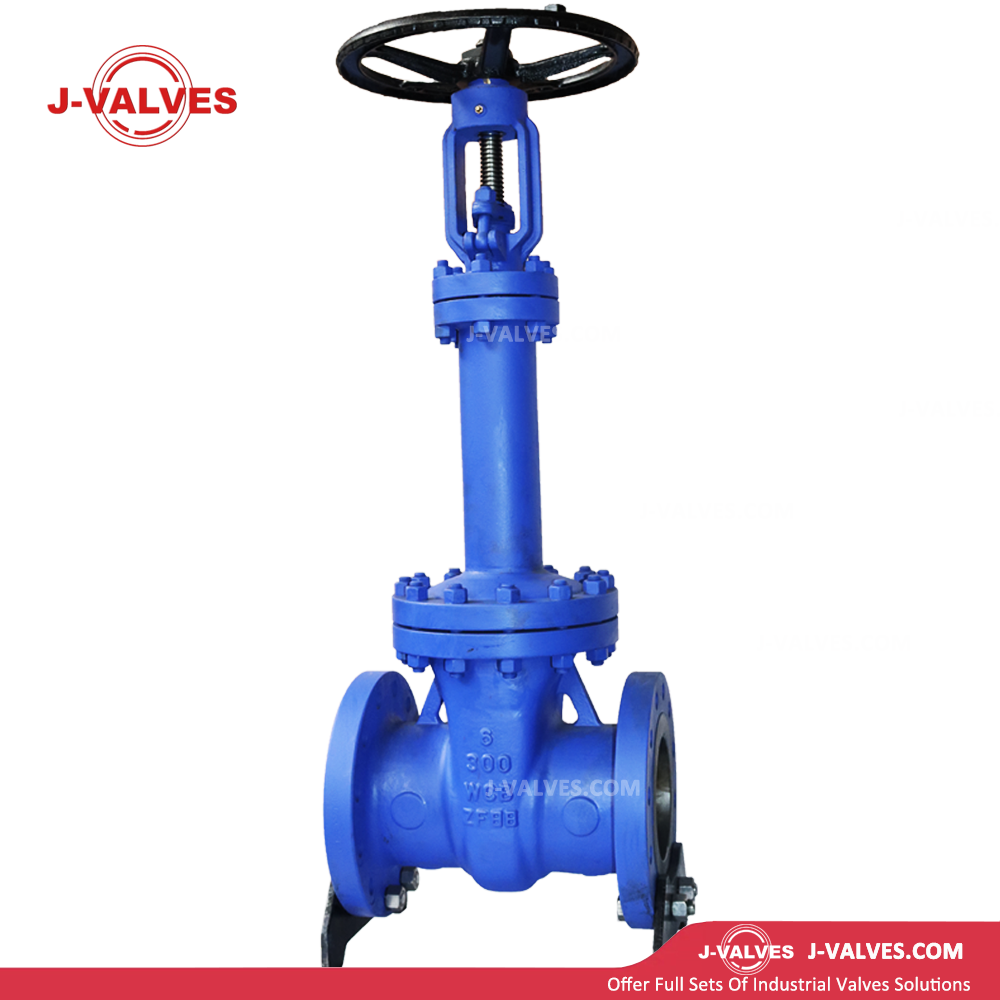

Carbon Steel Material: The valve body is made of carbon steel, providing high strength and good corrosion resistance.
Bellows Seal: Adopts a bellows seal design to effectively prevent medium leakage and meet environmental protection requirements.
Flange Connection: Uses DIN standard flange connection to ensure reliable installation and tight sealing.
Fire-Safe Design: Complies with API 607 standards, maintaining sealing performance even in case of fire to prevent medium leakage.
Anti-Static Device: Built-in anti-static device effectively prevents static accumulation, reducing the risk of fire and explosion.
Stem Blowout Prevention: The stem features a blowout-proof design to ensure operational safety.
Compact Design: Small in size and light in weight, facilitating installation and integration into existing systems.
Size: 6" (DN150)
Pressure Rating: 300LB (PN50)
Temperature Range: -196℃ to 343℃
Materials:
Valve Body: Carbon steel
Bellows: Stainless steel
Stem: Stainless steel
Sealing Material: PTFE, flexible graphite
Connection Type: Flange connection (RF)
Operation Mode: Manual (handwheel operation)
Design Standards: API 600, ASME B16.34
Testing Standards: API 598
End-to-End Dimensions: Compliant with ASME B16.10 standards
Oil and Gas Industry: Used in oil and gas field exploration, gathering, transportation, and processing systems to ensure reliable isolation and control of media.
Chemical Industry: Suitable for conveying and reaction systems of various chemical media, preventing leakage and ensuring production safety.
Pharmaceutical Industry: Applied in pipeline systems during pharmaceutical production to ensure media isolation and cleanliness in the drug manufacturing process.
Food and Beverage Industry: Meets food-grade requirements, used in pipeline systems for food and beverage production to ensure hygiene and safety.
HVAC: Used in cooling water systems, hot water systems, etc., to ensure efficient operation of the system.
General Industrial Applications: Suitable for controlling and isolating media such as water, oil, and gas.
High Reliability: The carbon steel material and bellows seal design ensure stable operation of the valve in high-pressure and low-temperature environments, reducing maintenance frequency and downtime.
High Safety: Fire-resistant and anti-static designs, along with reliable sealing performance, effectively reduce leakage risks and protect personnel and equipment safety.
Easy Installation and Maintenance: The flange connection simplifies installation and allows for convenient maintenance and repair.
Wide Applicability: Multiple material options and a broad range of pressure and temperature ratings enable adaptation to various complex working conditions and media characteristics.
