How To Select Ball Valves Among API 6D,API 608 And ASME B16.34 Standards

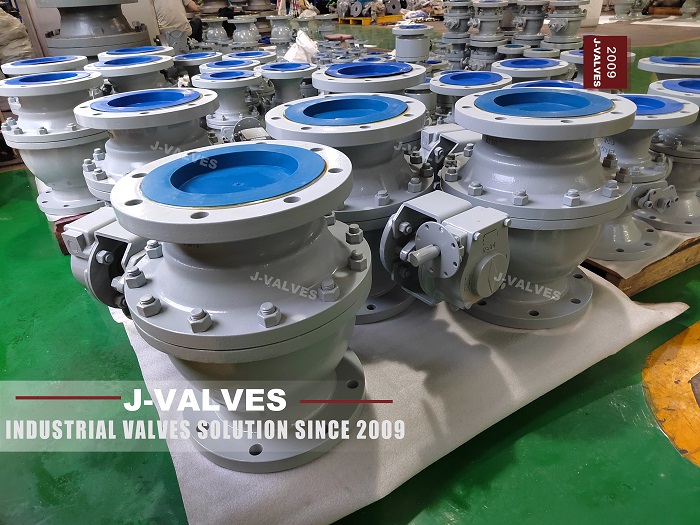

Overview of the Standards

1. API 6D: Pipeline and Pipeline Valves

API 6D is a standard developed by the American Petroleum Institute (API) specifically for pipeline valves used in petroleum and natural gas systems. It focuses on gate, ball, check, and plug valves and is designed to address the unique challenges of pipeline applications.

Key Features of API 6D:

• Full Bore Design: API 6D mandates full-bore openings to accommodate pigs used in pipeline cleaning and inspection. This ensures unobstructed passage for pigs, which is critical for maintaining pipeline efficiency and preventing blockages.

• Enhanced Safety Requirements: The standard includes strict requirements for pressure-relief mechanisms. Valves must have automatic cavity pressure relief to prevent trapped fluids from causing dangerous pressure build-up.

• Fire Safety: API 6D prioritizes fire-safe designs. Valves must incorporate a secondary metal seat that activates if the primary soft seat fails during a fire.

• Rigorous Testing Protocols: API 6D requires hydrostatic shell, seat, backseat testing, and specific drift tests for gate and plug valves.

• Specialized Material Standards: API 6D specifies materials suitable for high-pressure and high-temperature environments, ensuring durability and compatibility with petroleum and natural gas applications.

2. API 608: Metal Ball Valves

API 608 is a standard focused on metal ball valves with flanged, threaded, and welded ends. It provides specific requirements for the design, testing, and materials of these valves, ensuring they meet the demands of various industrial applications.

Key Features of API 608:

• Design and Testing: API 608 ball valves are designed to meet stringent requirements for pressure and temperature ratings. The standard includes detailed guidelines for hydrostatic testing and seat leakage testing.

• Material Specifications: The standard specifies high-quality materials suitable for a wide range of operating conditions, including carbon steel, stainless steel, and alloy materials.

• Fire Safety: API 608 ball valves are often designed to be fire-safe, meeting the requirements of API 607 for fire testing.

• Compatibility with ASME B16.34: API 608 ball valves must also comply with the broader requirements of ASME B16.34, ensuring they meet general industrial standards for pressure-temperature ratings and materials.

3. ASME B16.34: Valves—Flanged, Threaded, and Welding End

ASME B16.34 is a comprehensive standard developed by the American Society of Mechanical Engineers (ASME) that covers a wide range of industrial valves, including ball valves. It provides detailed guidelines for design, materials, testing, and pressure-temperature ratings.

Key Features of ASME B16.34:

• Wide Industry Scope: ASME B16.34 covers valves for diverse applications beyond pipelines, including petrochemical plants, refineries, and power stations.

• Comprehensive Pressure-Temperature Ratings: The standard provides detailed tables for pressure-temperature ratings, ensuring accurate selection for specific operational needs.

• Extensive Material Selection: ASME B16.34 supports a broad range of materials, from standard carbon steel to high-performance alloys like Inconel, ensuring durability and compatibility in corrosive or extreme environments.

• Optional Fire-Safe Testing: While fire-safe testing is not mandatory, ASME B16.34 offers optional fire testing criteria, allowing manufacturers flexibility to meet application-specific requirements.

• Nondestructive Testing (NDT): ASME B16.34 emphasizes integrity with detailed NDT methods, including radiographic and ultrasonic testing, to identify internal defects and ensure safety.

Comparative Analysis
