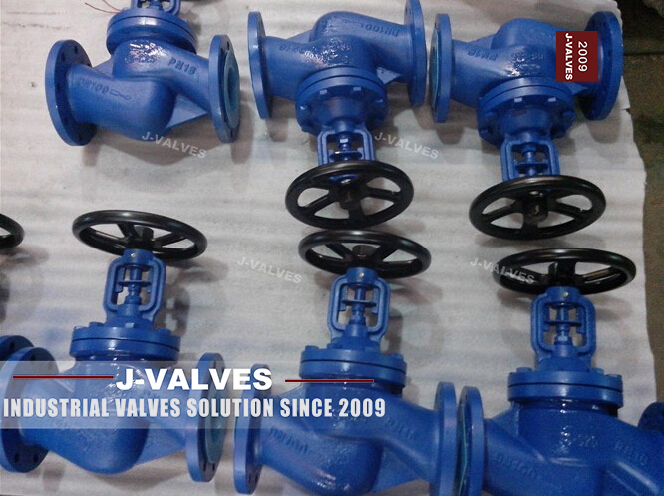

Understanding Bellows Globe Valves
Bellows globe valves are designed to provide reliable sealing and precise flow control. They consist of a bellows assembly that provides a leak-tight seal and a globe valve mechanism that controls the flow of fluid. The bellows design eliminates the need for gland packing, reducing maintenance and enhancing safety.
Key Components of Bellows Globe Valves
• Valve Body: The main structure that houses all internal components.
• Bellows Assembly: Provides a leak-tight seal and protects the valve stem from corrosive media.
• Globe Valve Mechanism: Controls the flow of fluid through the valve.
• Valve Stem: Connects the valve mechanism to the actuator or handwheel.
• Valve Seat: Provides a tight seal when the valve is closed.
• Valve Plug: Opens and closes the flow path.
• Actuator: Provides the torque to operate the valve.
Importance of Flow Path Design
The flow path design of a bellows globe valve significantly impacts its performance. An optimized flow path reduces fluid resistance, minimizes pressure drop, and enhances overall efficiency. This is particularly important in applications involving high-viscosity fluids or where energy efficiency is critical.
1. Straight-Through Design: The simplest design where the flow path is a straight line. This design minimizes pressure drop but may not be suitable for all applications.
2. Angle Design: The flow path changes direction at an angle, which can help reduce turbulence and improve flow characteristics.
3. Y-Type Design: The flow path follows a Y-shaped route, which can provide better flow control and reduced pressure drop compared to straight-through designs.
Standards and Guidelines for Flow Path Design
The EN 12516 standard provides guidelines for the design and manufacturing of bellow-sealed valves. It covers aspects such as material selection, pressure ratings, and testing requirements. Adhering to this standard ensures that the valve can withstand high pressures and temperatures while maintaining a tight seal.
This standard specifies the structural length requirements for valves, ensuring consistency and compatibility with other components in the system. It helps in designing valves that fit seamlessly into existing piping systems.
The EN 1092-1 standard outlines the requirements for flange connections, ensuring that the valve can be securely attached to the piping system. Proper flange design is crucial for preventing leaks and ensuring system integrity.
This standard provides guidelines for the testing and inspection of valves, ensuring that they meet the required performance levels. It includes tests for leakage, pressure resistance, and operational reliability.
Designing a streamlined flow path can significantly reduce fluid resistance and pressure drop. This can be achieved by:
• Minimizing Sharp Edges: Smooth transitions and rounded edges in the flow path reduce turbulence and improve flow characteristics.
• Optimizing Valve Seat Geometry: The shape and angle of the valve seat can be optimized to enhance flow control and reduce pressure drop.
Choosing the right materials is crucial for optimizing the flow path design. High-performance materials such as stainless steel and nickel-based alloys can withstand high temperatures and pressures while maintaining their mechanical properties.
3. Computational Fluid Dynamics (CFD) Simulation
Using CFD simulations can help in analyzing and optimizing the flow path design. These simulations provide insights into fluid behavior, allowing designers to identify areas of high resistance and turbulence.
Conducting experimental tests on prototype valves can validate the effectiveness of the optimized flow path design. Tests can include flow rate measurements, pressure drop assessments, and leakage checks.
