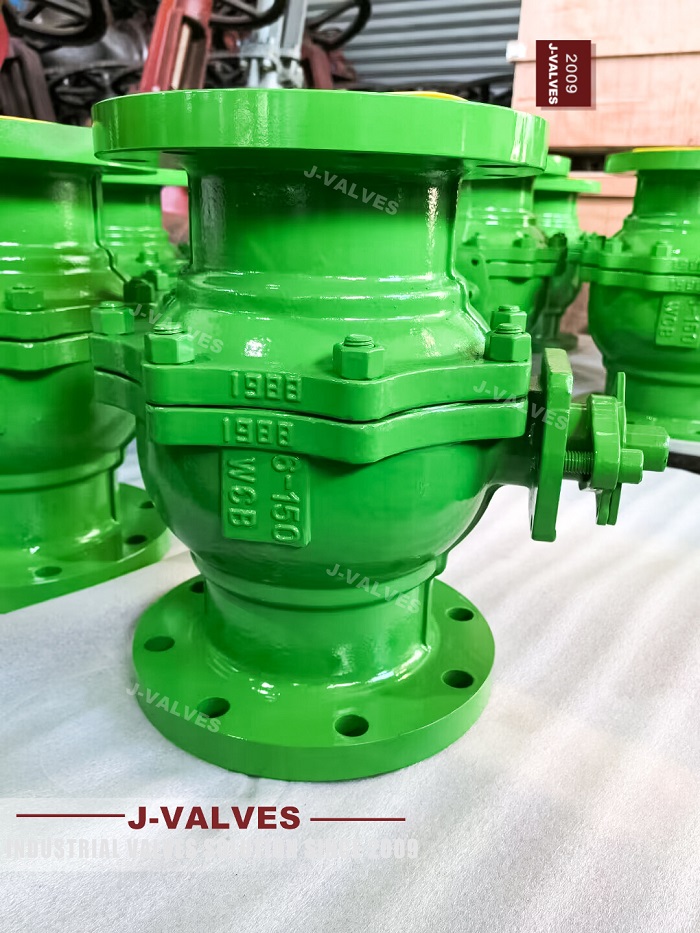

Floating flanged ball valves, a staple in the realm of quarter-turn valves, employ a spherical ball mechanism to regulate fluid flow. What sets them apart is the unique floating design of the ball, which is supported by the valve seats. Under pressure, this ball can subtly shift, creating a dynamic and secure seal. The flanged configuration, meanwhile, simplifies installation and maintenance, making these valves a go-to choice for scenarios where frequent inspections or repairs are on the agenda.
PN16: This class is well-suited for systems with a maximum working pressure capped at 16 bar (232 psi). You'll commonly find PN16 valves in low-pressure applications like water treatment plants, where the pressure requirements are relatively mild. In these settings, the valve's ability to provide a reliable seal without excessive stress on the system is crucial.
PN25: With the capacity to handle pressures up to 25 bar (363 psi), PN25 valves are a popular choice for medium-pressure applications. Compressed air systems and certain chemical processing plants often rely on these valves. In chemical processing, for example, the valve needs to withstand the pressure while also resisting chemical corrosion, and PN25 valves strike a good balance.
PN40: Designed to handle pressures up to 40 bar (580 psi), PN40 valves are commonly used in high-pressure water systems and the oil and gas industry. In oil and gas pipelines, where the fluid can be under significant pressure, these valves ensure the integrity of the system and prevent leaks.
PN64: Ideal for pressures up to 64 bar (928 psi), PN64 valves shine in high-pressure steam systems and other demanding industrial environments. In steam systems, the valve must endure both high pressure and high temperatures, and PN64 valves are engineered to meet these challenges.
PN100: Capable of withstanding pressures up to 100 bar (1450 psi), PN100 valves are the workhorses for ultra-high-pressure applications. Hydraulic systems and critical oil and gas operations often depend on these valves. In hydraulic systems, where precise pressure control is essential, the PN100 valve's robust construction ensures stable performance.
Reviewing System Design: Delve into the system design documents. These blueprints hold the key to understanding the maximum pressure the system was engineered to handle. Every detail, from the pipe diameter to the material used, can impact the pressure capacity.
Considering Pressure Fluctuations: Real-world operations rarely see constant pressure. Account for potential pressure surges or fluctuations that can occur during normal operation. For instance, in a pumping system, the sudden start and stop of pumps can cause pressure spikes.
Safety Factors: To safeguard against unexpected pressure increases, incorporate safety factors. This buffer ensures that the valve can handle unforeseen situations without failing, protecting both the system and the personnel working with it.
For low-pressure systems operating below 16 bar, a PN16 valve is a suitable choice. It offers the right balance of performance and cost-effectiveness.
Medium-pressure systems with pressures up to 25 bar benefit from PN25 valves. These valves provide the necessary strength and sealing capabilities.
High-pressure systems reaching up to 40 bar require PN40 valves to maintain system integrity.
Very high-pressure systems with pressures up to 64 bar demand PN64 valves to handle the intense forces at play.
Ultra-high-pressure systems operating at pressures up to 100 bar need the robust PN100 valves to ensure optimal performance.
PTFE (Polytetrafluoroethylene): Renowned for its excellent chemical resistance and low friction, PTFE is a top pick for low to medium-pressure applications (PN16 to PN25). In food processing plants, where hygiene and chemical resistance are paramount, PTFE-seated valves are commonly used.
Metal Seating: When it comes to high-pressure applications (PN40 to PN100), metal seating takes the spotlight. Its durability and ability to withstand high pressures and temperatures make it ideal for industries like power generation, where valves are exposed to extreme conditions.
Manual Operation: For low to medium-pressure applications where frequent operation isn't required, manual operation is a simple and cost-effective choice. In small-scale plumbing systems, for example, manual valves allow for easy on-off control.
Electric Actuators: High-pressure applications that demand precise control and rapid response often rely on electric actuators. In automated manufacturing plants, these actuators can quickly adjust the valve position to maintain optimal process conditions.
Pneumatic Actuators: When quick actuation is crucial in high-pressure systems, pneumatic actuators are the way to go. In emergency shut-off systems in oil refineries, pneumatic actuators can rapidly close the valve to prevent accidents.
Hydraulic Actuators: Ultra-high-pressure applications that require high torque call for hydraulic actuators. In heavy machinery and large-scale industrial operations, these actuators provide the muscle needed to operate the valves smoothly.
Lubrication: Periodically lubricating the valve components reduces friction and wear, keeping the valve operating smoothly. Neglecting lubrication can lead to increased resistance and premature failure.
Seal Inspection: Regularly checking the seals for signs of wear or damage is essential to prevent leaks. A small leak can quickly escalate into a major problem, especially in high-pressure systems.
Actuator Calibration: Ensuring the actuator is properly calibrated maintains the valve's response time and sealing performance. Inaccurate calibration can result in inefficient operation and potential safety hazards.
