How To Select The Appropriate Material for DBB Ball Valves Based on The Working Conditions

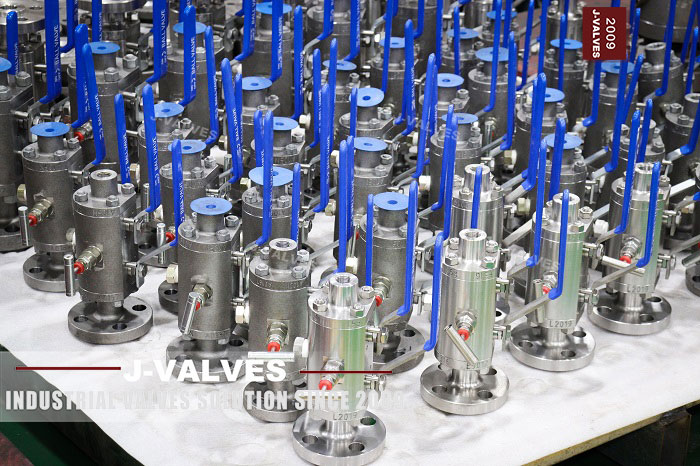

Understanding Double Block-and-Bleed (DBB) Ball Valves

DBB ball valves are designed to provide two independent seals (one upstream and one downstream) and a bleed port to vent any trapped fluid between the seals. This design ensures that the valve can safely isolate a section of the pipeline and relieve pressure, making it ideal for maintenance and emergency shutdown procedures. The reliability and safety of DBB valves depend significantly on the materials used in their construction.

2. Key Factors Influencing Material Selection

2.1 Pressure

• Low-Pressure Applications: For applications with low operating pressures (e.g., up to 150 psi), materials such as brass or bronze can be suitable. These materials are cost-effective and provide good corrosion resistance.

• High-Pressure Applications: For higher pressures (e.g., above 150 psi), stronger materials like carbon steel or stainless steel are recommended. These materials offer the necessary strength and durability to withstand high-pressure conditions.

2.2 Temperature

• Ambient Temperatures: For applications operating at ambient temperatures (e.g., -20°C to 50°C), materials such as brass, bronze, or stainless steel are generally suitable.

• High-Temperature Applications: For applications involving high temperatures (e.g., above 50°C), materials like stainless steel or high-temperature alloys (e.g., Inconel) are preferred. These materials maintain their mechanical properties and resist deformation at elevated temperatures.

• Low-Temperature Applications: For cryogenic applications (e.g., below -20°C), materials such as stainless steel or specialized cryogenic alloys are required. These materials retain their toughness and do not become brittle at low temperatures.

2.3 Fluid Type

• Non-Corrosive Fluids: For applications involving non-corrosive fluids (e.g., water, air), materials such as brass, bronze, or carbon steel can be used.

• Corrosive Fluids: For applications involving corrosive fluids (e.g., acids, chemicals), materials with high corrosion resistance, such as stainless steel (e.g., 304, 316) or specialized alloys (e.g., Hastelloy), are essential. These materials resist chemical attack and ensure long-term durability.

2.4 Environmental Conditions

• Outdoor Applications: For valves installed in outdoor environments, materials such as stainless steel or coated carbon steel are preferred. These materials resist corrosion from environmental factors such as humidity, salt spray, and UV exposure.

• Indoor Applications: For indoor applications with controlled environments, materials such as brass, bronze, or carbon steel can be suitable, depending on the specific requirements.

3. Common Materials for DBB Ball Valves

3.1 Brass

• Properties: Good corrosion resistance, easy to machine, and cost-effective.

• Applications: Suitable for low-pressure, non-corrosive applications such as water and air systems.

3.2 Bronze

• Properties: Excellent corrosion resistance, particularly in seawater and other corrosive environments.

• Applications: Ideal for marine applications, water treatment, and other environments where corrosion resistance is crucial.

3.3 Carbon Steel

• Properties: High strength, cost-effective, and suitable for higher pressures.

• Applications: Suitable for non-corrosive fluids and applications requiring high mechanical strength.

3.4 Stainless Steel (e.g., 304, 316)

• Properties: Excellent corrosion resistance, high strength, and suitable for a wide range of temperatures.

• Applications: Ideal for corrosive fluids, high-temperature applications, and environments requiring high durability.

3.5 High-Temperature Alloys (e.g., Inconel, Hastelloy)

• Properties: Exceptional resistance to high temperatures and corrosive environments.

• Applications: Suitable for extreme conditions, such as high-temperature chemical processing and cryogenic applications.
