How To Choose Gate Valves Among API 600, API 6D, And ASME 16.34 Standards

In the realm of industrial fluid control, gate valves play a pivotal role in ensuring the efficient and safe regulation of fluid flow. When it comes to selecting the appropriate gate valve, three standards stand out prominently: API 600, API 6D, and ASME 16.34. Each of these standards has its own set of characteristics, applications, and requirements, making the choice a crucial decision that can impact the performance, safety, and longevity of a system.

Overview of API 600, API 6D, and ASME 16.34

API 600

API 600, developed by the American Petroleum Institute, focuses on bolted bonnet steel gate valves. These valves are designed primarily for the petroleum and natural gas industries. The standard is renowned for setting strict guidelines on the design, materials, and manufacturing processes of gate valves. API 600-compliant valves are engineered to withstand high-pressure and high-temperature conditions, ensuring reliable performance in demanding environments.

API 6D

API 6D is another standard by the American Petroleum Institute, specifically tailored for pipeline valves used in the oil and gas industry. It covers a wide range of valve types, including gate valves. API 6D-compliant gate valves are designed to meet the rigorous demands of pipeline transportation, with an emphasis on long-term reliability, durability, and safety. This standard also addresses aspects such as fire-safe design, which is crucial in the oil and gas sector where flammable substances are transported.

ASME 16.34

The American Society of Mechanical Engineers (ASME) developed ASME 16.34. This standard is more comprehensive, covering various types of valves, including gate valves, and applies to a broader range of industries beyond just oil and gas. ASME 16.34 sets requirements for valve design, materials, pressure-temperature ratings, and testing procedures. It provides a general framework for valve manufacturing and usage, ensuring that valves meet high-quality and safety standards across different industrial applications.

Key Differences Among the Standards

Scope of Application

API 600 is mainly targeted at the petroleum and natural gas industries, particularly for general pipeline use. These valves are suitable for applications where high-pressure and high-temperature conditions are prevalent. For example, in oil refineries, where crude oil is processed under extreme pressures and temperatures, API 600 gate valves can be relied upon to provide reliable flow control.

API 6D, on the other hand, is specifically designed for pipeline valves in the oil and gas transportation sector. This includes valves used in long-distance pipelines that carry oil and gas from production sites to refineries or distribution centers. The standard takes into account the unique challenges of pipeline transportation, such as the need for valves to withstand the continuous flow of fluids over long distances and in various environmental conditions.

ASME 16.34 has a much broader scope, applicable to a wide range of industries, including power generation, chemical processing, and water treatment. In a power plant, for instance, where different types of fluids are used in the generation process, ASME 16.34-compliant gate valves can be used to control the flow of steam, water, and other working fluids.

Material Requirements

Under API 600, the materials used for valve construction are carefully specified. Carbon and alloy steels are commonly used, and the choice of material depends on factors such as the operating temperature, pressure, and the nature of the fluid being handled. For high-temperature applications, alloy steels with good heat-resistance properties may be selected.

API 6D also has strict material requirements, with an emphasis on materials that can withstand the corrosive and abrasive nature of oil and gas fluids. In pipelines, where the fluid may contain impurities and corrosive substances, materials with high corrosion resistance, such as certain grades of stainless steel, are often used. Additionally, the standard may require materials to meet specific fracture toughness requirements to ensure the valve's integrity under harsh operating conditions.

ASME 16.34 provides a more general set of material guidelines. While it allows for a wide range of materials to be used, depending on the application, it also requires that the materials selected meet certain mechanical and chemical properties. For example, in a chemical processing plant where highly corrosive chemicals are handled, materials with excellent corrosion resistance, such as special alloys or plastics, may be used, as long as they comply with the standard's requirements.

Design and Construction Features

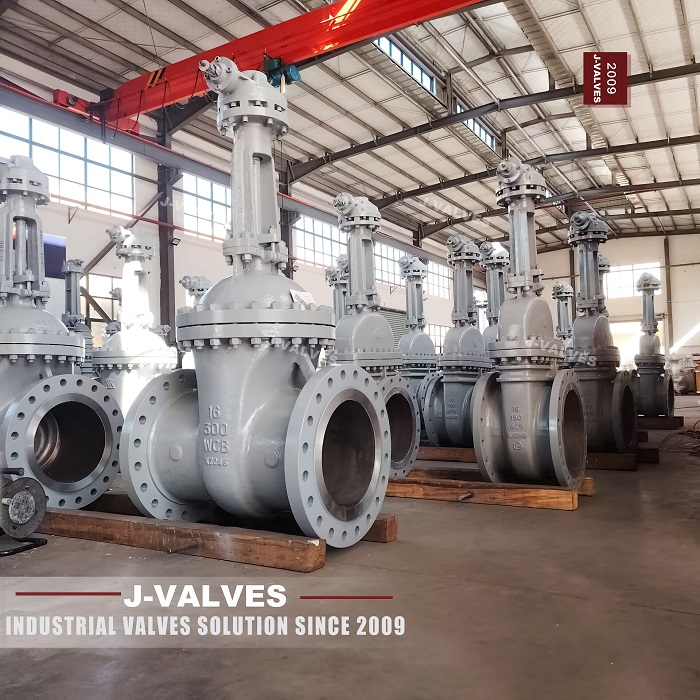

API 600-compliant gate valves typically feature a bolted bonnet design. This design allows for easy access to the internal components of the valve for maintenance and repair. The valves are also designed with a robust construction to withstand high-pressure differentials. The body and bonnet are often made of thick-walled materials to ensure strength and durability.

API 6D gate valves often have a full-bore design. This means that the internal diameter of the valve is the same as the diameter of the pipeline, minimizing pressure loss and ensuring efficient fluid flow. Additionally, these valves may incorporate features such as fire-safe design, which involves using materials and construction techniques that prevent the valve from leaking or failing during a fire.

ASME 16.34-compliant gate valves can have various design configurations, depending on the application. They may have different types of end connections, such as flanged, threaded, or butt-welded, to suit different piping systems. The design of these valves also takes into account factors such as the required flow rate, pressure-temperature ratings, and the type of fluid being controlled.

Pressure-Temperature Ratings

API 600 gate valves are designed to handle a wide range of pressure-temperature conditions. The standard specifies pressure ratings in terms of ANSI pressure classes, typically ranging from 150 to 2500. The temperature ratings depend on the materials used, but generally, these valves can operate at high temperatures, making them suitable for applications in refineries and other high-temperature processes.

API 6D valves also have specific pressure-temperature ratings. The pressure ratings are based on the requirements of pipeline transportation, and the valves are designed to withstand the pressure fluctuations and temperature variations that occur during the transportation of oil and gas. The temperature ratings are carefully determined to ensure the valve's performance in different environmental conditions, from cold climates to hot deserts.

ASME 16.34 provides a comprehensive set of pressure-temperature tables that cover a wide range of materials and valve types. These tables help in determining the appropriate pressure and temperature ratings for a given valve based on its design and the materials used. The standard allows for flexibility in choosing valves for different applications, as long as the pressure-temperature requirements are met.

Testing and Certification

API 600 requires valves to undergo rigorous testing procedures to ensure compliance. This includes pressure testing to verify the valve's ability to withstand the specified pressure differentials without leakage. Additionally, other tests such as material testing, dimensional inspection, and functional testing are carried out to ensure that the valve meets all the requirements of the standard. Once a valve passes these tests, it can be certified as API 600-compliant.

API 6D also has strict testing requirements. In addition to pressure and leak tests, valves may be subjected to fire-testing to meet the fire-safe design requirements. The testing procedures are designed to simulate the actual operating conditions that the valve will encounter in a pipeline, ensuring its reliability and safety. Certification under API 6D is a mark of quality and compliance with the standard's stringent requirements.

ASME 16.34-compliant valves must also undergo a series of tests, including pressure testing, leak testing, and performance testing. The testing procedures are designed to ensure that the valve meets the standard's requirements for design, materials, and performance. ASME provides a certification process that validates a valve's compliance with the standard, giving users confidence in the valve's quality and reliability.
