J-VALVES-BV-600
J-VALVES
8481804090
Engineered for reliability, this ball valve features a reducing bore for specific flow requirements. The F51 alloy, with its dual - phase microstructure, resists corrosion in harsh conditions. The double - block - and - bleed mechanism ensures safety, while the flange and thread connections allow for easy integration into various pipeline systems.

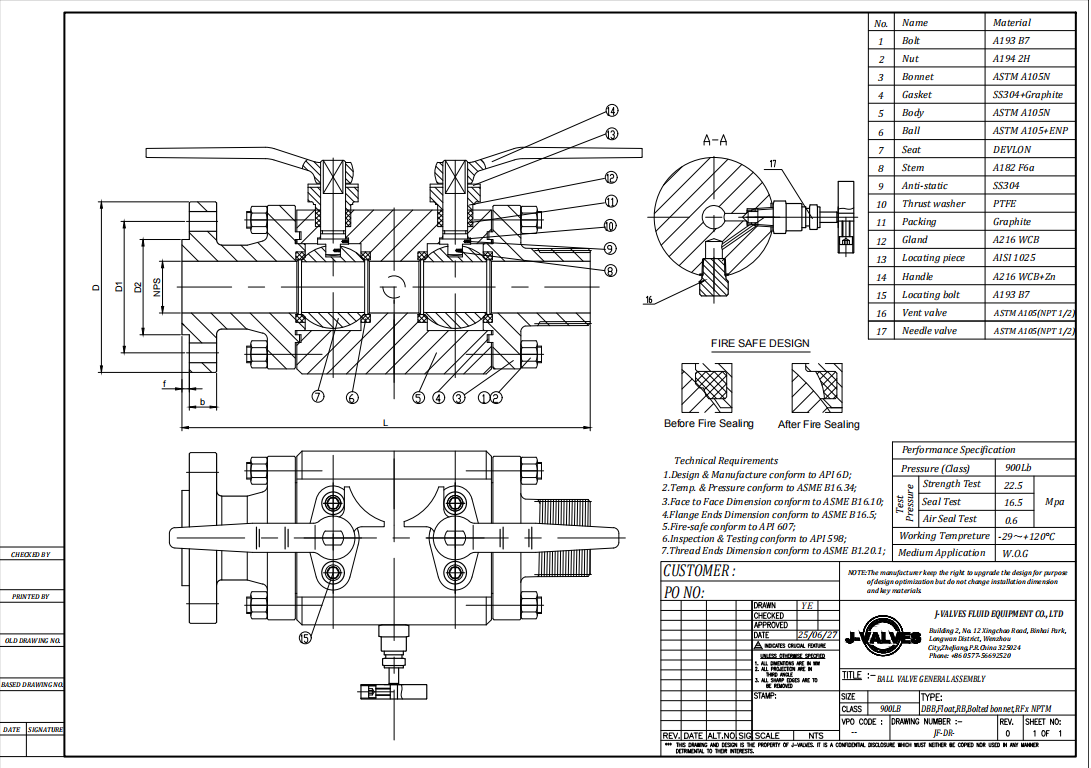

Product Name | 1/2′′ Flange&Thread Reduce Bore Duplex Stainless Steel F51 DBB Ball Valve |
Material | Stainless Steel/Duplex steel/Aluminium Bronze/Nickel-aluminum Bronze/Titanium Alloy, etc. |
Pressure | 150LB~2500LB |
Size | 1/2 inch~ 24 inch（DN15~DN600) |
End Connection | RF/RTJ/BW/SW |
Working Temp | -196ºC~400ºC option. |
Mode of operation | Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator. |
Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
Features | Anti-blow out stem, Anti-statstic, Fire safe |
Exceptional Corrosion Resistance
The F51 duplex stainless steel used in this valve offers outstanding corrosion resistance. In marine applications, such as on offshore oil platforms or in shipboard systems, it withstands the corrosive effects of saltwater far better than traditional stainless steels. The alloy's unique combination of austenitic and ferritic phases provides enhanced resistance to pitting, crevice corrosion, and stress - corrosion cracking. In a seawater desalination plant, where valves are constantly exposed to highly saline and chemically - treated water, the F51 - constructed valve can maintain its integrity over long service periods, reducing maintenance and replacement costs.
Installation Flexibility
With both flange and thread connections, this valve is highly adaptable for installation. In small - scale industrial setups or in retrofit projects, the threaded end allows for quick and straightforward attachment to pipes. For example, in a local chemical mixing facility with limited space, the threaded connection can be easily screwed onto existing piping without the need for complex welding or large - scale installation equipment. On the other hand, in larger industrial plants or in systems where a more robust and leak - tight connection is required, the flanged end can be bolted to pipeline flanges, ensuring a secure and durable connection. This flexibility in installation methods makes the valve suitable for a wide range of applications.
Precise Flow Control with Reducing Bore
The reducing bore design of this 1/2′′ ball valve enables precise flow control. In applications where specific flow rates need to be maintained, such as in pharmaceutical manufacturing for accurate dosing of fluids or in laboratory settings where controlled fluid transfer is crucial, the reducing bore allows for better regulation of the flow. By restricting the flow area, the valve can create a higher velocity and more precise control over the volume of fluid passing through. This feature is also beneficial in systems where energy efficiency is a concern, as it can optimize the pressure drop across the valve to match the requirements of downstream equipment.
Enhanced Safety with Double - Block - and - Bleed Design
The double - block - and - bleed (DBB) design is a significant safety feature of this valve. In industries handling hazardous fluids, such as in chemical plants dealing with toxic or flammable substances, the DBB function provides an extra layer of protection. First, the two main seats block the flow from both directions, creating a double - barrier isolation. Then, the bleed port can be opened to release any trapped pressure or fluid in the isolated section. This ensures that maintenance, repair, or sampling operations can be carried out safely, minimizing the risk of leaks and potential accidents. In a refinery's pipeline system during maintenance shutdowns, the DBB valve allows technicians to work on a section of the pipeline with confidence, knowing that the fluid flow is completely stopped and any residual pressure is relieved.
Durable Construction for Long - Term Use
The F51 duplex stainless - steel construction not only offers corrosion resistance but also provides high strength and durability. In industrial environments with high - vibration equipment or in applications where the valve may be subject to mechanical stress, the valve can withstand the harsh conditions. In a manufacturing plant with heavy machinery operating nearby, the valve's robust construction ensures that it can continue to function properly without being affected by vibrations or minor impacts. The high - quality materials and construction also contribute to its long - term reliability, reducing the frequency of breakdowns and associated downtime.
Compatibility with Diverse Fluids
This ball valve is compatible with a wide range of fluids. Whether it's acidic or alkaline chemicals, hydrocarbons, or water - based solutions, the F51 duplex stainless - steel body can handle them without significant degradation. In a chemical processing plant that deals with multiple types of fluids in its production processes, the same valve can be used across different pipelines, simplifying the inventory management and reducing the need for multiple valve types. This compatibility makes it a cost - effective choice for industries that require versatile fluid - handling solutions
Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.
Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.
Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.
