J-VALVES-BV-600
J-VALVES
8481804090
Engineered for durability, this ball valve features a 600LB rating suitable for high-pressure applications. The F316 stainless steel body resists corrosion from a variety of media. The double-block-and-bleed mechanism allows for secure isolation and depressurization. The combination of flange and thread connections enables easy integration into different pipeline systems.

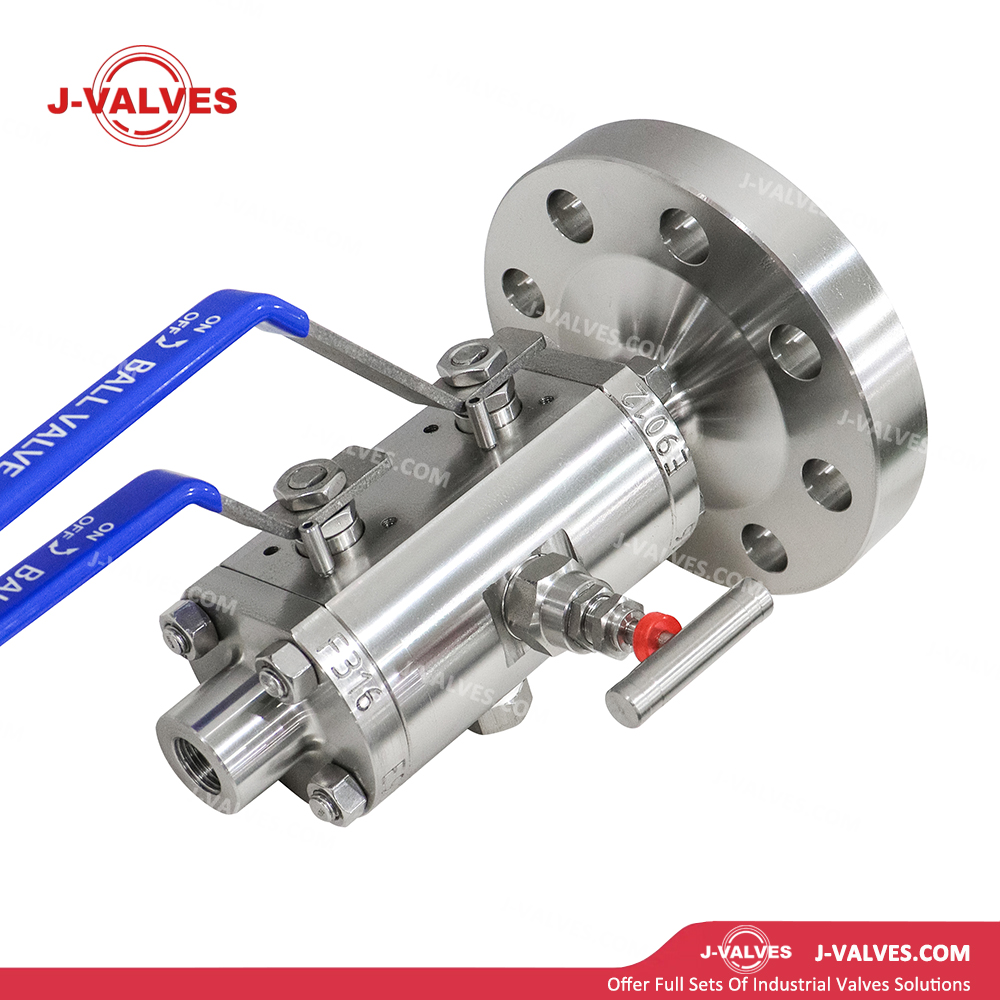

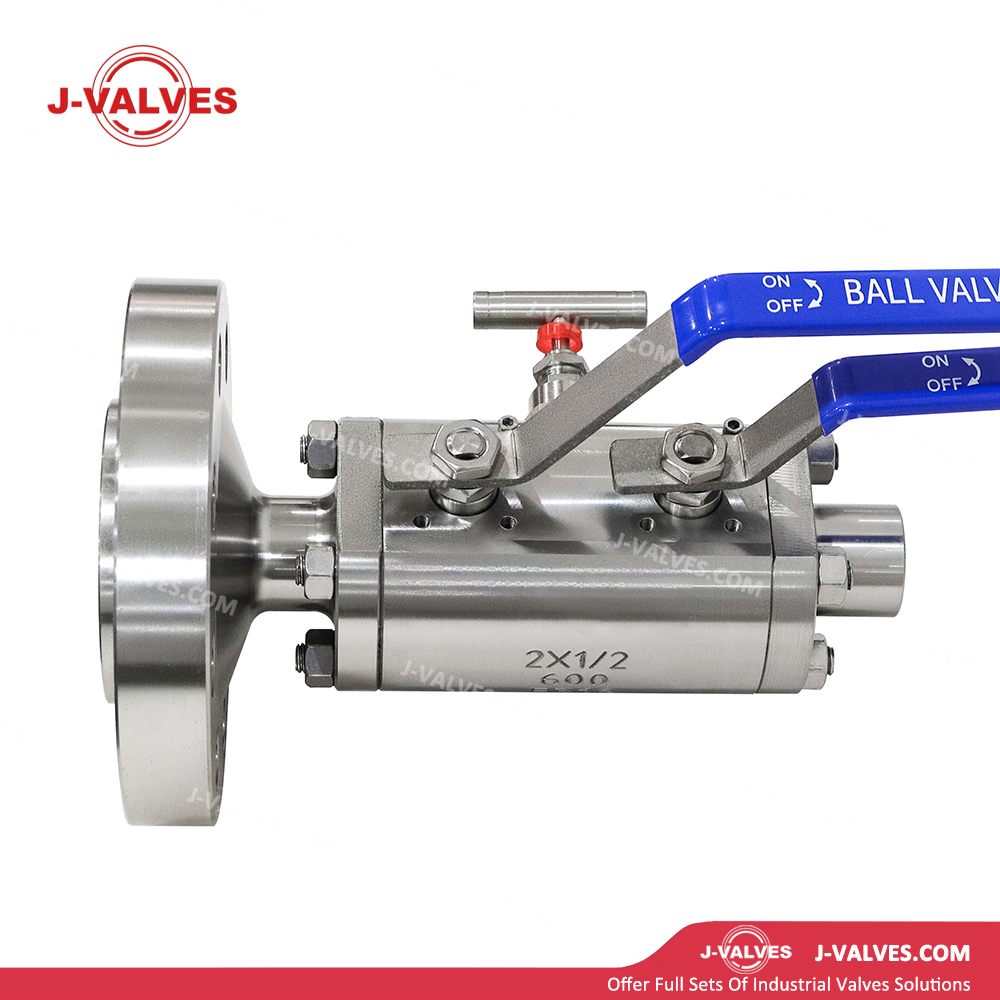

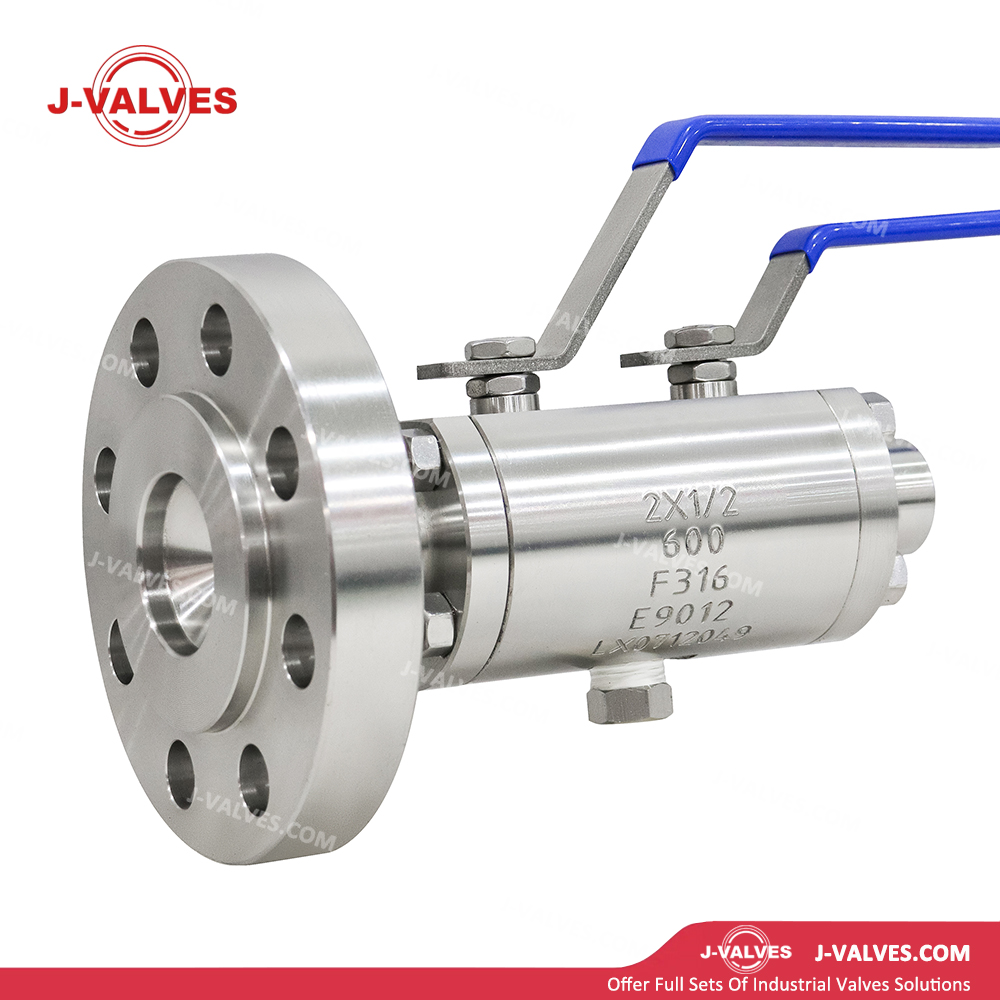

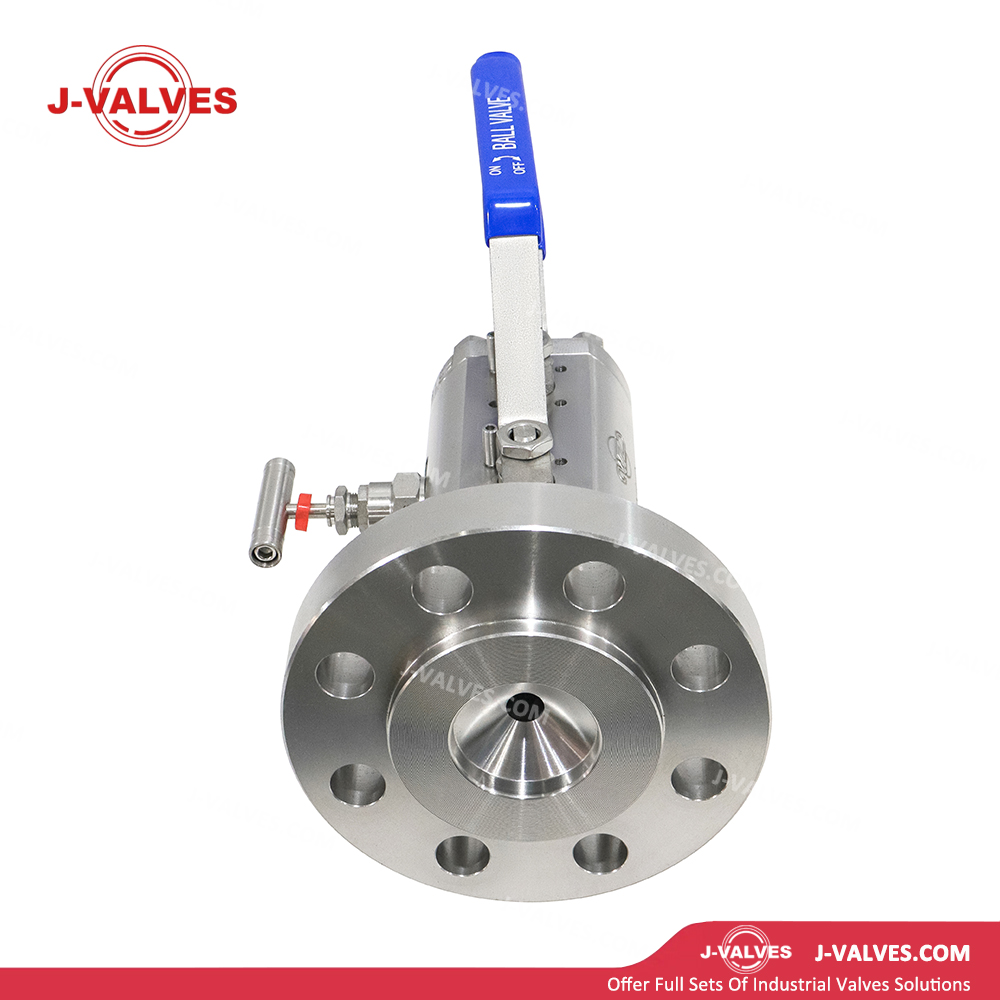

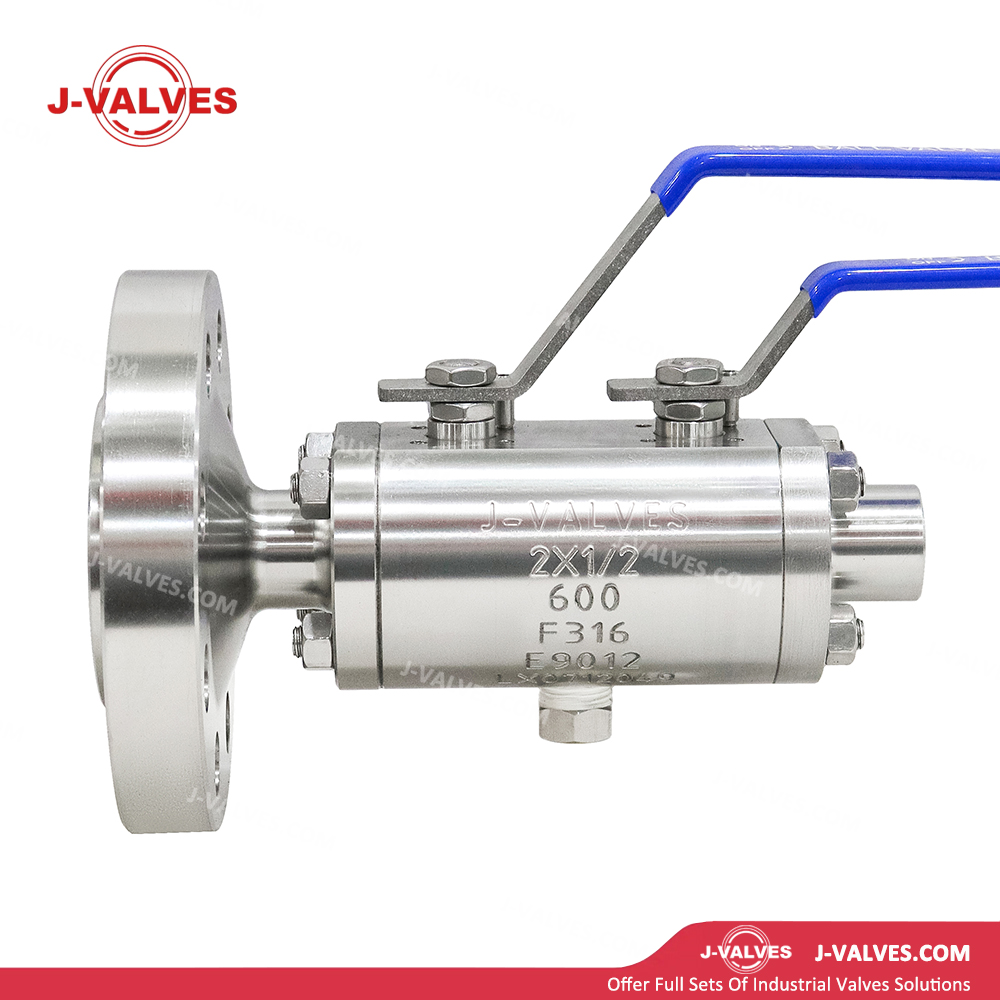

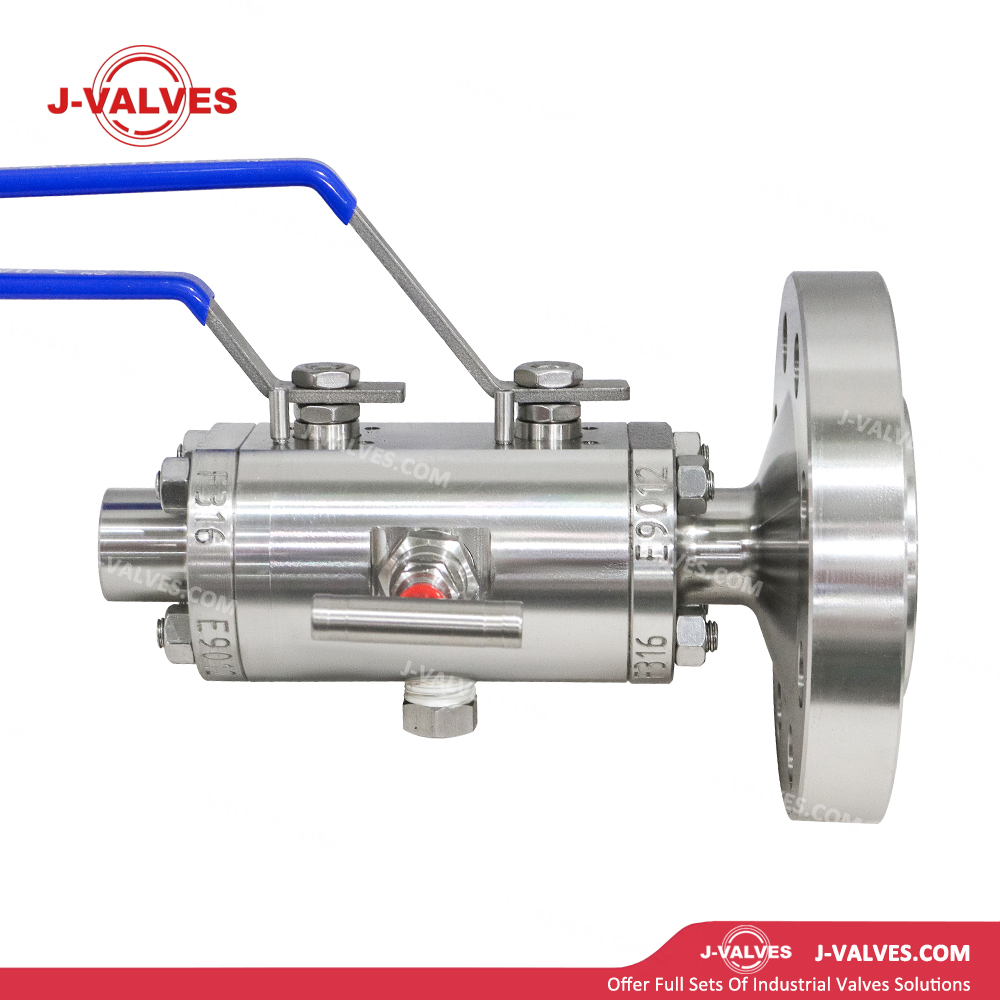

Product Name | 2*1/2′′ Flange&Thread Stainless Steel F316 600LB DBB Ball Valve |
Material | Stainless Steel/Duplex steel/Aluminium Bronze/Nickel-aluminum Bronze/Titanium Alloy, etc. |
Pressure | 150LB~2500LB |
Size | 1/2 inch~ 24 inch(DN15~DN600) |
End Connection | RF/RTJ/BW/SW |
Working Temp | -196ºC~400ºC option. |
Mode of operation | Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator. |
Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
Features | Anti-blow out stem, Anti-statstic, Fire safe |
Superior Corrosion Resistance
The F316 stainless steel used in this valve provides exceptional corrosion resistance. In chemical processing plants where it may come into contact with a wide range of corrosive substances such as acids, alkalis, and salts, the valve can maintain its integrity over extended periods. For example, in a pharmaceutical manufacturing facility that uses aggressive cleaning agents and solvents, the F316 construction ensures that the valve does not corrode, preventing contamination of the products and ensuring the longevity of the valve. This corrosion resistance also makes it suitable for marine applications, where it can withstand the corrosive effects of saltwater.
Installation Flexibility
The valve's combination of flange and thread connections offers great installation versatility. In small-scale industrial setups or in retrofit projects, the threaded connection allows for quick and easy attachment to pipes. This is especially useful in areas with limited space where welding or flanging may not be practical. On the other hand, the flanged connection provides a more robust and secure joint for larger pipelines or in applications where higher pressure and stability are required. In an oil refinery, the flanged connection can be used in main pipelines, while the threaded connection can be utilized in smaller auxiliary lines, providing a flexible solution for different installation needs.
High-Pressure Performance
Rated at 600LB, this ball valve is designed to handle high-pressure fluid systems. In power generation plants, where steam or other high-pressure fluids are transported, the valve can withstand the extreme pressures without any compromise in performance. The F316 stainless steel construction, along with the valve's robust design, ensures that it can maintain its structural integrity even under high-pressure conditions. This high-pressure performance makes it a reliable choice for industries such as oil and gas, where pipelines often operate at high pressures.
Enhanced Safety with DBB Design
The double-block-and-bleed (DBB) design of this valve is a crucial safety feature. In applications involving hazardous fluids, such as in petrochemical plants handling flammable or toxic substances, the DBB function provides an extra layer of protection. The two main seats block the flow from both directions, creating a double-barrier isolation. The bleed port can then be opened to release any trapped pressure or fluid in the isolated section. This ensures that maintenance or repair work can be carried out safely, minimizing the risk of leaks and potential accidents. In a natural gas pipeline system during maintenance operations, the DBB valve allows technicians to work with confidence, knowing that the fluid flow is completely stopped and any residual pressure is relieved.
Precise Flow Control
Despite its relatively small size, this ball valve enables precise flow control. In applications where accurate dosing of fluids is essential, such as in laboratory experiments or in the production of specialty chemicals, the valve's design allows for fine-tuning of the flow rate. The smooth operation of the ball and the well-designed seat ensure that the flow can be adjusted in small increments, providing consistent and reliable performance. This precise flow control is also beneficial in systems where energy efficiency is a concern, as it allows for the optimization of the flow to match the actual demand.
Long-Term Durability
The F316 stainless steel construction, along with the valve's high-quality manufacturing, ensures long-term durability. In industrial environments with high vibration or mechanical stress, the valve can withstand the harsh conditions without experiencing premature wear or failure. In a manufacturing plant with heavy machinery operating nearby, the valve's robust construction allows it to continue functioning properly, reducing the need for frequent maintenance and replacement. This durability not only saves costs but also ensures the continuous operation of the fluid system.
Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.
Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.
Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.
