Product Introduction

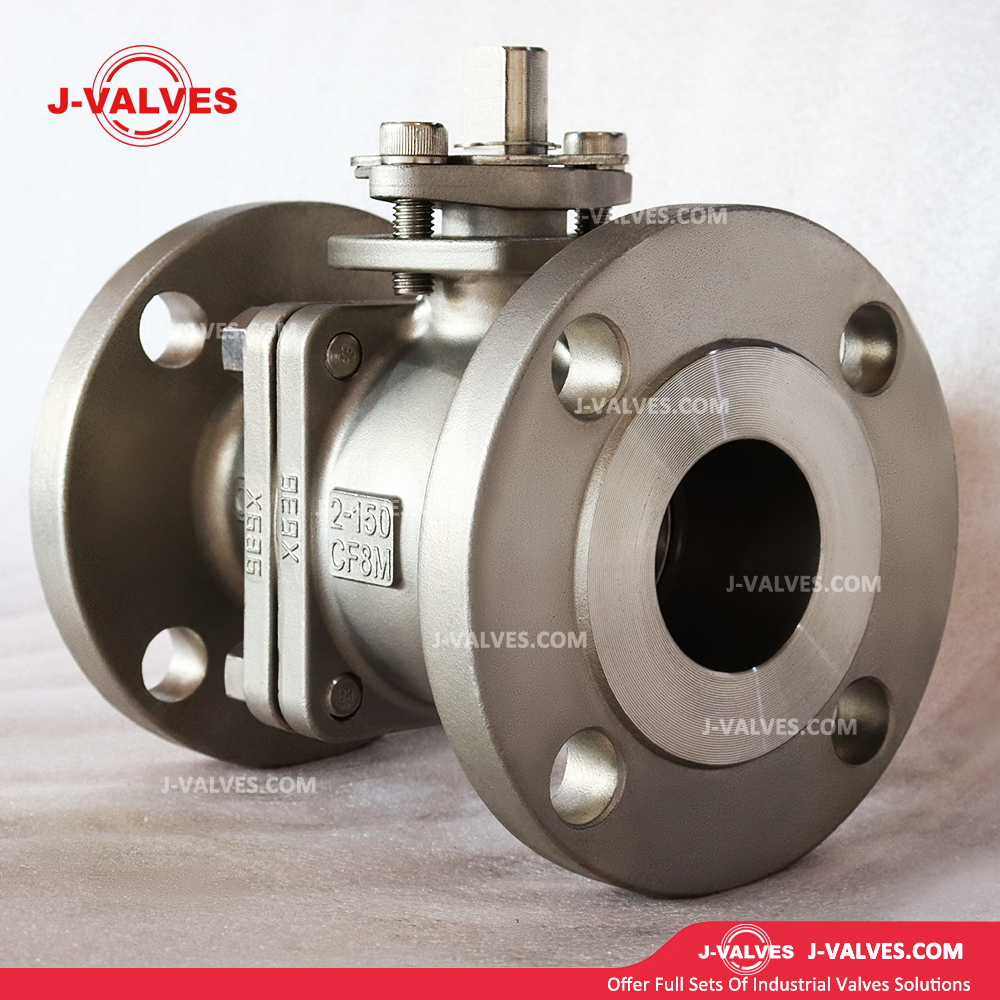

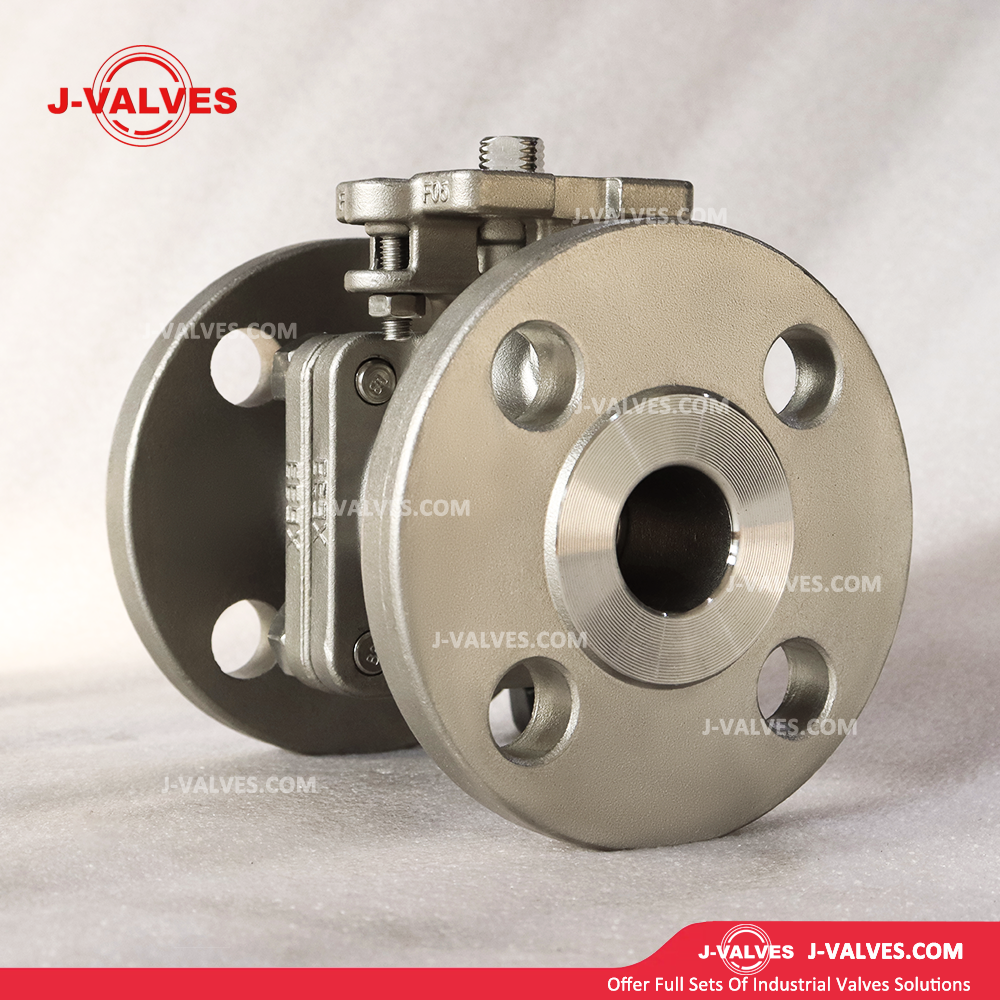

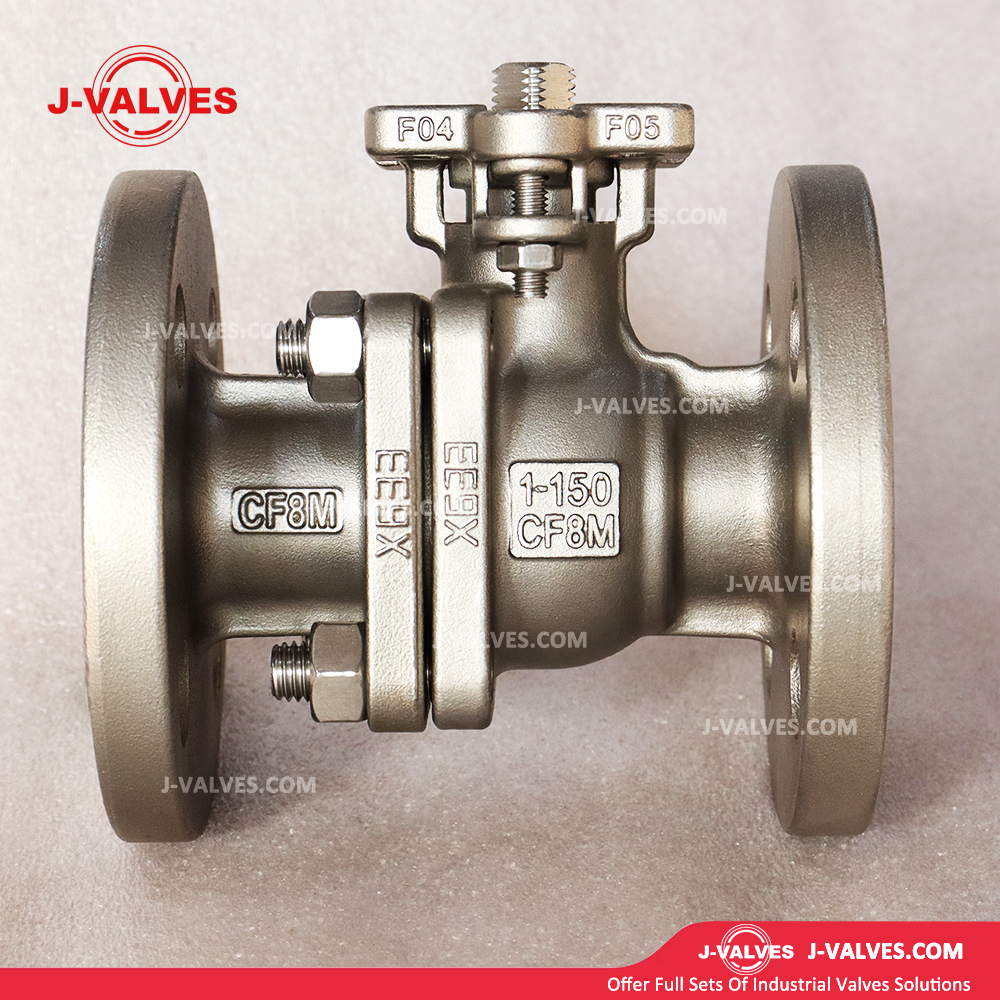

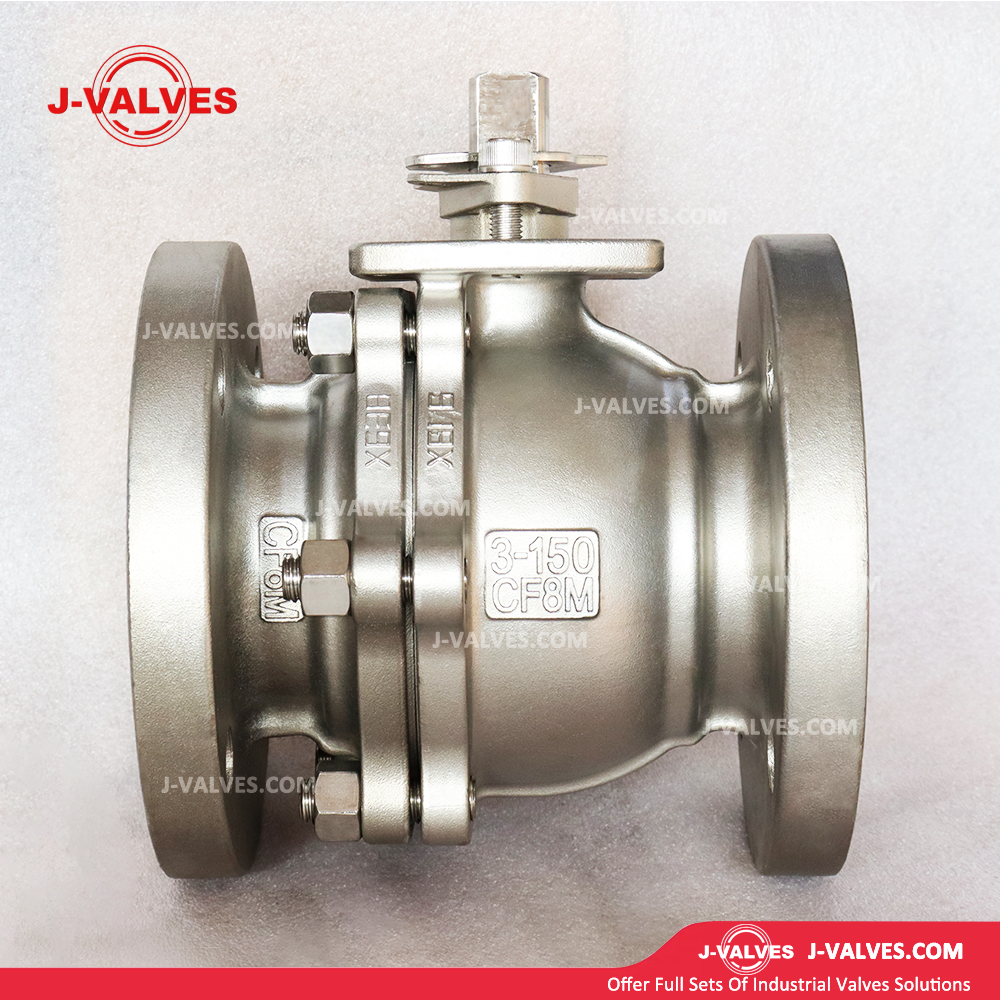

| Porduct Name | J-Valves China High Precision 2PC Floating Ball Valve Flange End 150lb Full Port with ISO 5211 Platform |
| Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
| Size | 2"-24"(DN100-DN600) |
| Port | Full Port |
| Working Pressure | 150LB/300LB |
| Connection Ends | RF |
| Working Temp. | -20ºC~200ºC |
| Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
| Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
| Design standard | API6D/API608/API607 |
| Inspection&Testing | According to API598 |
| Brand | J-VALVES |
Advantages
High Precision Manufacturing：J-Valves China High Precision 2PC Floating Ball Valve is crafted with utmost precision. This ensures excellent sealing performance, minimizing the risk of leaks. The precise machining of components results in smooth operation, reducing wear and tear, thus enhancing the valve's durability and longevity.
Floating Ball Design：The floating ball design allows the ball to move freely within the valve body. When pressure is applied from either side, the ball is pushed against the seat, creating a tight seal. This design is highly effective in handling a wide range of pressures and is especially suitable for applications where quick shut - off is required.
Flange End Connection (150lb)：The flange end connection with a 150lb rating offers easy installation and a secure connection to piping systems. Flange connections are known for their ability to withstand high pressures and vibrations, making this valve suitable for use in various industrial settings. It also simplifies maintenance and replacement as flanges can be easily bolted and unbolted.
Full Port Design：The full port of the valve provides unobstructed flow, minimizing pressure drop across the valve. This is crucial for applications where maintaining a high flow rate is essential, such as in the transportation of fluids in oil and gas pipelines, water supply systems, and chemical processing plants. It allows for efficient transfer of media, reducing energy consumption.

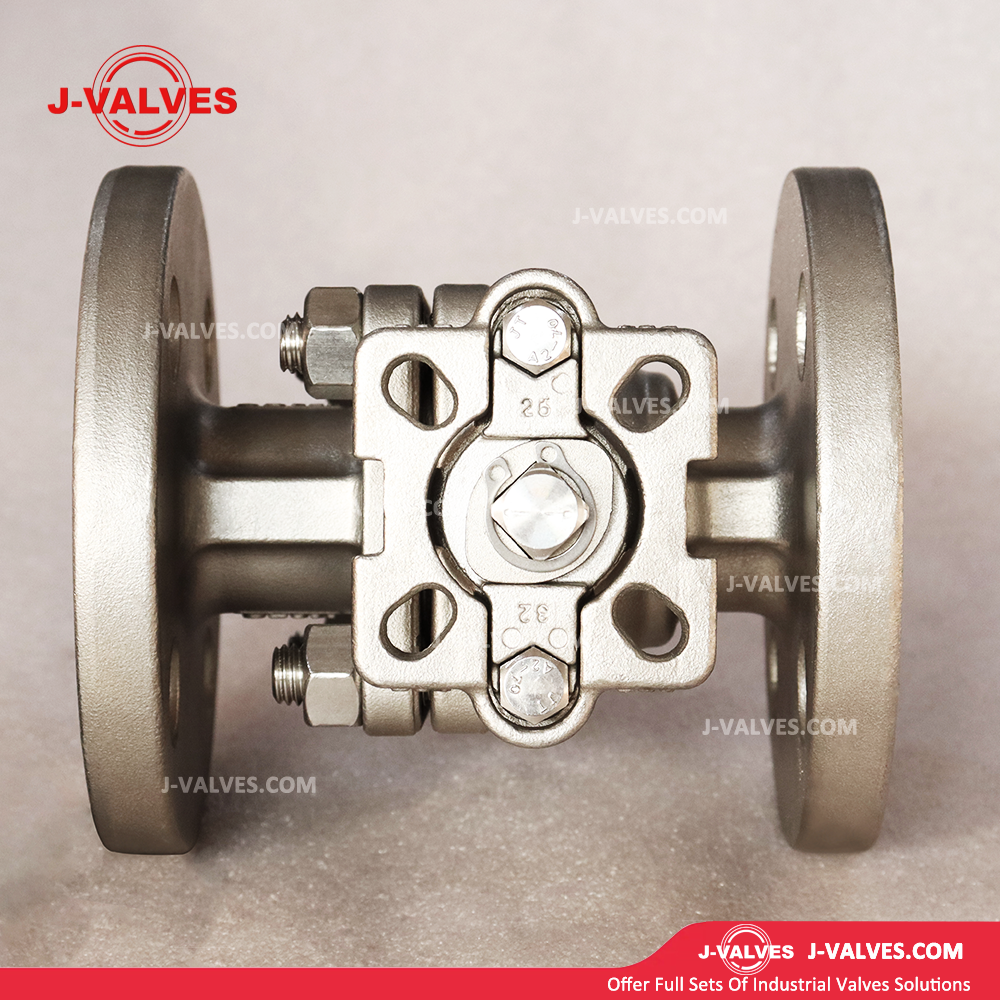

ISO 5211 Platform：Equipped with an ISO 5211 platform, the valve is highly compatible with a wide range of actuators, including pneumatic, hydraulic, and electric actuators. This compatibility enables easy automation of the valve operation, enhancing process control and efficiency in industrial processes. It also provides flexibility in system design, allowing for seamless integration into existing or new control systems.
Uses
Oil and Gas Industry：In oil and gas pipelines, the valve is used to control the flow of crude oil, natural gas, and refined products. Its high - pressure resistance, excellent sealing, and full - port design make it ideal for ensuring safe and efficient transportation of these valuable resources. It can be installed at various points in the pipeline network, such as at wellheads, pumping stations, and storage facilities.
Water Treatment and Supply Systems：For water treatment plants and water supply networks, the valve plays a vital role in regulating the flow of water. The high - precision manufacturing ensures proper control of water flow, while the full - port design allows for a large volume of water to pass through without significant pressure loss. It can be used to control the flow of raw water into treatment plants, the distribution of treated water to consumers, and in various water - related industrial processes.
Chemical Processing Plants：In chemical processing, where the handling of corrosive and high - purity fluids is common, the valve's reliable sealing and high - quality construction make it suitable for use. It can control the flow of different chemicals during the manufacturing process, ensuring accurate dosing and preventing leaks that could lead to safety hazards or product contamination. The compatibility with actuators through the ISO 5211 platform also enables precise process control in chemical reactions.
Power Generation Facilities：Whether in thermal power plants, where water and steam are key components, or in hydroelectric power plants, the valve is used to manage the flow of fluids. In thermal plants, it controls the flow of steam to turbines, and in hydro plants, it regulates the water flow to generators. The valve's ability to handle high - temperature and high - pressure conditions, along with its efficient flow control features, makes it an essential part of power generation systems.
