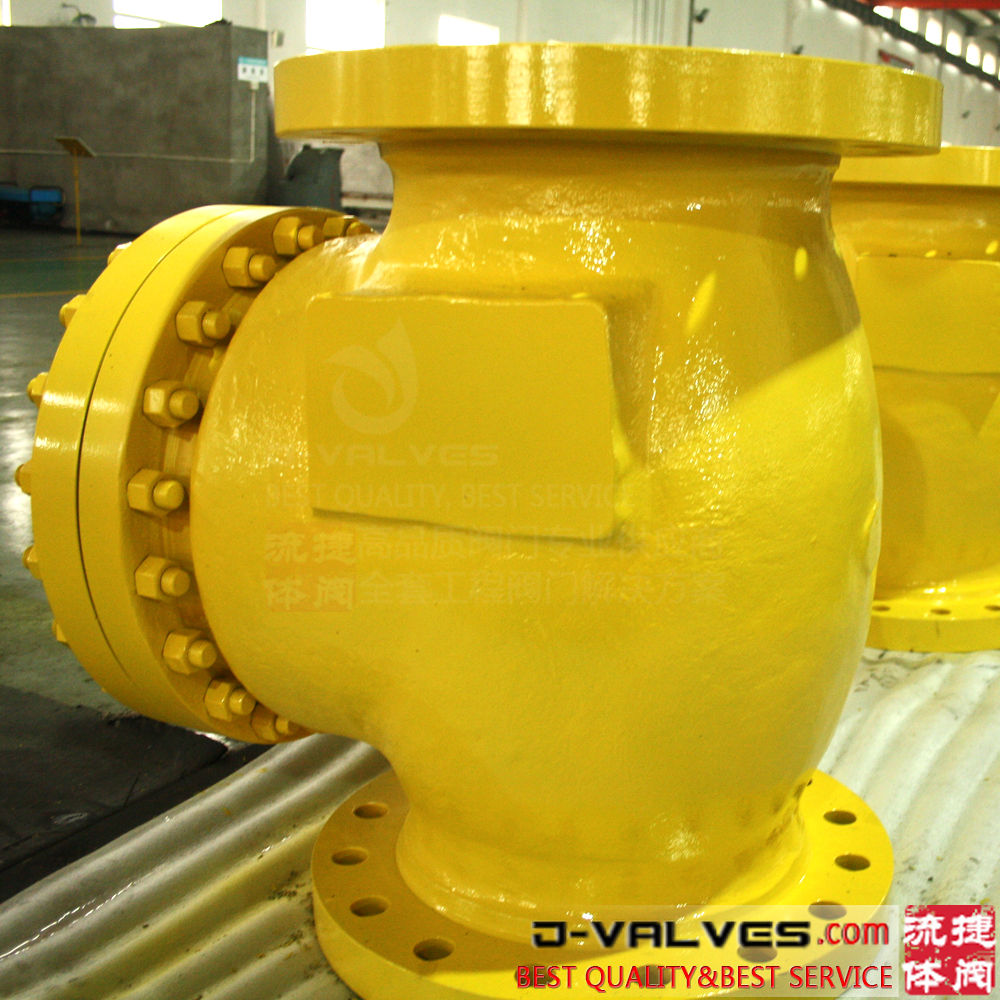

Wcb/Wc6/Wc9 Carbon Steel API Flanged Swing Check Valve
1. Wcb/Wc6/Wc9 Carbon Steel API Flanged Swing Check Valve Specifications:
Size: 1 1/2'~36''
Pressure rating: 150LB~1500LB
Material: A351 CF8M/CF8/CF3/CF3m, A216 WCB,A352 LCB,A217 WC6/WC9
Suitable Temperature: -196ºC~450ºC(Different temperature choose different materials)
Suitable Medium: Water, Oil and natural gas and other causticity medium (Different raw material for different medium)
2. Wcb/Wc6/Wc9 Carbon Steel API Flanged Swing Check Valve Standards:
Standard Compliance: ANI 6D, BS 1868
Pressure-Temp. Rating: ANSI B16.34
Face to Face: ANSI B16.10
End Flange: ANSI B16.5/ASME B16.47
Butt Welding Ends: ANSI B16.25
Inspection and Test: Tested to API 598, BS 6755, Certified to EN10204 3.1B
Size: 2~36in
Working Pressure: 150LB~2500Lb
Suitable Medium: Oil, Nature Gas, Water, Steam; Acid, Alkali, Organic Compounds
3.Wcb/Wc6/Wc9 Carbon Steel API Flanged Swing Check Valve Features:
Bolted bonnet, and the type of middle flange gasket may be different according to pressure class; Check valve in 600LB may adopt pressure sealed structure.
Disc stop device to prevent disc from being opened too high, thus causing failure to be closed down.
Solid pin is precisely installed and provided with high intensity to ensure operational performance and service life of valve.
Rocker arm is given enough intensity. Upon being closed down, it has enough freedom for the close-down of valve disc.
Large size check valve are provided with lifting rings for the convenience of hoisting.
4.Wcb/Wc6/Wc9 Carbon Steel API Flanged Swing Check Valve of Structure:
5.Wcb/Wc6/Wc9 Carbon Steel API Flanged Swing Check Valve of Material Listï¼
Features:
Swing Type Disc
Bolted Cover
Rising Stem and Non-Rising Hand wheel
Threaded Seat Ring
Renewable Seat Ring
Applications:
Chemical, Refinery Plant
Gas Purification Plant
Power Station, Shipbuilding
Recycling Facilities
J-VALVES Note: All the data should be confirmed with the approved drawings of manufacturer.
6.Wcb/Wc6/Wc9 Carbon Steel API Flanged Swing Check Valve Main dimensions&Weight:
Wcb/Wc6/Wc9 Carbon Steel API Flanged Swing Check Valve can be operated by pneumatic actuator,electric actuator,intelligent control head and manual operation.There are a variety of standards provided to customers,such as,DIN,API,ANSI,and so on
Tips:
We also manufacture other type valves, as butterfly valve, check valve, globe valve, Y strainer, sanitary butterfly valve, sanitary ball and so on.
Any item meets your interest, anything confused you, pls keep me posted, let's talk more.
J-VALVES Service
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome |
