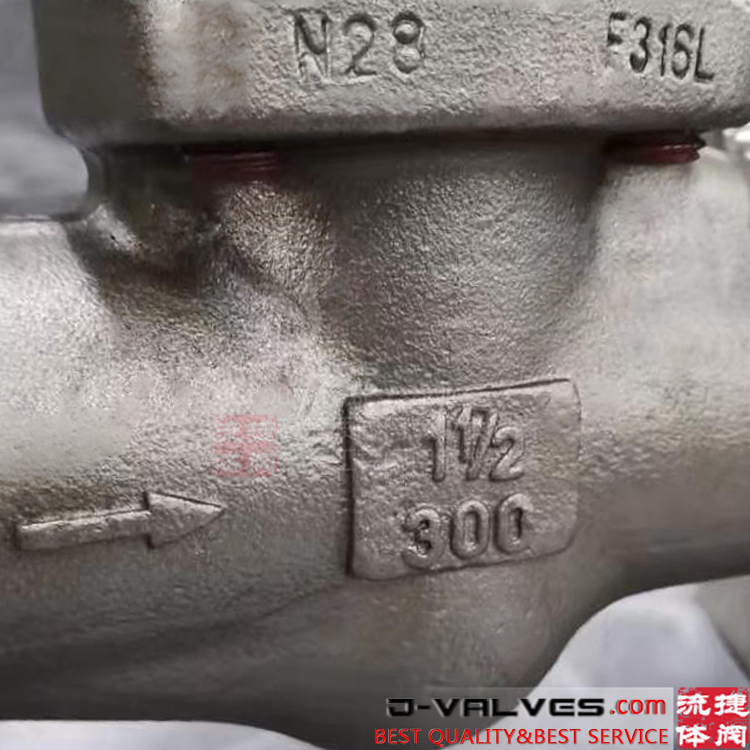

Swing Type 300# F316L Foregd Stainless Steel Flange Check Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
As a well-known F304 forged steel swing flanged check valve company, we are trusted by many local customers for years. We have deep domain knowledge in producing a wide range of F304 forged steel swing flanged check valve products. We adhere to rely on high-tech developing capacity. We believe that together our oversea customers and we will greatly benefit from its promising prospect. Sincerely establishing long-term business relationships with you. We Warmly welcome our customers to visit us.
Size:
Availability:
Quantity:
  • Forged Steel Check Valve

  • J-VALVES

Swing Type 300# F316L Foregd Stainless Steel Flange Check Valve


● Valve alias: Swing Type 300# F316L Foregd Stainless Steel Flange Check Valve

Quick Detail:

● Size: 1/2''-2''(DN15~DN50)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

● Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.

● Suitable Temperature: -29ºC~425ºC.

●Suitable Medium: Water, Steam, Oil and natural gas etc.

Description:

● Design and manufacture conformto:API602,BS5352,ANSI B16.34

●Socket welded dimension conform to ANSI B16.11,JB/T1751

●Screw ends dimension conform to ANSI B1.20.1,JB/T7306

●Butt-welded conform to ANSI B16.25,JB/T12224

● Flange ends conform to ANSI B16.5,JB79

● Test and inspection conform to:API598,GB/T13927,JB/T9092

●With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

●Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.

Applications:

Swing check valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

Competitive Advantage:

● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

●On After Sales Free replacement if there is any quality problem

●On Delivery Never delay delivery time

●On Materials Ensure material pure

● Ensure material pure


NPS

L

d

D

D1

D2

C

f

n-Ø

1/2"

152

10

95

66.7

34.9

12.7

2

4-16

3/4"

178

13

115

82.6

42.9

14.3

2

4-19

1"

203

17.5

125

88.9

50.8

15.9

2

4-19

1-1/4"

216

23

135

98.4

63.5

17.5

2

4-19

1-1/2"

229

30

155

114.3

73

19.1

2

4-22

2"

267

35

165

127

92.1

20.7

2

8-19

2-1/2"

292

45

190

149.2

104.8

23.9

2

8-22
