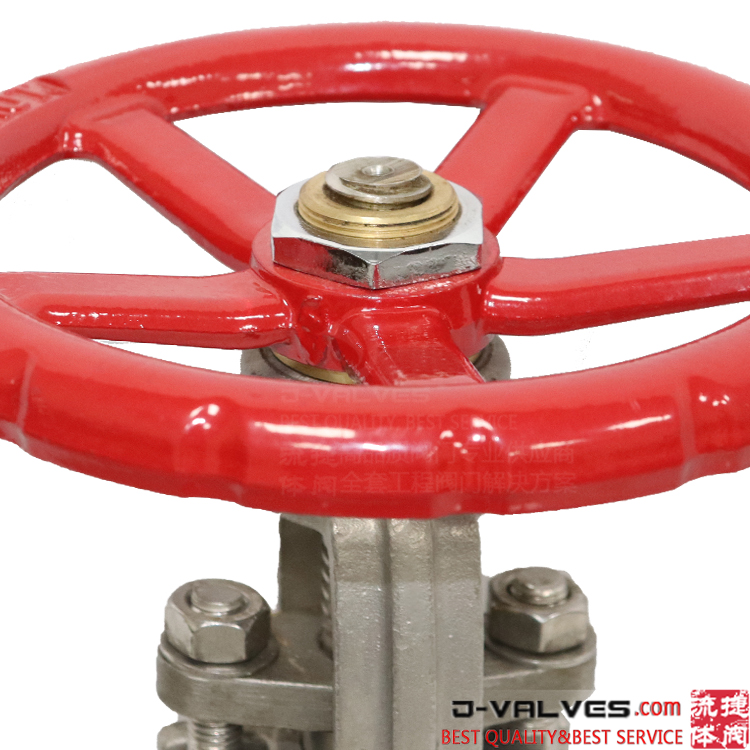

Stainless Steel A351 CF8 Material JIS10K Flanged Gate Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Stainless steel A351 CF8 material JIS10K flanged gate valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.
Availability:
Quantity:
  • 1/2“-48”

  • J-VALVES

Stainless Steel A351 CF8 Material JIS10K Flanged Gate Valve


Stainless Steel A351 CF8 Material JIS10K Flanged Gate Valve Quick Detail:



● Size: 1/2''-48''(DN15~DN1200)

● Pressure Rating: 10K~60K/PN16~PN160/150LB-2500LB)

● Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A105,A352LCB/LCC,F304,F316,F51/F53,F11,C3,C5,C95800

● Suitable Temperature: -196ºC~150ºC( Different temperature choose different materials).

● Suitable Medium: Water, Steam, Oil and natural gas etc.



Stainless Steel A351 CF8 Material JIS10K Flanged Gate Valve Description:


● Bolted Body, Full Port Construction

● Fully Compliant to JIS B2071

● Fully Compliant to JIS B2071

● Flange Fully Compliant to JIS2220

● Submerged Packing System & Direct Mount Actuation

● CNC machine tool processing, high precision, good sealing .

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.


Stainless Steel A351 CF8 Material JIS10K Flanged Gate Valve Specifications:

A351 CF8 material JIS10K flanged gate valve

Nominal

Diameter

L

d

D2

D1

D

b

f

n-od1

H

W

15

1/2"

108

15

51

70

95

12

1

4-15

178

120

20

3/4"

117

20

56

75

100

14

1

4-15

194

120

25

1"

127

25

67

90

125

14

1

4-19

223

140

32

1-1/4"

140

32

76

100

135

16

2

4-19

266

160

40

1-1/2"

165

40

81

105

140

16

2

4-19

295

160

50

2"

178

50

96

120

155

16

2

4-19

336

200

65

2-1/2"

190

65

116

140

175

18

2

4-19

385

200

80

3"

203

80

126

150

185

18

2

8-19

433

250

100

4"

229

100

151

175

210

18

2

8-19

506

300

125

5"

254

125

182

210

250

20

2

8-23

612

300

150

6"

267

150

212

240

280

22

2

8-23

686

350

200

8"

292

200

262

290

330

22

2

12-23

825

350

250

10"

330

250

324

355

400

24

2

12-25

972

400

300

12"

356

300

368

400

445

24

3

16-25

1147

450


J-VALVES Competitive Advantage:



● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure
