1/2“-48”
J-VALVES

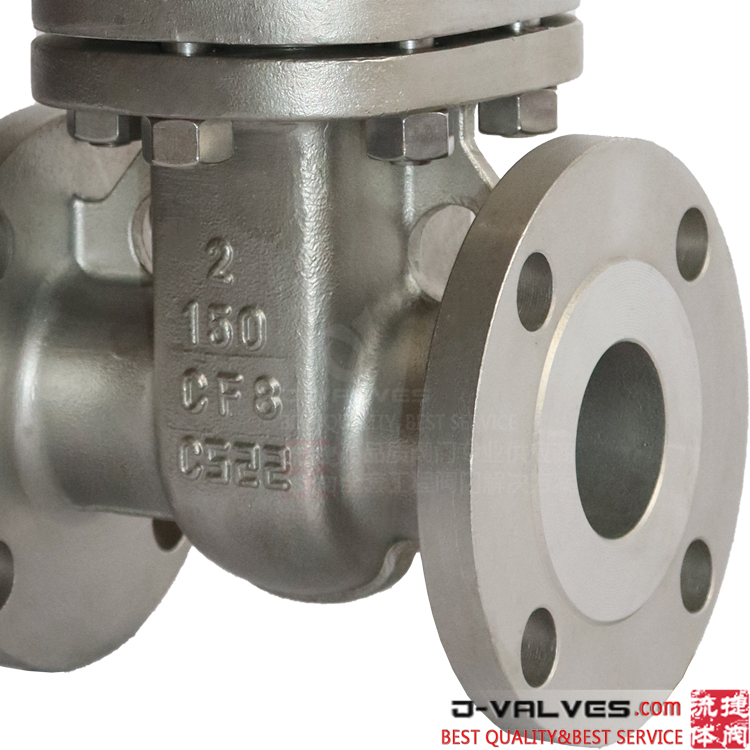

Stainless Steel A351 CF8 Handwheel Gate Valve
Stainless Steel A351 CF8 Handwheel Gate Valve Quick Detail:
● Size: 1/2''-48''(DN15~DN1200)
● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)
● Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A105,A352LCB/LCC,F304,F316,F51/F53,F11,C3,C5,C95800
● Suitable Temperature: -196ºC~150ºC( Different temperature choose different materials).
● Suitable Medium: Water, Steam, Oil and natural gas etc.
Stainless Steel A351 CF8 Handwheel Gate Valve Description:
● Bolted Body, Full Port Construction
● Fully Compliant to ASME B16.34 API6D API600
● Fully Compliant to API 598 API6D API598
● Flange Fully Compliant to ASME B16.5/ASME B16.47
● Submerged Packing System & Direct Mount Actuation
● CNC machine tool processing, high precision, good sealing .
● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.
Stainless Steel A351 CF8 Handwheel Gate Valve Specifications:
NPS | L | D | D1 | D2 | b | f | n-Ød |
2 | 178 | 150 | 120.7 | 92.1 | 14.3 | 2 | 4-Ø19 |
2-1/2 | 190 | 180 | 139.7 | 104.8 | 15.9 | 2 | 4-Ø19 |
3 | 203 | 190 | 152.4 | 127.0 | 17.5 | 2 | 4-Ø19 |
4 | 229 | 230 | 190.5 | 157.2 | 22.3 | 2 | 4-Ø19 |
5 | 254 | 255 | 215.9 | 185.7 | 22.3 | 2 | 8-Ø22 |
6 | 267 | 280 | 241.3 | 215.9 | 22.9 | 2 | 8-Ø22 |
8 | 292 | 345 | 298.5 | 269.9 | 27.0 | 2 | 8-Ø22 |
J-VALVES Competitive Advantage:
● On Samples Buyer bear the air fee, but this fee will be reduced from order directly
● On After Sales Free replacement if there is any quality problem
● On Delivery Never delay delivery time
● On Materials Ensure material pure
● Ensure material pure
Stainless Steel A351 CF8 Handwheel Gate Valve
Stainless Steel A351 CF8 Handwheel Gate Valve Quick Detail:
● Size: 1/2''-48''(DN15~DN1200)
● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)
● Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A105,A352LCB/LCC,F304,F316,F51/F53,F11,C3,C5,C95800
● Suitable Temperature: -196ºC~150ºC( Different temperature choose different materials).
● Suitable Medium: Water, Steam, Oil and natural gas etc.
Stainless Steel A351 CF8 Handwheel Gate Valve Description:
● Bolted Body, Full Port Construction
● Fully Compliant to ASME B16.34 API6D API600
● Fully Compliant to API 598 API6D API598
● Flange Fully Compliant to ASME B16.5/ASME B16.47
● Submerged Packing System & Direct Mount Actuation
● CNC machine tool processing, high precision, good sealing .
● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.
Stainless Steel A351 CF8 Handwheel Gate Valve Specifications:
NPS | L | D | D1 | D2 | b | f | n-Ød |
2 | 178 | 150 | 120.7 | 92.1 | 14.3 | 2 | 4-Ø19 |
2-1/2 | 190 | 180 | 139.7 | 104.8 | 15.9 | 2 | 4-Ø19 |
3 | 203 | 190 | 152.4 | 127.0 | 17.5 | 2 | 4-Ø19 |
4 | 229 | 230 | 190.5 | 157.2 | 22.3 | 2 | 4-Ø19 |
5 | 254 | 255 | 215.9 | 185.7 | 22.3 | 2 | 8-Ø22 |
6 | 267 | 280 | 241.3 | 215.9 | 22.9 | 2 | 8-Ø22 |
8 | 292 | 345 | 298.5 | 269.9 | 27.0 | 2 | 8-Ø22 |
J-VALVES Competitive Advantage:
● On Samples Buyer bear the air fee, but this fee will be reduced from order directly
● On After Sales Free replacement if there is any quality problem
● On Delivery Never delay delivery time
● On Materials Ensure material pure
● Ensure material pure
