J-VALVES-GBV-150
J-VALVES
8481804090

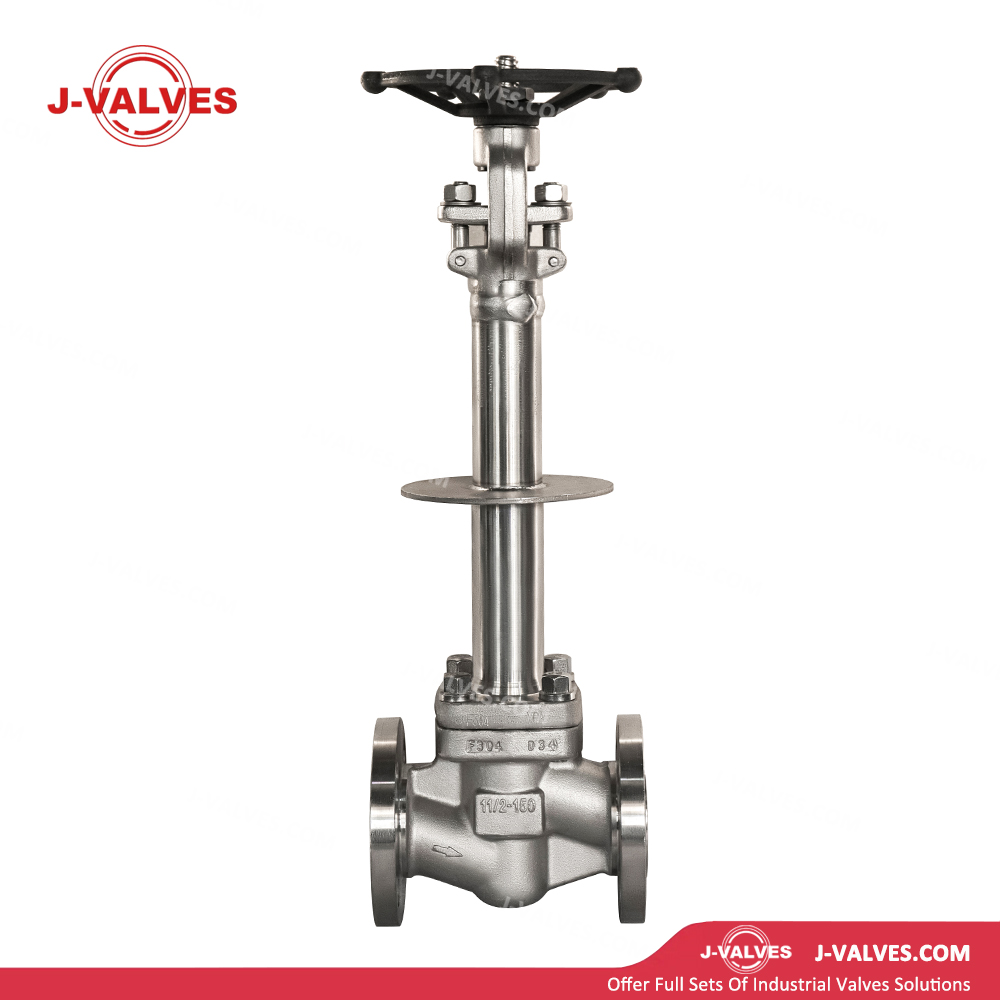

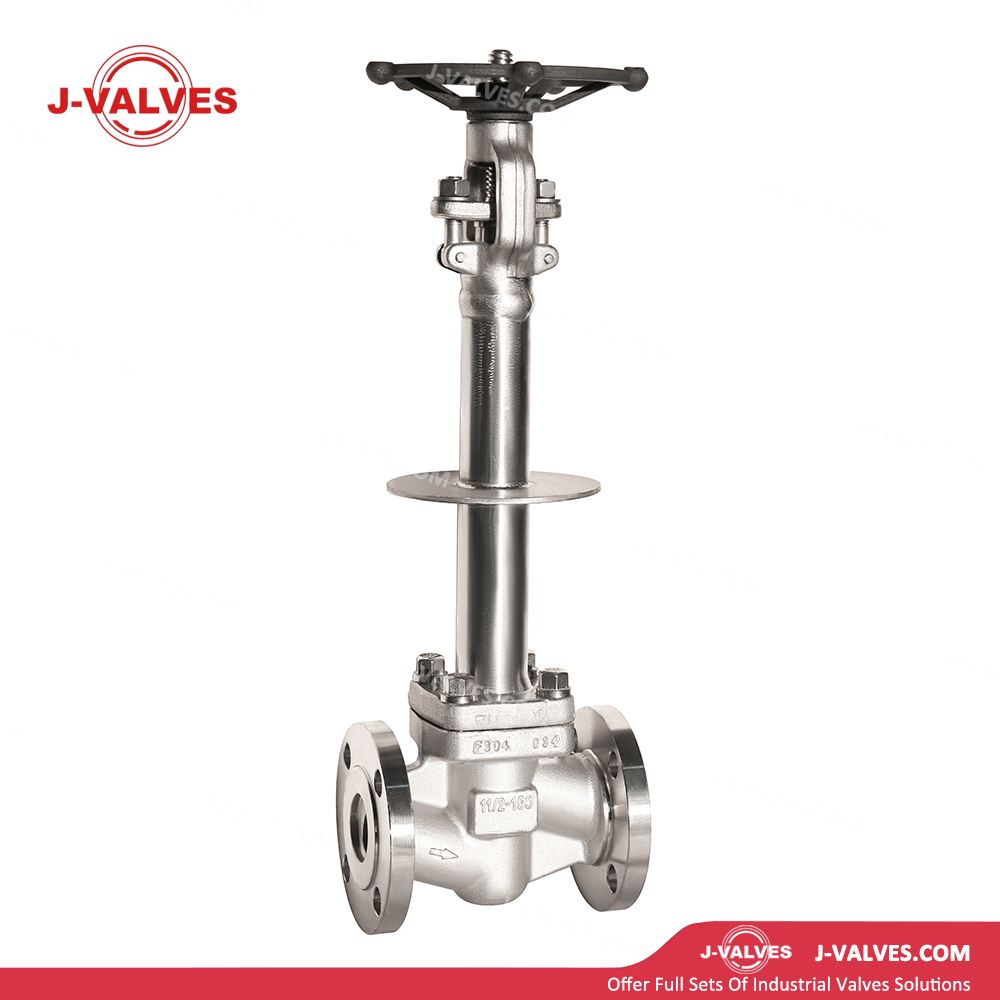

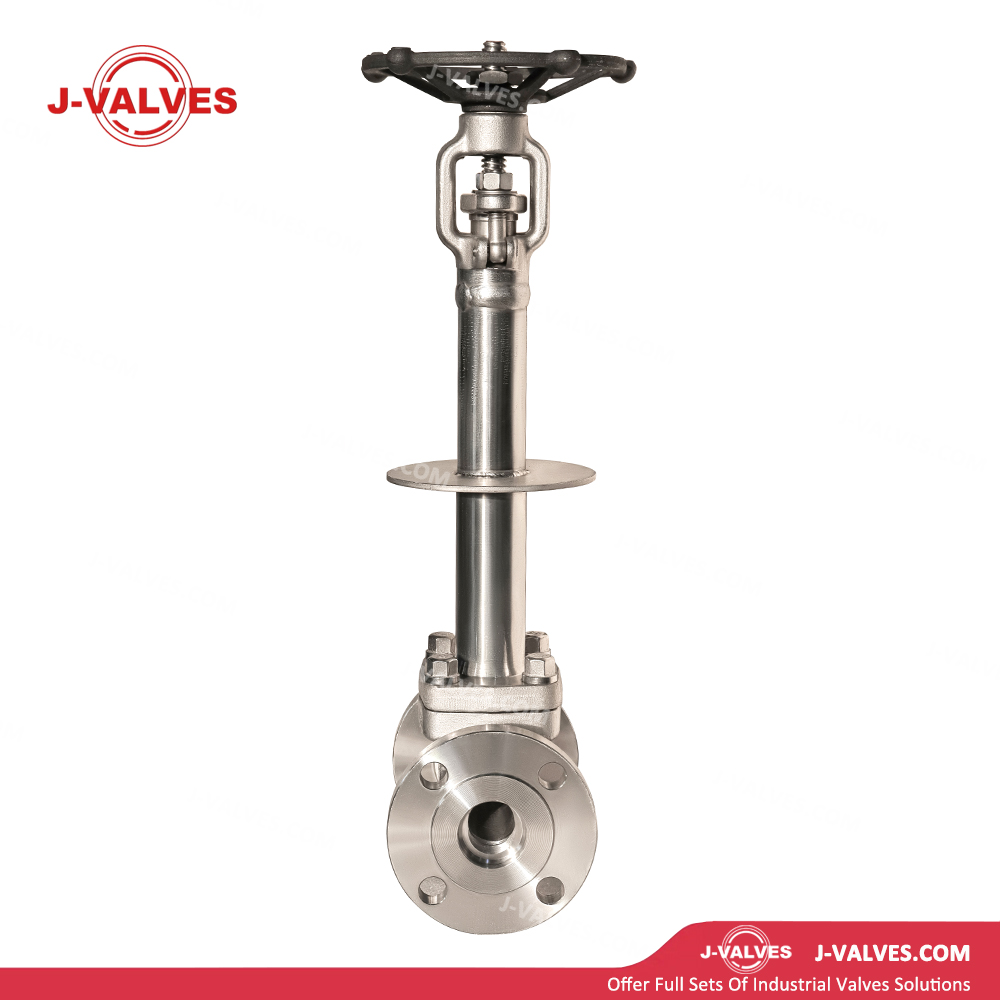

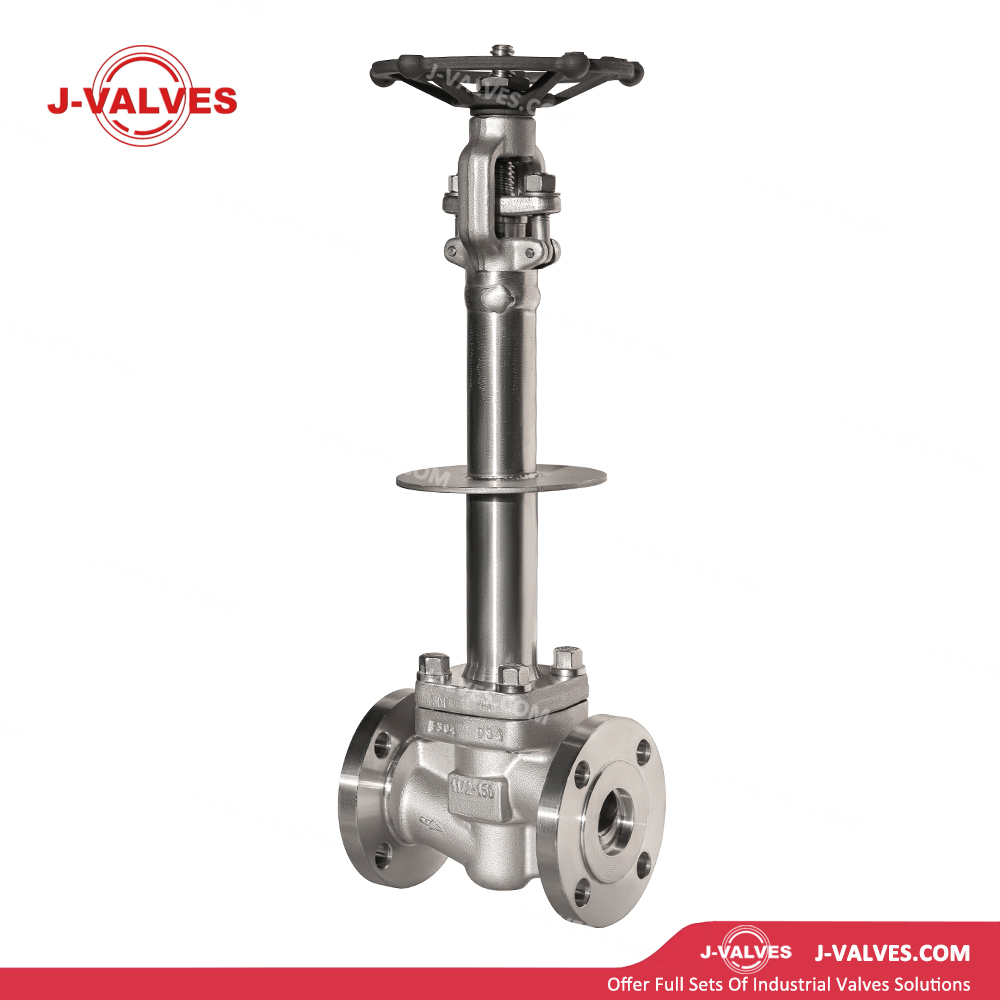

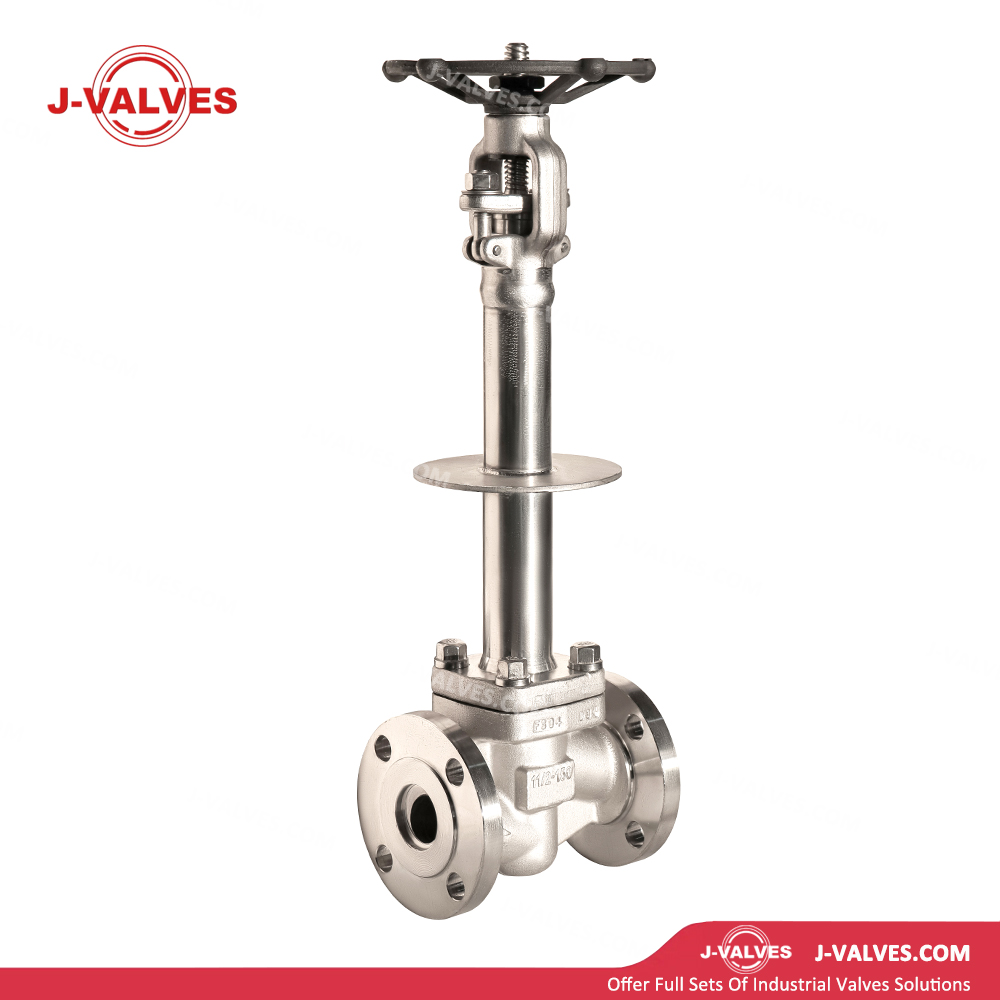

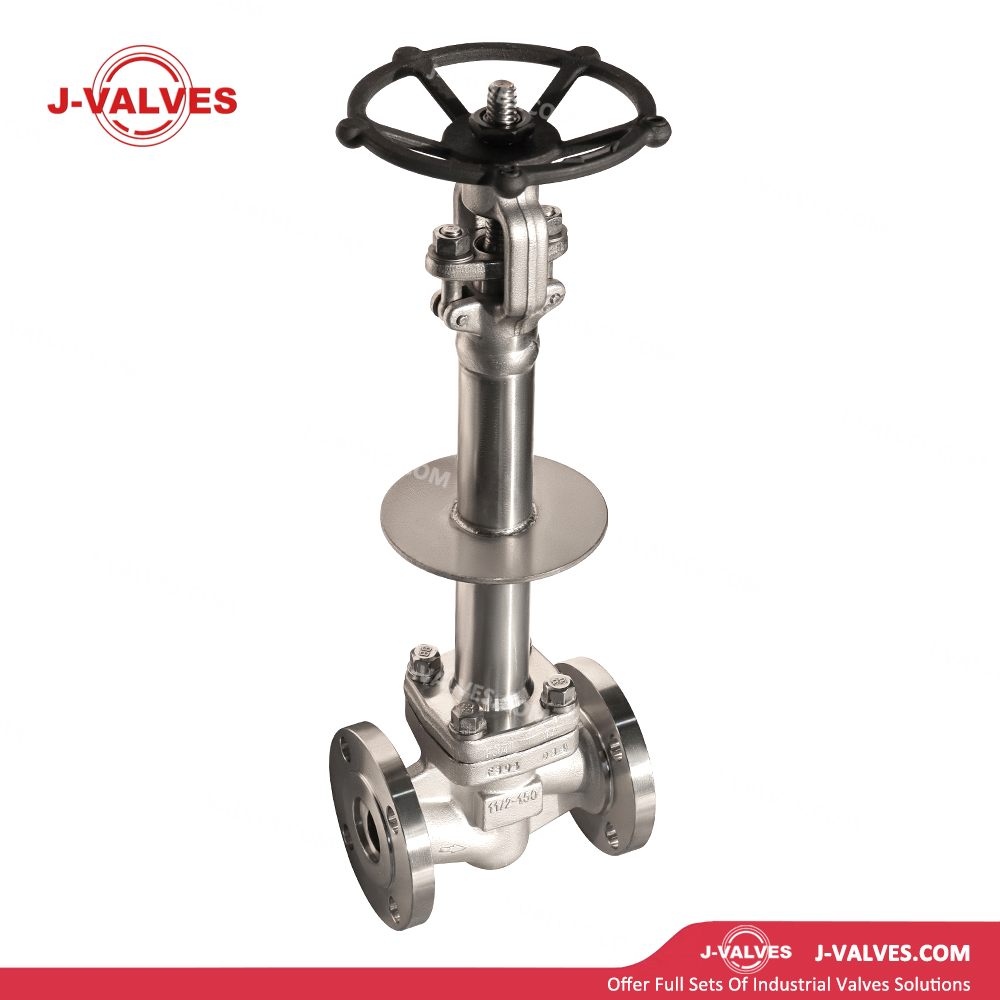

This extended - stem globe valve is designed for low - temperature operations. The F304 stainless steel construction resists corrosion. The extended stem minimizes heat transfer to the packing, ensuring long - term sealing performance. It provides accurate flow regulation and reliable isolation in cold - climate processes.
Product Name | 150LB RF Low-temperature Stainles Steel F304 Extended-stem Globe Valve |
Material | WCB/CF8/CF8M/LCC/LCB/WC6/WC9 |
Pressure | 150LB/300LB/600LB/900LB/1500LB/2500LB |
Size | 2 inch~ 60 inch(DN50~DN1500) |
End Connection | RF/RTJ/BW/SW |
Working Temp | -196ºC~400ºC. |
Mode of operation | Handwheel (2"~12") & Bevel Gear (14"&above) |
Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
Features | Rising stem,OS&Y,Bolted Bonnet or Pressure Sealed,non-rising stem option |
Cold - Resistant Extended Stem Design
The extended stem design of this globe valve is a game - changer in low - temperature applications. In cryogenic plants where liquefied natural gas (LNG) is stored at extremely low temperatures, the extended stem acts as a thermal barrier. It prevents the cold from reaching the valve packing, reducing the risk of packing shrinkage and leakage. This design also allows for easy maintenance as the actuator and packing are kept at a more accessible temperature. In refrigeration systems for food storage, it ensures continuous operation without frequent packing replacements, minimizing downtime and maintenance costs. This makes it an ideal choice for industries where cold - chain integrity is crucial.
Precise Flow Control
Precision is the hallmark of this globe valve. Using advanced manufacturing techniques, it can achieve highly accurate flow regulation. In chemical processing plants, where precise dosing of reagents is essential for product quality, this valve can control the flow rate with a high degree of accuracy. In pharmaceutical manufacturing, it enables the exact delivery of fluids during the production process, ensuring the consistency and safety of drugs. The valve's linear flow characteristic allows for smooth and predictable flow adjustments, making it suitable for applications that require fine - tuned control.
High - Quality Sealing Performance
The sealing mechanism of this valve is engineered to provide exceptional performance. The seat and disc are precisely machined to ensure a tight seal. In cryogenic applications, such as in LNG transfer systems, it prevents leakage of valuable and potentially dangerous cryogenic fluids. The valve's sealing performance also reduces fugitive emissions, making it environmentally friendly and compliant with strict environmental regulations. In industrial refrigeration systems, it helps maintain the system's efficiency by preventing refrigerant leaks, which can lead to increased energy consumption and system inefficiencies.
Corrosion Resistance
The F304 stainless steel construction gives this valve excellent corrosion resistance. In marine applications, where valves are exposed to saltwater and harsh environmental conditions, it resists rust and corrosion, ensuring a long service life. In chemical industries dealing with corrosive substances, such as acid - based processes, the valve can withstand the corrosive effects of these chemicals. This corrosion resistance reduces the need for frequent replacements, saving costs in the long run and ensuring reliable operation in corrosive environments.
Easy Installation and Maintenance
This globe valve is designed for easy installation and maintenance. Its standardized flange connections (RF) allow for quick and straightforward installation in existing pipelines. In industrial plants where time is of the essence, this feature reduces installation time and associated costs. For maintenance, the valve's design provides easy access to internal components. In remote or hard - to - reach locations, such as offshore oil platforms, the ease of maintenance ensures that the valve can be serviced efficiently without extensive downtime. This makes it a practical choice for industries where minimizing disruption is a priority.
Compliance with Industry Standards
The valve complies with relevant industry standards, ensuring its quality and reliability. In the cryogenic and refrigeration industries, it meets standards related to low - temperature performance and safety. In industrial applications, it adheres to standards for flow control and sealing. This compliance gives customers confidence in the valve's performance and ensures that it can be integrated into existing systems without compatibility issues. It also provides assurance that the valve has undergone rigorous testing and meets the requirements of various industries.
Installation: The valve is designed for easy installation. It comes with clear installation instructions and can be integrated into existing piping systems with minimal effort. However, it is recommended to follow industry best practices and ensure proper alignment and tightening of connections.
Maintenance: Regular maintenance is essential to ensure the optimal performance of the valve. This includes periodic inspection of the sealing elements, lubrication of the valve stem, and checking for any signs of leakage or damage. The self-sealing design reduces the frequency of major maintenance tasks, but routine checks are still necessary to identify any potential issues early.
Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.
Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.
Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.
