Availability: | |
---|---|
Quantity: | |
J-VALVES-BV
J-VALVES
8481804090

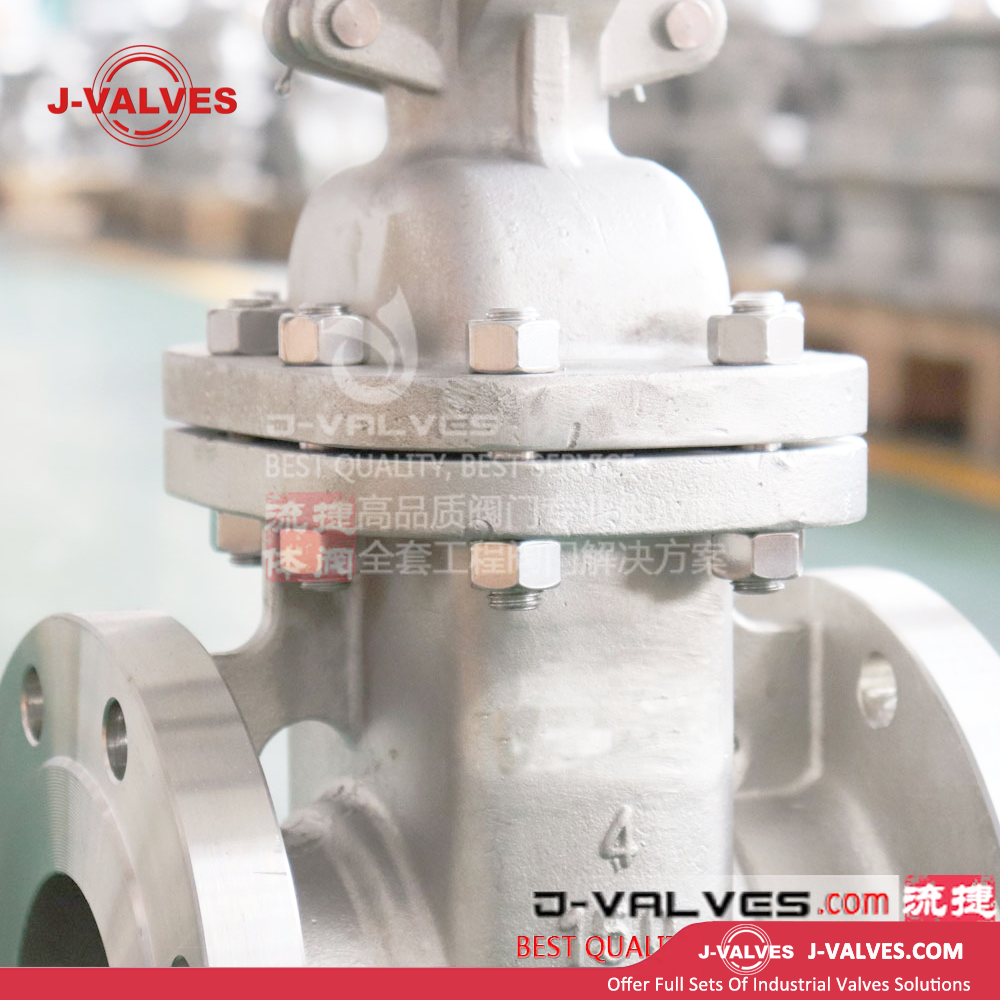

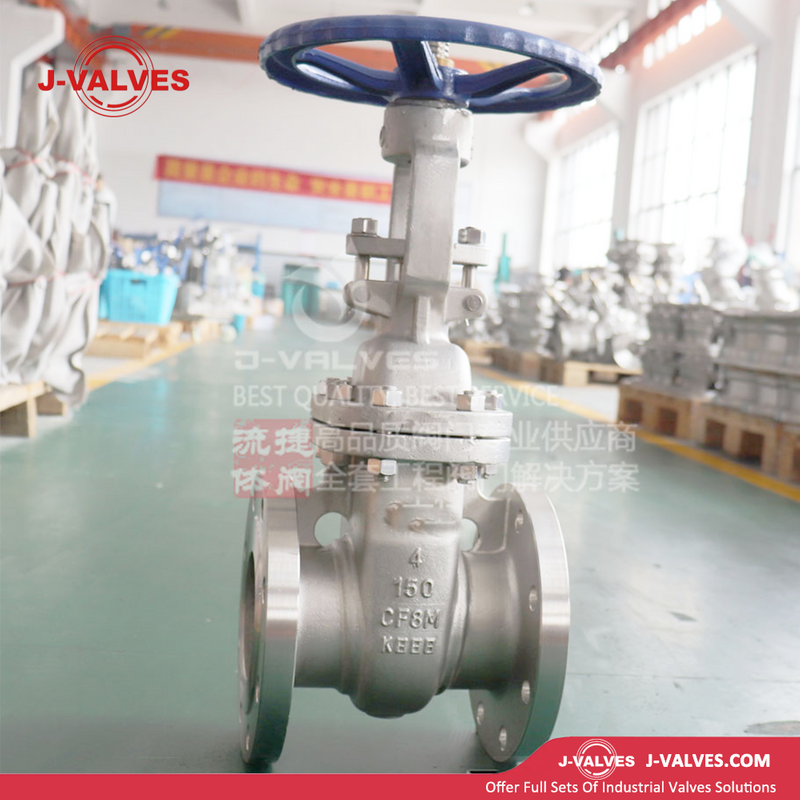

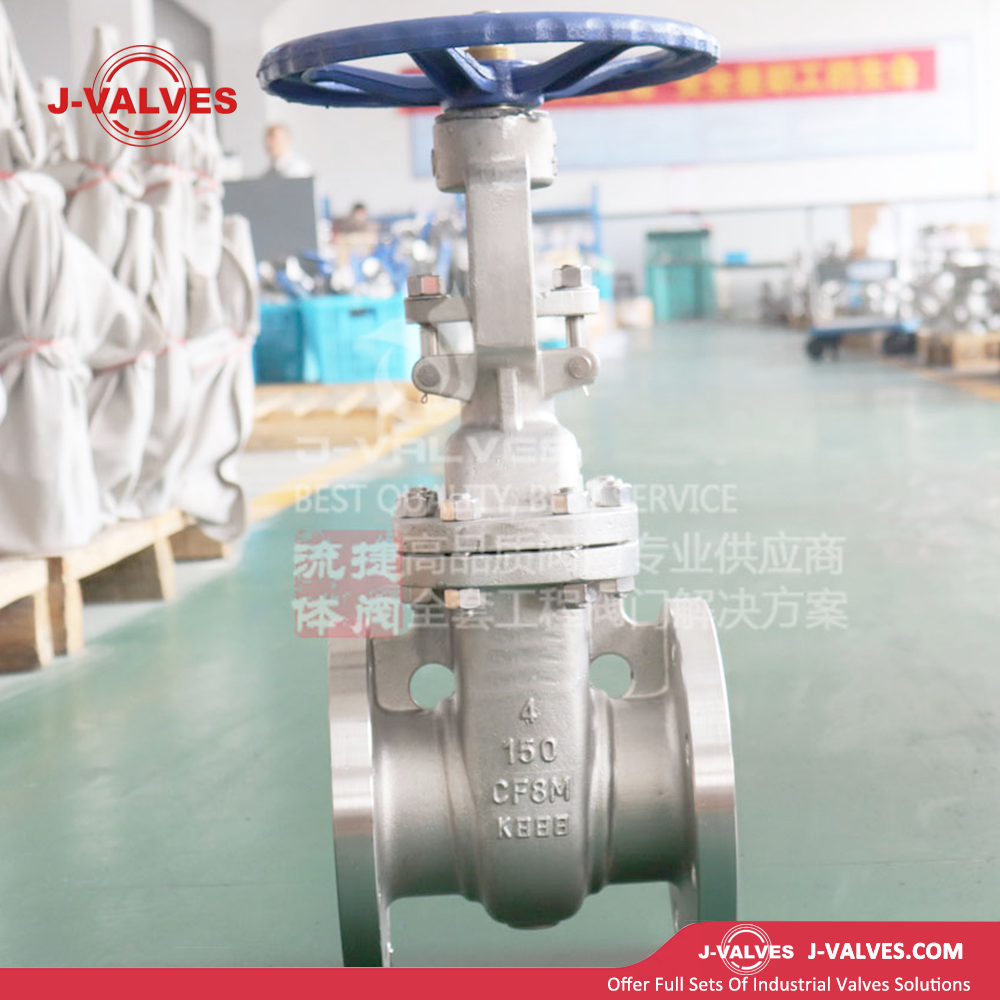

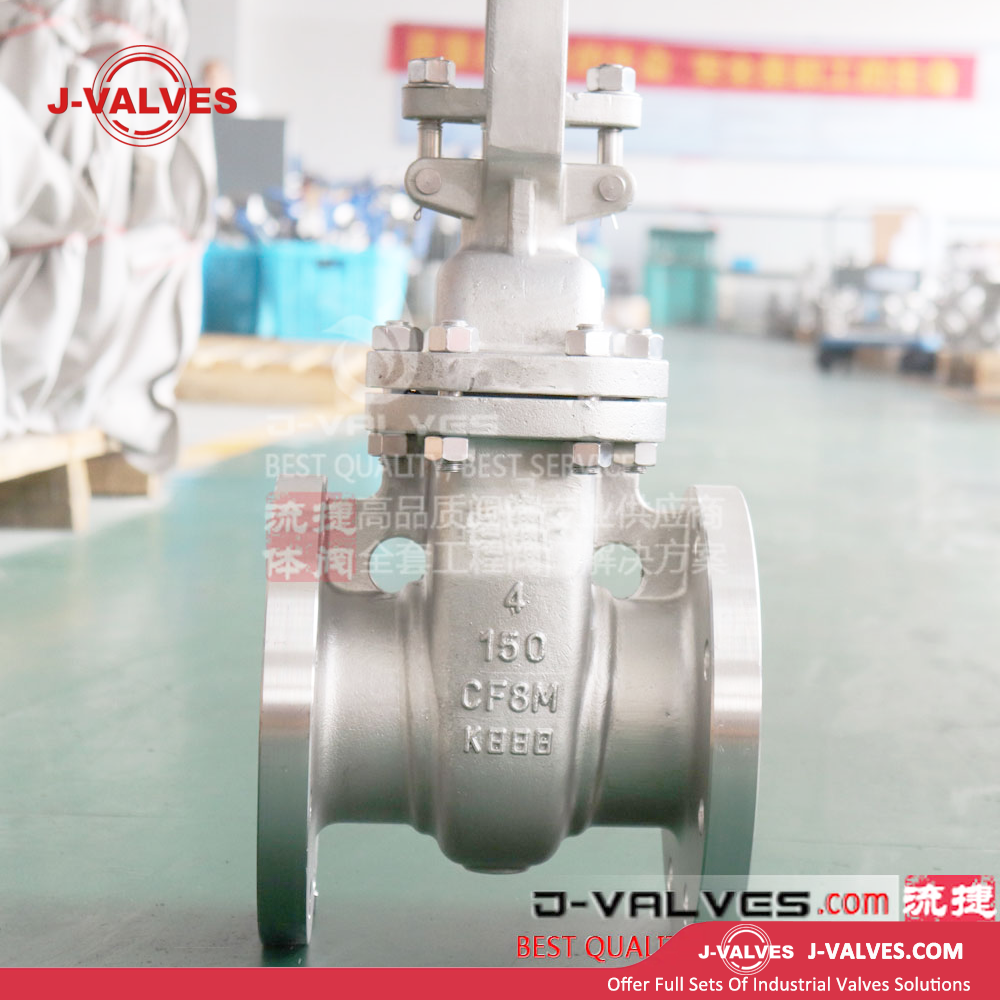

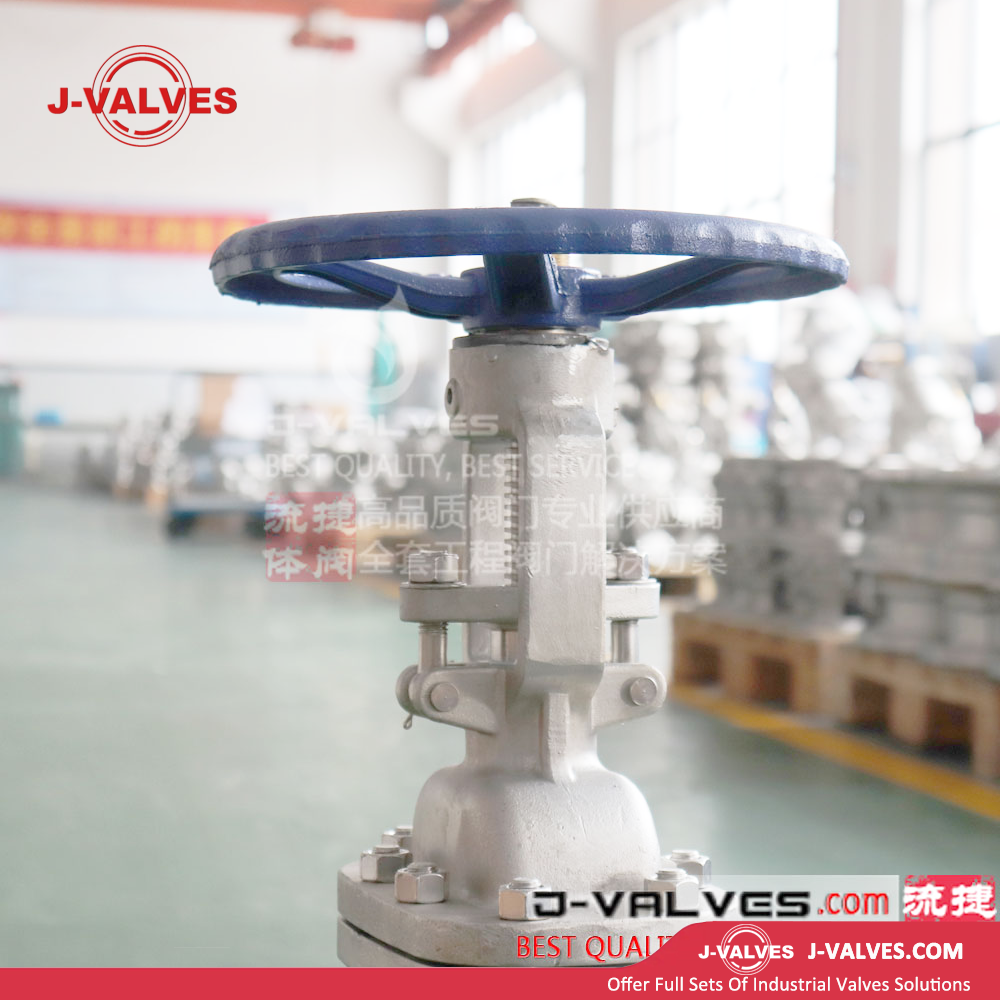

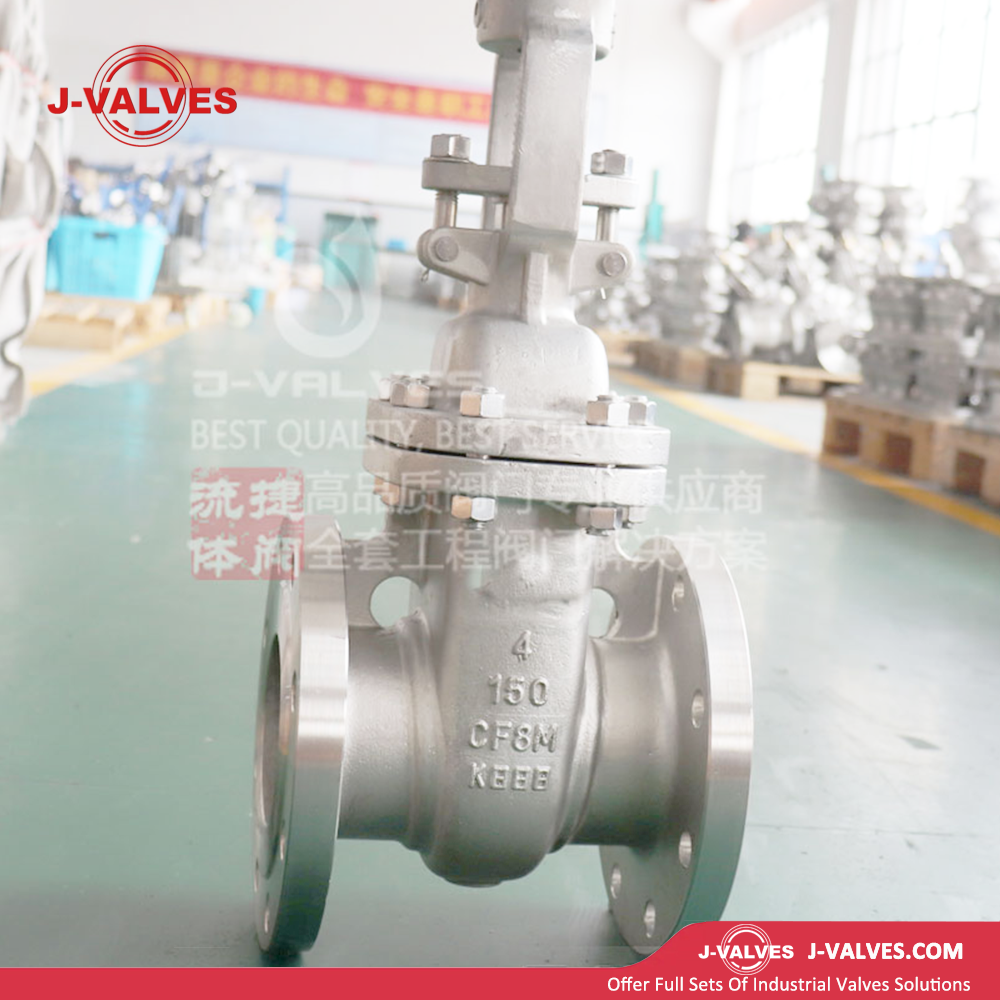

Porduct Name | J-Valves made in China 10K Stainless Steel CF8m Flanged Gate Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pne umatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Advantages of J-Valves 10K Stainless Steel CF8m Flanged Gate Valve
Exceptional Material Quality
Constructed from 10K stainless steel CF8m, this valve offers remarkable corrosion resistance. Stainless steel CF8m contains a high percentage of chromium and nickel, making it suitable for use in a wide range of corrosive environments, such as chemical processing plants, where it can withstand the harsh effects of various chemicals. This ensures a long - lasting service life, reducing the need for frequent replacements and maintenance costs.
Precise Flow Control
The gate valve design allows for precise regulation of fluid flow. When the valve is opened, the gate moves parallel to the direction of the fluid flow, creating a straight - through passage with minimal flow restriction. This makes it ideal for applications where accurate control of the flow rate is crucial, like in water treatment plants, where consistent flow is necessary for efficient treatment processes.
Reliable Sealing Performance
J - Valves' 10K flanged gate valves are engineered with advanced sealing mechanisms. The tight - fitting gate and seat design ensure excellent sealing, preventing any leakage. This is particularly important in industries such as oil and gas, where even a small leak could lead to significant safety hazards and environmental pollution. The reliable sealing also helps in maintaining the integrity of the pipeline system and the quality of the conveyed fluids.
High - Pressure and Temperature Tolerance
With a 10K rating, these valves can withstand high - pressure conditions. The robust construction of the valve body and components enables it to handle substantial pressure differentials without deformation or failure. Additionally, the stainless steel CF8m material has good heat resistance, allowing the valve to operate effectively in high - temperature applications, such as in power plants where steam is transported at high temperatures and pressures.
Easy Installation and Maintenance
The flanged design of the valve simplifies the installation process. Flanges provide a secure and easy - to - connect interface, which can be quickly bolted to the pipeline. In terms of maintenance, the straightforward structure of the gate valve allows for easy access to internal components. This means that repairs and replacements, if needed, can be carried out efficiently, minimizing downtime in industrial operations.
Applications of J-Valves 10K Stainless Steel CF8m Flanged Gate Valve
Industrial Applications
Chemical Industry: As mentioned before, the corrosion - resistant properties of the valve make it a popular choice in chemical plants. It can be used to control the flow of various corrosive chemicals, such as acids and alkalis, in production processes, storage tank filling and emptying, and waste treatment systems.
Oil and Gas Industry: In the oil and gas sector, these valves are used in pipelines for transporting crude oil, natural gas, and refined petroleum products. Their high - pressure tolerance and reliable sealing are essential for ensuring the safe and efficient transfer of these valuable resources over long distances. They are also used in refineries for controlling the flow of different process streams during the refining process.
Power Generation: Power plants, whether they are coal - fired, gas - fired, or nuclear, rely on these valves. In steam - driven power generation, the valves control the flow of high - temperature and high - pressure steam, which is used to drive turbines. They are also used in cooling water systems within power plants to regulate the flow of water for heat dissipation.
Commercial and Residential Applications
Water Supply Systems: In municipal water supply networks, J - Valves' flanged gate valves are used to control the flow of water to different areas of a city. They can be installed at key points in the pipeline system to isolate sections for maintenance or repair. In residential and commercial buildings, these valves are used in the main water supply lines to control the overall water flow into the building and in individual units for isolation purposes during plumbing repairs.
HVAC Systems: In heating, ventilation, and air - conditioning (HVAC) systems, the valves are used to regulate the flow of hot or cold water in the system. This helps in maintaining the desired temperature and humidity levels in buildings. They can be used in both large - scale commercial HVAC installations and smaller residential systems.
Porduct Name | J-Valves made in China 10K Stainless Steel CF8m Flanged Gate Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pne umatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Advantages of J-Valves 10K Stainless Steel CF8m Flanged Gate Valve
Exceptional Material Quality
Constructed from 10K stainless steel CF8m, this valve offers remarkable corrosion resistance. Stainless steel CF8m contains a high percentage of chromium and nickel, making it suitable for use in a wide range of corrosive environments, such as chemical processing plants, where it can withstand the harsh effects of various chemicals. This ensures a long - lasting service life, reducing the need for frequent replacements and maintenance costs.
Precise Flow Control
The gate valve design allows for precise regulation of fluid flow. When the valve is opened, the gate moves parallel to the direction of the fluid flow, creating a straight - through passage with minimal flow restriction. This makes it ideal for applications where accurate control of the flow rate is crucial, like in water treatment plants, where consistent flow is necessary for efficient treatment processes.
Reliable Sealing Performance
J - Valves' 10K flanged gate valves are engineered with advanced sealing mechanisms. The tight - fitting gate and seat design ensure excellent sealing, preventing any leakage. This is particularly important in industries such as oil and gas, where even a small leak could lead to significant safety hazards and environmental pollution. The reliable sealing also helps in maintaining the integrity of the pipeline system and the quality of the conveyed fluids.
High - Pressure and Temperature Tolerance
With a 10K rating, these valves can withstand high - pressure conditions. The robust construction of the valve body and components enables it to handle substantial pressure differentials without deformation or failure. Additionally, the stainless steel CF8m material has good heat resistance, allowing the valve to operate effectively in high - temperature applications, such as in power plants where steam is transported at high temperatures and pressures.
Easy Installation and Maintenance
The flanged design of the valve simplifies the installation process. Flanges provide a secure and easy - to - connect interface, which can be quickly bolted to the pipeline. In terms of maintenance, the straightforward structure of the gate valve allows for easy access to internal components. This means that repairs and replacements, if needed, can be carried out efficiently, minimizing downtime in industrial operations.
Applications of J-Valves 10K Stainless Steel CF8m Flanged Gate Valve
Industrial Applications
Chemical Industry: As mentioned before, the corrosion - resistant properties of the valve make it a popular choice in chemical plants. It can be used to control the flow of various corrosive chemicals, such as acids and alkalis, in production processes, storage tank filling and emptying, and waste treatment systems.
Oil and Gas Industry: In the oil and gas sector, these valves are used in pipelines for transporting crude oil, natural gas, and refined petroleum products. Their high - pressure tolerance and reliable sealing are essential for ensuring the safe and efficient transfer of these valuable resources over long distances. They are also used in refineries for controlling the flow of different process streams during the refining process.
Power Generation: Power plants, whether they are coal - fired, gas - fired, or nuclear, rely on these valves. In steam - driven power generation, the valves control the flow of high - temperature and high - pressure steam, which is used to drive turbines. They are also used in cooling water systems within power plants to regulate the flow of water for heat dissipation.
Commercial and Residential Applications
Water Supply Systems: In municipal water supply networks, J - Valves' flanged gate valves are used to control the flow of water to different areas of a city. They can be installed at key points in the pipeline system to isolate sections for maintenance or repair. In residential and commercial buildings, these valves are used in the main water supply lines to control the overall water flow into the building and in individual units for isolation purposes during plumbing repairs.
HVAC Systems: In heating, ventilation, and air - conditioning (HVAC) systems, the valves are used to regulate the flow of hot or cold water in the system. This helps in maintaining the desired temperature and humidity levels in buildings. They can be used in both large - scale commercial HVAC installations and smaller residential systems.
1.Design & Manufacture standard:API600
2.Pressure & Temperature standard:ASME B16.25
3.Face to face dimension standard: ASME B16.10
4.Ends Connection standard:ASME B16.5
5.Test & Inspect standard: API598
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
