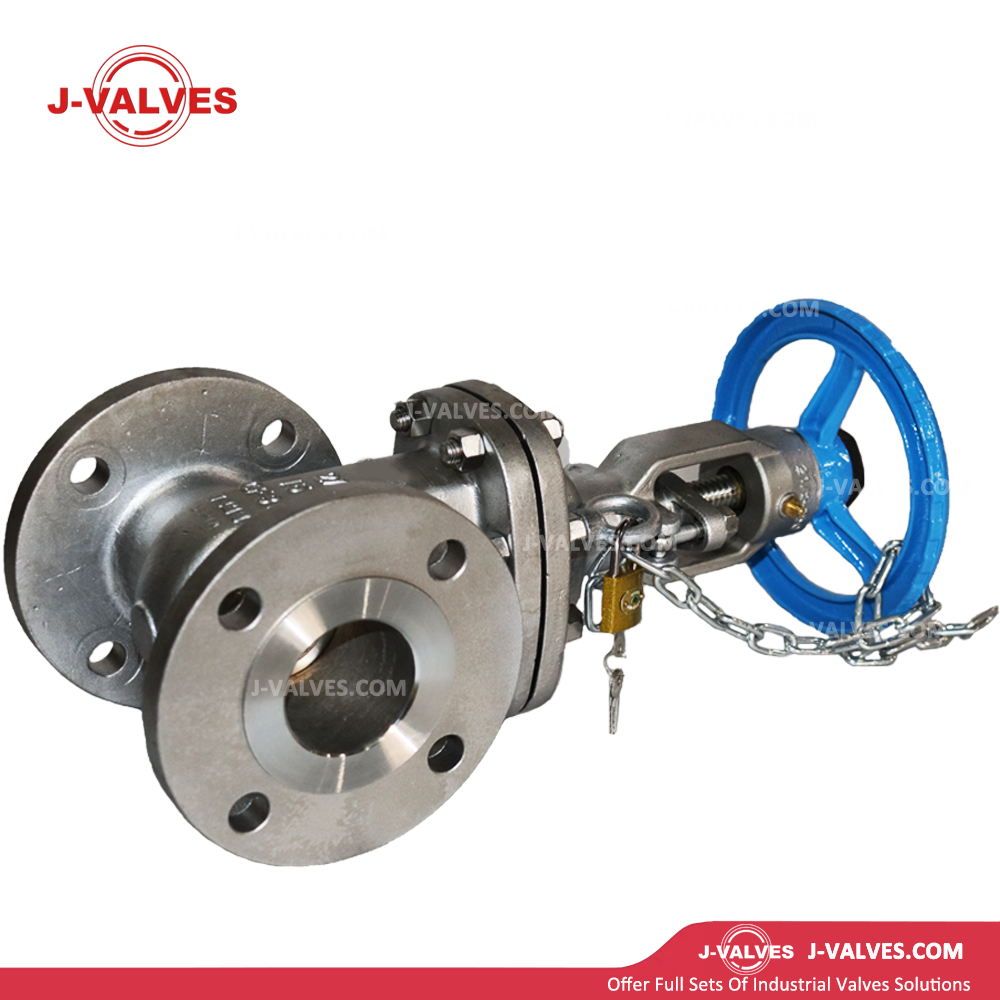

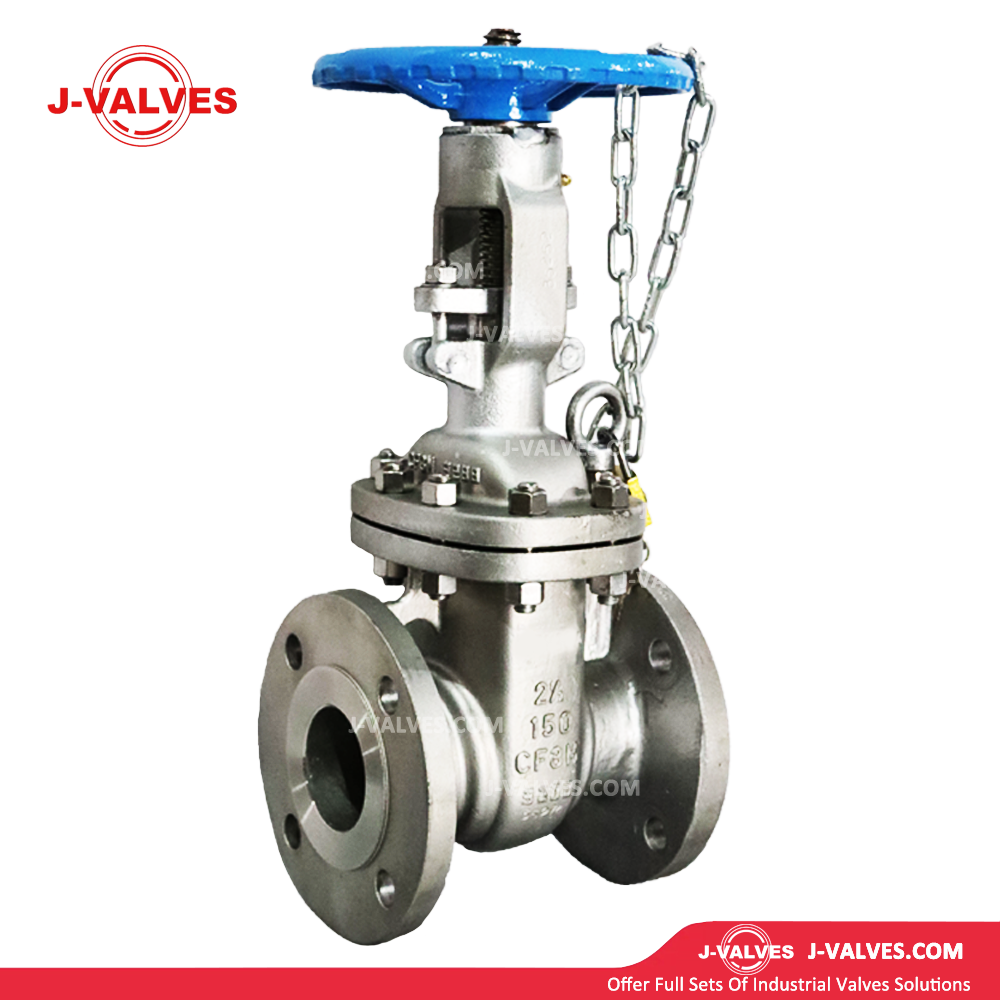

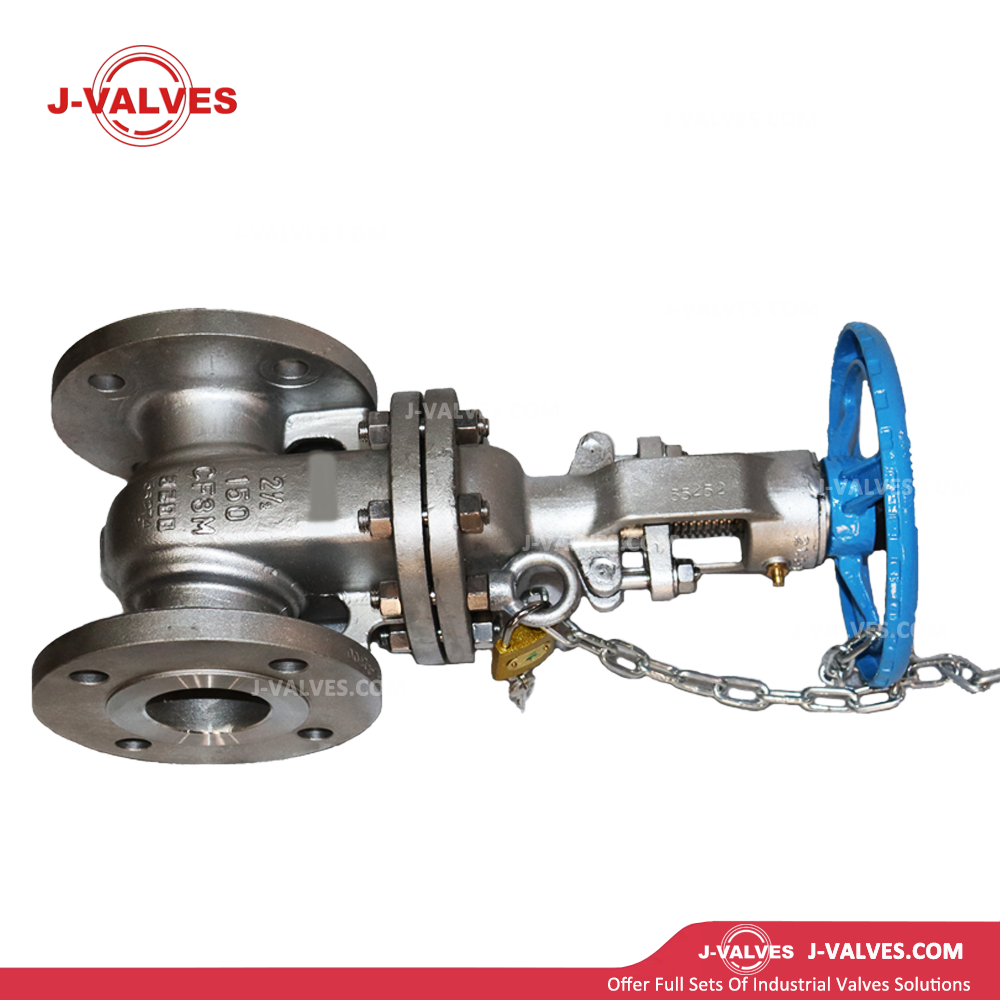

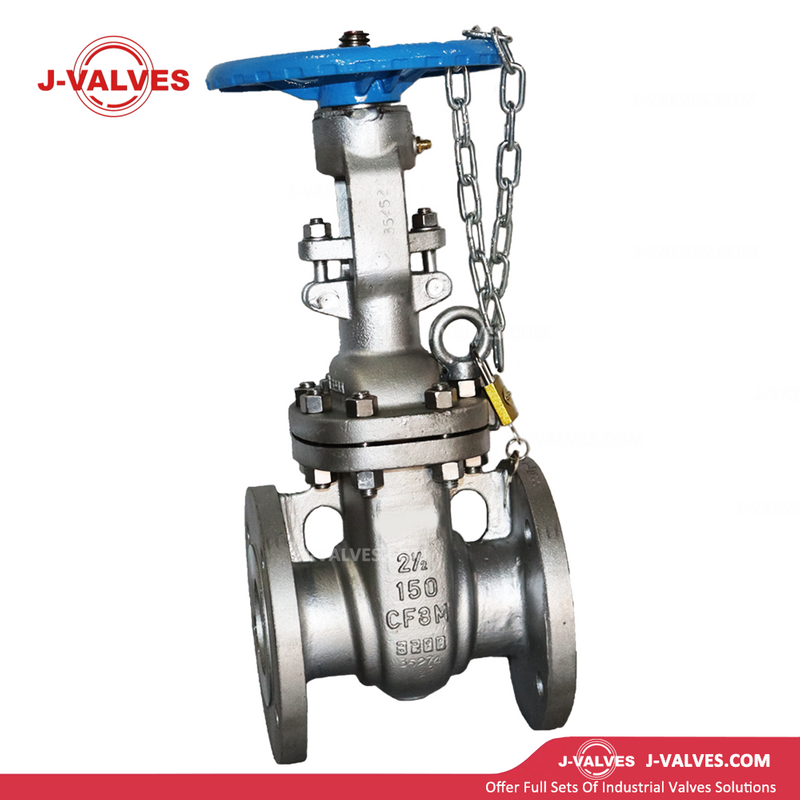

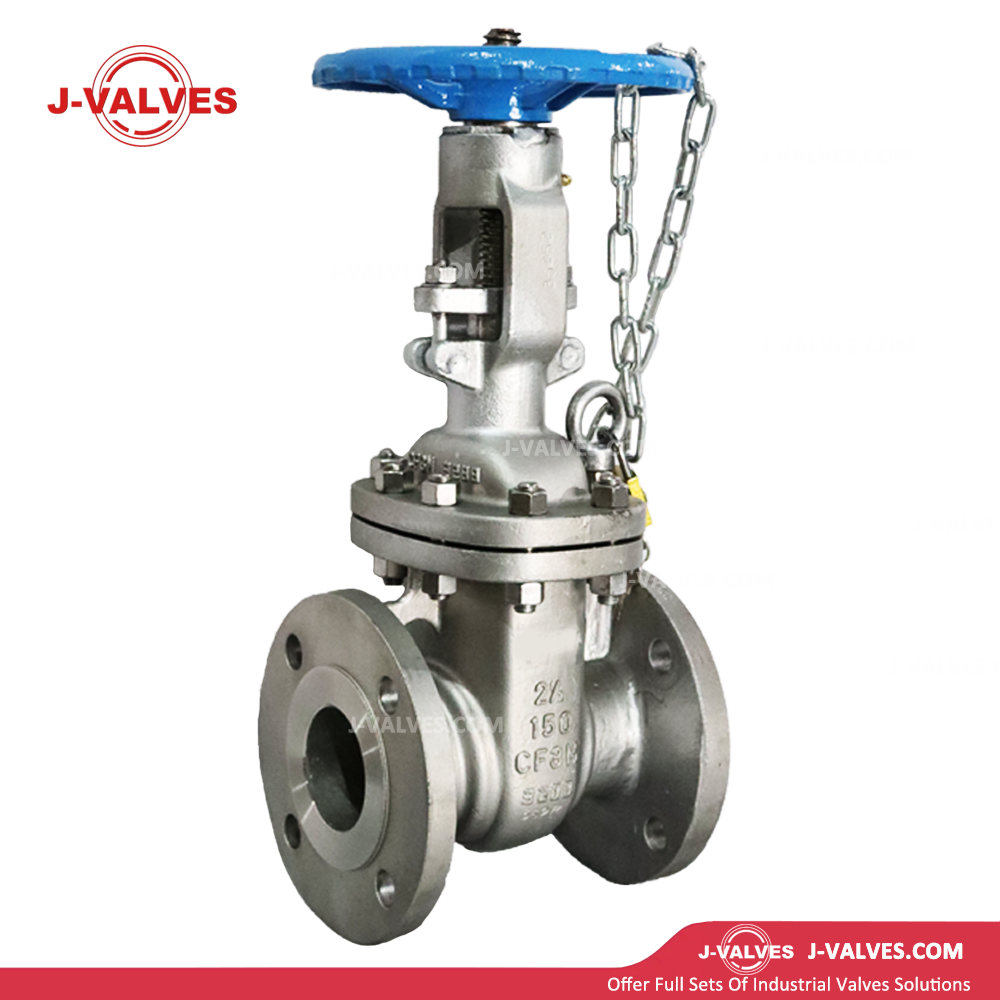

J-Valves China 150# Stainless Steel CF8/CF8m Flanged ANSI Class Gate Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The J-Valves China 150# Stainless Steel CF8/CF8m Flanged ANSI Class Gate Valve is a high-quality industrial valve. Made of CF8/CF8m stainless steel, it offers excellent corrosion resistance, suitable for various harsh media. With a 150# pressure rating in ANSI Class standard, it ensures reliable performance under normal working pressures. The flanged connection type makes installation and maintenance convenient. This gate valve is designed to fully open or close fluid flow, featuring low flow resistance and long service life. Ideal for industries like oil, gas, and chemical, it effectively controls pipeline media.
Availability:
Quantity:
  • J-VALVES-BV

  • J-VALVES

  • 8481804090

J-Valves China 150# Stainless Steel CF8/CF8m Flanged ANSI Class Gate Valve

Porduct Name

J-Valves China DIN Standard Pn25 Carbon Steel A105 Trim 8 Solid Wedge Gate Valve

Material 304/316/B62/2207/2507/316ti/C95800, etc.
Size 2"-24"(DN100-DN600)
Port Full Port
Working Pressure 150LB/300LB
Connection Ends RF
Working Temp. -20ºC~200ºC
Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
Operated Manual, Worm Gear, Pneumatic actuator, Electric Actuator
Features Investment casting,Blow-out proof stem,Anti-static device(option)
Design standard API6D/API608/API607
Inspection&Testing According to API598
Brand J-VALVES



Advantages



Superior Material Construction


Made from CF8/CF8M stainless steel, these valves exhibit excellent corrosion resistance. This makes them highly suitable for use in harsh chemical and marine environments, ensuring a long - term, reliable performance without the risk of rust or degradation. The high - quality material also contributes to their durability, withstanding high - pressure and high - temperature conditions, minimizing maintenance needs, and ultimately reducing long - term costs.


Precise Flow Control


The gate valve design allows for full - port or full - bore flow, minimizing pressure drop across the valve. This enables unrestricted fluid flow when fully open, optimizing system efficiency. When closing, it provides a tight seal, effectively stopping the flow, and ensuring accurate and reliable flow control. This is crucial for industries where even the slightest leak could lead to significant losses or safety hazards.


Standardized Compatibility


With ANSI Class 150# flanged connections, these valves are compliant with international standards. This ensures seamless integration with existing piping systems in various industrial applications. The standardized design simplifies installation, reducing installation time and associated labor costs. Additionally, replacement parts are readily available, further streamlining maintenance processes.


Applications


Chemical Processing


In chemical plants, the valves' corrosion - resistant properties make them ideal for handling aggressive chemicals. They can be used to control the flow of acids, alkalis, and solvents in pipelines, reactors, and storage tanks, maintaining the integrity of the chemical processing system and ensuring safe operation.


Oil and Gas Industry


Whether in upstream, midstream, or downstream operations, these valves play a vital role. In upstream, they can be installed in wellheads to regulate the flow of crude oil and gas. During midstream transportation, they help manage the flow in pipelines. In downstream refineries, they are used in various processes, from distillation to product storage.


Marine and Shipbuilding


The salt - water - resistant nature of the CF8/CF8M stainless steel valves makes them suitable for marine applications. They are used in shipboard piping systems for ballast water, fuel, and seawater cooling. Their reliable performance ensures the safe and efficient operation of vessels, even in the most challenging marine environments.


Water Treatment Plants


In water treatment facilities, these valves are used to control the flow of raw water, treated water, and chemicals. Their ability to provide precise flow control and tight sealing is essential for maintaining the quality and efficiency of water treatment processes, from filtration to disinfection.
Technical Standards

1.Design & Manufacture standard:API600
2.Pressure & Temperature standard:ASME B16.25
3.Face to face dimension standard: ASME B16.10
4.Ends Connection standard:ASME B16.5
5.Test & Inspect standard: API598


Design & Manufacture standard ASME B16.34
Pressure & Temperature standard ASME B16.34
Face to face dimension standard MFG Standard
Ends Connection standard ASME B1.20.1
Test & Inspect standard API 598


Testing Pressure(Mpa)


Pressure 150LB 300LB 600LB 900LB 1500LB 2500LB
Strength Testing 3.0 7.5 15.4 23.0 37.5 63.0 Mpa
Seal Testing 2.2 5.5 11.2 16.9 27.5 46.2
Air Testing 0.6 0.6 0.6 0.6 0.6 0.6


Advantages
Product display
In the field of industrial valves, high-pressure cast steel gearbox-operated self-sealing gate valves have performed well. The valve body made of high-pressure cast steel is solid and reliable, and can cope with high-pressure working conditions; the gearbox is easy to operate and precise, and the opening and closing can be easily controlled; the self-sealing technology prevents medium leakage and ensures production safety.
