In high-risk sectors such as chemical processing, oil refining, offshore drilling platforms, and pharmaceuticals, pipeline media often exhibit hazardous properties, including high pressures, extreme temperatures, strong corrosiveness, or explosive risks. Under these heavy-duty scenarios, the breakdown of a single control component can trigger an unmitigated safety catastrophe. Therefore, understanding how to select a pneumatic actuator and limit switch assembly scientifically—ensuring they act accurately and return position signals correctly—is a major focus for plant engineers and procurement managers.
As an established brand providing premium industrial valve solutions since 2009, J-VALVES leverages its lengthy track record in managing complex industrial conditions to present this rigorous selection guide.
The primary mission of a pneumatic actuator is to provide sufficient output torque to overcome the breakaway resistance of the valve. In high-risk processes, media may crystallize, coke, or carry particulate impurities, which exponentially amplifies the dynamic operation torque over time.
J-VALVES Recommendation: Maintain a 20% to 30% torque safety margin for clean, standard media. For high-viscosity or easily crystallized fluids, that margin must scale to 50% or even 100%. Choosing between single-acting (spring return) or double-acting variants must be strictly evaluated against the required fail-safe orientation (Fail-Open or Fail-Closed) upon air supply loss.

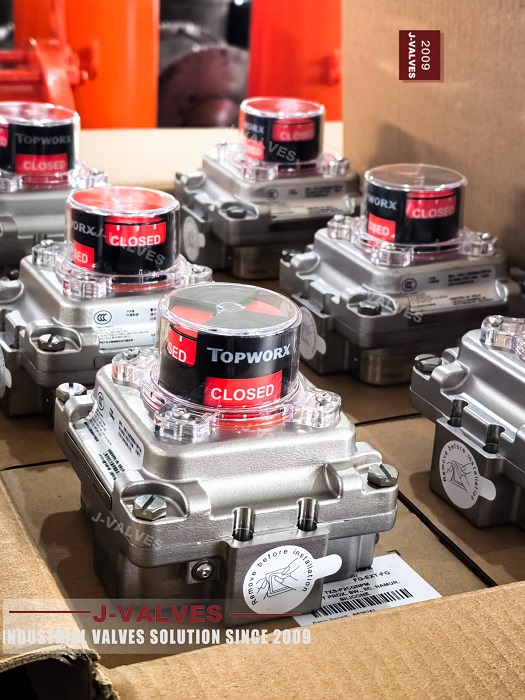

Because they house live electrical parts, limit switch boxes operating around volatile gases or combustible dust must be engineered for total explosion protection.
J-VALVES Recommendation: Depending on zone classifications (Zone 1 / Zone 2), specify flameproof (Ex d) or intrinsically safe (Ex ia) limit switches certified by ATEX, IECEx, or equivalent local authorities. For outdoor installations or washdown stations, ensure the ingress protection reaches IP66 or IP67 to protect internal contacts from moisture and grit.
Environmental harshness affects not only the wetted inner surfaces of a valve but also its outer exterior exposed to salt spray or acid mists.
J-VALVES Recommendation: We recommend high-strength aluminum alloy cylinders treated with hard anodization or 316 stainless steel for the actuator bodies. End caps should utilize robust protective coatings (like J-VALVES' signature red anti-corrosion layer). Limit switch housings should use die-cast aluminum or heavy-duty engineering polymers, with all external fasteners made of 304/316 stainless steel to repel long-term atmospheric degradation.
Why do top-tier global industrial users trust J-VALVES' pneumatic functional valves when tackling harsh environments?
Zero In-Leakage Sealing Over Extended Lifecycles: J-VALVES pneumatic actuators utilize imported high-spec piston guide rings and dual Y-profile seals. While sustaining remarkably low friction levels, this engineering ensures zero internal leakage across millions of cycles, significantly lengthening operation lifespans in high-frequency loops.
Integrated Intelligent Position Signaling: Our limit switch boxes present pristine internal wiring layouts and exceptionally user-friendly mechanical cams. Users can execute highly precise angle adjustments by hand without specialized tools, effectively eliminating field false alarms born from configuration errors.
100% Comprehensive Factory Testing: J-VALVES never ships unverified individual components. Every automated valve configuration incorporating pneumatic actuators and limit switches must pass holistic integration tests for air tightness, torque profiling, and signal return accuracy on our modern testing lines before shipping.
A massive coal chemical project based in Northwest China experienced severe pipeline valve problems. The automated valve loops in the coking workshop and gas purification units were continuously exposed to hydrogen sulfide ($H_2S$), ammonia gas, and dense coal dust. The existing generic automated valves suffered from brutal external rusting and particulate blockage inside the limit switches. The control room suffered frequent "signal lost" alarms, threatening continuous and safe plant production.
Confronted with this combined risk profile of high corrosion, thick dust, and explosion potential, J-VALVES field engineers deployed an optimized configuration:
Actuator Reinforcement: Deployed double-acting pneumatic actuators shielded with heavy-duty anti-corrosion epoxy coatings and stainless steel external hardware.
Limit Switch Customization: Configured aluminum limit switch boxes featuring IP67 ingress ratings and top-tier Ex d IIC T6 flameproof ratings. The internal mechanical micro-switches were upgraded to sealed magnetic proximity switches, entirely isolating the electrical path from dust ingress.
Over 180 sets of these J-VALVES pneumatic functional valve packages went online in 2023. Through harsh winters down to $-30^\circ\text{C}$, baking summer heat, and non-stop dust exposure, all valves continue to operate flawlessly today, maintaining a 100% position signal transmission rate. The plant's instrumentation chief noted: "J-VALVES completely eliminated our most persistent signal blind spots, significantly cutting down the need for technicians to brave hazardous field conditions just to verify valve status."
Hazardous operational environments leave no room for compromise. Investing in pneumatic actuators and limit switch packages backed by robust manufacturing processes and rigorous testing protocols remains the ideal route to secure corporate industrial assets and safeguard personnel. J-VALVES, delivering elite industrial valve solutions since 2009, stands ready to fortify every frontier of your process automation.
