The industrial gate valve is one of the most widely used isolation valves in high-pressure pipeline systems. Designed primarily for fully open or fully closed service, gate valves provide excellent flow capacity, low pressure loss, and reliable shut-off performance in demanding industries such as oil and gas, petrochemical, power generation, and chemical processing.

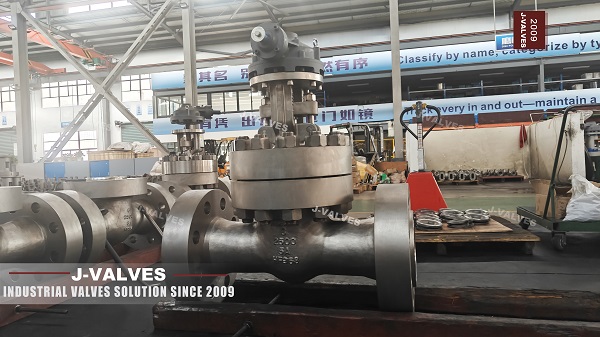

The gate valve shown in the image represents a high-pressure industrial design featuring a robust body structure, flanged connections, and a pressure class suitable for severe operating conditions. High-pressure gate valves must maintain mechanical strength, sealing reliability, and operational stability under extreme pressure and temperature environments.
J-VALVES specializes in manufacturing high-performance industrial valves according to international standards, delivering customized gate valve solutions for critical applications worldwide.
A gate valve controls fluid flow by moving a gate-shaped disc vertically between two sealing seats. When fully opened, the gate moves completely out of the flow path, creating a straight-through passage with minimal turbulence and pressure drop.
The main components of an industrial gate valve include:
Valve body
Bonnet assembly
Gate wedge
Stem
Seat rings
Packing system
Handwheel or actuator
The robust body design ensures pressure containment, while precision-machined sealing components provide reliable shut-off performance.
For high-pressure applications, gate valves typically adopt:
Forged or cast steel construction
Bolted bonnet or pressure seal bonnet design
Rising stem configuration
Flexible wedge structure
Metal-to-metal sealing surfaces
High-pressure pipeline systems require valves capable of handling significant mechanical stress and pressure fluctuations. The gate valve design provides excellent pressure resistance through optimized body thickness, high-strength materials, and advanced sealing technology.
The valve body is the primary pressure-bearing component. High-pressure gate valves are designed with reinforced body structures to withstand internal pressure loads.
Key advantages include:
High mechanical strength
Excellent pressure resistance
Stable operation under temperature changes
Long service life in demanding environments
For applications such as upstream oil and gas systems, power plants, and process industries, reliable pressure containment is essential for safe operation.
One of the major advantages of gate valves is their full bore flow passage.
When the valve is completely open:
The gate is fully lifted away from the flow channel
Fluid flows directly through the valve
Turbulence is minimized
Pressure loss is significantly reduced
This makes gate valves especially suitable for large-diameter pipelines requiring efficient fluid transportation.
The sealing performance of a gate valve directly affects system reliability. Advanced gate valve designs use precise machining and optimized sealing structures to achieve dependable shut-off.
Industrial gate valves commonly use metal-to-metal sealing systems, providing advantages such as:
High temperature resistance
Wear resistance
Long operating life
Compatibility with harsh media
The gate and seat sealing surfaces are precision finished to ensure proper contact and minimize leakage.
A flexible wedge gate design allows the valve to compensate for thermal expansion and body deformation.
Benefits include:
Improved sealing reliability
Reduced risk of gate sticking
Better performance under temperature cycling
This design is widely applied in high-temperature steam systems and oil refining applications.
Material selection plays an important role in determining valve performance. Depending on operating conditions, industrial gate valves may use different materials.
Common materials include:
Suitable for:
Oil pipelines
Natural gas systems
General industrial applications
Advantages:
High strength
Cost efficiency
Good mechanical properties
Used for:
Corrosive chemical media
Food processing systems
Clean process applications
Advantages:
Excellent corrosion resistance
High durability
Good temperature performance
Designed for:
High-temperature applications
High-pressure steam systems
Power generation equipment
Advantages:
Superior creep resistance
High thermal stability
Industrial gate valves are widely used across multiple sectors due to their reliable isolation capability.
Applications include:
Transmission pipelines
Wellhead systems
Refinery process units
Storage facilities
Gate valves provide dependable shut-off performance for critical pipeline isolation.
Used in:
Steam systems
Boiler feedwater systems
Cooling water pipelines
High-pressure gate valves help maintain safe and stable operation under demanding conditions.
Gate valves are commonly installed in:
Process pipelines
Chemical transfer systems
High-pressure fluid systems
Proper material selection ensures compatibility with various process media.
J-VALVES focuses on precision manufacturing and quality control to provide reliable industrial valve solutions.
Production advantages include:
Precision machining of sealing surfaces
Strict dimensional control
Professional assembly procedures
Comprehensive testing processes
Each valve undergoes inspection procedures including:
Shell pressure testing
Seat leakage testing
Material verification
Functional operation testing
J-VALVES designs industrial gate valves according to recognized international standards, including:
API specifications
ASME requirements
ANSI pressure ratings
ASTM material standards
This ensures compatibility with global industrial pipeline systems.
High-performance industrial gate valves are essential components for reliable pipeline isolation in high-pressure applications. Their straight-through flow design, strong pressure capability, and durable sealing structure make them suitable for oil and gas, petrochemical, power generation, and industrial process systems.
The gate valve shown represents a typical heavy-duty industrial solution designed for demanding operating environments. Through optimized engineering design, advanced material selection, and strict manufacturing control, J-VALVES provides dependable valve solutions that meet the requirements of modern industrial applications.
