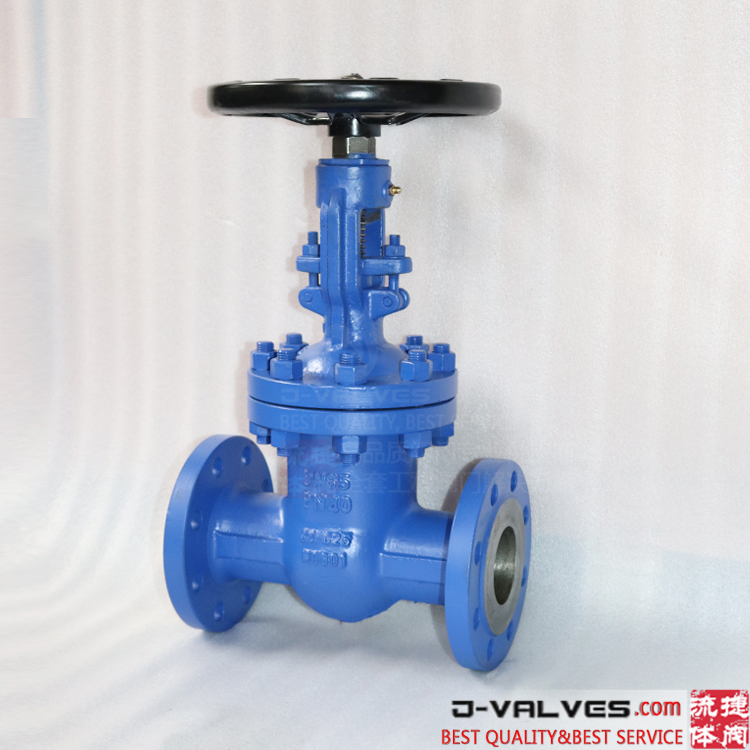

Handwheel Operated GS-C25 Cast Steel Gate Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
DIN handwheel operated GS-C25 cast steel gate valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.
Availability:
Quantity:
  • DN15-DN500

  • J-VALVES

Handwheel Operated GS-C25 Cast Steel Gate Valve


Handwheel Operated GS-C25 Cast Steel Gate Valve Quick Detail:



● Size: DN50~DN500(2''-20'')

● Pressure Rating: PN16~PN160/150LB~2500LB/10K~60K)

● Material:A351CF8M/CF8/CF3/CF3M,A216 WCB,A216 WC6 A105,A352 LCB/LCC, F304,F316,F51/F53,F11,C95800

● Suitable Temperature: -46ºC~538ºC( Different temperature choose different materials).

● Suitable Medium: Water, Steam, Oil and natural gas etc.



Handwheel Operated GS-C25 Cast Steel Gate Valve Description:


● Bolted Body, Full Port Construction

● Gate Valve Design Standard: DIN 3352

● Fully Compliant to DIN 3202

● Flange Fully Compliant to EN 1902-1 DIN 2501/2502(PN16) DIN 2503(PN25~PN40)

● Submerged Packing System & Direct Mount Actuation

● CNC machine tool processing, high precision, good sealing .

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.


Handwheel Operated GS-C25 Cast Steel Gate Valve Specifications:




DN

L

D

D1

D2

b

f

n-Ød

H

W

50

250

165

125

102

20

3

4-Ø18

377

200

65

290

185

145

122

22

3

8-Ø18

390

250

80

310

200

160

138

24

3

8-Ø18

418

250

100

350

235

190

162

24

3

8-Ø22

489

300

125

400

270

220

188

26

3

8-Ø26

541

300

150

450

300

250

218

28

3

8-Ø26

630

360

200

550

375

320

285

34

3

12-Ø30

824

400

250

650

450

385

345

38

3

12-Ø33

915

450

300

750

515

450

410

42

4

16-Ø33

1085

500

350

850

580

510

465

46

4

16-Ø36

1190

600

400

950

660

585

535

50

4

16-Ø39

1310

600

500

1150

685

610

560

57

4

20-Ø39

1560

650



J-VALVES Competitive Advantage:



● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure
