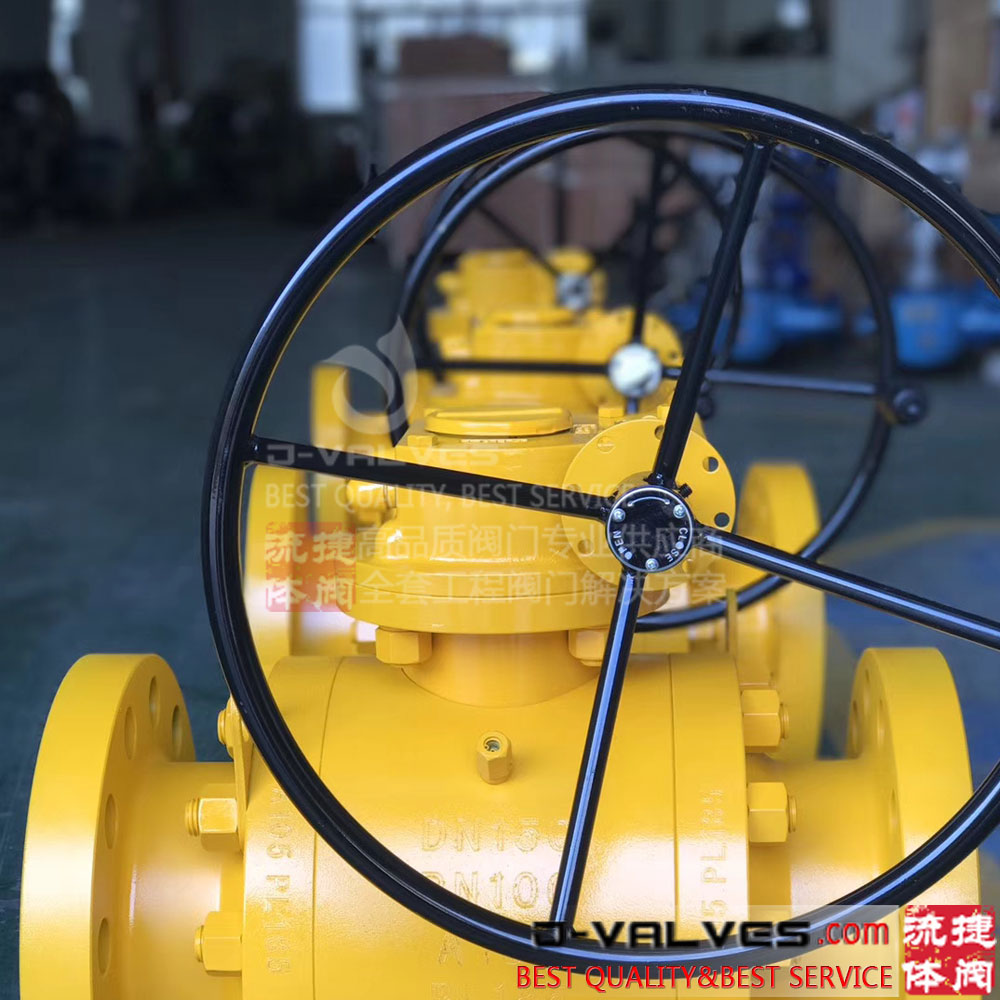

DIN EN GB Cast Steel/SSS/CS 3PC Flange Trunnion Mounted Ball Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

DIN EN GB Cast Steel/SS/CS 3PC Flange Trunnion Mounted Ball Valve

1.DIN EN GB Cast Steel/SS/CS 3PC Flange Trunnion Mounted Ball Valve Features:
1. Investment Casting Body (2"~48")
2. Trunnion Mounted Ball Designed
3. Anti-Blow-Out stem
4. Metal to Metal Seat (Option)
5. Anti-Static Device
6. Fire Safe Designed (Option)
7. Test and Inspection: API 598 EN12266
8.Connection End: RF/RTJ Flange Ends/BW
9.Size: 2'' to 48''(DN50-DN600)
10. Working Pressure: 150LB-2500LB

2.DIN EN GB Cast Steel/SS/CS 3PC Flange Trunnion Mounted Ball Valve Standard:
1. Standard compliance: API6D, API 608 ANSI B16.34 BS5351
2. Face to face: ANSI B16.10
3. RF, RTJ Flange Dimensions: ANSI B16.5 for 24"
4. Butt Weld End: ANSI B16.25
5. Pressure Rating: ANSI B16.34
6. Materials: CF8M (SS316), CF8 (SS304) CF3M (SS316L), CF3 (SS304L), WCB,DIN 1.4408/1.4308/1.0619
7. Suitable Temp.: -196ºC~550ºC
8. Suitable Medium: Water, Natural Gas, Oil, etc.

3.DIN EN GB Cast Steel/Ss/Cc 3PC Flange Trunnion Mounted Ball Valve schematic diagram:



4.DIN EN GB Cast Steel/Ss/Cc 3PC Flange Trunnion Mounted Ball Valve Main component materials:



5.DIN EN GB Cast Steel/Ss/Cc 3PC Flange Trunnion Mounted Ball Valve Main dimensions&Weight:


DIN EN GB Cast Steel/Ss/Cc 3PC Flange Trunnion Mounted Ball Valve can be operated by pneumatic actuator,electric actuator,intelligent control head and manual operation.There are a variety of standards provided to customers,such as,DIN,API,ANSI,and so on


Tips:
    We also manufacture other type valves, as butterfly valve, check valve, globe valve, Y strainer, sanitary butterfly valve, sanitary ball and so on.
   Any item meets your interest, anything confused you, pls keep me posted, let's talk more.


J-VALVES Service:

On Samples Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales Free replacement if there is any quality problem
On Delivery Never delay delivery time
On Materials Ensure material pure
Ensure material pure Welcome
