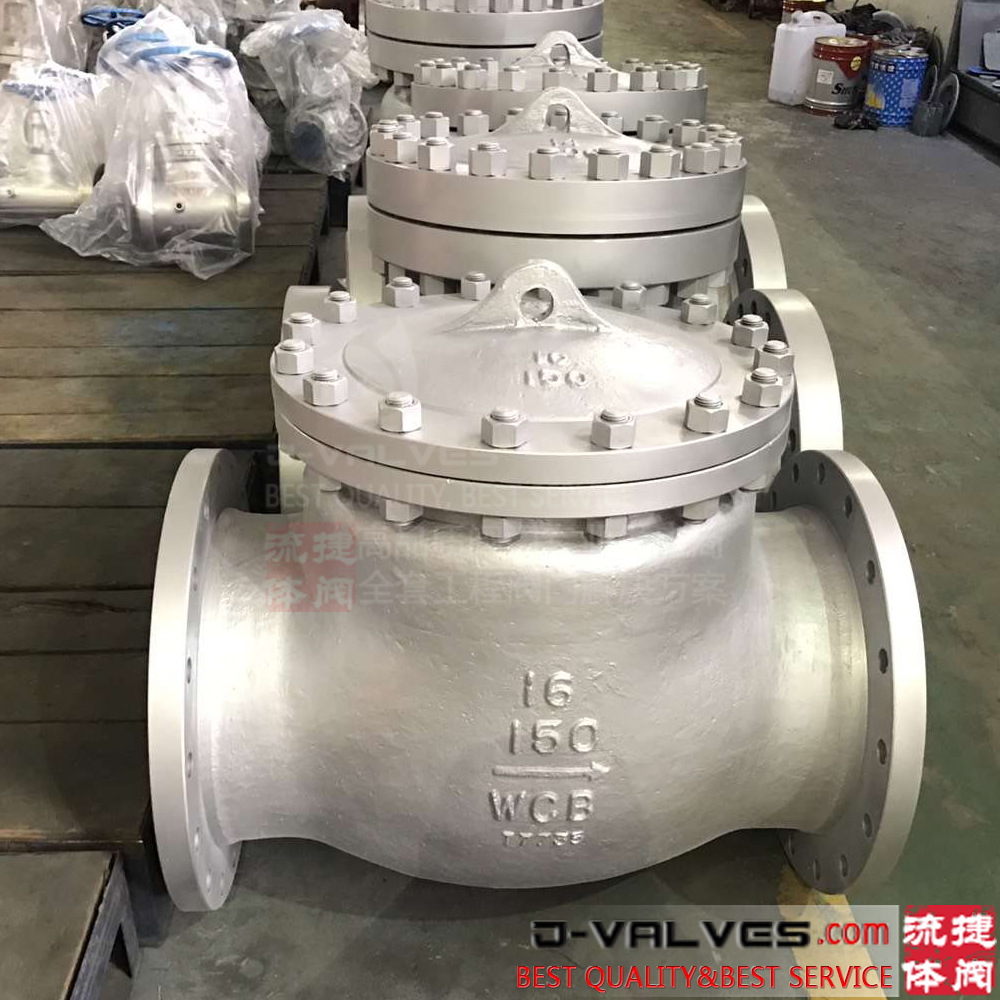

API 6D High Pressure 600LB Cast Steel Swing Check Valve

API 6D High Pressure 600LB Cast Steel Swing Check Valve

1. API 6D High Pressure 600LB Cast Steel Swing Check Valve Specifications:

1. Size: 1 1/2'~36''

2. Pressure rating: 150LB~1500LB

3. Material: A351 CF8M/CF8/CF3/CF3m, A216 WCB,A352 LCB,A217 WC6/WC9

4. Suitable Temperature: -196ºC~450ºC(Different temperature choose different materials)

5. Suitable Medium: Water, Oil and natural gas and other causticity medium (Different raw material for different medium)


2. API 6D High Pressure 600LB Cast Steel Swing Check Valve Standards:

1. Standard Compliance: ANI 6D, BS 1868

2. Pressure-Temp. Rating: ANSI B16.34

3. Face to Face: ANSI B16.10

4. End Flange: ANSI B16.5/ASME B16.47

5. Butt Welding Ends: ANSI B16.25

6. Inspection and Test: Tested to API 598, BS 6755, Certified to EN10204 3.1B

7. Size: 2~36in

8. Working Pressure: 150LB~2500Lb

9. Suitable Medium: Oil, Nature Gas, Water, Steam; Acid, Alkali, Organic Compounds


3.API 6D High Pressure 600LB Cast Steel Swing Check Valve Features:

1. Bolted bonnet, and the type of middle flange gasket may be different according to pressure class; Check valve in 600LB may adopt pressure sealed structure.

2. Disc stop device to prevent disc from being opened too high, thus causing failure to be closed down.

3. Solid pin is precisely installed and provided with high intensity to ensure operational performance and service life of valve.

4. Rocker arm is given enough intensity. Upon being closed down, it has enough freedom for the close-down of valve disc.

5. Large size check valve are provided with lifting rings for the convenience of hoisting.

4.API 6D High Pressure 600LB Cast Steel Swing Check Valve of Structure:

5.API 6D High Pressure 600LB Cast Steel Swing Check Valve of Material List：

Features:


1. Swing Type Disc

2. Bolted Cover

3. Rising Stem and Non-Rising Hand wheel

4. Threaded Seat Ring

5. Renewable Seat Ring

Applications:

1. Chemical, Refinery Plant

2. Gas Purification Plant

3. Power Station, Shipbuilding

4. Recycling Facilities

J-VALVES Note: All the data should be confirmed with the approved drawings of manufacturer.

6.API 6D High Pressure 600LB Cast Steel Swing Check Valveb Main dimensions&Weight:

API 6D High Pressure 600LB Cast Steel Swing Check Valve can be operated by pneumatic actuator,electric actuator,intelligent control head and manual operation.There are a variety of standards provided to customers,such as,DIN,API,ANSI,and so on
