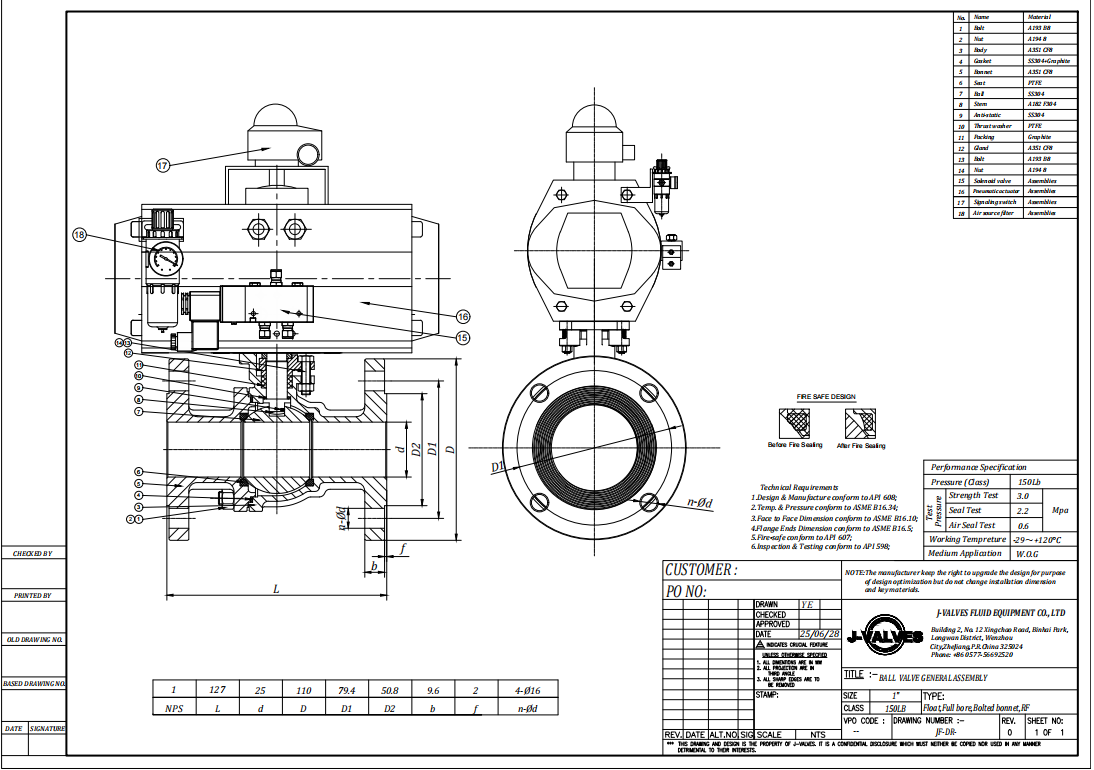

J-VALVES-BV-1000
J-VALVES
8481804090
Main Features
Stainless steel material: The valve body and main components are made of stainless steel (such as 304, 316, etc.), which has excellent corrosion resistance and high-temperature resistance, suitable for various media.
Pneumatic operation: Equipped with a pneumatic actuator, it supports remote control and automated operation, enabling quick opening and closing to improve system efficiency.
Flange connection: Adopts ANSI standard flange connection, featuring reliable sealing performance and easy integration with pipeline systems.
Full-bore design: Provides higher flow capacity and lower pressure loss, suitable for working conditions requiring large flow rates.
Fire-safe design: Complies with API 607 fire safety standards, ensuring sealing performance is maintained in extreme situations such as fires.
Anti-static design: Prevents static accumulation caused by medium flow, enhancing safety.
ISO 5211 high mounting platform: Conforms to the international standard mounting platformforms to the international standard mounting platform, facilitating direct installation of actuators without additional adapters.
Multiple sealing materials: Optional sealing materials such as PTFE and PPL are available to meet the requirements of different temperatures and media.
Technical Specifications
Nominal diameter: 1/2 inch to 8 inches (DN15 to DN200)
Pressure rating: 150LB
Applicable media: Water, oil, natural gas, steam, acidic media, etc.
Applicable temperature: -20℃ to 180℃ (the temperature range may vary depending on the sealing material)
Valve body material: Stainless steel (304, 316, etc.)
Sealing material: PTFE, PPL, etc.
Connection method: Flange connection, compliant with ASME B16.5 standard
Design and manufacturing standards: API 608, ASME B16.34
Testing standard: API 598
Application Fields
Oil and gas industry: Used in oil and gas transmission pipelines, natural gas processing plants, oil refineries, etc.
Chemical industry: Suitable for chemical reaction systems, acid-alkali transmission pipelines, etc.
Water treatment industry: Applied in seawater desalination, municipal water supply systems, etc.
Power industry: Used in cooling water systems and steam systems of power plants, etc.
Food and beverage industry: Utilized in food processing, beverage production, etc.
Advantages
High reliability: Undergoes strict quality inspection and factory testing to ensure the performance and reliability of each valve.
Easy maintenance: Reasonable design facilitates disassembly and maintenance; there is no need to disassemble the entire pipeline system when replacing seals or repairing internal components.
High safety performance: Fire-safe and anti-static designs make it suitable for hazardous environments.
Wide applicability: Suitable for various media and working conditions, meeting the needs of different industries.
Automated control: The pneumatic actuator supports remote operation and automated control, improving system efficiency.
