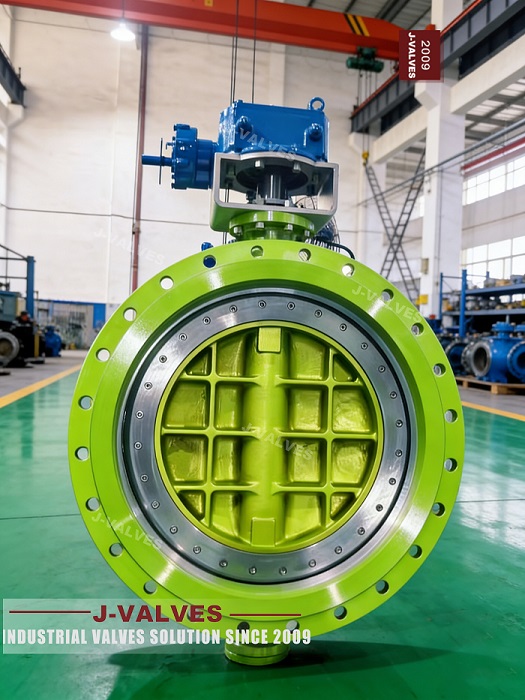

API 609 Certified Triple Offset Butterfly Valve – Double Flanged Design

In modern industrial flow control systems, selecting a valve that provides reliable sealing, durability, and high performance is critical for safe and efficient operations. Among the various valve types available in the market, the API 609 certified Triple Offset Butterfly Valve with Double Flanged Design has become a preferred choice for demanding industrial applications.

Compared with conventional butterfly valves or soft-seated designs, the triple offset butterfly valve offers superior sealing capability, reduced friction, and longer service life. The addition of a double flanged connection further enhances pipeline stability and installation safety, making it suitable for high-pressure, high-temperature, and severe service environments.

Industries such as oil and gas, petrochemical processing, power generation, and chemical manufacturing rely heavily on these high-performance valves to maintain safe and efficient operations.

I.Understanding the Triple Offset Butterfly Valve Design

The triple offset butterfly valve is a high-performance valve designed to eliminate friction between the disc and the seat during operation. Its innovative design incorporates three offsets that improve sealing efficiency and mechanical reliability.

1.First Offset – Shaft Position Behind the Seat

The first offset positions the valve shaft slightly behind the sealing surface. This design allows the disc to move away from the seat quickly when the valve opens, reducing wear on the sealing surfaces.

2.Second Offset – Shaft Offset from Pipeline Centerline

The second offset places the shaft away from the pipeline centerline. This configuration creates a cam-like motion during operation, ensuring smoother opening and closing performance.

3.Third Offset – Conical Sealing Geometry

The third offset introduces a conical sealing surface instead of a traditional circular seat. This geometry ensures that the disc and seat only come into contact at the final moment of closure, eliminating continuous friction during operation.

As a result, triple offset butterfly valves achieve tight shut-off performance with minimal mechanical wear, significantly extending the valve's operational life.

II.Key Advantages of Double Flanged Triple Offset Butterfly Valves

1. Reliable Metal-to-Metal Sealing

One of the most significant advantages of triple offset butterfly valves is their metal seated sealing technology. Unlike soft-seated valves that rely on elastomers, metal seated valves can withstand extreme temperatures and pressures while maintaining excellent sealing performance.

This makes them ideal for applications involving steam, hot oil, corrosive chemicals, and high-pressure fluids.

2. Extended Service Life

Because the disc does not continuously rub against the seat during operation, friction is minimized. This reduces wear on critical sealing surfaces and greatly extends the service life of the valve.

Lower friction also means fewer maintenance requirements, helping operators reduce downtime and maintenance costs.

3. Strong Pipeline Stability with Double Flanged Design

The double flanged connection provides strong structural support and alignment within the pipeline system. Compared with wafer or lug style butterfly valves, double flanged valves offer better mechanical stability and easier integration with heavy industrial piping systems.

This design ensures:

• Secure pipeline connection

• Improved sealing reliability

• Better resistance to pipeline stress and vibration

For large diameter pipelines or high-pressure systems, the double flanged configuration offers significant operational advantages.

4. High Temperature and High Pressure Capability

Triple offset butterfly valves are widely used in applications where conventional valves may fail due to extreme operating conditions.

Typical performance capabilities include:

• High temperature resistance

• High pressure tolerance

• Excellent corrosion resistance with suitable materials

With appropriate material selection such as stainless steel, alloy steel, or special metal seat coatings, these valves can perform reliably in severe industrial environments.

5. Compliance with API 609 International Standards

Valves manufactured according to API 609 standards meet strict requirements for design, manufacturing, testing, and performance. Compliance with this internationally recognized standard ensures that the valve delivers consistent quality and reliability.

API 609 certified butterfly valves undergo rigorous testing procedures including:

• Pressure testing

• Leakage testing

• Structural strength verification

This ensures the valve can safely operate in critical industrial systems.

III.Typical Industrial Applications

Due to their advanced sealing technology and durable construction, double flanged triple offset butterfly valves are widely used across many industries.

1.Oil and Gas Industry

In oil and gas pipelines, valves must handle high pressure and potentially corrosive fluids. Triple offset butterfly valves provide reliable isolation and long-term durability.

2.Petrochemical Plants

Petrochemical facilities often operate under extreme temperatures and pressures. The metal seated sealing design ensures stable operation under these challenging conditions.

3.Power Generation

Power plants require valves capable of controlling high-temperature steam systems. Triple offset butterfly valves are commonly used in steam lines due to their high temperature resistance.

4.Chemical Processing

Chemical plants demand valves that can resist aggressive fluids and maintain leak-free performance. Proper material selection ensures these valves can handle corrosive chemicals effectively.

IV.Why Choose a Triple Offset Butterfly Valve for Industrial Projects?

When selecting valves for critical industrial applications, engineers must consider factors such as reliability, durability, and long-term maintenance costs.

The API 609 certified triple offset butterfly valvewith double flanged design offers several benefits that make it a smart choice for modern piping systems:

• Long service life

• Reliable metal sealing performance

• High temperature and pressure capability

• Reduced maintenance requirements

• Strong pipeline connection stability

These advantages allow industrial operators to improve operational efficiency while maintaining a high level of safety.

V.Conclusion

As industrial systems become more complex and demanding, high-performance valves are essential to ensure efficient and reliable fluid control. The API 609 certified triple offset butterfly valve with double flanged design represents a modern engineering solution that combines durability, sealing reliability, and structural stability.

With its advanced triple offset sealing technology and robust flanged connection, this valve is well suited for severe service environments across multiple industries.

For companies seeking reliable flow control solutions, investing in high-quality triple offset butterfly valves can significantly improve system safety, efficiency, and long-term operational performance.
