Welded metal-sealed triple eccentric butterfly valves are advanced industrial valves widely applied in piping systems requiring high sealing performance, high temperature and corrosion resistance. The design of such valves integrates metal sealing technology with a triple eccentric structure, ensuring superior performance under harsh conditions such as high pressure and high temperature. They are particularly suitable for the chemical, power generation, petroleum, natural gas and water treatment industries, and can effectively enhance the operational safety and reliability of piping systems.

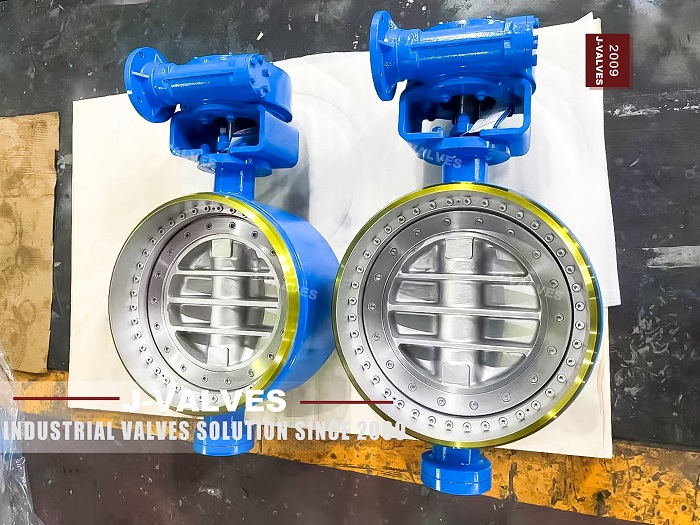

A welded metal-sealed triple eccentric butterfly valve is a type of butterfly valve that combines metal sealing and a triple eccentric structure. Unlike traditional soft-sealed butterfly valves, triple eccentric butterfly valves adopt metal sealing rings to deliver higher temperature and corrosion resistance, making them especially suitable for operating environments handling high-temperature, high-pressure and highly corrosive fluids. Its "triple eccentric" structure features the precise design of the valve disc's rotation axis, sealing surface and the geometric center of the valve body, thus preventing excessive wear during opening and closing and extending the valve's service life.
The working principle of a welded metal-sealed triple eccentric butterfly valve is based on the relative movement between the valve disc and the metal sealing surface. When the valve is opened, the valve disc rotates to open the fluid passage; when the valve is closed, a tight metal-to-metal contact is formed between the valve disc and the sealing ring, thereby ensuring sealing performance.
Eccentric Structure: The triple eccentric design ensures that the valve disc gradually disengages from or approaches the sealing surface during opening and closing, avoiding direct wear on the sealing surface of traditional butterfly valves and reducing sealing loss.
Metal Sealing: The application of metal sealing rings provides enhanced sealing performance, making it ideal for high-temperature, high-pressure or corrosive fluids and effectively preventing leakage.
Welded Structure: The valve is connected to the pipeline via butt welding, which reinforces the strength and reliability of the connection and is particularly suitable for systems subject to high pressure or requiring high structural strength.
The triple eccentric structure is the core technology of welded metal-sealed butterfly valves. By precisely offsetting the valve disc's rotation axis, sealing surface and the geometric center of the valve body, the valve can automatically adjust the sealing contact position during opening and closing. This reduces friction and wear during valve operation, and improves sealing performance and service life.
The metal sealing design offers the advantages of high temperature and corrosion resistance. Compared with traditional soft sealing materials, metal sealing can operate stably at higher temperatures, making it suitable for harsh high-temperature and high-pressure environments. Metal-sealed butterfly valves can typically withstand operating temperatures of up to 600°C and above.
The design of triple eccentric metal-sealed butterfly valves allows adaptation to extreme temperature and pressure environments, and they are widely used in high-pressure steam pipelines, as well as the petroleum, natural gas and chemical industries. The metal sealing rings can effectively prevent soft seal failure caused by temperature changes, thus ensuring long-term stable sealing performance.
Compared with traditional gate valves or ball valves, triple eccentric butterfly valves feature a compact structure, light weight and flexible installation, making them particularly suitable for space-constrained working conditions. In addition, their butt-welded pipeline connection ensures high structural strength and durability of the valve.
Thanks to the special design of triple eccentric butterfly valves, excessive wear on the sealing surface and valve disc is avoided, resulting in a longer service life than traditional valves. The metal sealing design also reduces the consumption of sealing materials and lowers the need for regular maintenance.
High Sealing Performance: Adopting metal sealing technology, triple eccentric metal-sealed butterfly valves provide reliable sealing performance in high-temperature, high-pressure and corrosive media.
Excellent High Temperature and Pressure Resistance: Metal sealing enables the butterfly valve to operate in extreme working environments, adapting to temperatures from normal temperature up to over 600°C.
Long Service Life: The greatly reduced friction between the valve disc and sealing surface ensures more durable sealing performance and extends the overall service life of the valve.
High Reliability: The triple eccentric structure improves valve reliability through self-adjusting sealing contact, delivering more stable performance especially under harsh working conditions.
Reduced Maintenance Costs: The long service life and high temperature/pressure resistance of the valve lead to lower frequency of maintenance and component replacement, thus reducing the overall maintenance costs of the system.
Petroleum and Natural Gas: In the transportation and storage of petroleum and natural gas, triple eccentric butterfly valves ensure reliable sealing under high temperature and pressure, prevent leakage and guarantee the stable operation of the system.
Chemical Industry: High-temperature, highly corrosive liquids and gases in chemical processes require valves with excellent sealing performance. Triple eccentric metal-sealed butterfly valves can effectively prevent leakage and meet the demands of chemical production.
Power Generation Industry: In thermal power generation systems, especially high-pressure steam systems, triple eccentric butterfly valves are widely used for flow control and isolation in steam pipelines due to their high temperature and pressure resistance.
Water and Wastewater Treatment: Owing to their good sealing and corrosion resistance, triple eccentric butterfly valves are commonly used in the control systems of water treatment plants and wastewater treatment plants.
High-Temperature Fluid Control: They are applied in high-temperature fluid applications requiring precise flow control, such as heat exchangers and boiler water supply systems.
When selecting a suitable triple eccentric butterfly valve, the following key factors should be considered:
Operating Temperature and Pressure: Select a valve with temperature and pressure resistance meeting the actual requirements of the system.
Medium Type: Choose appropriate sealing and valve body materials to ensure the butterfly valve can withstand the corrosion and chemical reactions of the handled medium.
Valve Size and Installation Method: Select the appropriate valve specification and installation method according to the pipeline size and installation location.
Maintenance Requirements: Choose a butterfly valve with convenient maintenance and a long service life based on the characteristics of the operating environment.
Welded metal-sealed triple eccentric butterfly valves are widely used in various industrial fields due to their excellent sealing performance, high temperature and pressure resistance, and long service life. By adopting triple eccentric design and metal sealing technology, these valves can effectively avoid common sealing problems of traditional valves and ensure the long-term stable operation of systems. By understanding their technical advantages and application fields, you can better select a valve suitable for your piping system, thereby improving the system's reliability and economic benefits.
