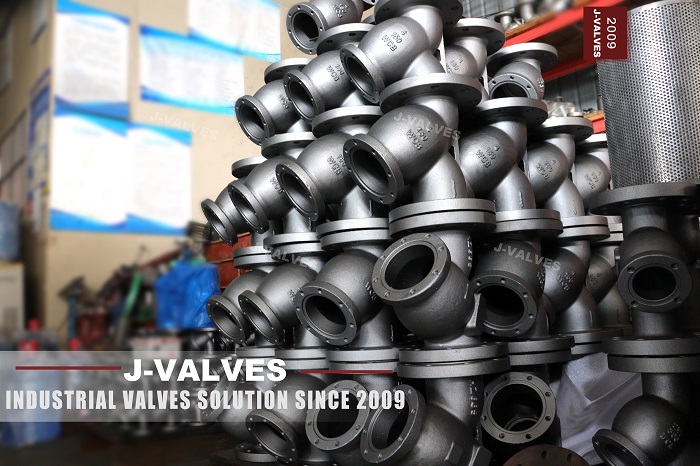

Y-strainers are widely used devices in fluid piping systems, primarily designed to remove impurities and particulate matter from pipelines and ensure the normal operation of fluid systems. Named for their Y-shaped configuration, these strainers utilize mechanical filtration to effectively trap solid contaminants as fluid passes through, preventing them from entering critical pipeline components (such as valves and pumps) and thereby enhancing the safety and stability of the entire system. Y-strainers find extensive application across the petroleum, chemical, power generation, water treatment and other industries.
The core function of Y-strainers is to filter solid particles from fluids and prevent impurities from damaging equipment. Their basic working principle is as follows: as fluid flows through a Y-strainer, contaminants are blocked by the filter screen, while clean fluid passes through the strainer to the next stage of the system.
Filter Screen: Y-strainers are equipped with built-in filter screens of various specifications, commonly made of stainless steel for excellent corrosion resistance. The pore size of the filter screen determines the size of particulate matter that can be filtered out.
Fluid Flow: Fluid enters the strainer through the inlet, passes through the filter screen where impurities are captured, and the purified fluid continues to flow to the system through the outlet.
Cleaning Function: Some Y-strainers feature an automatic cleaning function. When the filter screen accumulates a large amount of impurities, backwashing or disassembly for cleaning can be performed to maintain filtration efficiency.
Y-strainers are widely adopted in industrial settings due to their simple structure, easy installation and convenient maintenance. Key design features of Y-strainers include:
Y-strainers typically feature a compact design suitable for installation in pipelines of all sizes. Their Y-shaped structure occupies minimal space during installation, making them particularly ideal for space-constrained environments.
The pore size of the filter screen can be customized according to different application requirements to achieve varying levels of filtration precision. Common pore sizes include 50μm, 100μm and 200μm, which can be selected based on the actual impurity content of the fluid.
Since Y-strainers are often used in fluid flow processes and frequently come into contact with corrosive substances, their materials must possess high corrosion resistance. Commonly used materials include stainless steel, carbon steel and cast iron, which can effectively resist corrosion and extend the service life of the equipment.
Y-strainers are designed with easily cleanable filter screens and feature a relatively simple cleaning process. Users can open the drain valve to clean the screen when it accumulates excessive impurities, ensuring consistent filtration performance over time.
Some Y-strainers are constructed with special materials or structural designs to withstand high temperatures and pressures, making them suitable for filtering hot steam or high-pressure fluids. They are widely used in thermal power generation, petroleum and chemical engineering and other fields.
Compared with other types of filters, Y-strainers offer numerous distinct advantages and deliver exceptional performance, especially in long-term and high-load operating environments:
Y-strainers can efficiently filter solid particles, impurities and foreign matter from fluids, preventing damage to equipment. With a properly designed filter screen, Y-strainers can capture particles as small as several tens of micrometers.
Through regular cleaning or replacement of filter screens, Y-strainers can effectively extend the service life of piping systems, reducing unplanned downtime and maintenance costs caused by equipment failures.
Thanks to their compact design, Y-strainers can be installed in limited spaces, making them suitable for complex piping systems. In addition, their simple structure results in relatively low costs, offering excellent cost-effectiveness.
Y-strainers are suitable for a wide range of fluids, including water, petroleum, gases and chemical solvents. In different application scenarios, users can select filter screens with different filtration precisions, materials and sizes according to specific needs, ensuring strong adaptability.
Y-strainers are widely used across various industries, with the main application fields including:
In the exploration, production and transportation of petroleum and natural gas, Y-strainers effectively filter impurities from crude oil, natural gas and transmission pipelines, preventing contaminants from damaging equipment and ensuring the normal operation of the system.
In chemical production processes, Y-strainers filter various chemical solvents and gases, ensuring the cleanliness of fluid pipelines and preventing equipment failures caused by impurities during production.
Y-strainers are extensively used in the water treatment industry to filter impurities from natural water sources such as river water, groundwater and seawater, ensuring water quality and protecting subsequent treatment facilities.
In food and beverage production, Y-strainers effectively remove impurities from liquids, ensuring the hygienic quality of products and the normal operation of production lines.
In power systems, especially in critical equipment such as high-pressure boilers and cooling systems, Y-strainers play a pivotal role in preventing impurities from entering the system and avoiding equipment malfunctions.
When selecting a suitable Y-strainer, the following key factors should be considered:
Fluid Type: Choose a strainer compatible with the specific fluid type. Different fluids (e.g., water, oil, gases) have distinct requirements for strainer materials and filtration precision.
Filtration Precision: Select a filter screen with an appropriate pore size based on practical application needs to ensure the removal of sufficiently small particles.
Pressure and Temperature: Ensure the selected Y-strainer can withstand the operating pressure and temperature conditions of the system.
Ease of Installation and Maintenance: Opt for Y-strainers that are easy to install, clean and maintain, especially for high-load systems that require regular inspection and cleaning.
With their simple structure, powerful functionality and convenient maintenance, Y-strainers have become an indispensable component in industrial piping systems. They can efficiently filter impurities from fluids, protect equipment from damage and extend the service life of the entire system. By understanding their working principle, design features, technical advantages and application fields, you can select the right Y-strainer according to actual needs, ensuring the efficient operation of industrial systems.
