In industrial pipeline systems such as oil & gas, petrochemical, and offshore platforms, safety and reliable isolation are critical requirements. One advanced valve design that improves operational safety is the Double Block and Bleed (DBB) Trunnion Ball Valve.

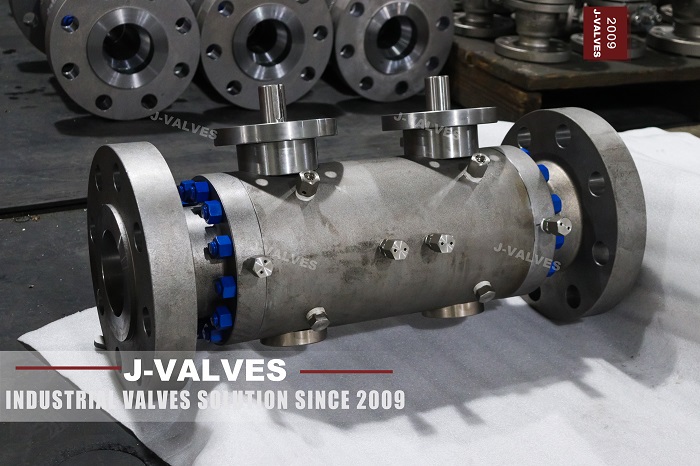

The J-VALVES DBB Trunnion Ball Valve integrates two sealing barriers and a bleed system in a single valve body, allowing operators to isolate pressure from both upstream and downstream while safely releasing trapped fluid. This design helps reduce maintenance risks, improves inspection procedures, and enhances overall pipeline safety.
A DBB (Double Block and Bleed) Trunnion Ball Valve is designed with two independent seating surfaces that provide double isolation. Between these seats, a bleed port is installed to release pressure or verify sealing integrity.
In practical operation:
The upstream seat blocks incoming pressure.
The downstream seat provides secondary isolation.
The bleed port allows trapped pressure to be safely vented or monitored.
This configuration ensures that even if one seat experiences leakage, the second seat still maintains isolation, providing an additional safety layer.
The ball is supported by upper and lower trunnions, reducing operating torque and ensuring stability under high pressure. This structure is especially suitable for large diameter and high-pressure pipeline systems.
The dual seat design forms two independent sealing barriers. This significantly reduces the risk of medium leakage during maintenance or inspection operations.
A dedicated bleed port between the seats allows operators to:
Verify seat sealing performance
Release trapped pressure
Drain or vent the cavity safely
This function is essential for safety verification procedures.
Many J-VALVES DBB ball valves include fire-safe construction and anti-static devices, ensuring reliable operation in hazardous industrial environments.
J-VALVES offers multiple material options such as:
Carbon Steel (WCB / WC6)
Stainless Steel (CF8 / CF8M)
Special alloys for corrosive service
These materials ensure long service life and corrosion resistance.
Compared with conventional single isolation valves, DBB trunnion ball valves provide several operational advantages.
Feature | DBB Trunnion Ball Valve | Conventional Ball Valve |
Isolation Safety | Dual isolation | Single isolation |
Pressure Release | Integrated bleed port | Not available |
Maintenance Safety | Higher | Lower |
Leakage Risk | Reduced | Higher |
Inspection Capability | Seat sealing verification | Limited |
Because of these benefits, DBB valves are widely used in critical pipeline systems.
The J-VALVES DBB Trunnion Ball Valve is commonly used in industries where reliable isolation is required.
Typical applications include:
Oil and gas pipelines
Offshore production platforms
Petrochemical processing plants
Natural gas transmission systems
Chemical processing facilities
In these environments, safe pressure isolation is essential for protecting equipment and personnel.
J-VALVES focuses on manufacturing high-quality industrial valves designed for demanding pipeline conditions.
Key advantages include:
Advanced trunnion-mounted design
Reliable double block and bleed safety function
Compliance with international standards
Multiple material and size options
Suitable for high pressure and large diameter applications
These features make J-VALVES valves a dependable solution for modern industrial piping systems.
The J-VALVES DBB Trunnion Ball Valve provides an effective solution for improving pipeline safety through its double block and bleed isolation function. By combining dual sealing seats with a bleed port, it allows operators to verify sealing performance and safely release trapped pressure.
For industries that demand high reliability, improved safety, and efficient maintenance procedures, the DBB trunnion ball valve represents a practical and proven choice
