Stainless Steel PN16 Oil And Gas Gate Valve

Share to:

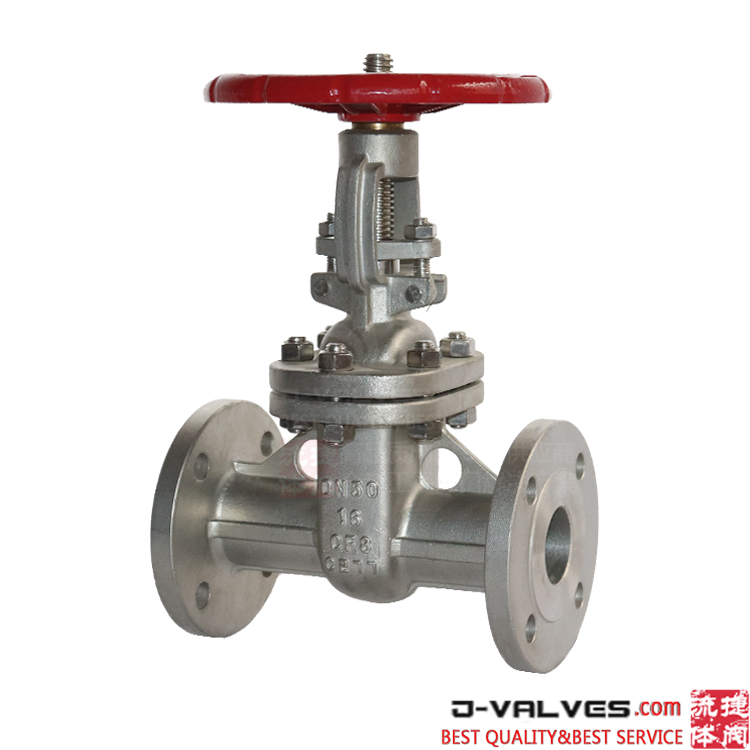

Stainless steel PN16 oil and gas gate valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.
Quantity:
  • DN15-DN500
  • J-VALVES

Stainless steel PN16 oil and gas gate valve


Stainless steel PN16 oil and gas gate valve Quick Detail:



● Size: DN15~DN500(1/2''-20'')

● Pressure Rating: PN16~PN160/150LB~2500LB/10K~60K)

● Material:A351CF8M/CF8/CF3/CF3M,A216 WCB,A216 WC6 A105,A352 LCB/LCC, F304,F316,F51/F53,F11,C95800

● Suitable Temperature: -46ºC~538ºC( Different temperature choose different materials).

● Suitable Medium: Water, Steam, Oil and natural gas etc.



Stainless steel PN16 oil and gas gate valve Description:


● Bolted Body, Full Port Construction

● Gate Valve Design Standard: DIN 3352

● Fully Compliant to DIN 3202

● Flange Fully Compliant to EN 1902-1 DIN 2501/2502(PN16) DIN 2503(PN25~PN40)

● Submerged Packing System & Direct Mount Actuation

● CNC machine tool processing, high precision, good sealing .

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.


Stainless steel PN16 oil and gas gate valve Specifications:


Stainless steel PN16 oil and gas gate valve

DN

L

D

D1

D2

b

f

n-Ød

H

W

50

150

165

125

102

18

3

4-Ø18

350

160

65

170

185

145

122

18

3

4-Ø18

420

180

80

180

200

160

138

20

3

8-Ø18

500

180

100

190

220

180

158

20

3

8-Ø18

520

200

125

200

250

210

188

22

3

8-Ø18

610

220

150

210

285

240

212

22

3

8-Ø22

700

220

200

230

340

295

268

24

3

12-Ø22

900

250

250

250

405

355

320

26

3

12-Ø26

1050

300

300

270

460

410

378

28

4

12-Ø26

1200

350

350

290

520

470

438

30

4

16-Ø26

1400

400

400

310

580

525

490

32

4

16-Ø30

1580

450

450

330

640

585

550

40

4

20-Ø30

1700

450

500

350

715

650

610

44

4

20-Ø33

1900

450
