Stainless Steel CF3M 300# Flange RF Gate Valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.
Availability:
Quantity:
  • 1/2“-48”

  • J-VALVES

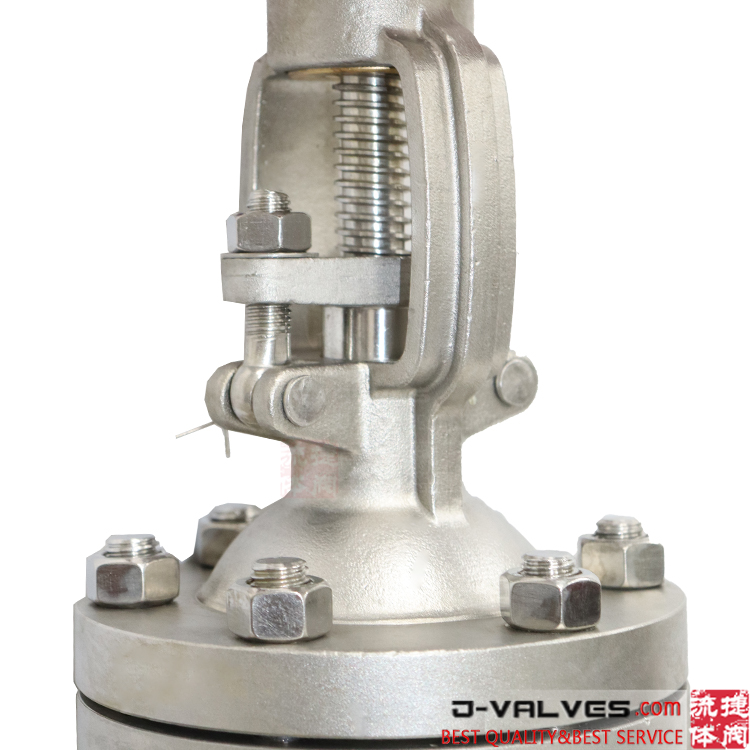

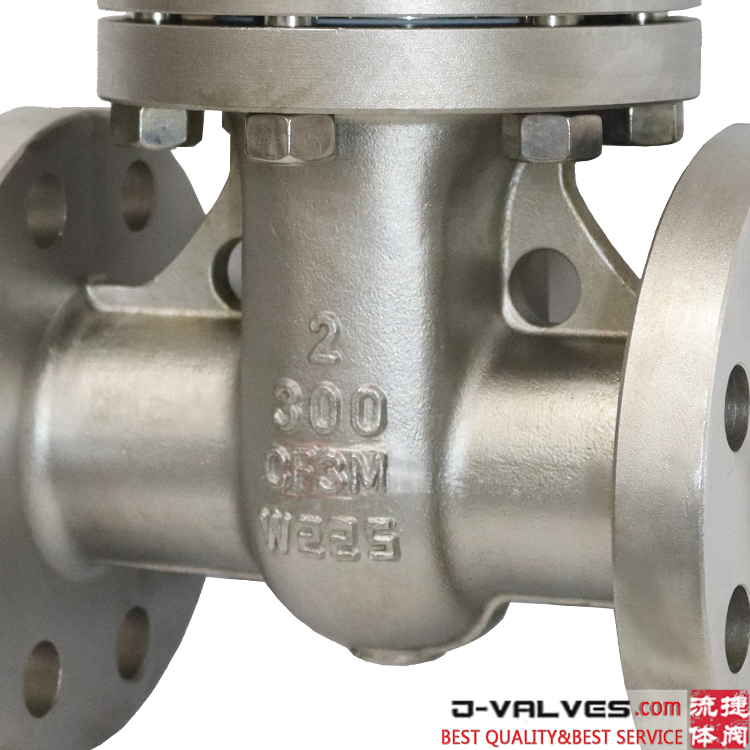

Stainless Steel CF3M 300# Flange RF Gate Valve


Stainless Steel CF3M 300# Flange RF Gate Valve Quick Detail:



● Size: 1/2''-48''(DN15~DN1200)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

● Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A105,A352LCB/LCC,F304,F316,F51/F53,F11,C3,C5,C95800

● Suitable Temperature: -196ºC~150ºC( Different temperature choose different materials).

● Suitable Medium: Water, Steam, Oil and natural gas etc.



Stainless Steel CF3M 300# Flange RF Gate Valve Description:

● Bolted Body, Full Port Construction

● Fully Compliant to ASME B16.34 API6D API600

● Fully Compliant to API 598 API6D API598

● Flange Fully Compliant to ASME B16.5/ASME B16.47

● Submerged Packing System & Direct Mount Actuation

● CNC machine tool processing, high precision, good sealing .

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.


Stainless Steel CF3M 300# Flange RF Gate Valve Specifications:

Stainless Steel CF3M 300# Flange RF Gate Valve

NPS

L

D

D1

D2

b

f

n-Ød

2

216

165

127.0

92.1

20.7

2

8-Ø19

3

282

210

168.3

127.0

27.0

2

8-Ø22

4

305

255

200.0

157.2

30.2

2

8-Ø22

5

381

280

235.0

185.7

33.4

2

8-Ø22

2-1/2

241

190

149.2

104.8

23.9

2

8-Ø22

6

403

320

269.9

215.9

35.0

2

12-Ø22

8

419

380

330.2

269.9

39.7

2

12-Ø25


J-VALVES Competitive Advantage:



● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure
