Socket Welding Forged Stainless Steel 800# 1/2inch Globe Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Size:
Availability:
Quantity:
  • Forged Steel Globe Valve

  • J-VALVES

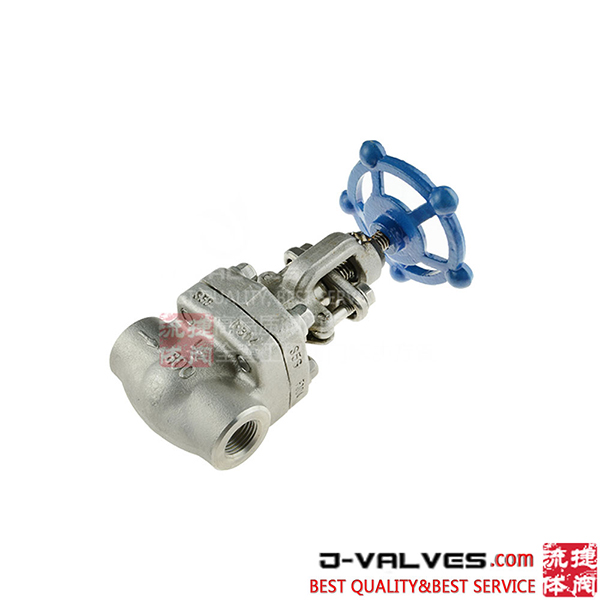

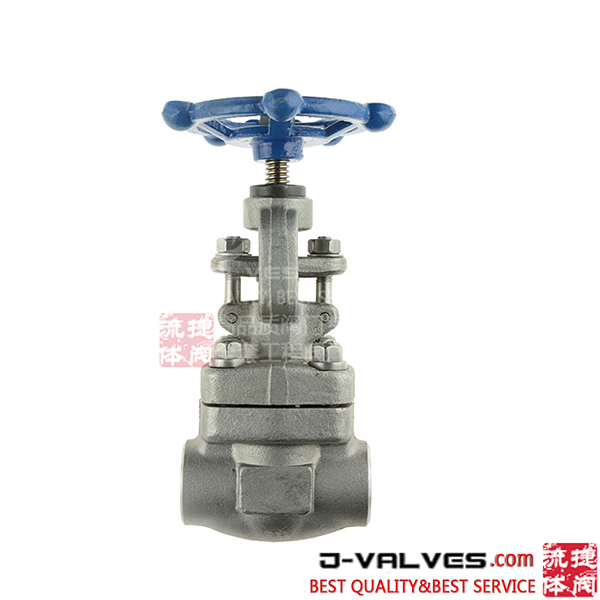

F304 800LB Forged Stainless Steel F-NPT Globe Valve


● Valve alias: F304 800LB Forged Stainless Steel F-NPT Globe Valve


Quick Detail:

● Size: 1/2''-2''(DN15~DN50)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

● Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.

● Suitable Temperature: -29ºC~425ºC.

● Suitable Medium: Water, Steam, Oil and natural gas etc.


Description:

● Design and manufacture conformto:API602,BS5352,ANSI B16.34

● Socket welded dimension conform to ANSI B16.11,JB/T1751

● Screw ends dimension conform to ANSI B1.20.1,JB/T7306

● Butt-welded conform to ANSI B16.25,JB/T12224

● Flange ends conform to ANSI B16.5,JB79

● Test and inspection conform to:API598,GB/T13927,JB/T9092

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.


Applications:

F304 800LB forged stainless steel NPT threaded globe valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.


Competitive Advantage:

● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure


Specification

1/2”

3/4”

1”

1-1/4”

1-1/2”

2”

L(mm) Face to face

79

92

111

120

140

160

SS D(mm) Handwheel

100

100

125

160

180

200

H(mm) Height

161

163

196

223

290

333

D1(mm)

21.8

27.1

33.8

42.6

48.7

61.1

Weight ( Kg)

2.25

2.4

4.1

6

7

10.5
