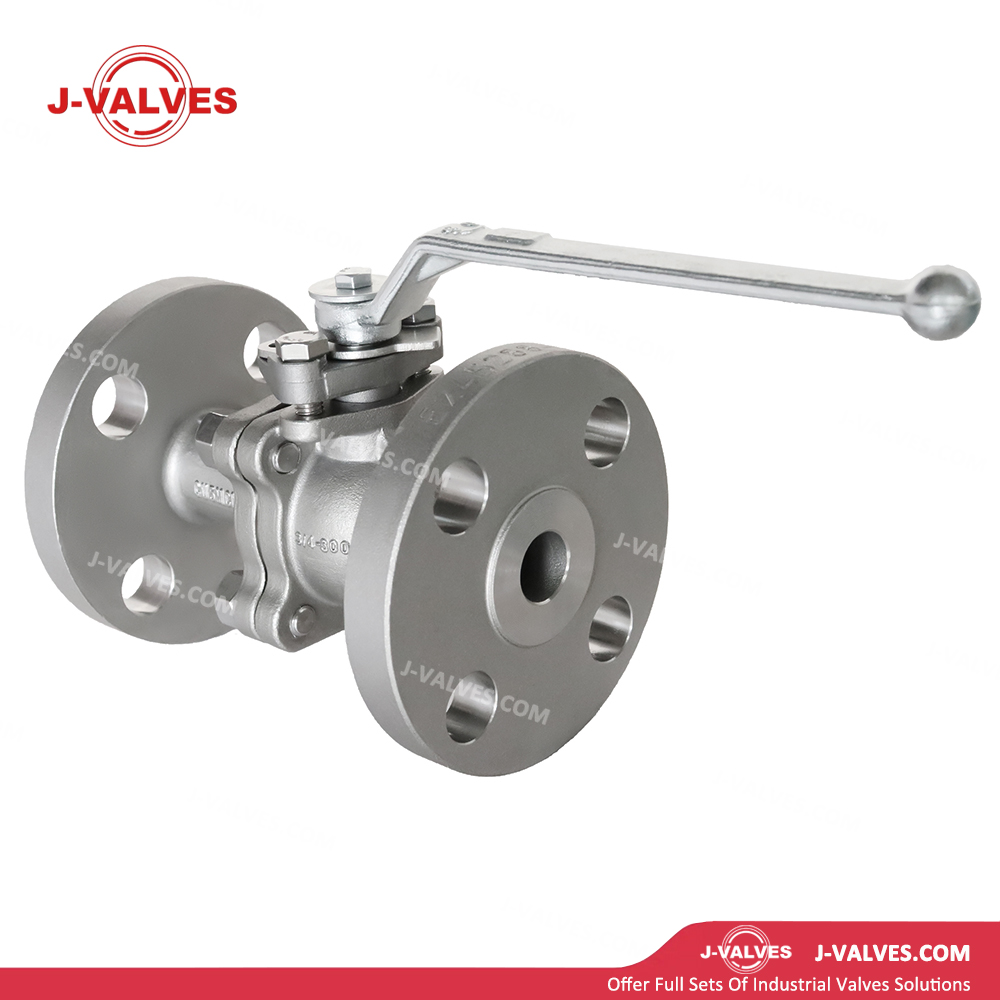

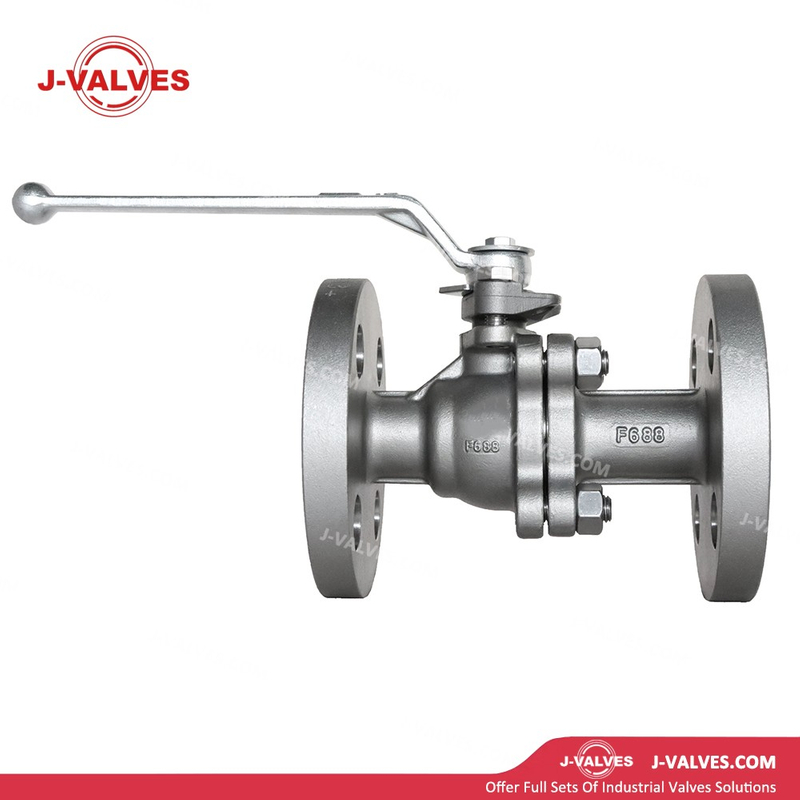

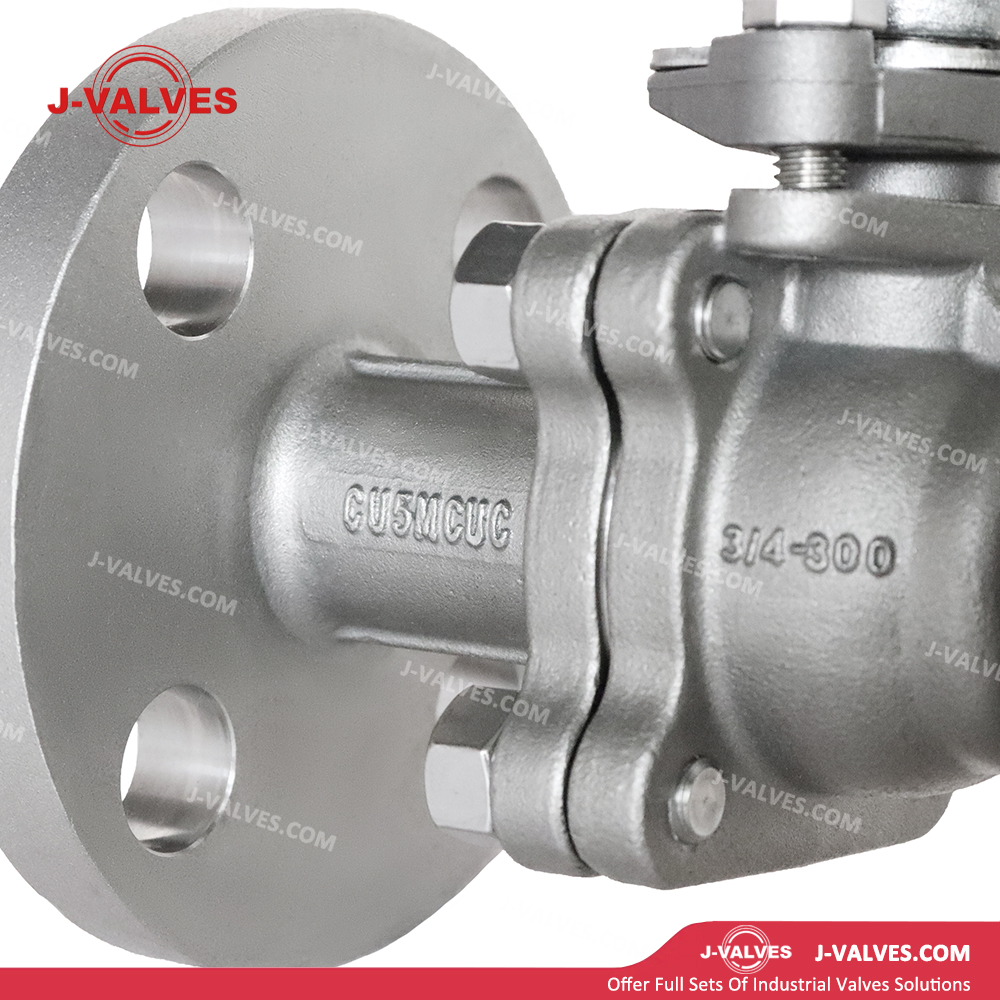

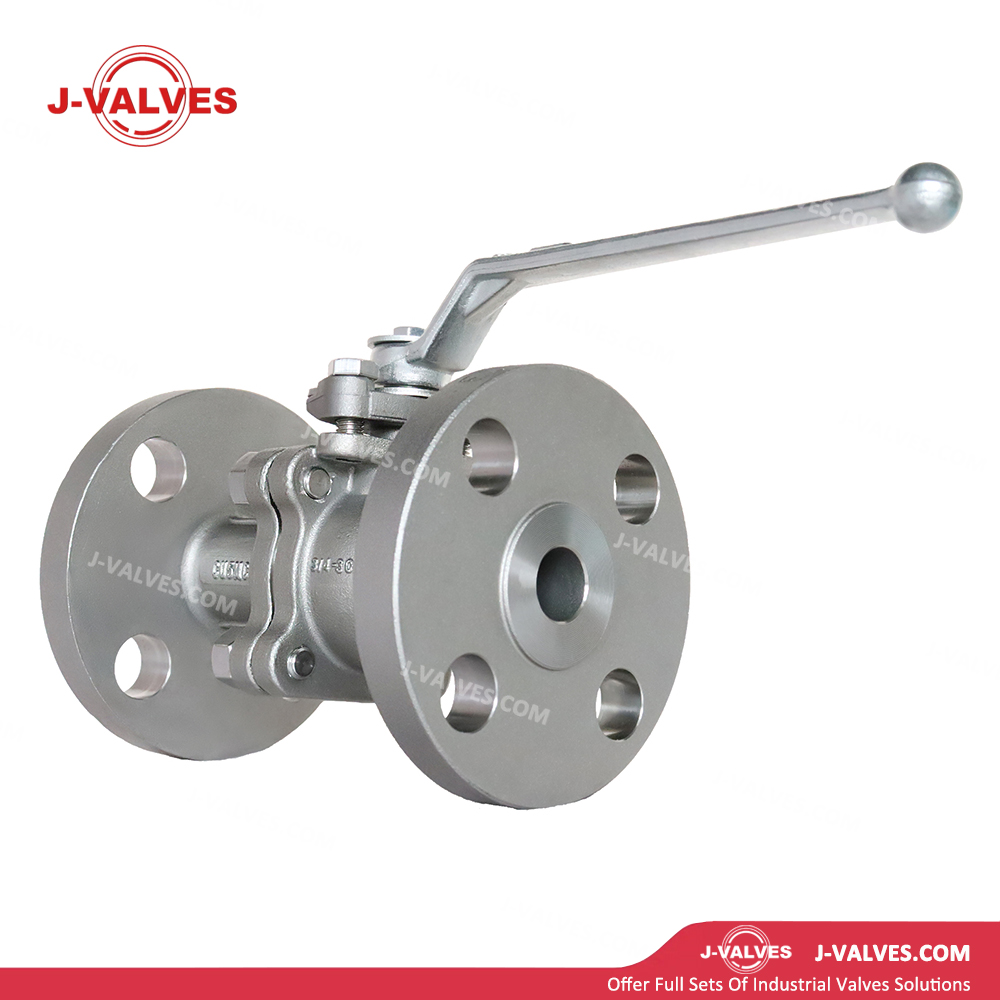

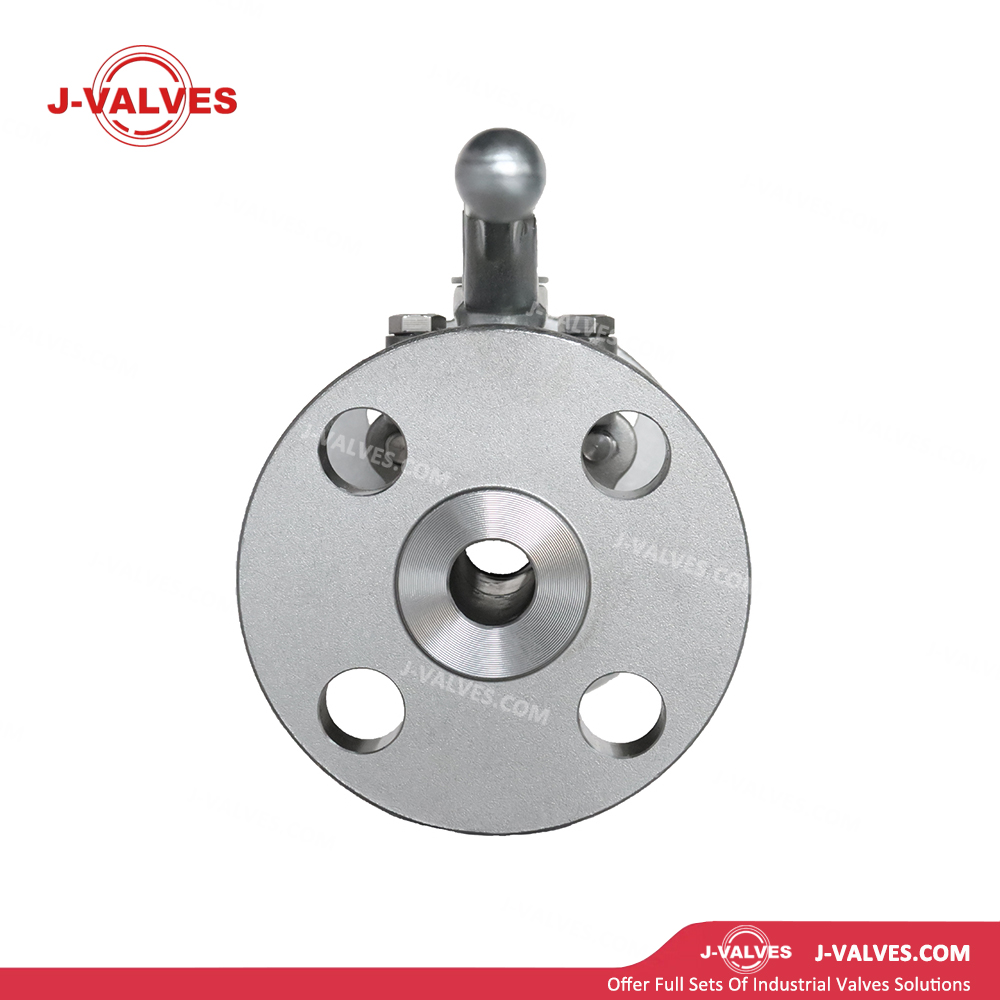

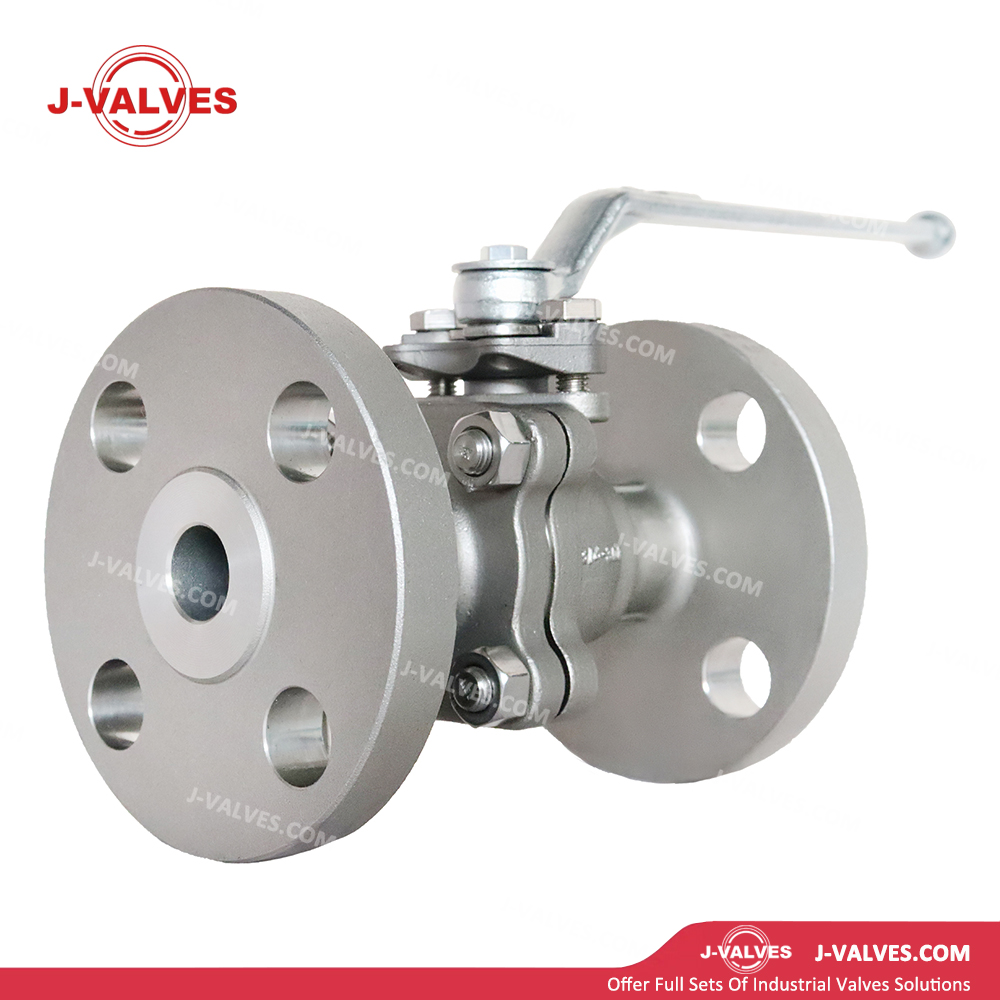

The Two Piece High Pressure DN20 CU5MCUC Flange End Nickel Alloy Ball Valve is engineered for critical nuclear power applications, delivering uncompromising reliability in high-radiation, high-temperature environments. Constructed from CU5MCUC nickel alloy (UNS N06059), it resists radiation-induced corrosion and thermal creep, ensuring long-term integrity in reactor coolant systems and auxiliary loops. The two-piece design minimizes leak paths while enabling in-line maintenance, supported by a fire-safe stem and anti-extrusion packing compliant with ASME BPVC Section III and RCC-M standards. With a full-bore configuration for low-pressure drop and bidirectional metal-to-metal sealing, it withstands pressures up to 2500LB and temperatures to 650°C. Certified for seismic qualification (IEEE 344) and low permeation, this DN20 valve is optimized for compact nuclear systems, ensuring fail-safe operation in normal and accident conditions.
Availability:
Quantity:
  • J-VALVES-BV-300

  • J-VALVES

  • 8481804090

Quality Industrial Valve Product Made in China J-Valves Two Piece High Pressure DN20 CU5MCUC Flange End Nickel Alloy Ball Valve For Nuclear Power

Product Overview

Designed for nuclear-grade precision, this DN20 ball valve combines CU5MCUC nickel alloy’s radiation resistance with a robust two-piece flange end construction. The self-lubricating inconel seats provide zero leakage under cyclic pressure, while the alloy’s high melting point (1399°C) prevents deformation in primary coolant loops. Its seismic-proof design resists vibrations from turbine operations and LOCA scenarios, ensuring compliance with stringent nuclear safety codes. Ideal for small-bore instrumentation lines and secondary containment, it offers modular access for inspection without system shutdown, balancing safety with operational efficiency in PWR and SMR environments.


Product Name

Two Piece High Pressure DN20 CU5MCUC Flange End Nickel Alloy Ball Valve For Nuclear Power

Material

CU5MCUC

Pressure

150LB-2500LB

Size

1/2 inch~ 48 inch(DN15~DN1200)

End Connection

RF/RTJ/BW/SW

Working Temp

-196ºC~400ºC option.

Mode of operation

Lever/Hydraulic/Pneumatic/Electric

Suitable Medium

Water,Natural Gas,Oil and some corrosive liquid

Features

Rising stem,OS&Y,Bolted Bonnet or Pressure Sealed,non-rising stem option


Key Features

Radiation Resistance for Long-Term Service

CU5MCUC nickel alloy (62% Ni, 22% Cr, 9% Mo) forms a stable oxide layer that withstands cumulative radiation doses exceeding 10⁶ Gy, critical for primary circuit valves in nuclear reactors. Unlike stainless steel, it resists radiation-induced embrittlement and intergranular corrosion, maintaining tensile strength after 40 years of service in PWR containment. This longevity reduces replacement frequency in hard-to-access areas, minimizing radiation exposure during maintenance.

Seismic & LOCA Compliance

Tested to IEEE 344 and RCC-M Class 1 standards, the valve’s monolithic two-piece body and forged flange ends resist seismic forces (SSE: Safe Shutdown Earthquake) and thermal transients during LOCA events. Finite element analysis confirms ≤0.1mm deflection under 3g acceleration, ensuring tight sealing and structural integrity when critical cooling systems are activated. This compliance is non-negotiable for nuclear safety systems requiring fail-safe operation under accident conditions.

Zero-Leakage Metal-to-Metal Sealing

Precision-machined inconel 718 seats and a 硬化 CU5MCUC ball create a bidirectional metal seal with leakage ≤1×10⁻⁹ std cm³/s (ISO 15848-1 Class A), eliminating fugitive emissions in radioactive media. The self-energizing design compensates for thermal expansion in primary loops, where temperature fluctuations (20°C to 325°C) can compromise soft-seat valves. This is critical for containing radioactive coolant in AP1000 and EPR reactors, where even trace leaks pose safety and environmental risks.

High-Temperature & Pressure Resilience

With a design pressure of 2500LB and temperature rating to 650°C, the valve withstands the extreme conditions of advanced reactors like HTGR (High-Temperature Gas-Cooled Reactor) and SMR (Small Modular Reactor). CU5MCUC’s low thermal expansion (11.2×10⁻⁶/°C) minimizes stress on flanged connections, while its high creep rupture strength (180MPa at 550°C for 10,000 hours) prevents gradual deformation in long-term high-temperature service.

Modular Two-Piece Maintenance

The split-body design allows field replacement of seats and ball without disconnecting pipelines, reducing downtime by 80% compared to welded valves in nuclear maintenance outages. This is vital for refueling cycles, where access to primary loop valves is limited by radiation zones. The design complies with ALARA (As Low As Reasonably Achievable) principles, minimizing worker exposure during inspections or component replacement.

Regulatory Compliance & Traceability

Certified to ASME BPVC Section III NQA-1, RCC-M, and IAEA SSG-3, the valve undergoes 100% helium leak testing, radiography, and hardness testing. Each unit includes a traceability report documenting material origin (nuclear-grade melting processes) and heat treatment, ensuring compliance with global nuclear safety authorities. This level of certification is mandatory for inclusion in safety-related systems (Safety Class 1, Seismic Category I).

Installation and Maintenance

Installation: The valve is designed for easy installation. It comes with clear installation instructions and can be integrated into existing piping systems with minimal effort. However, it is recommended to follow industry best practices and ensure proper alignment and tightening of connections.

Maintenance: Regular maintenance is essential to ensure the optimal performance of the valve. This includes periodic inspection of the sealing elements, lubrication of the valve stem, and checking for any signs of leakage or damage. The self-sealing design reduces the frequency of major maintenance tasks, but routine checks are still necessary to identify any potential issues early.

Why Choose Our Two Piece High Pressure DN20 CU5MCUC Flange End Nickel Alloy Ball Valve For Nuclear Power?

Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.

Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.

Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.


Technical Standards
1. Design & manufacture according to API 608
2. Flange size dimension according ASME B16.5
3. Structure dimension according to ASME B16.10
4. Fire safety according to API 607
5. Inspection & test according to API 598
FAQ
  • How to guarantee your quality? When we install, if there is some quality problems, how to solve it?
    Created with Sketch.
    形状 Created with Sketch.
    We have QC department, quality inspector will check every step when processing and make reports to clients for checking. If any quality problems, we will check and reply you within 24 hours to solve it. Please contact us for any quality problems.
  • What's the temperature and pressure for valves?
    Created with Sketch.
    形状 Created with Sketch.
    For metal seat, temperature range from -196ºC to 425ºC. For soft seat ball valve, temperature range from -29ºC to 200ºC. Pressure range from PN6 to PN420(150LB~2500LB).
  • What's the materials of valves?
    Created with Sketch.
    形状 Created with Sketch.
    Stainless Steel, Forged Stainless Steel, Alloy Steel, Duplex Steel, Titanium Alloy, Nickel-aluminum, Bronze Alloy, etc. Details materials requirements could consult us at any time.
  • What's the medium for your valves?
    Created with Sketch.
    形状 Created with Sketch.
    Mostly are used in water, gas and oil. When inquiry, it is better to offer your medium, we could suggest materials and valves type for clients.
Advantages
Product Display
This premium valve sets the standard for safety and reliability in nuclear power applications. Its CU5MCUC nickel alloy construction resists radiation, corrosion, and thermal creep, while the two-piece design ensures seismic resilience and easy maintenance. With zero-leakage metal sealing and compliance with ASME BPVC Section III, RCC-M, and IEEE 344, it safeguards primary and secondary containment systems in PWR, HTGR, and SMR reactors. Trust in its precision engineering to deliver fail-safe operation under extreme conditions, supporting the rigorous safety demands of nuclear power generation.
