J-VALVES-BV-95500
J-VALVES
8481804090
This floating ball valve features a reduced bore design, optimizing flow in specific systems. The two - piece structure enables straightforward disassembly for part replacement or cleaning. The C95500 alloy ensures durability and performance in various working conditions, providing efficient and long - lasting fluid control.

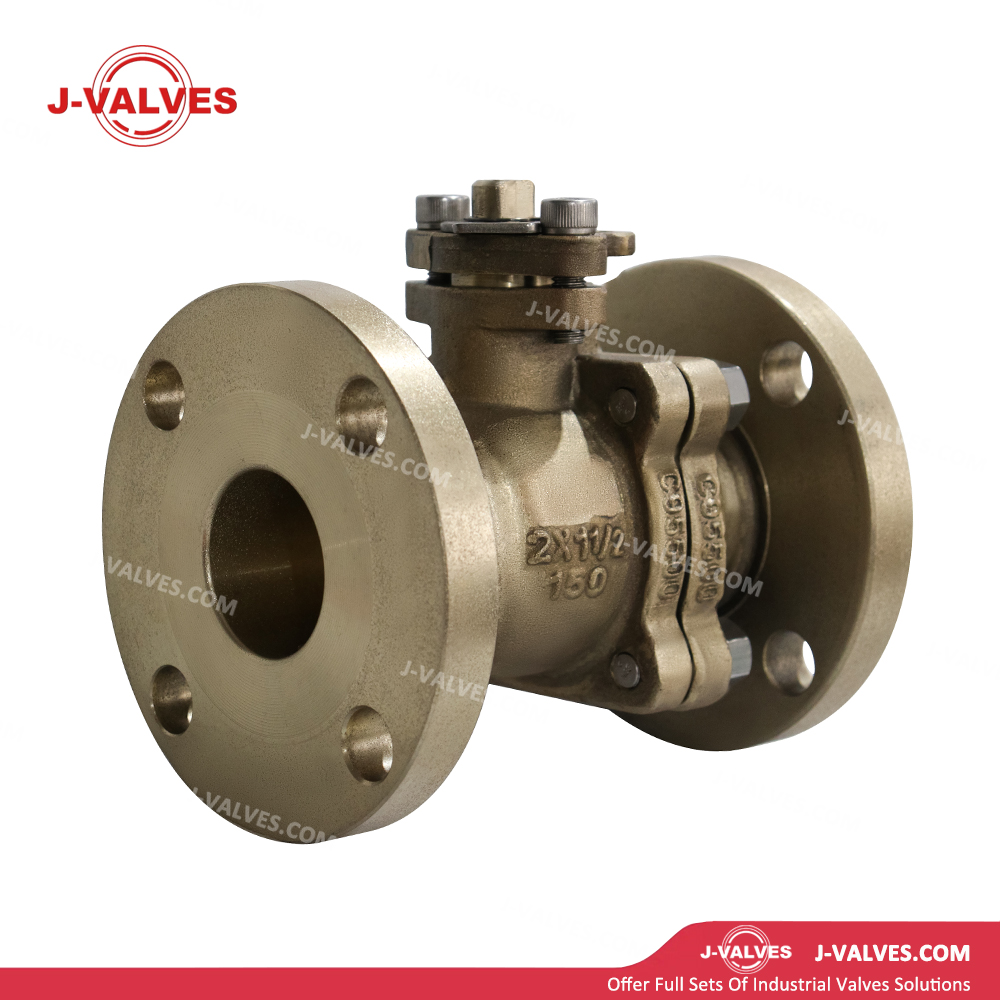

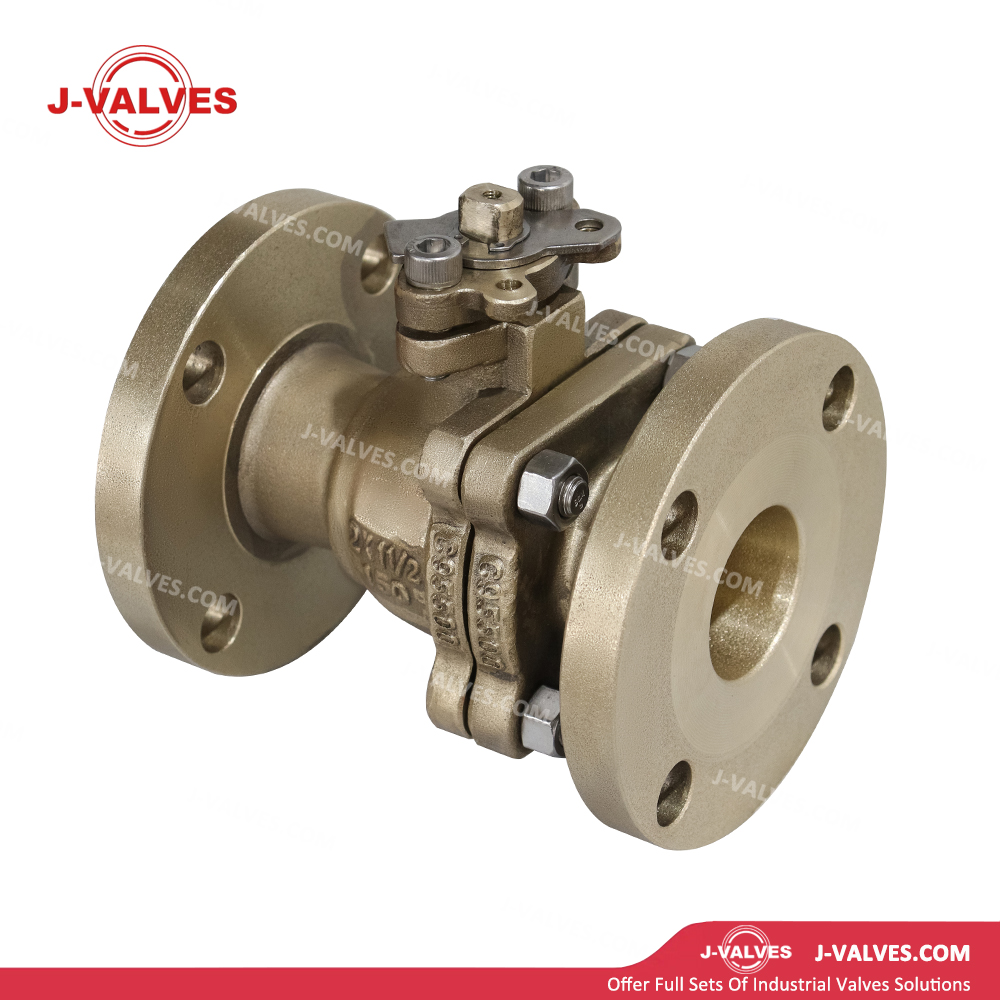

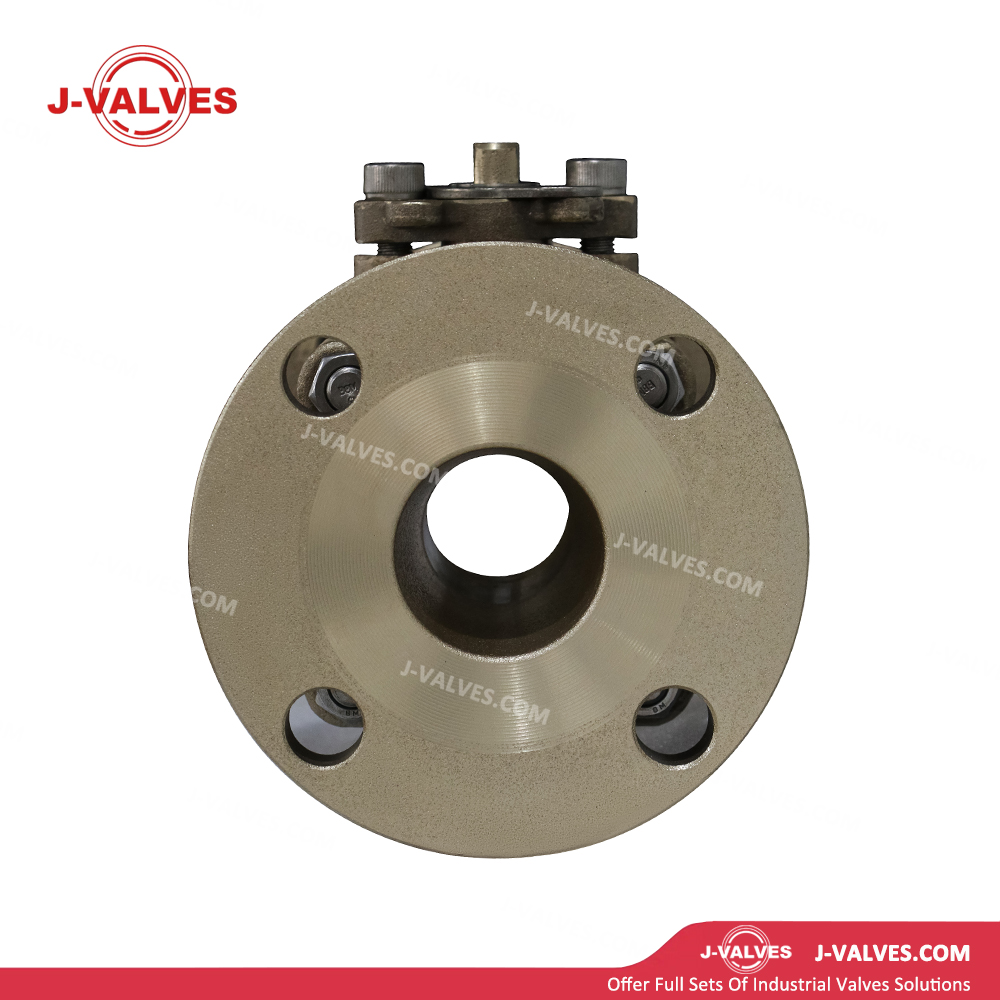

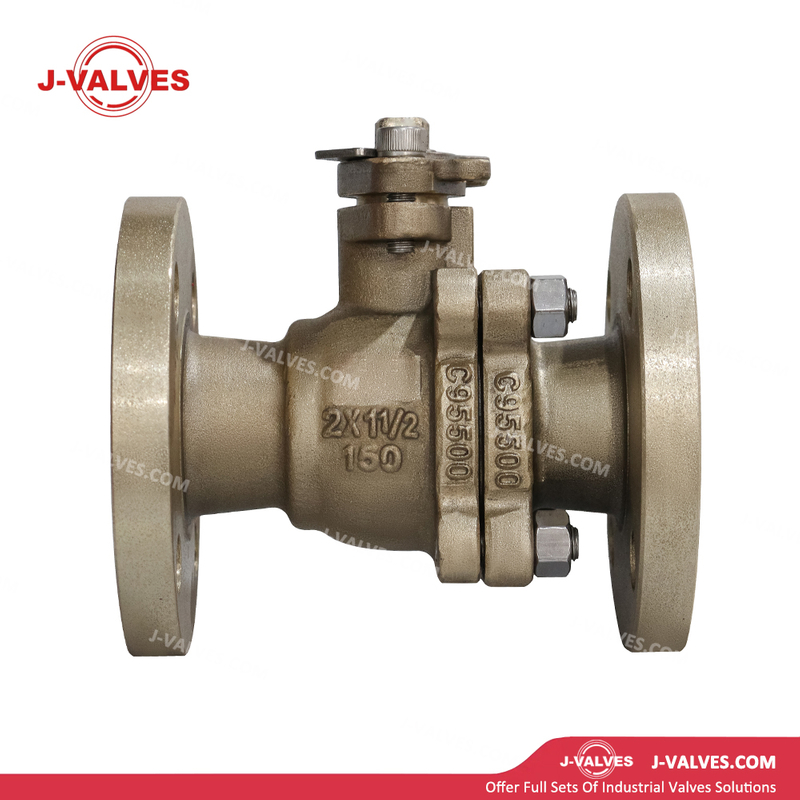

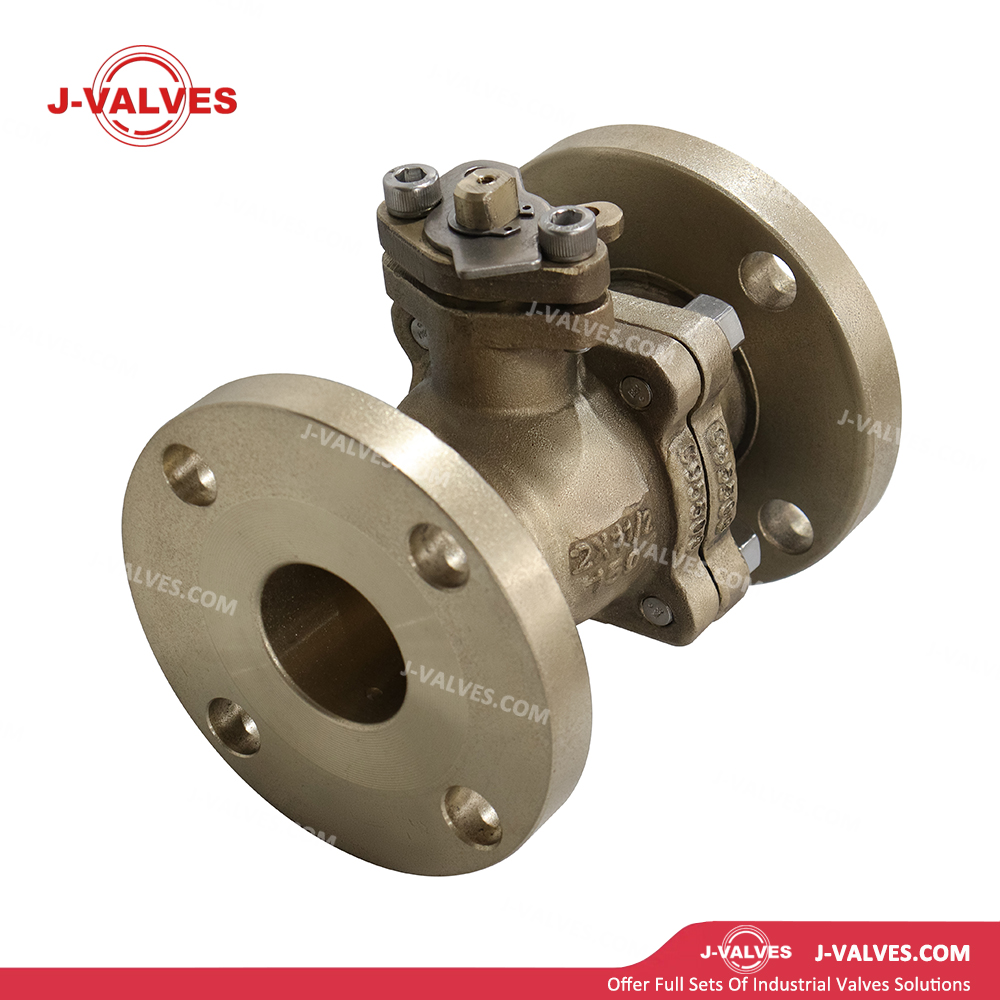

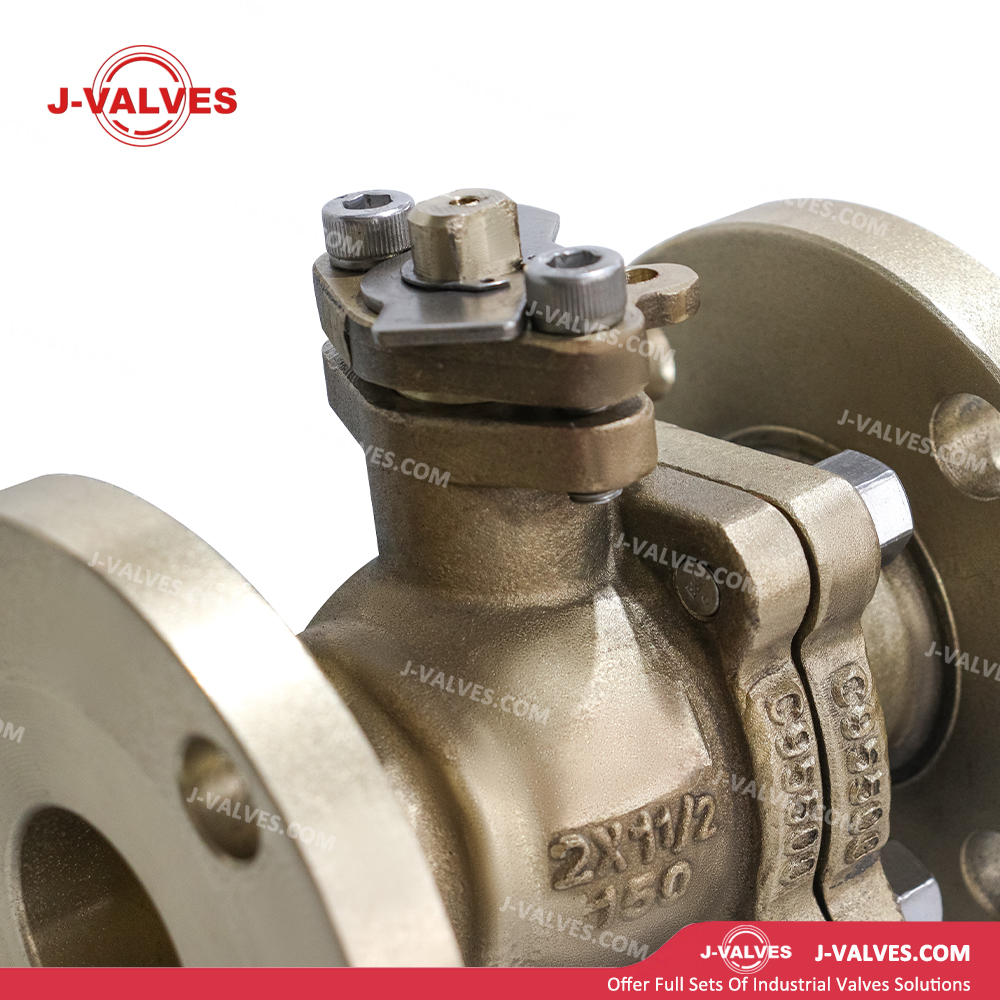

Product Name | Aluminum Nickel Bronze C95500 2PC 2′′ Reduce Bore Flanged Floating Ball Valve |
Material | Stainless Steel/Duplex steel/Aluminium Bronze/Nickel-aluminum Bronze/Titanium Alloy, etc. |
Pressure | 150LB~2500LB |
Size | 1/2 inch~ 24 inch(DN15~DN600) |
End Connection | RF/RTJ/BW/SW |
Working Temp | -196ºC~400ºC option. |
Mode of operation | Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator. |
Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
Features | Anti-blow out stem, Anti-statstic, Fire safe |
Exceptional Corrosion Resistance in Harsh Environments
C95500 alloy shows outstanding corrosion resistance, making it perfect for marine and chemical industries. In seawater desalination plants, it withstands the highly corrosive brine environment without significant degradation, extending valve lifespan by 50% compared to common materials. In chemical processing, it resists various corrosive chemicals, ensuring continuous and reliable operation. This corrosion resistance also reduces maintenance frequency, minimizing downtime and costs in these critical applications.
High - Strength and Durability for Long - Term Use
The high - strength nature of C95500 allows the valve to endure high - stress operations. In heavy - machinery applications such as mining equipment, it can withstand the vibrations and mechanical stresses associated with continuous operation. The material's durability ensures that the valve can maintain its structural integrity over long periods, reducing the need for frequent replacements. This is especially beneficial in industries where equipment downtime can lead to significant production losses.
Good Wear Resistance in High - Flow and Abrasive Applications
In applications with high - flow rates or containing abrasive particles, like in some mining slurry pipelines, the valve's C95500 construction offers excellent wear resistance. The material resists the abrasive action of particles, preventing premature wear of the ball and seat. This wear resistance ensures that the valve can maintain its sealing performance and flow control capabilities over an extended period, improving the overall efficiency of the system.
Efficient Reduced Bore Design for Specific Flow Requirements
The reduced bore design of this ball valve is optimized for specific flow needs. In systems where a certain level of flow restriction is required to control pressure or flow rate precisely, such as in some industrial process lines, this design provides better flow management. It can also reduce the overall size and weight of the valve while maintaining the necessary flow control functionality, making it suitable for applications where space and weight are considerations.
Easy Maintenance with Two - Piece Construction
The two - piece construction of the valve simplifies maintenance. In industries like food and beverage, where hygiene and regular maintenance are essential, the valve can be easily disassembled. This allows for thorough cleaning of internal components, preventing the build - up of contaminants. If any part is damaged, it can be quickly replaced without removing the entire valve from the pipeline, reducing maintenance time and costs.
Versatile Application in Multiple Industries
This valve finds wide application across multiple industries. In the oil and gas industry, it can be used in offshore platforms for fluid control due to its corrosion resistance and durability. In power generation plants, it can handle the high - temperature and high - pressure conditions in steam systems. Its versatility makes it a cost - effective solution for different industrial fluid control requirements, adapting to various operating environments and media types.
Installation: The valve is designed for easy installation. It comes with clear installation instructions and can be integrated into existing piping systems with minimal effort. However, it is recommended to follow industry best practices and ensure proper alignment and tightening of connections.
Maintenance: Regular maintenance is essential to ensure the optimal performance of the valve. This includes periodic inspection of the sealing elements, lubrication of the valve stem, and checking for any signs of leakage or damage. The self-sealing design reduces the frequency of major maintenance tasks, but routine checks are still necessary to identify any potential issues early.
Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.
Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.
Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.
