J-VALVES-BV-150
J-VALVES
8481804090
Designed for high-stakes industrial environments, this forged stainless steel ball valve combines durability with operational efficiency. The three-piece construction allows easy disassembly for cleaning or component replacement while keeping the valve inline with the pipeline, reducing downtime. The F304L stainless steel body resists chloride stress corrosion cracking and aggressive media, making it suitable for corrosive fluids. A floating ball design ensures tight sealing at both low and high pressures, supported by self-adjusting spring-loaded seats. The threaded end connections enable rapid installation, while the ergonomic lever handle provides smooth, low-torque operation. Certified to API 607 fire-safe standards, this valve meets the most rigorous safety and performance requirements.
Product Name | 2PC Forged Carbon Steel A105 Flanged End Ball Valve with Extended Stem |
Material | A105N/F304/F316 |
Pressure | 150LB~2500LB |
Size | 1/2 inch~ 2 inch（DN15~DN50) |
End Connection | RF/RTJ/BW/SW |
Working Temp | -196ºC~400ºC option. |
Mode of operation | Lever |
Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
Features | Anti-blow out stem, Anti-statstic, Fire safe |

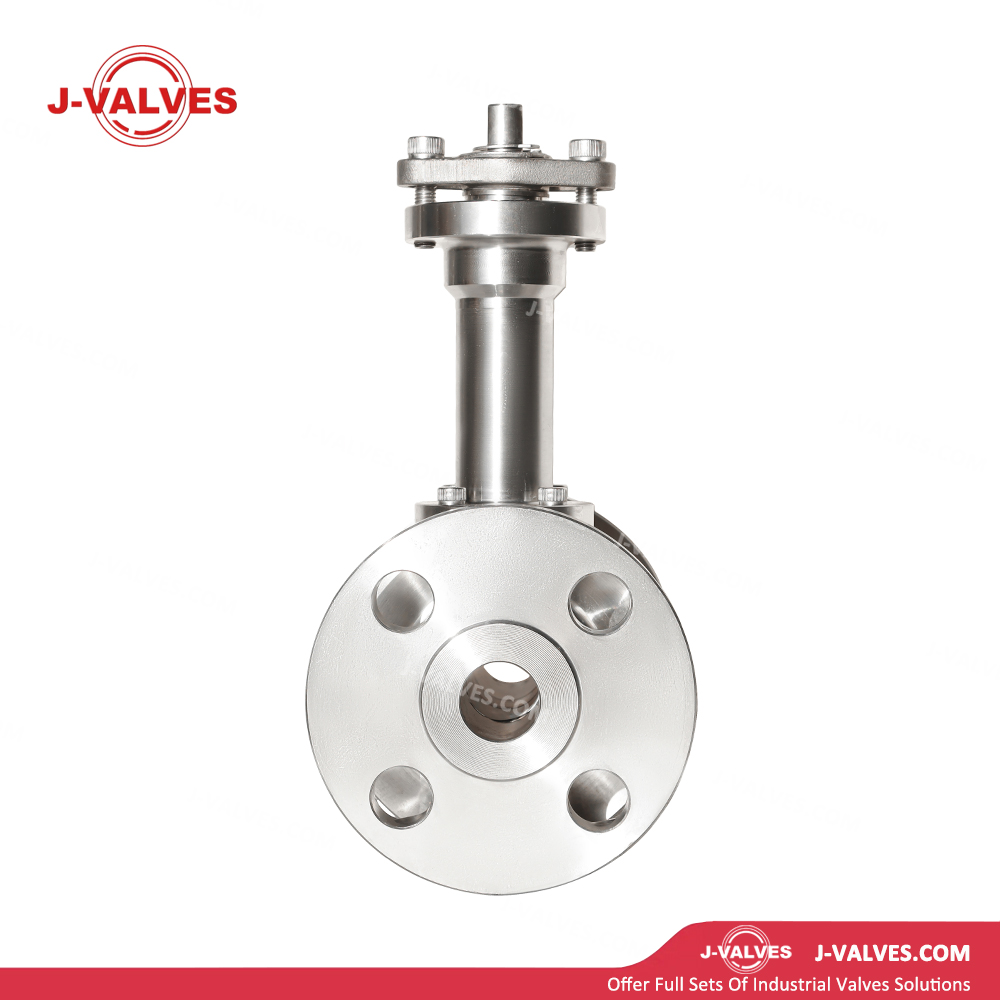

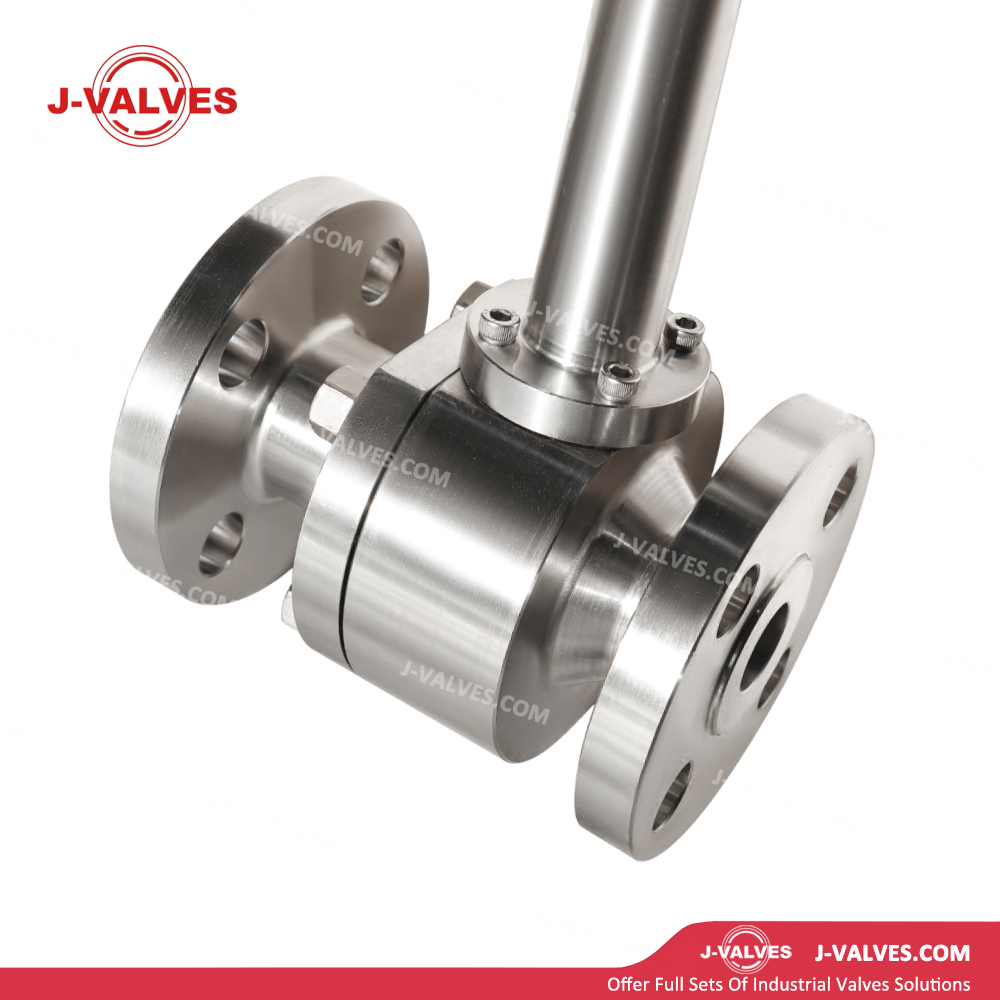

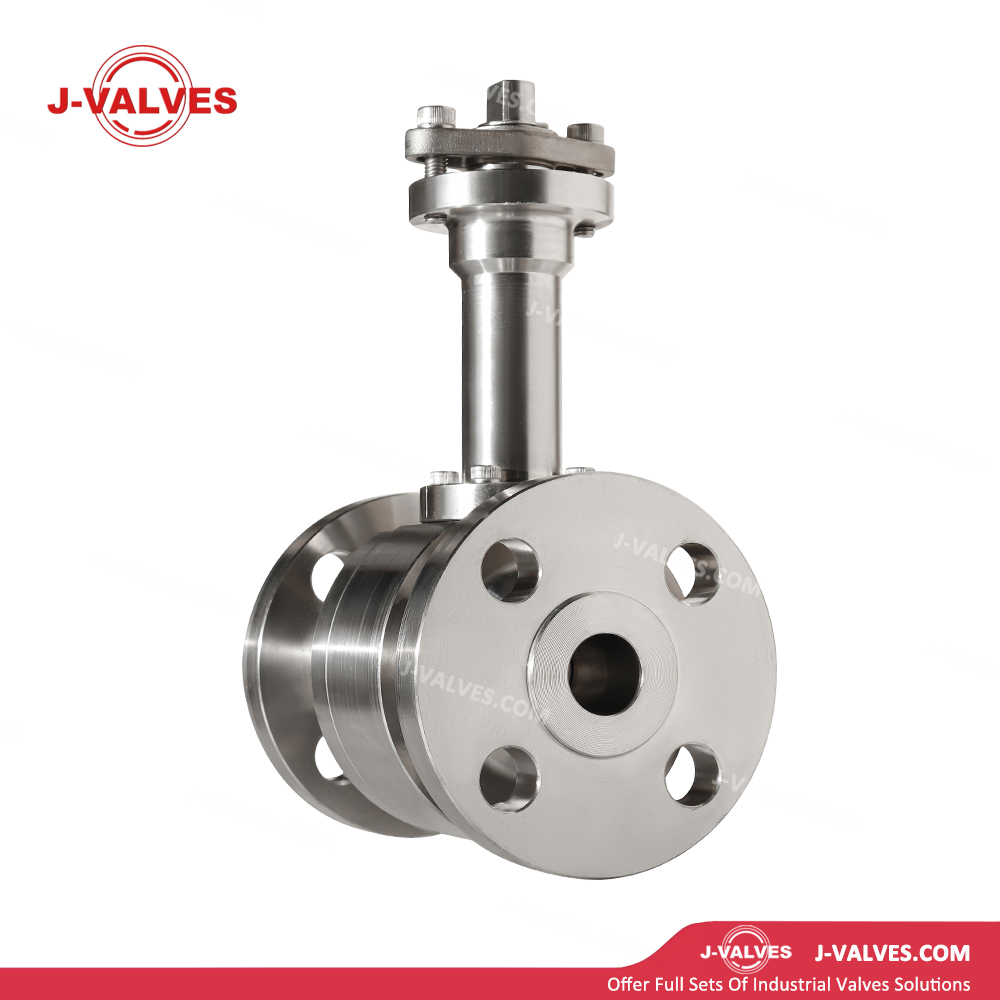

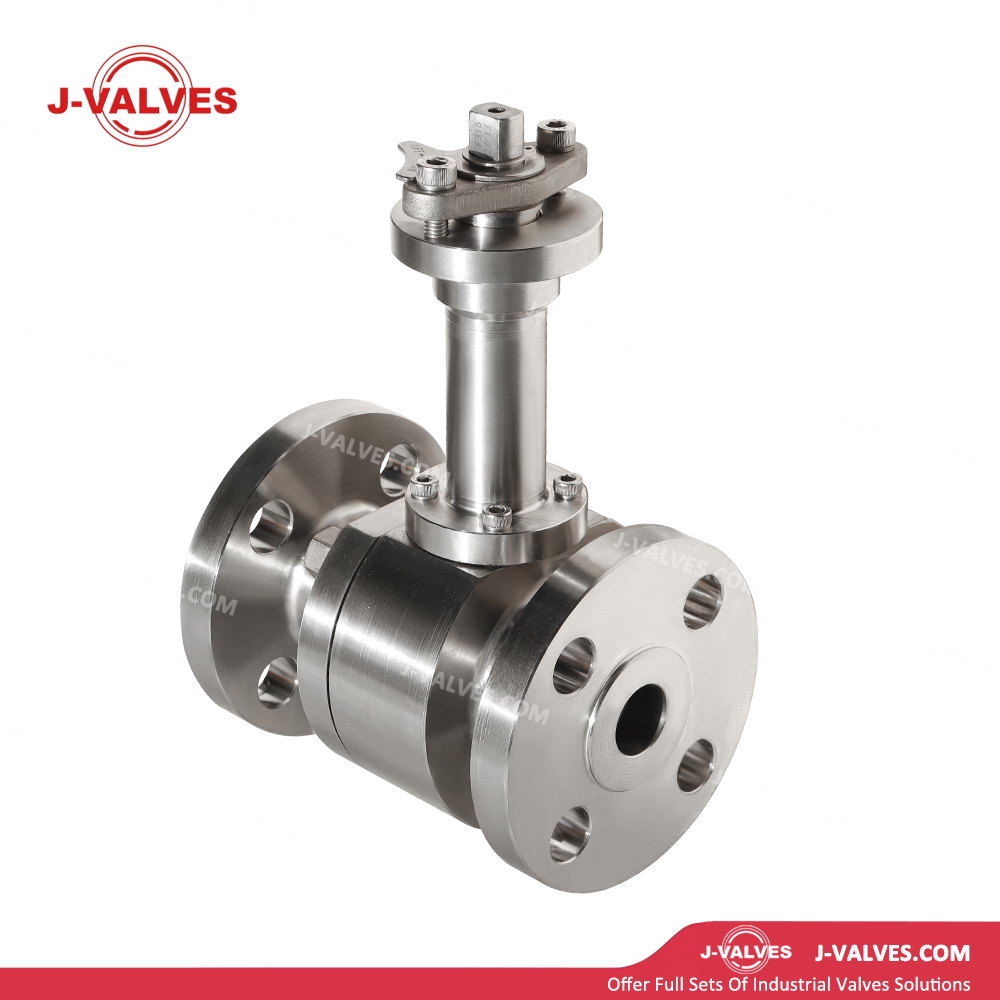

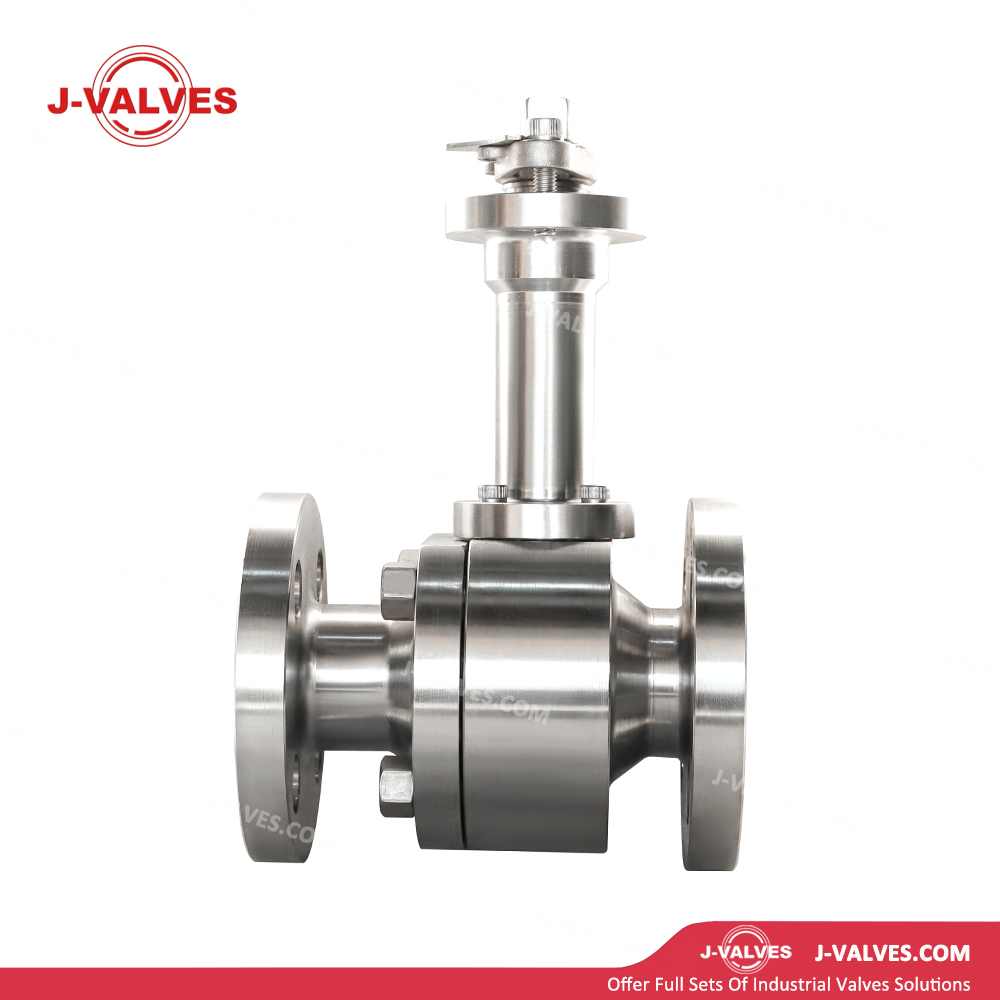

Enhanced Accessibility with Extended Stem
The extended stem of this ball valve significantly improves accessibility, especially in applications where valves are installed in hard - to - reach locations. In petrochemical plants, where pipelines are often tightly packed, the extended stem allows operators to easily reach and operate the valve without the need for complex access equipment. In offshore oil rigs, where space is limited and safety is paramount, the extended stem provides a clear and safe way to control the valve. This feature also reduces the risk of operator injury during valve operation, as it eliminates the need to reach into confined or hazardous areas.
Robust Forged Construction
The two - piece forged design of this valve offers exceptional strength and durability. In high - pressure industrial processes such as power generation plants, the valve can withstand extreme pressure and temperature variations without deformation. The forging process ensures a uniform and dense structure, enhancing the valve's resistance to fatigue and corrosion. This makes it suitable for long - term use in harsh environments, reducing the frequency of replacements and associated downtime.
Efficient Flanged End Connection
The flanged end design of the valve simplifies installation and maintenance. In large - scale pipeline systems, such as those used in water treatment plants or gas transmission networks, the flanged connections allow for quick and secure attachment. This reduces installation time and costs, as well as the risk of leakage. The flanged ends also provide easy access for inspection and repair, minimizing disruptions to the system.
Precise Flow Control
This ball valve provides precise flow control, which is essential in many industrial applications. In chemical manufacturing, where accurate dosing of chemicals is critical for product quality, the valve can be adjusted to regulate the flow rate with high precision. The smooth ball - and - seat design ensures minimal pressure drop and efficient flow regulation, contributing to the overall efficiency of the process.
Low Maintenance Requirements
The simple yet robust design of the 2PC forged ball valve results in low maintenance requirements. In mining operations, where equipment is exposed to dust and debris, the valve's design resists the ingress of contaminants, reducing the need for frequent cleaning and servicing. The use of high - quality materials and precision manufacturing ensures long - term reliability, minimizing the time and cost associated with maintenance.
Versatile Application in Multiple Industries
This valve's versatility makes it suitable for a wide range of industries. In food and beverage processing, where hygiene and corrosion resistance are important, the valve can be used to control the flow of various fluids. In the pharmaceutical industry, its precision and reliability ensure accurate fluid handling during production. It can also be used in pulp and paper mills, steel plants, and other industrial settings, providing a cost - effective solution for fluid control needs.
Installation: The valve is designed for easy installation. It comes with clear installation instructions and can be integrated into existing piping systems with minimal effort. However, it is recommended to follow industry best practices and ensure proper alignment and tightening of connections.
Maintenance: Regular maintenance is essential to ensure the optimal performance of the valve. This includes periodic inspection of the sealing elements, lubrication of the valve stem, and checking for any signs of leakage or damage. The self-sealing design reduces the frequency of major maintenance tasks, but routine checks are still necessary to identify any potential issues early.
Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.
Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.
Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.
