J-VALVES-BV-14
J-VALVES
8481804090

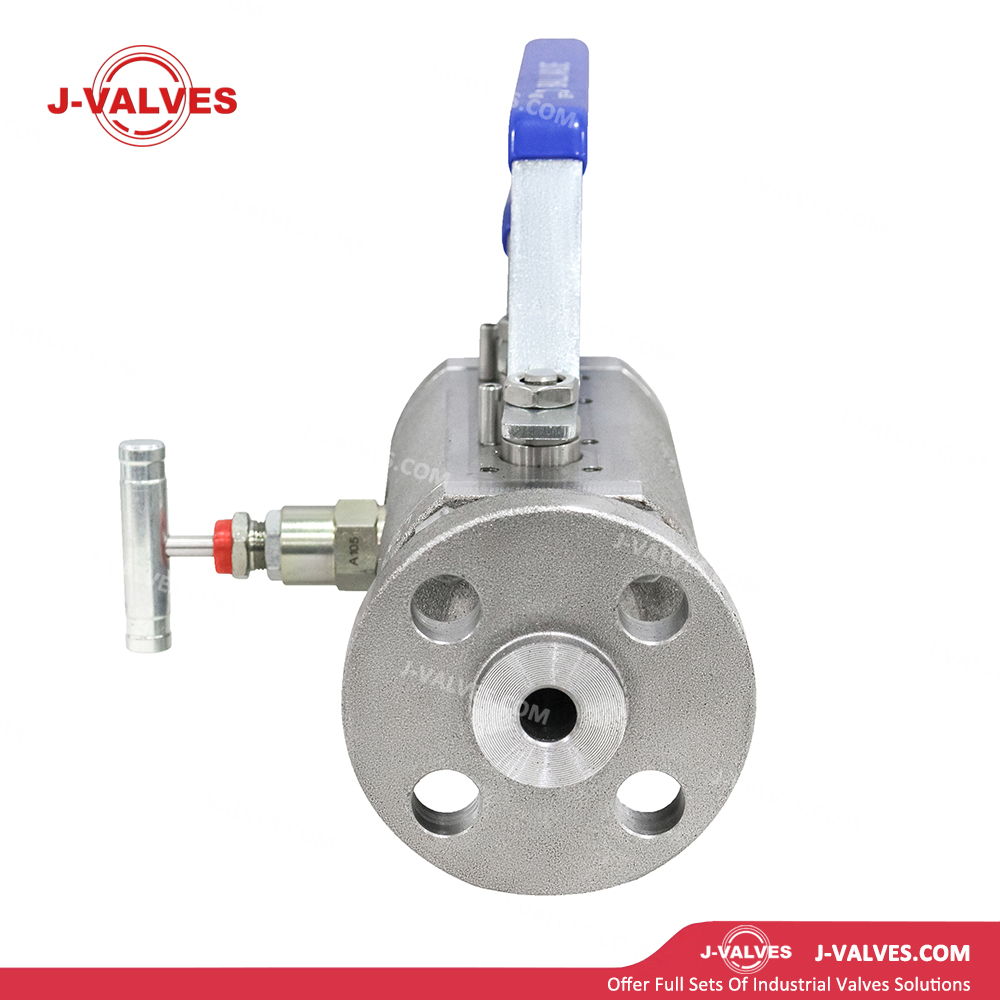

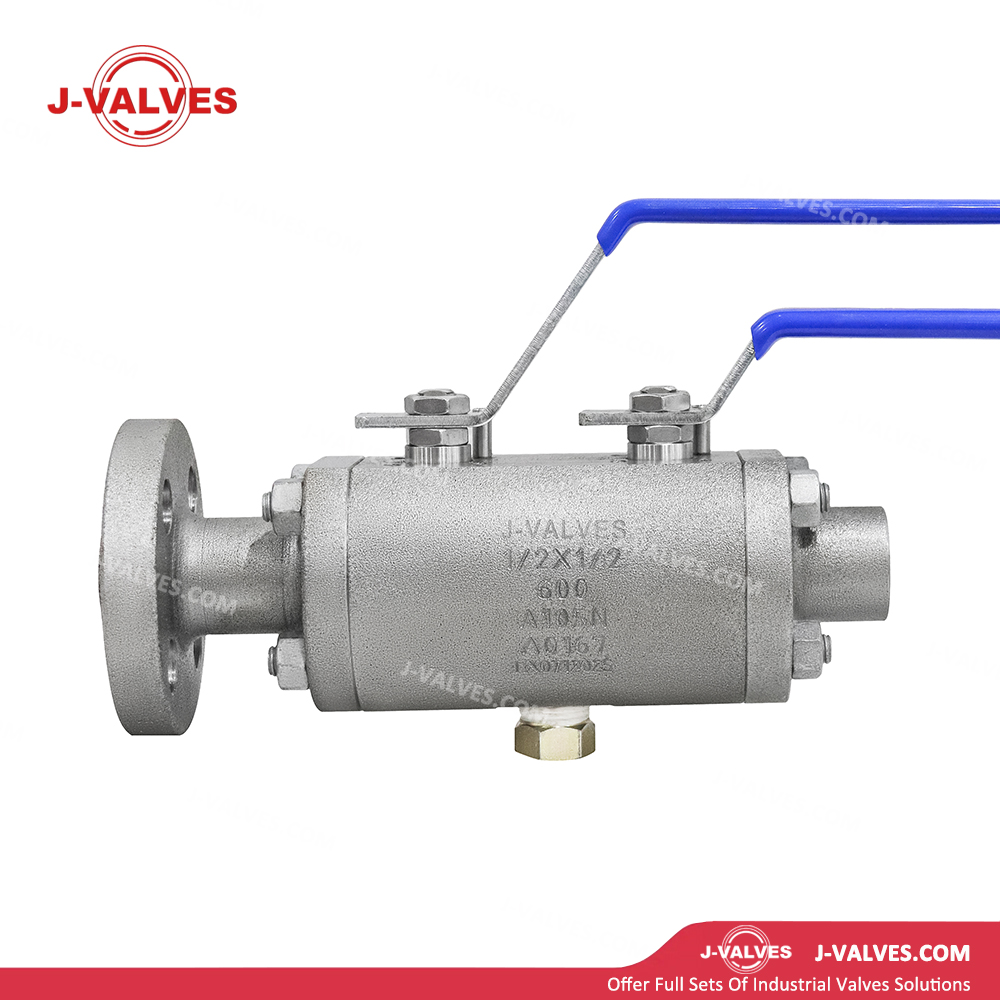

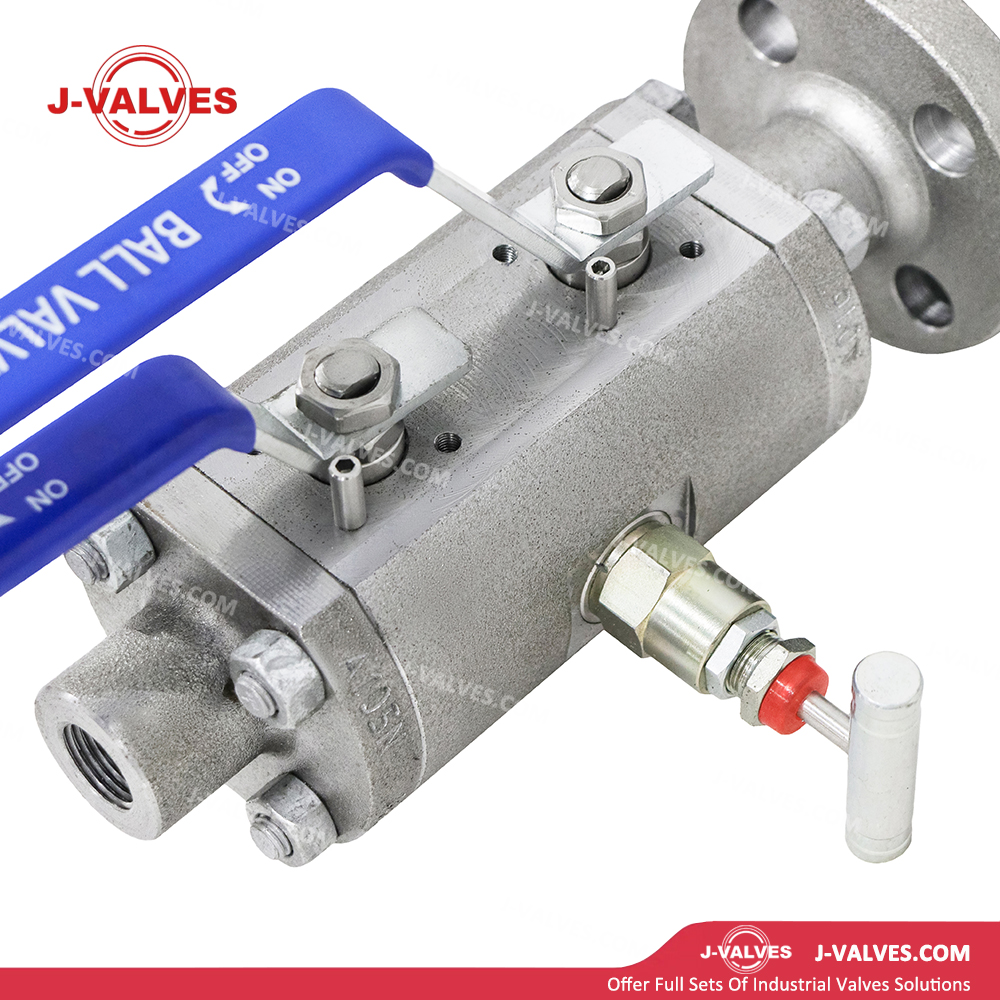

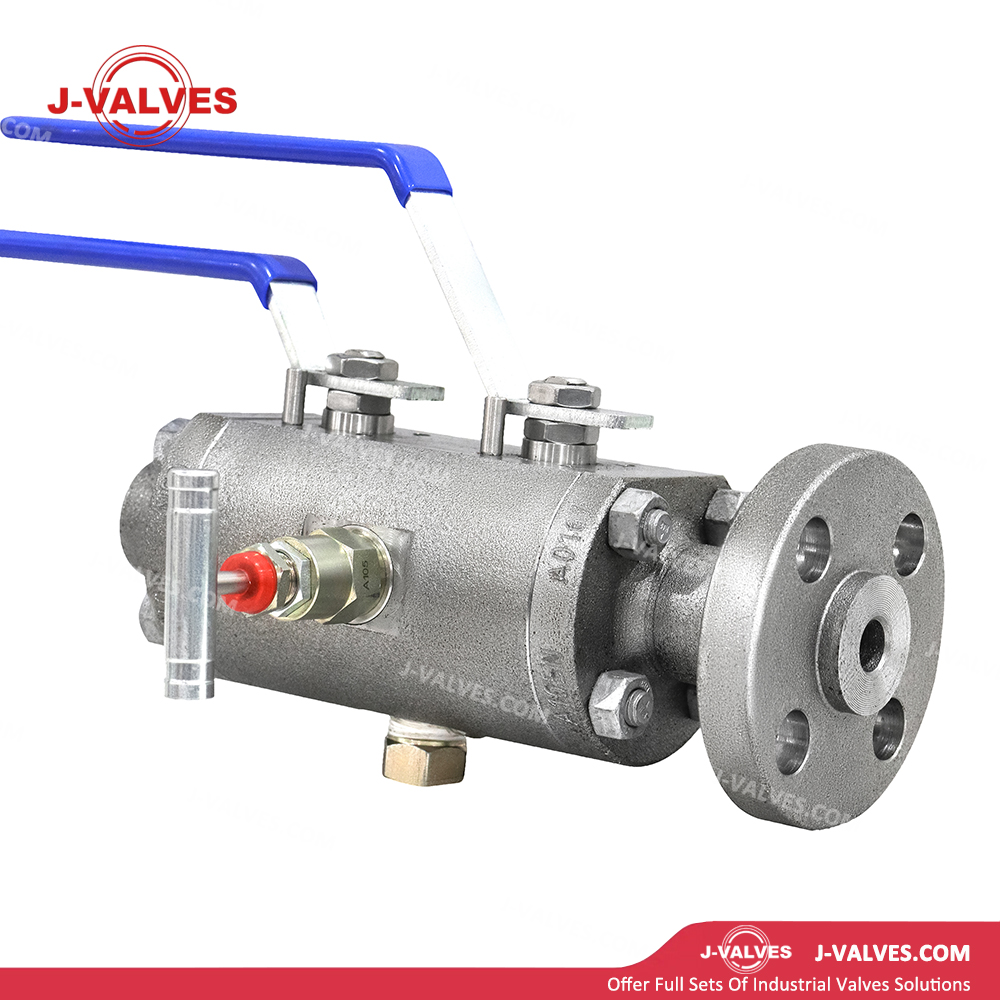

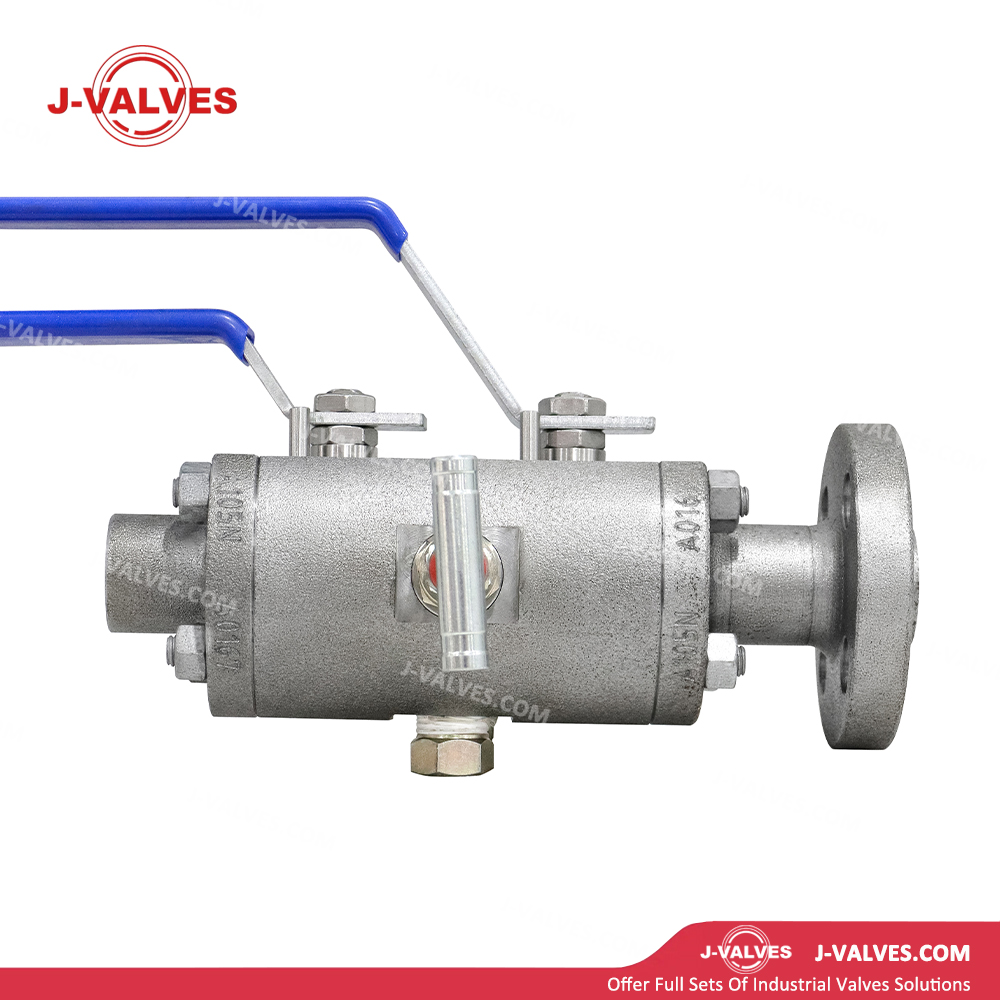

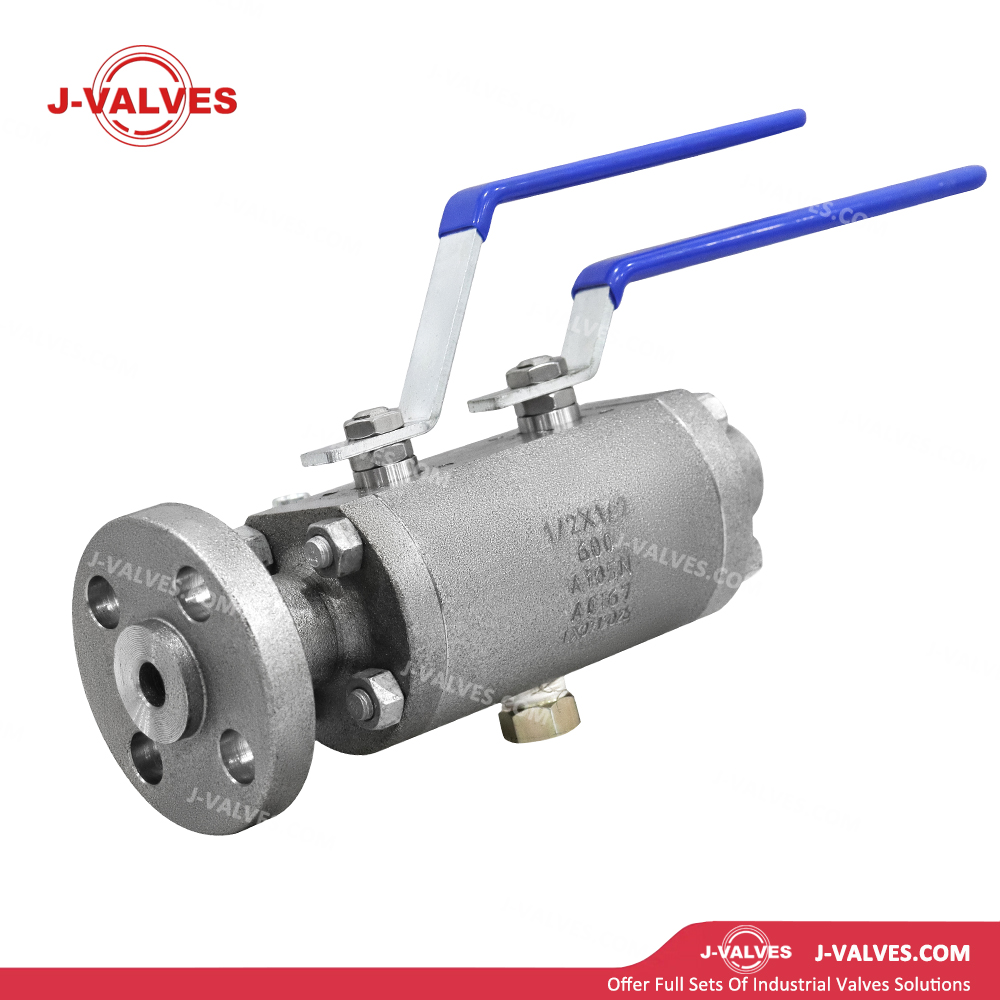

This ball valve features a sturdy A105N carbon steel body, suitable for handling a range of fluids in industrial pipelines. The double - block - and - bleed mechanism allows for secure isolation and depressurization. The combination of flange and thread connections caters to different piping setups, enabling easy integration into existing systems.
Product Name | 1/2′′ Flange&Thread Carbon Steel A105N DBB Ball Valve |
Material | Stainless Steel/Duplex steel/Aluminium Bronze/Nickel-aluminum Bronze/Titanium Alloy, etc. |
Pressure | 150LB~2500LB |
Size | 1/2 inch~ 24 inch(DN15~DN600) |
End Connection | RF/RTJ/BW/SW |
Working Temp | -196ºC~400ºC option. |
Mode of operation | Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator. |
Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
Features | Anti-blow out stem, Anti-statstic, Fire safe |
Installation Flexibility with Dual Connections
The 1/2′′ Flange&Thread Carbon Steel A105N DBB Ball Valve offers remarkable installation versatility. In small - scale industrial plants or DIY projects, the threaded connection can be quickly screwed onto pipes. This is especially useful when space is tight, as in a small - scale chemical mixing facility where quick and space - efficient installations are crucial. For larger - scale operations or when a more robust, vibration - resistant connection is needed, the flanged end can be bolted to pipeline flanges. In a power plant's auxiliary piping system, the flanged connection provides a secure and leak - proof joint for high - flow and high - pressure applications. This dual - connection design eliminates the need for multiple valve types, streamlining inventory and reducing installation time and costs.
High - Strength A105N Carbon Steel Construction
Constructed from A105N carbon steel, this valve is engineered to withstand demanding conditions. A105N steel has excellent mechanical properties, providing high tensile strength and toughness. In oil and gas pipelines, where the valve may be subjected to high - pressure fluid flow and mechanical stress, the A105N body ensures long - term reliability. It can resist the internal pressure of up to [X] psi without deformation, making it suitable for both onshore and offshore applications. Additionally, in industrial settings with temperature fluctuations, the material's stability allows the valve to maintain its integrity, reducing the risk of premature failure and costly replacements.
Enhanced Safety with Double - Block - and - Bleed Design
The double - block - and - bleed (DBB) design of this ball valve is a significant safety feature. In applications involving hazardous fluids, such as in chemical plants handling toxic or flammable substances, the DBB function is crucial. First, the two main seats block the flow from both directions, creating a double - barrier isolation. Then, the bleed port can be opened to release any trapped pressure or fluid in the isolated section. This ensures that maintenance or repair work can be carried out safely, minimizing the risk of leaks and potential accidents. In a refinery's pipeline system during maintenance shutdowns, the DBB valve allows technicians to work on a section of the pipeline with confidence, knowing that the fluid flow is completely stopped and any residual pressure is relieved.
Precise Flow Control
Despite its small 1/2′′ size, this ball valve enables precise flow control. In applications where accurate dosing of fluids is essential, like in pharmaceutical manufacturing or laboratory processes, the smooth - moving ball and well - designed seat allow for fine - tuning of the flow rate. The valve can be adjusted to regulate the flow in small increments, ensuring consistent product quality. For example, in a pharmaceutical production line where precise amounts of liquid ingredients are required for drug formulation, the valve's precise control helps maintain the integrity of the manufacturing process. This level of control also contributes to energy efficiency in systems where the flow can be optimized to match the actual demand, reducing waste.
Resistance to Wear and Tear
The A105N carbon steel construction, combined with proper surface treatment, gives this valve good resistance to wear and tear. In industrial environments with abrasive fluids, such as in mining slurry pipelines or pulp and paper processing, the valve can withstand the constant erosion from solid particles. The hard - wearing nature of the material ensures that the internal components, such as the ball and seats, maintain their shape and functionality over time. This extends the valve's service life, reducing the frequency of maintenance and replacement. In a mining operation where slurry is transported over long distances, the durability of this valve can save significant costs associated with frequent valve replacements.
Compatibility with Diverse Fluids
This ball valve is highly compatible with a wide range of fluids. Whether it's water, oil, gas, or non - corrosive chemicals, the A105N carbon steel body can handle them without significant degradation. In a water treatment plant, the valve can be used to control the flow of raw water, treated water, or chemicals used in the treatment process. In an oil refinery, it can be installed in pipelines carrying different grades of oil or in gas - handling systems. This versatility makes it a cost - effective choice for industries that need to manage multiple fluid types in their operations, as a single valve type can be used across different sections of the pipeline network.
Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.
Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.
Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.
