Availability: | |
---|---|
Quantity: | |
J-VALVES-BV
J-VALVES
8481804090
Product Introduction

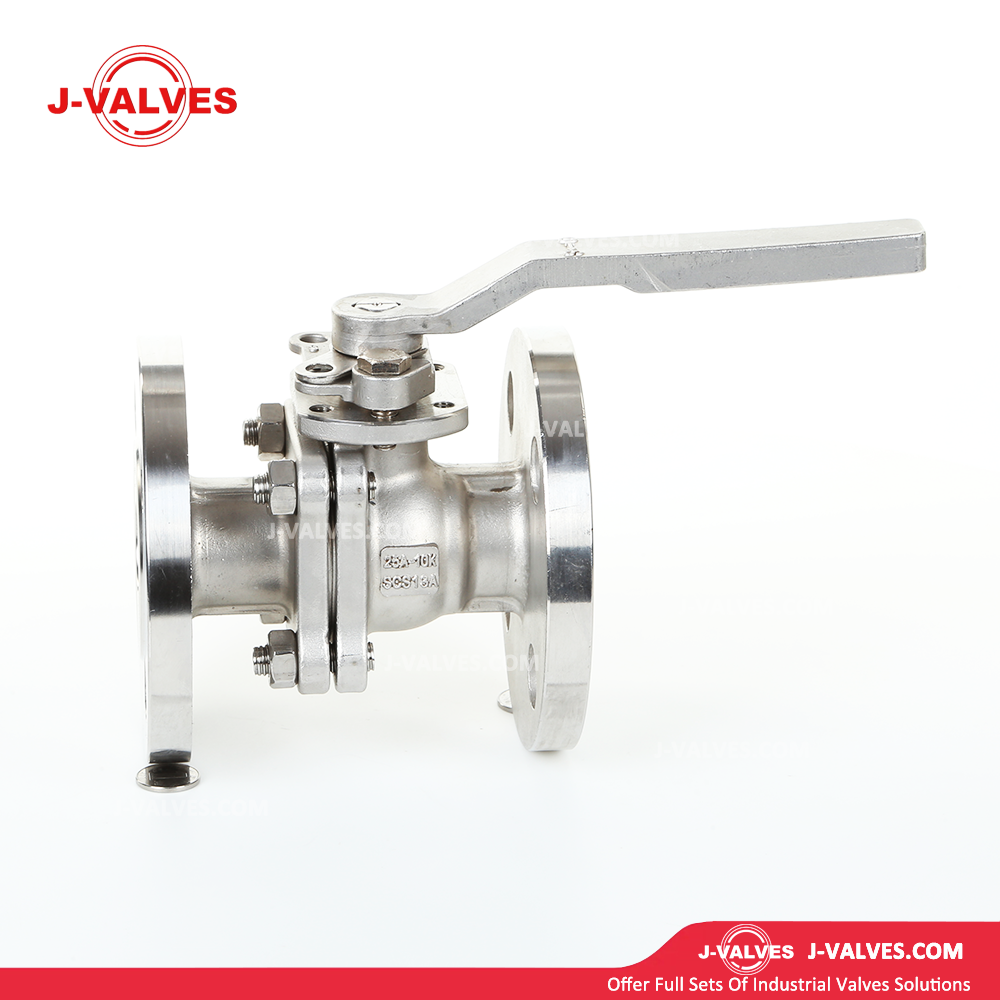

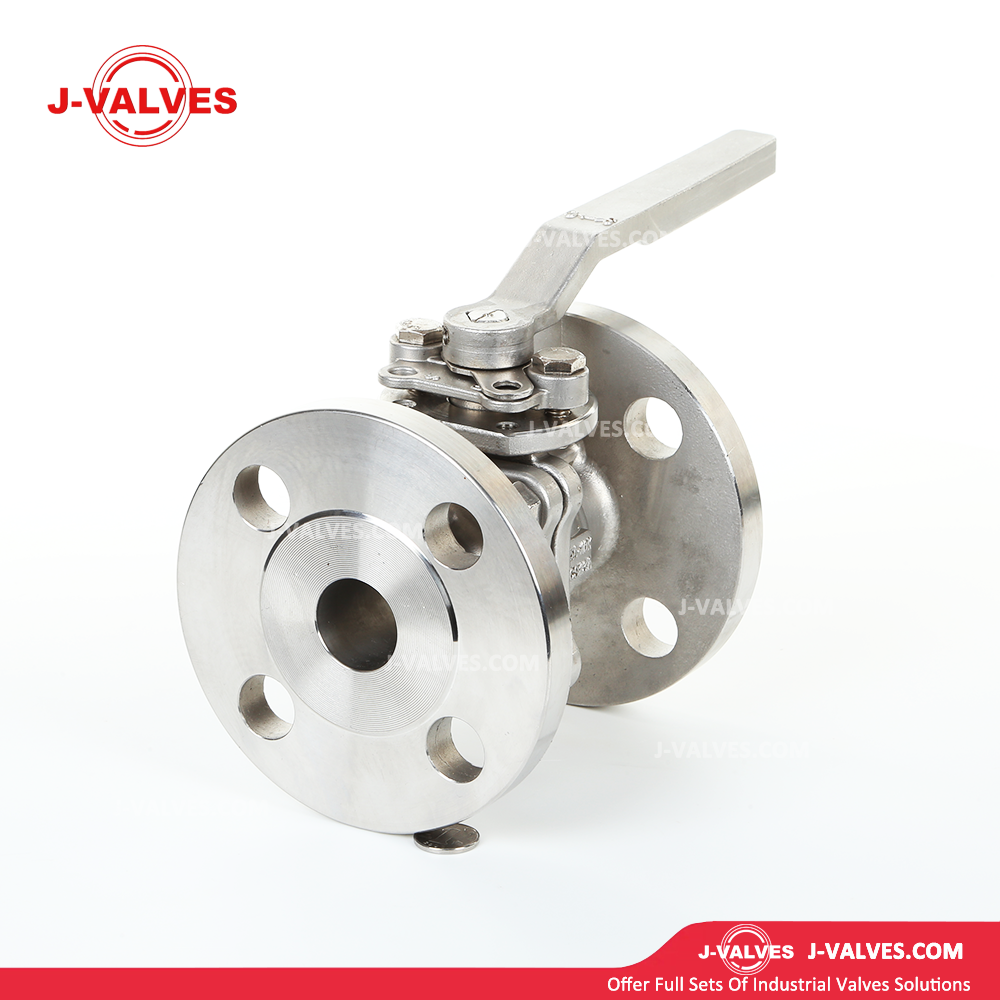

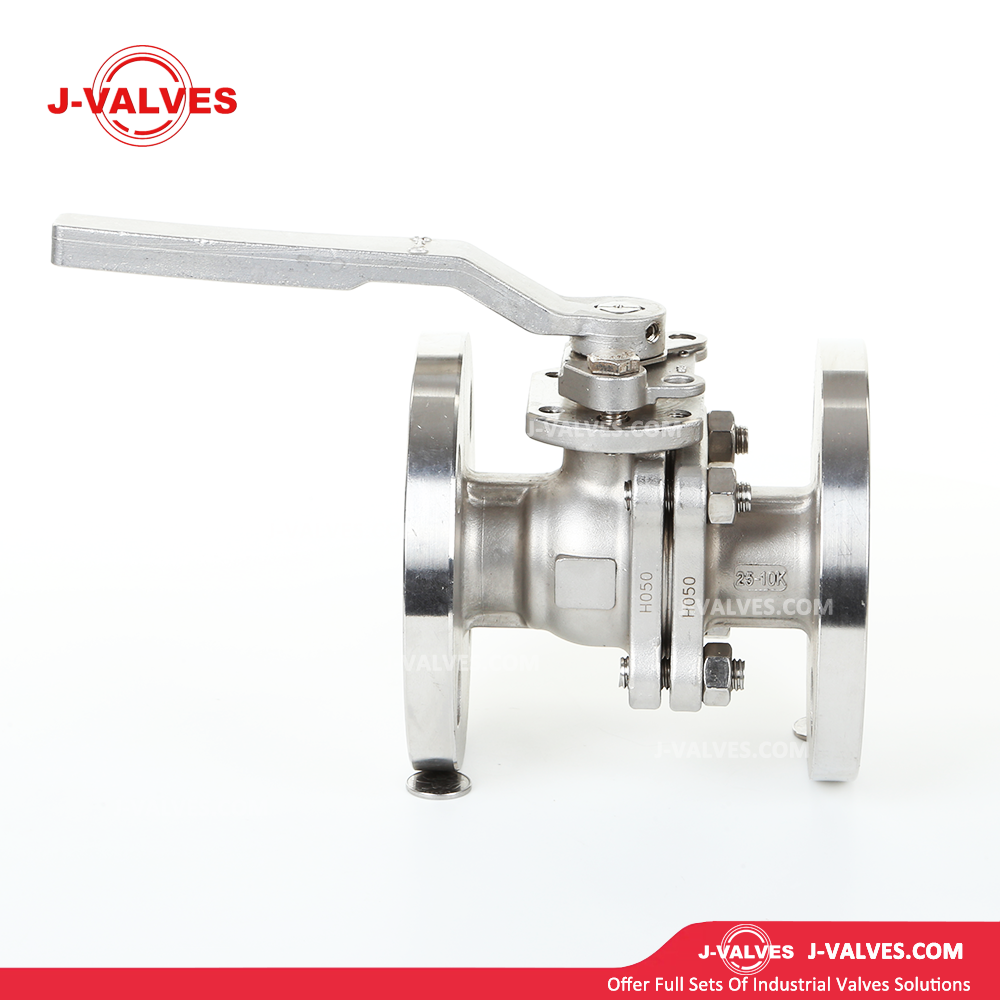

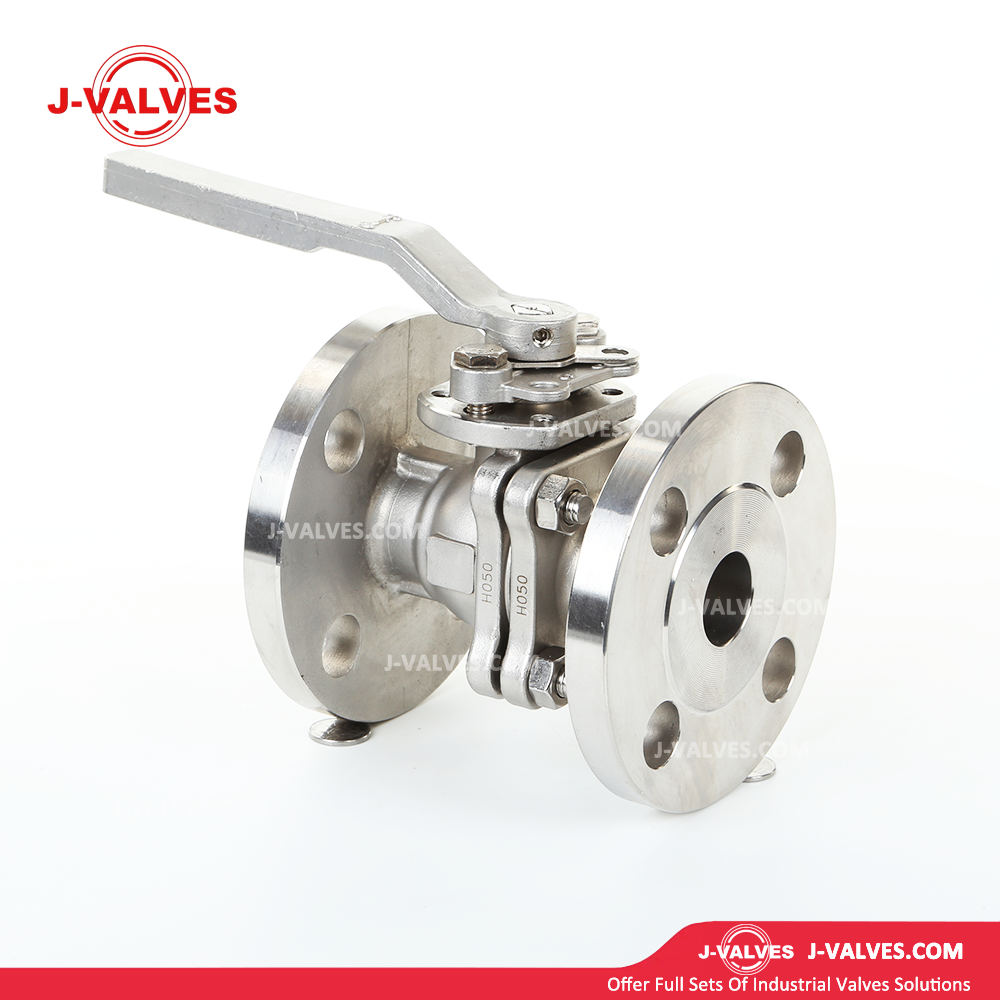

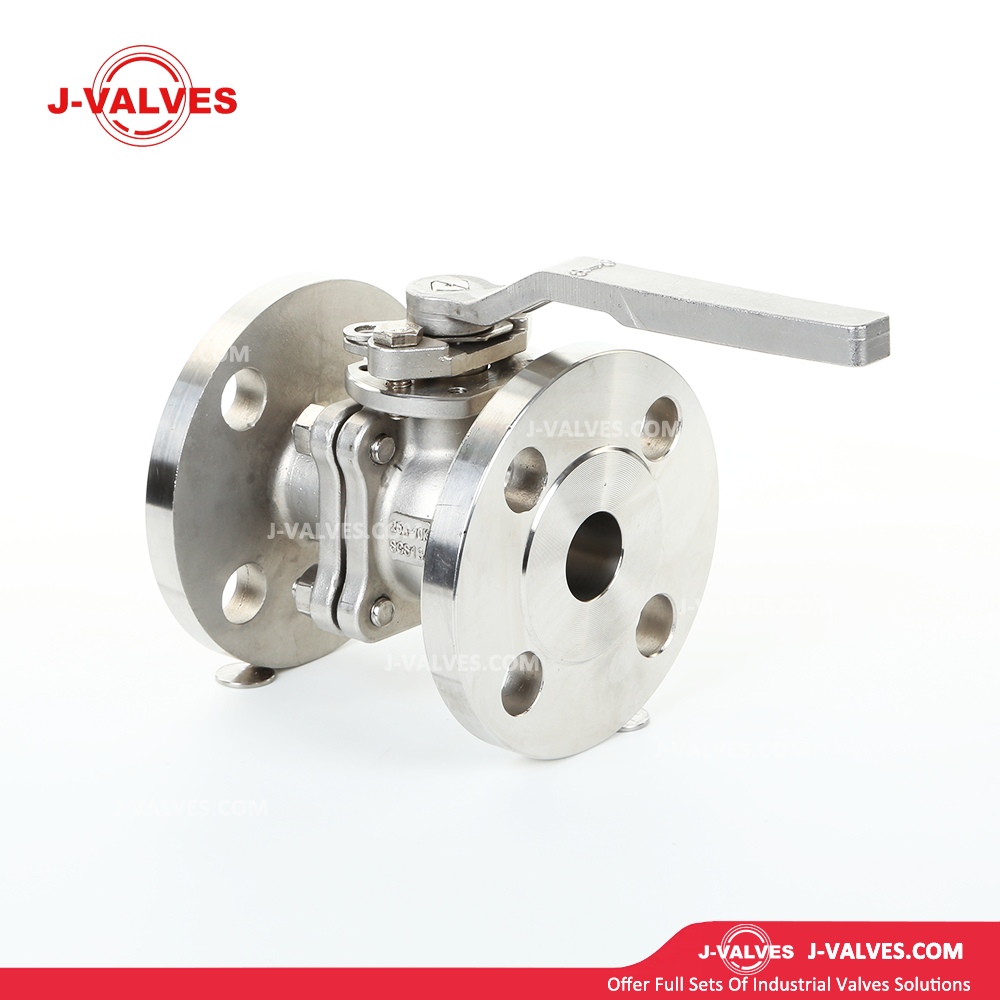

Porduct Name | J-Valves Made in China JIS Stainless Steel CF8m 2PC Floating Flange Ball Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Advantages
Excellent Material: It is made of JIS stainless steel CF8m, which has high corrosion resistance, ensuring a long service life even in harsh working environments. This material can resist the erosion of various corrosive media, such as acids, alkalis, and salts, reducing the risk of leakage and equipment failure.
Good Sealing Performance: The floating flange ball valve design provides reliable sealing. The ball valve has a precise spherical surface and a well - designed sealing structure, which can achieve a tight seal when closed, effectively preventing media from leaking. This helps to maintain the integrity of the pipeline system and ensure the normal operation of the process.
High Pressure Resistance: It can withstand high - pressure conditions. The two - piece construction and the use of high - quality materials enable the valve to maintain its structural stability and sealing performance under high - pressure environments, making it suitable for use in pipelines with high - pressure requirements, such as oil and gas pipelines, industrial water supply and drainage systems.
Easy Operation: The valve is easy to operate. It can be easily opened and closed by rotating the handle or actuator, requiring little effort. This facilitates the operation and maintenance of the pipeline system, reducing the labor intensity of operators.
Wide Temperature Range: It can operate in a wide temperature range. Whether in high - temperature or low - temperature environments, the valve can maintain its performance stability, adapting to different process requirements, such as in chemical plants, power plants, and refrigeration systems.
Uses
Oil and Gas Industry: It is widely used in oil and gas exploration, production, and transportation. It can be used to control the flow of crude oil, natural gas, and various petroleum products in pipelines, ensuring the safe and efficient transportation of oil and gas resources.
Chemical Industry: In chemical plants, it is used to control the flow of various chemical media, such as acids, alkalis, and organic solvents. The corrosion - resistant properties of the valve make it suitable for handling corrosive chemicals, ensuring the safety and reliability of the chemical production process.
Water Treatment Industry: It is used in water treatment plants and water supply and drainage systems. It can be used to control the flow of water, sewage, and other fluids, helping to maintain the normal operation of the water treatment process and ensuring the quality of water supply.
Power Industry: In power plants, it is used in steam pipelines, cooling water systems, and fuel supply systems. It can control the flow of steam, water, and fuel, ensuring the stable operation of power generation equipment.
Food and Beverage Industry: Due to its hygienic and corrosion - resistant properties, it can be used in the food and beverage industry to control the flow of various food - grade media, such as water, juice, and beer. It meets the strict hygiene requirements of the food and beverage industry, ensuring the safety and quality of food products.
Product Introduction
Porduct Name | J-Valves Made in China JIS Stainless Steel CF8m 2PC Floating Flange Ball Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Advantages
Excellent Material: It is made of JIS stainless steel CF8m, which has high corrosion resistance, ensuring a long service life even in harsh working environments. This material can resist the erosion of various corrosive media, such as acids, alkalis, and salts, reducing the risk of leakage and equipment failure.
Good Sealing Performance: The floating flange ball valve design provides reliable sealing. The ball valve has a precise spherical surface and a well - designed sealing structure, which can achieve a tight seal when closed, effectively preventing media from leaking. This helps to maintain the integrity of the pipeline system and ensure the normal operation of the process.
High Pressure Resistance: It can withstand high - pressure conditions. The two - piece construction and the use of high - quality materials enable the valve to maintain its structural stability and sealing performance under high - pressure environments, making it suitable for use in pipelines with high - pressure requirements, such as oil and gas pipelines, industrial water supply and drainage systems.
Easy Operation: The valve is easy to operate. It can be easily opened and closed by rotating the handle or actuator, requiring little effort. This facilitates the operation and maintenance of the pipeline system, reducing the labor intensity of operators.
Wide Temperature Range: It can operate in a wide temperature range. Whether in high - temperature or low - temperature environments, the valve can maintain its performance stability, adapting to different process requirements, such as in chemical plants, power plants, and refrigeration systems.
Uses
Oil and Gas Industry: It is widely used in oil and gas exploration, production, and transportation. It can be used to control the flow of crude oil, natural gas, and various petroleum products in pipelines, ensuring the safe and efficient transportation of oil and gas resources.
Chemical Industry: In chemical plants, it is used to control the flow of various chemical media, such as acids, alkalis, and organic solvents. The corrosion - resistant properties of the valve make it suitable for handling corrosive chemicals, ensuring the safety and reliability of the chemical production process.
Water Treatment Industry: It is used in water treatment plants and water supply and drainage systems. It can be used to control the flow of water, sewage, and other fluids, helping to maintain the normal operation of the water treatment process and ensuring the quality of water supply.
Power Industry: In power plants, it is used in steam pipelines, cooling water systems, and fuel supply systems. It can control the flow of steam, water, and fuel, ensuring the stable operation of power generation equipment.
Food and Beverage Industry: Due to its hygienic and corrosion - resistant properties, it can be used in the food and beverage industry to control the flow of various food - grade media, such as water, juice, and beer. It meets the strict hygiene requirements of the food and beverage industry, ensuring the safety and quality of food products.
1.Design & Manufacture standard:API600
2.Pressure & Temperature standard:ASME B16.25
3.Face to face dimension standard: ASME B16.10
4.Ends Connection standard:ASME B16.5
5.Test & Inspect standard: API598
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
