Product Introduction

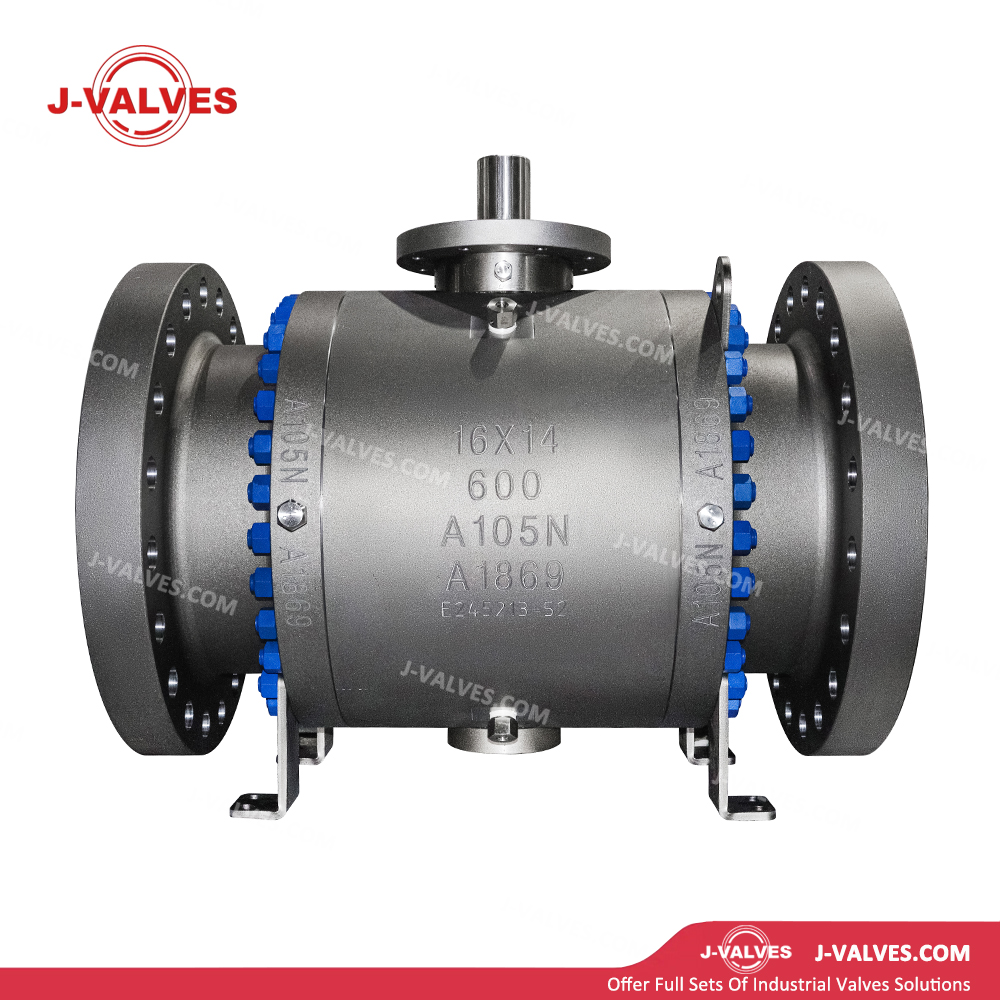

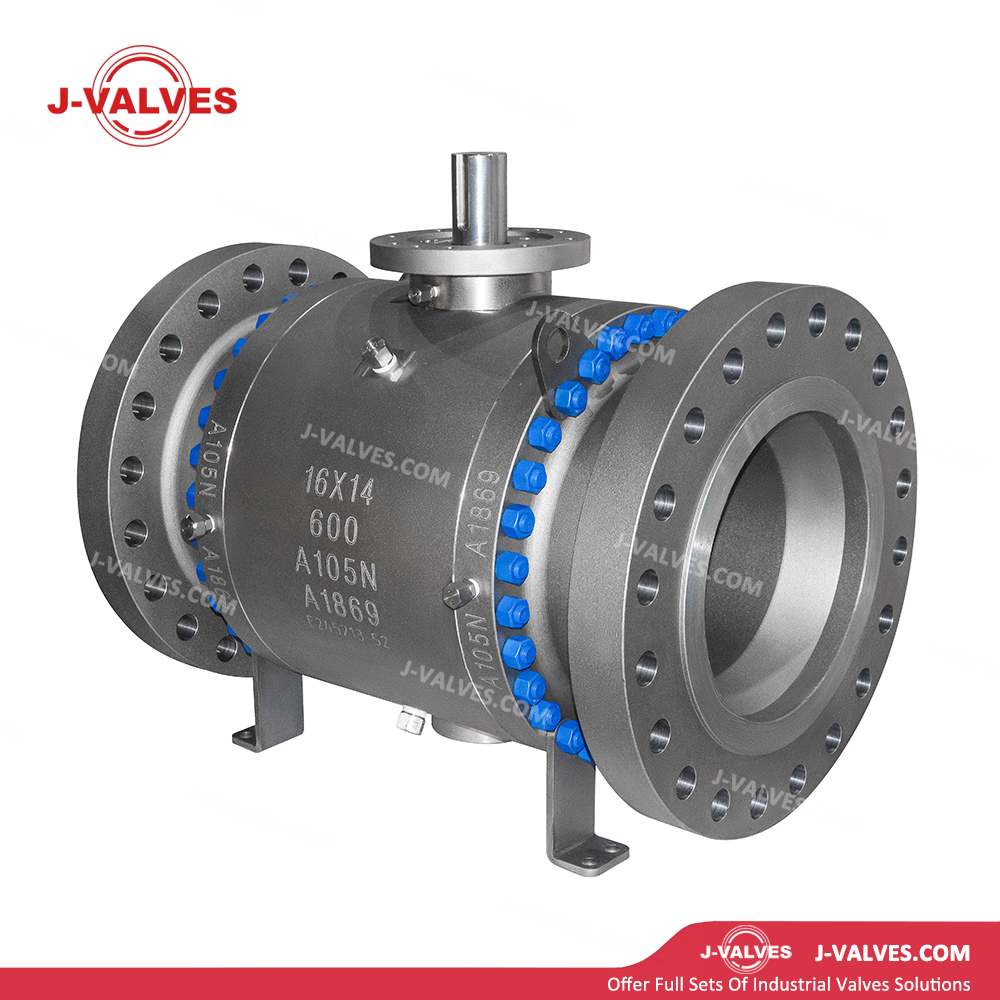

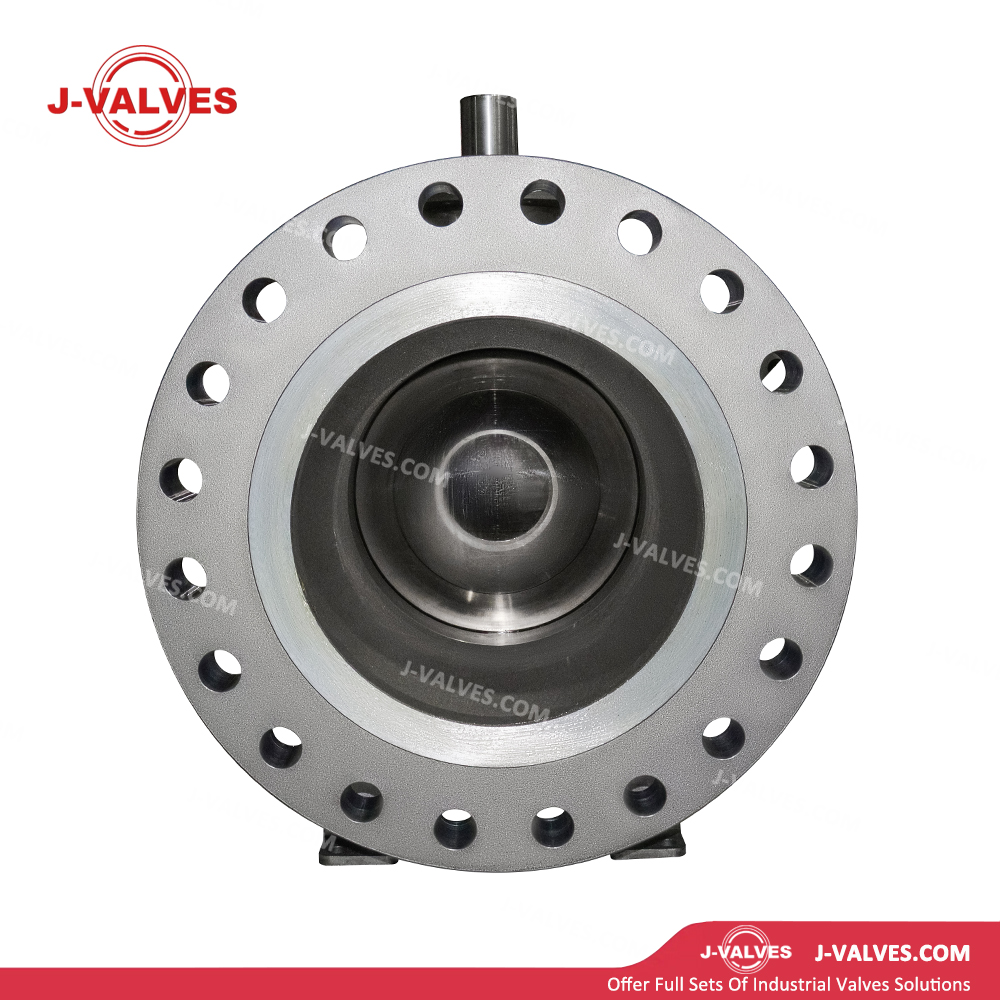

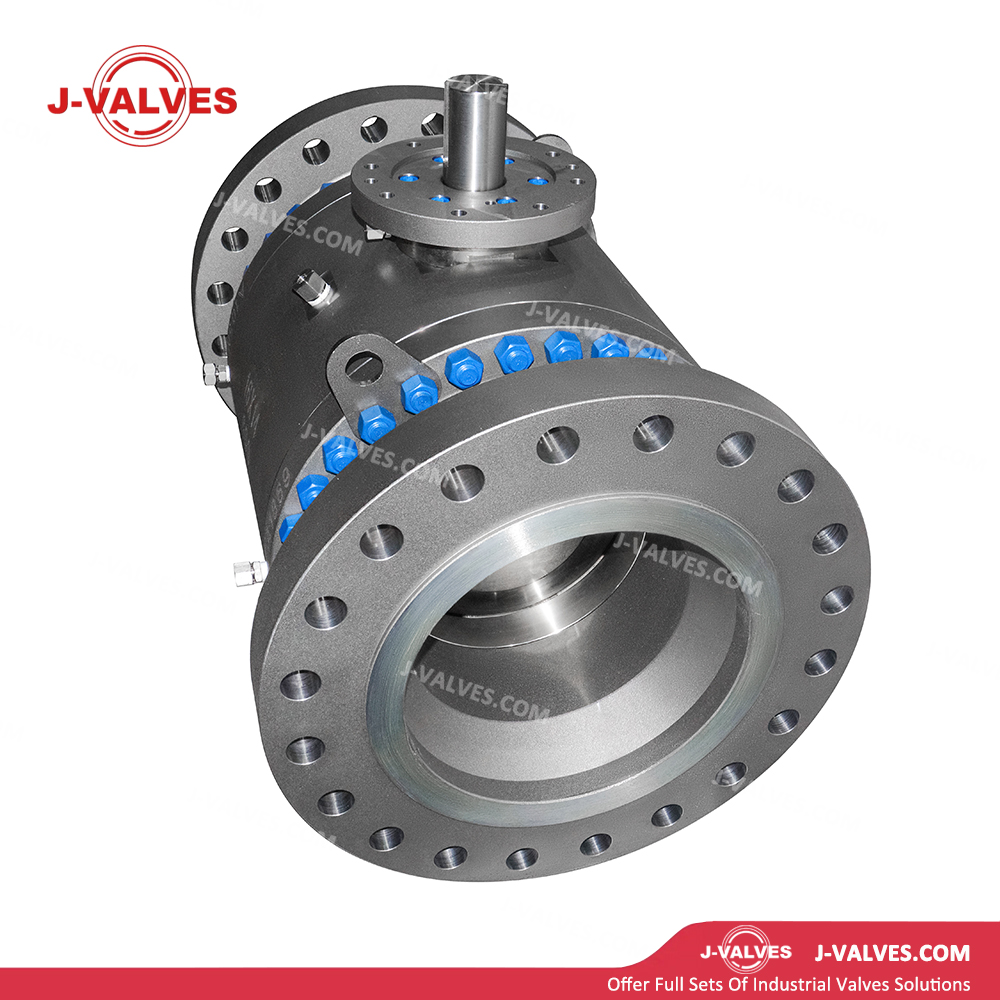

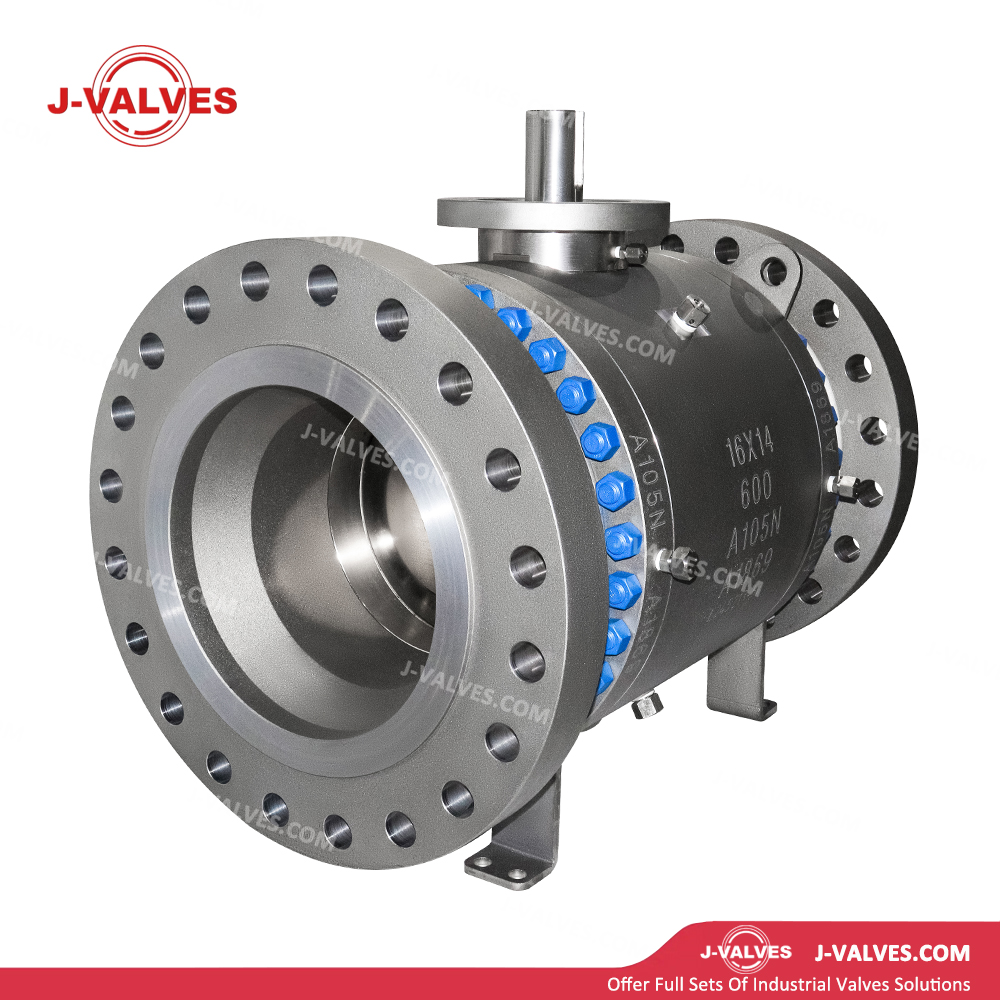

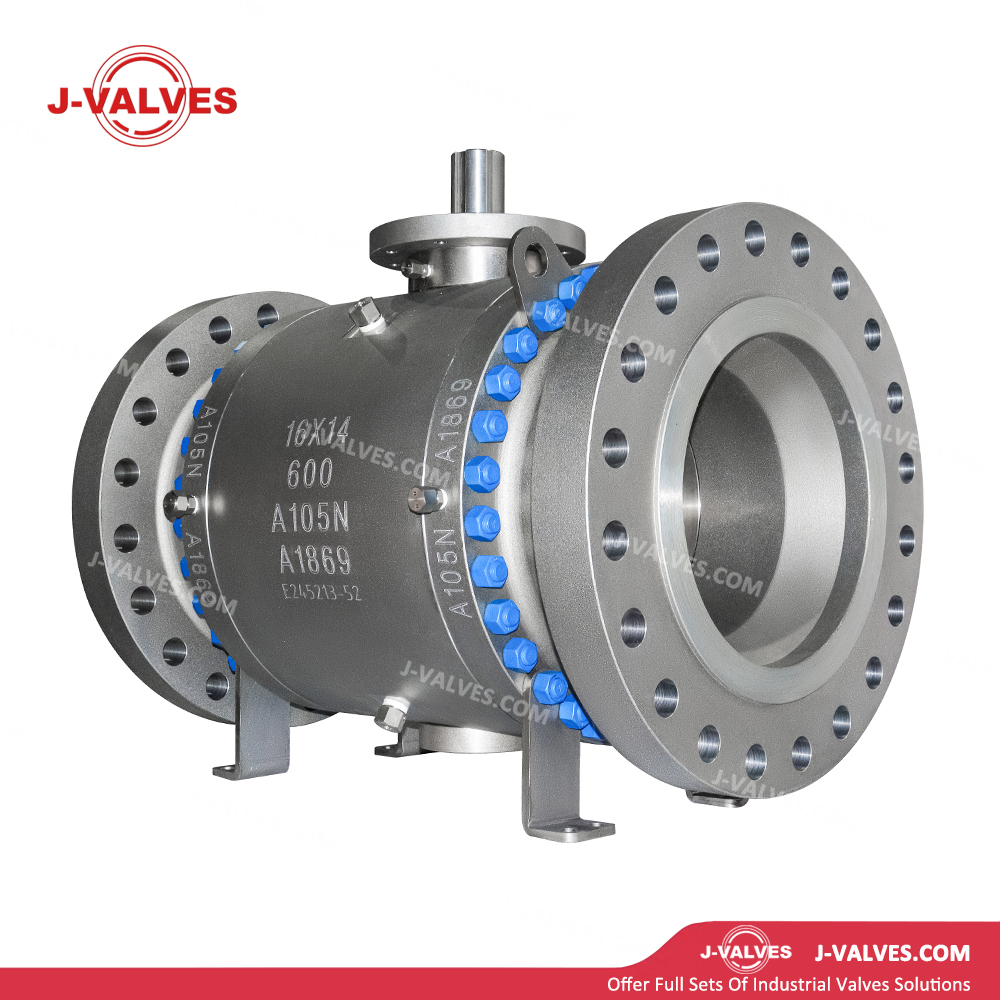

Made in China, J-Valves’ carbon trunnion mounted 3PC Toggle Double Flange Ball Valve shines. Carbon material resists corrosion. Trunnion mount boosts stability. 3PC Toggle Double Flange design eases installation and maintenance, ensuring reliable fluid control.
| Porduct Name | J-Valves Made in China 600lb Stainless Steel F316/F304 Trunnion Mounted 3PC Flange End Ball Valve |
| Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
| Size | 2"-24"(DN100-DN600) |
| Port | Full Port |
| Working Pressure | 150LB/300LB |
| Connection Ends | RF |
| Working Temp. | -20ºC~200ºC |
| Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
| Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
| Design standard | API6D/API608/API607 |
| Inspection&Testing | According to API598 |
| Brand | J-VALVES |
Advantages:
Made in China Quality: Relying on China's strong manufacturing foundation, it has unique advantages in process control and cost control. It can ensure the stability of product quality and has price competitiveness, providing customers with cost-effective options.
Characteristics of Carbon Material: The use of carbon material endows it with excellent strength and wear resistance, enabling it to adapt to various complex working conditions, effectively resist medium erosion, and extend the service life of the valve.
Trunnion Mounted Design: The trunnion mounting method makes the installation and disassembly of the valve more convenient, reducing the difficulty and time cost of on-site maintenance. During operation, it can better bear the pipeline stress and ensure the stable operation of the valve.
Three-Eccentric Structure: The unique three-eccentric design can achieve reliable sealing performance, effectively reducing the risk of leakage. Even under high-pressure and high-temperature working conditions, it can be tightly closed to ensure the safe operation of the system.
Double Flange Connection: The double flange connection facilitates quick connection with the pipeline system, enhancing the connection firmness. It is also suitable for pipelines of different diameters, providing high installation flexibility.
Advantages of Ball Valve Structure: The contact area between the ball and the valve seat is small, resulting in low opening and closing torque, effortless operation, and small flow resistance. It has little impact on the medium flow rate and can meet the requirements of large-flow transmission.
Applications:
Petrochemical Field: It is used in the pipeline for transporting crude oil, natural gas, and various chemical raw materials. It can accurately control the medium flow, cope with high-temperature, high-pressure, and corrosive medium environments, and ensure the continuity and safety of the production process.
Power Industry: In the cooling water system and steam transmission system of thermal power plants and nuclear power plants, it can reliably adjust the water and steam flow, maintain the normal operating temperature and pressure of the equipment, and contribute to the stable power generation.
Natural Gas Transmission Pipeline Network: It is widely used in distribution stations and regulator stations along the line to precisely regulate the natural gas flow, meet the requirements of long-distance and large-diameter transmission, and ensure stable and reliable gas supply.
Industrial Automation Production Line: As a key actuator in the automation control system, it can quickly respond to the control system commands, accurately switch the medium flow direction, and help the production line operate efficiently.
Municipal Water Supply and Sewage Treatment: In the process pipelines of urban water supply pipelines and sewage treatment plants, it can effectively control the water flow. The corrosion-resistant material ensures long-term stable operation, meeting the urban water use and environmental protection requirements.
